AutoMeter 200705 - Marine White 5in Gauge Quad
AutoMeter 200705 - Marine White 5in Gauge Quad
SKU: AM-200705
Out of stock
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

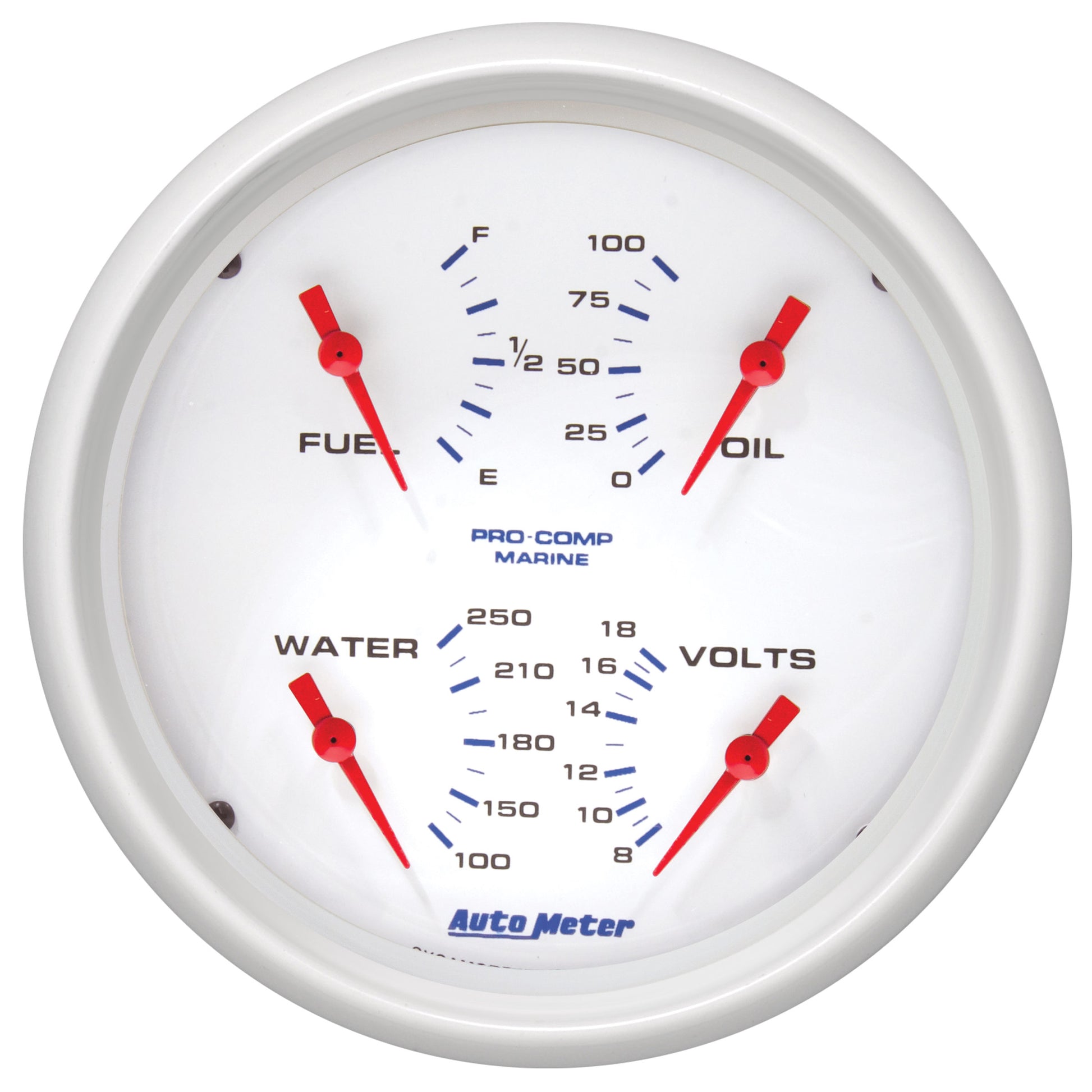

AutoMeter 200705 - Marine White 5in Gauge Quad
5" QUAD GAUGE, 100 PSI/100-250 F/8-18V/240-33 Ohm, MARINE WHITE
5in. QUAD GAUGE; 100 PSI/100-250 F/8-18V/240-33 ?; MARINE WHITE
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 in. NPT temperature sender and a 1/8 in. NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8 NPT pressure sender, 1/4 NPT adapter, 1/8 NPT temperature sender, 3/8 and 1/2 NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every electrical system
