AutoMeter 1714 - Auto Meter Gauge Quad 3 3/8in 0E-90F Elec Old Tyme Black
AutoMeter 1714 - Auto Meter Gauge Quad 3 3/8in 0E-90F Elec Old Tyme Black
SKU: AM-1714
Out of stock
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

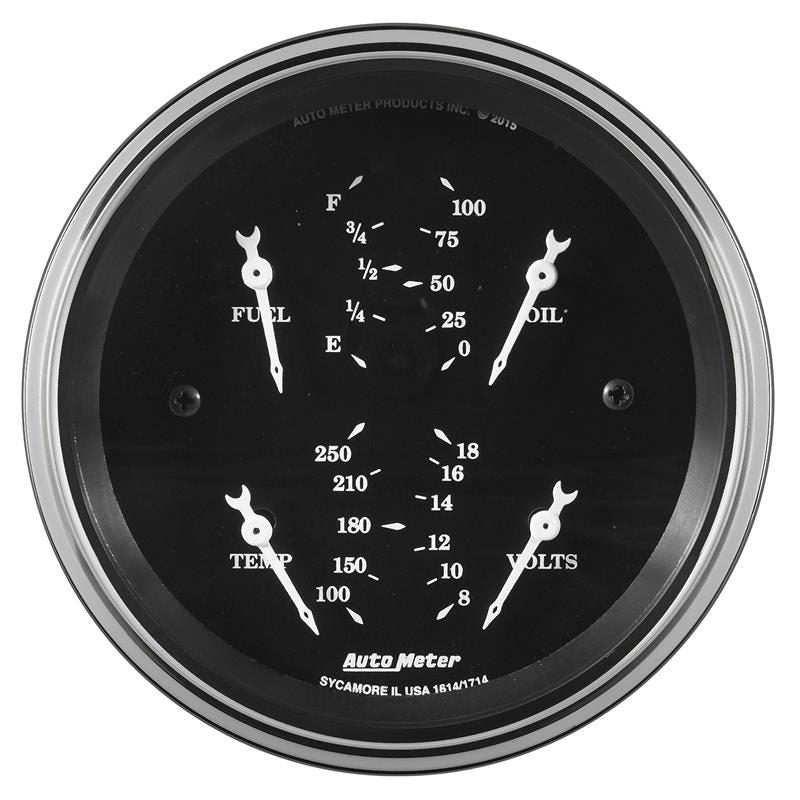

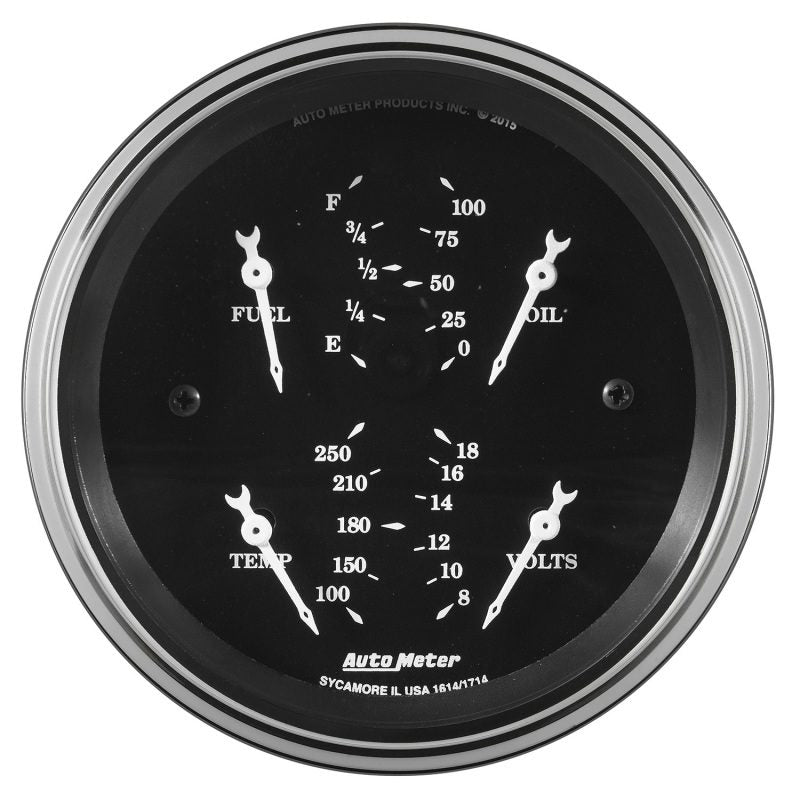

AutoMeter 1714 - Auto Meter Gauge Quad 3 3/8in 0E-90F Elec Old Tyme Black
GAUGE; QUAD; 3 3/8in.; 0?E-90?F; ELEC; OLD TYME BLACK
Traditional incandescent lighting illuminates around the perimeter of the dial
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 in. NPT temperature sender and a 1/8 in. NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60's through mid 90's GM fuel level senders).
- Incandescent Lighting Illuminates Around Perimeter Of Dial
- 4 In 1 Gauge Design
- 12 And 16V Compatible
- Provide Quick And Accurate Readings
- Incl. NPT Pressure Sender/NPT Adapter/NPT Temp Sender
- Incl. NPT Adapters/Bulb And Socket Assembly
- Incl. Red/Green Bulb Covers/Mounting Hardware
