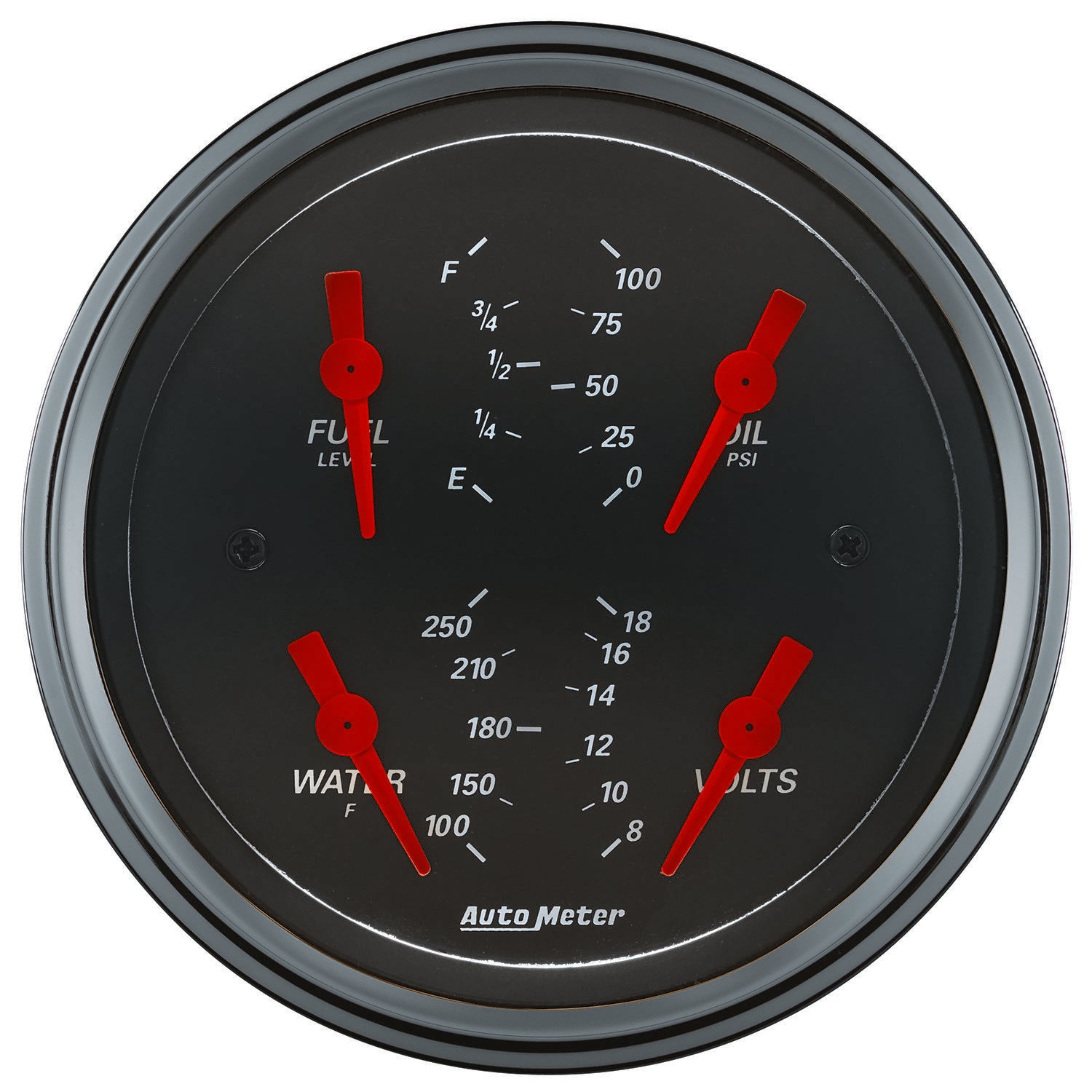

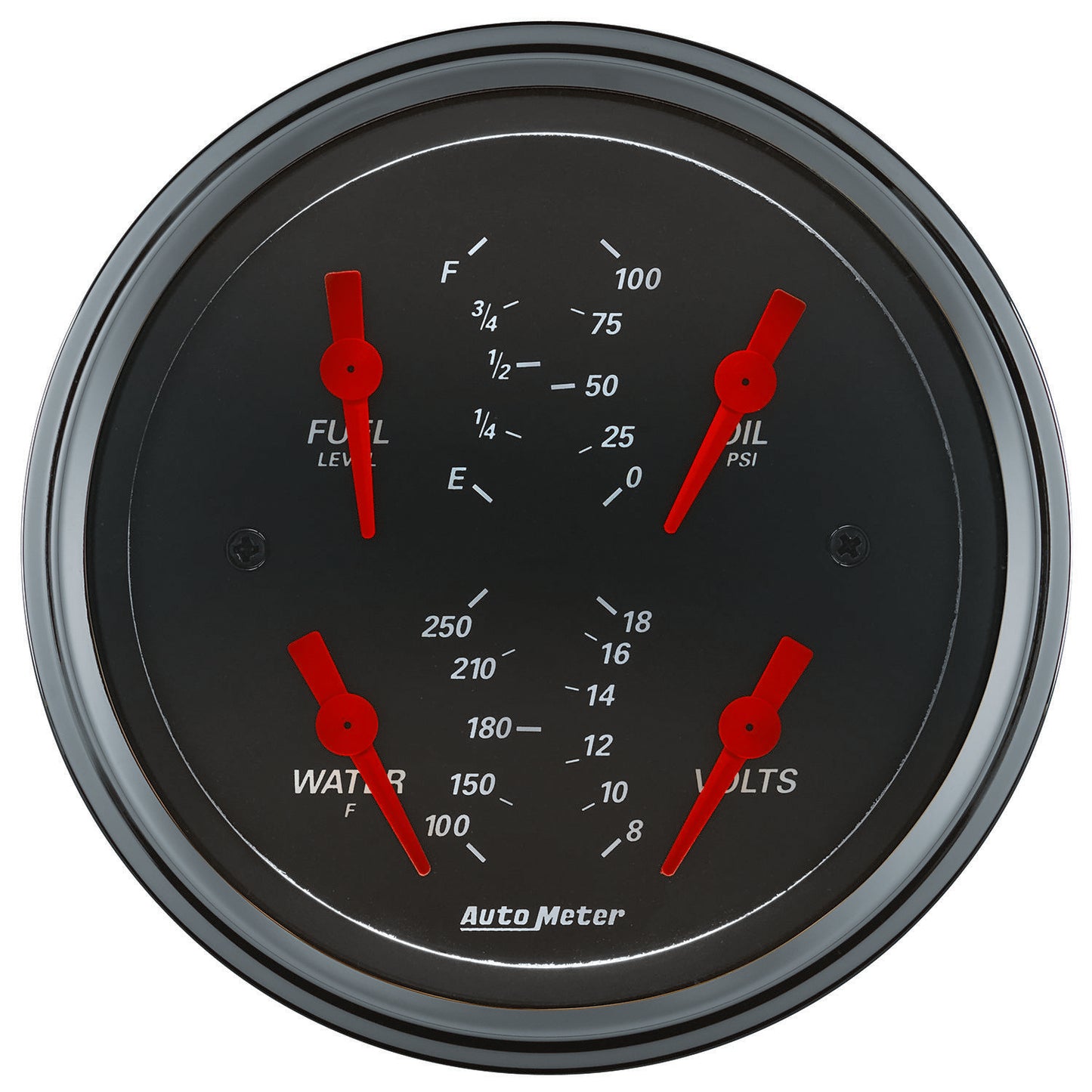

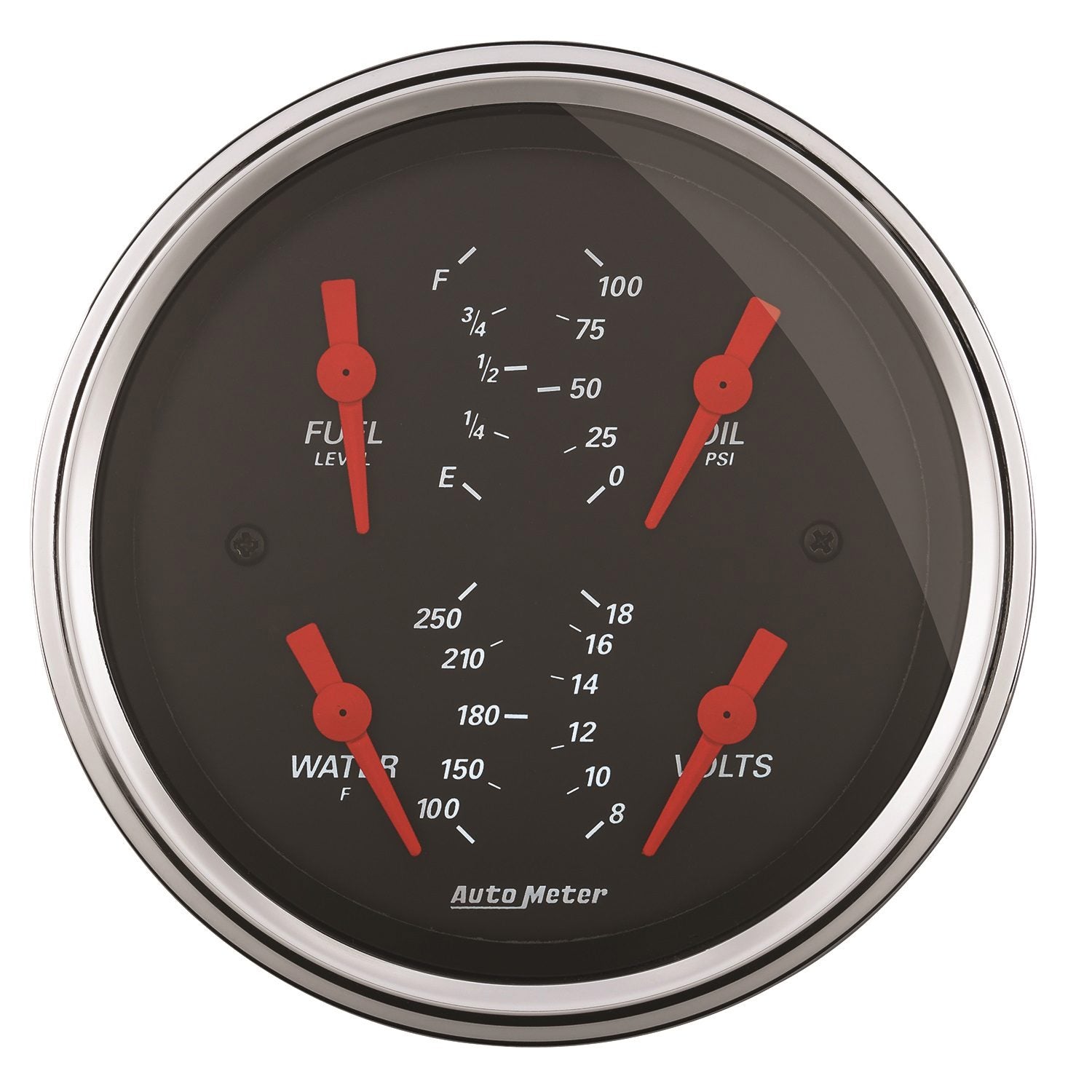

AutoMeter 1414 - Designer Black 3.375in Quad Gauge - Fuel Level / Oil Pressure / Water Temp. / Voltmeter

AutoMeter 1414 - Designer Black 3.375in Quad Gauge - Fuel Level / Oil Pressure / Water Temp. / Voltmeter

GAUGE; QUAD; 3 3/8in.; 0?E-90?F; ELEC; DESIGNER BLACK

Traditional incandescent lighting illuminates around the perimeter of the dial

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 in. NPT temperature sender and a 1/8 in. NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60's through mid 90's GM fuel level senders).

• Domed Lens
• Quality Construction
• Black Chrome Bezel
• 1 Year Limited Warranty
• Traditional Incandescent Lighting Illuminates Perimeter Of Dial
• 12 And 16 Volt Compatible
• 4-1 Gauge Design Saves Valuable Real Estate
• Incl. 1/8 in. NPT Pressure Sender; 1/4 in. NPT Adapter
• Incl. 1/8 in. Temp Sender
• Incl. 3/8 And 1/2 in. NPT Adapters
• Incl. Bulb And Socket Assembly; Red/Green Bulb Covers
• Incl. Mounting Hardware/Installation Instructions
