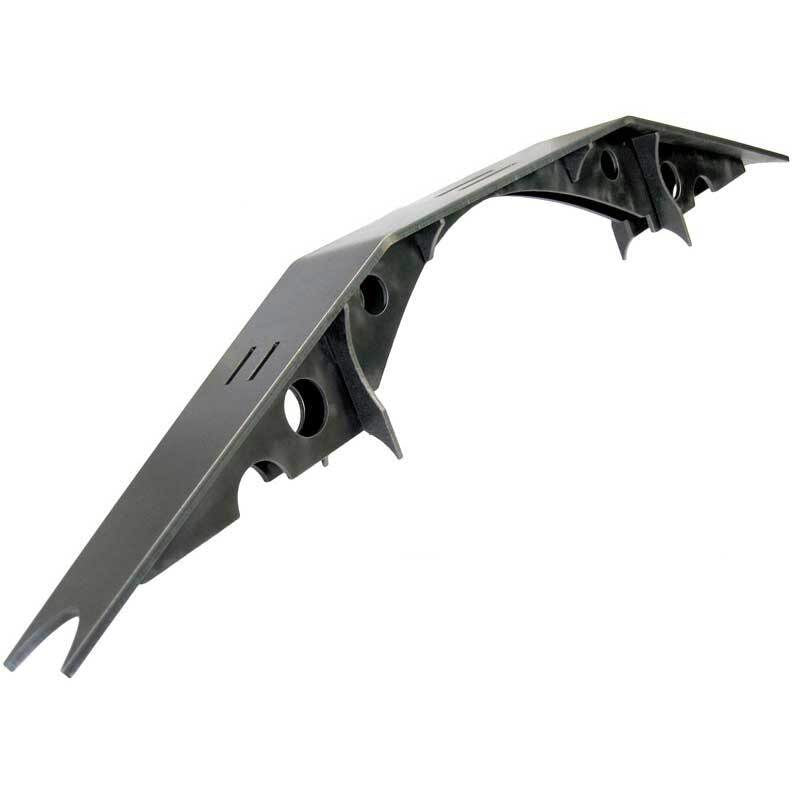

Artec Industries TR1101 - AAM 11.5 Rear Truss 3.5 Inch Tube

Artec Industries TR1101 - AAM 11.5 Rear Truss 3.5 Inch Tube

Artec Industries' AAM 11.5 Rear Axle Truss is built to handle serious abuse and reinforce the entire axle, while offering a flat surface for upper link mounting. The 3/8 inch thick truss top and 1/4 inch thick gussets feature a unique design to fortify both the axle and the link mounting surface. With the ability to select pinion angles from 7 to 20 degrees, trimming may be required for more or less. This truss is compatible with AAM 11.5 axles with a centered differential and a total length of about 53 inches.

Features:

• 3/8 inch thick mild steel truss top and 1/4 inch mild steel gussets
• Precision CNC cut and bent for great fitment
• Low profile design allows for ideal link joint geometry (9 inches from axle centerline)
• Truss spans entire length of axle for complete reinforcement of axle tubes
• Interlocked 1/4 thick gussets for maximum strength and easy assembly
• Sleek design makes for easier fitting and less interference with vehicle components
