Artec Industries - BR1070

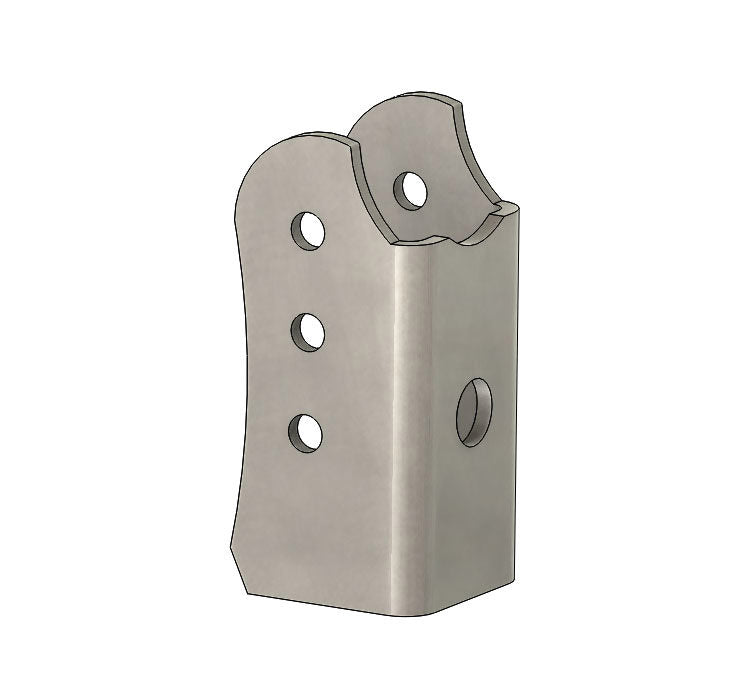

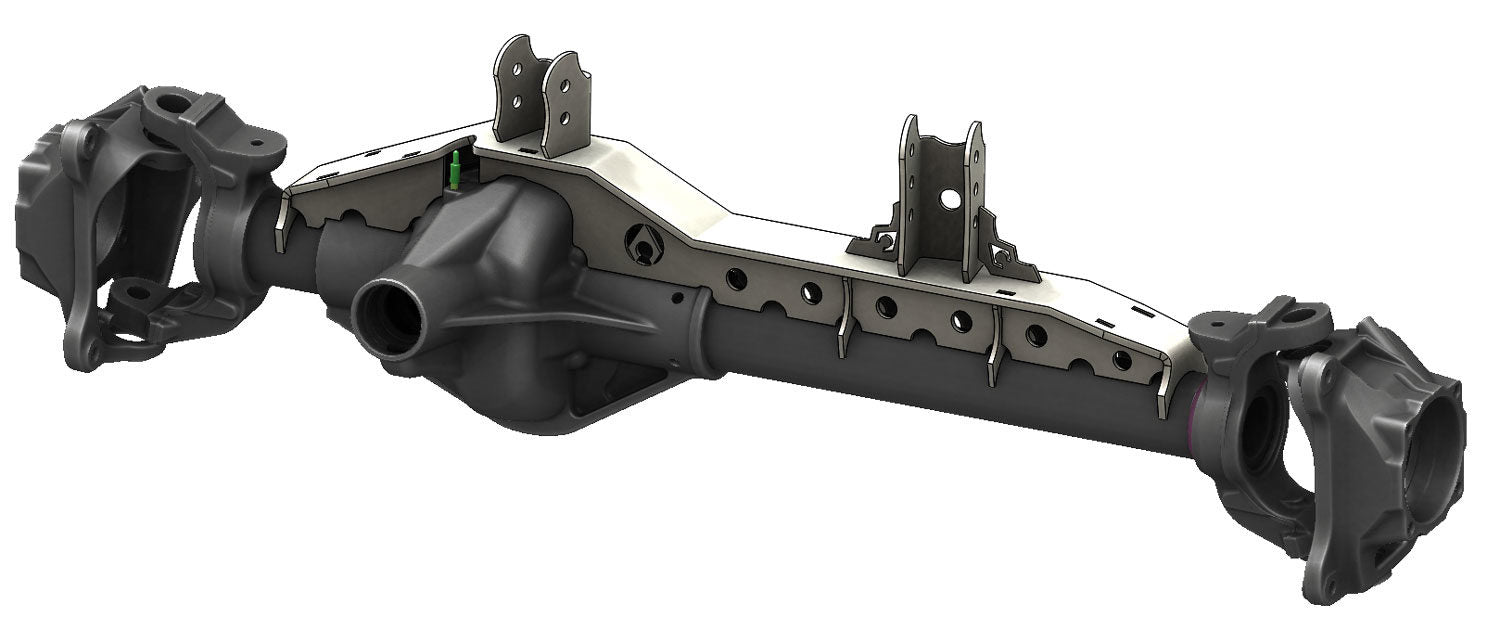

Tall Adjustable Truss Upper Link Mount. This Tall Link Mount is designed to mount on a flat surface such as a truss. The bend strengthens the mount so no additional reinforcement is needed. When used on our Low profile Front Truss the top hole is 10 inches of separation from axle center line.
Details:
- Sold as Each
- They are CNC cut and bent from 1/4 inch thick mild steel.
- Joint Mounting Width: 2.63 inch
- Hole heights are 2.5 inch, 4.0 inch and 5.5 inch above bracket base.
- Use Inch conjunction with BR1065 (1.75 inch), BR1066 (2.0 inch) or BR1067 (2.63 inch) mounts to complete the set For your 4 Link UCA mounting.

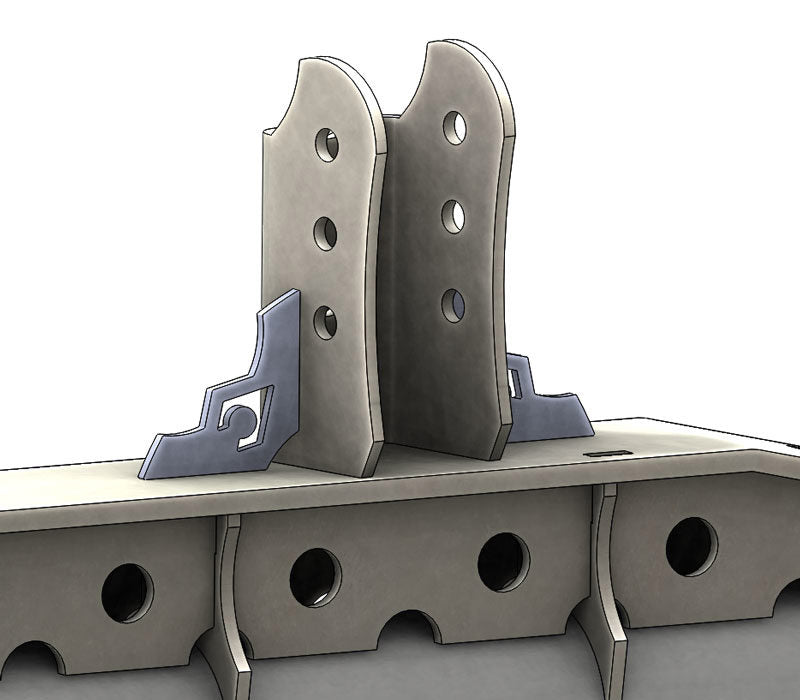

- Available Inch a Kit with 2 gussets
