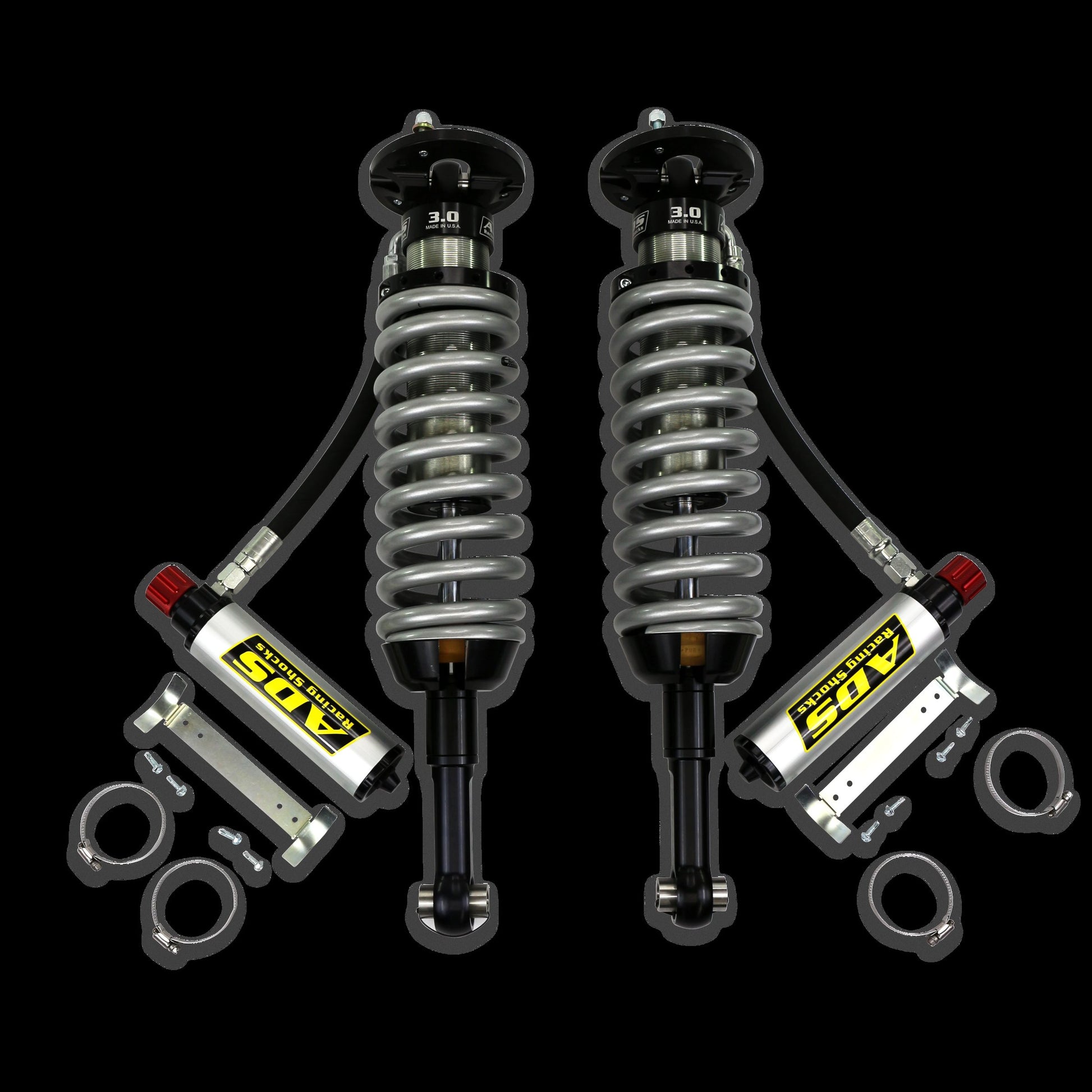

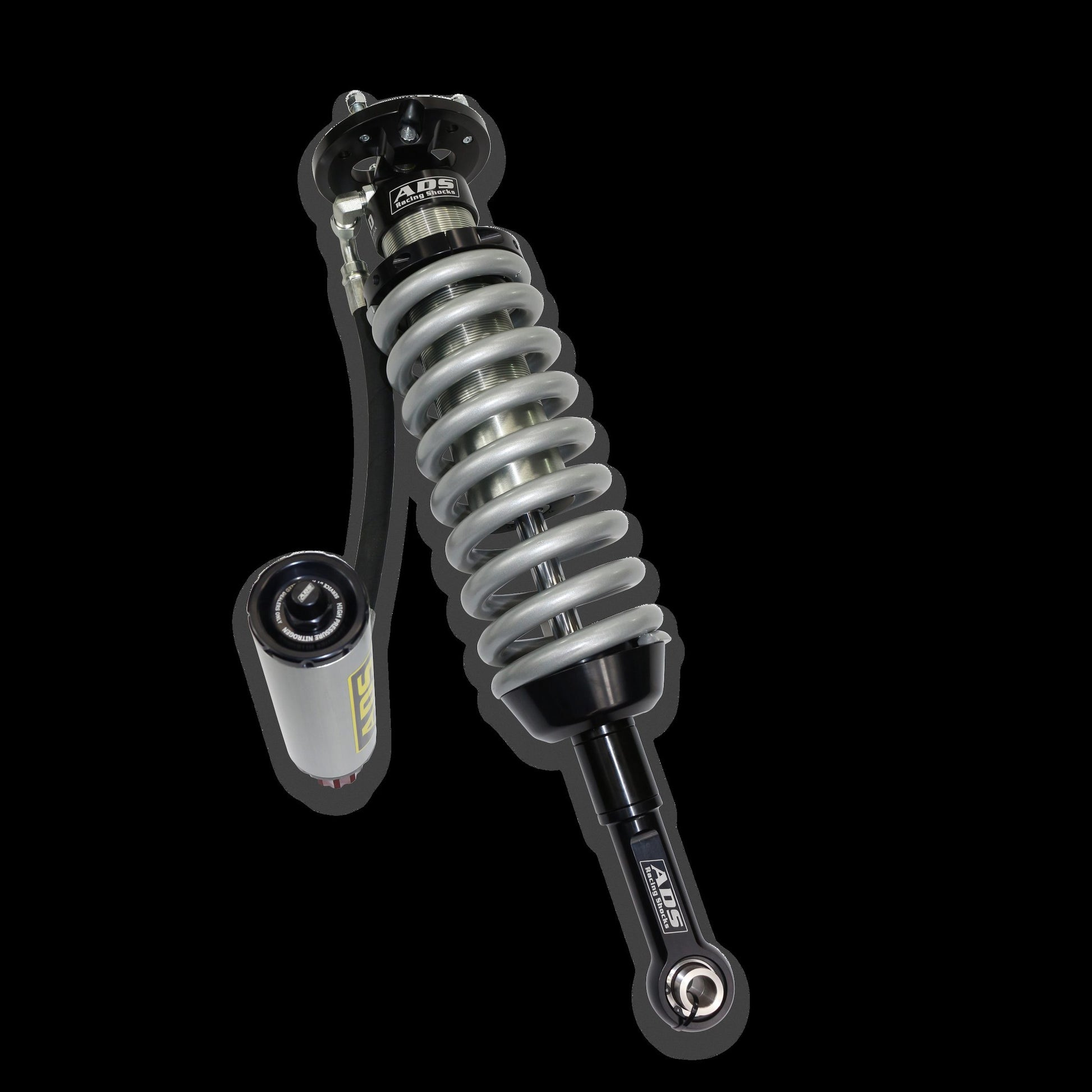

Arizona Desert Shocks 300-10RTF-A00 - ADS Direct Fit 3 in. Adjustable Reservoir Race Coilovers - Front

Arizona Desert Shocks 300-10RTF-A00 - ADS Direct Fit 3 in. Adjustable Reservoir Race Coilovers - Front

Arizona Desert Shocks | 300-10RTF-A00
SKU: GRML-300-10RTF-A00
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Arizona Desert Shocks 300-10RTF-A00 - ADS Direct Fit 3 in. Adjustable Reservoir Race Coilovers - Front

ADS Direct Fit 3 in. Adjustable Reservoir Race Coilovers - Front

Fits 2010-2014 Ford F-150 SVT Raptor - Provides 1-3 in. Front Lift

Take control of front ride height and damping with ADS 3.0" race-bred coilovers featuring external reservoirs for thermal stability and wide adjustability. Engineered as a bolt-on system for the 2010–2014 Raptor, they deliver precise wheel control, improved bottom-out resistance, and composed high-speed performance while offering 1–3 inches of lift for tire clearance and stance—built from premium materials to survive heavy off-road use.

  • Large Bore 3.0 shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
  • Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance.

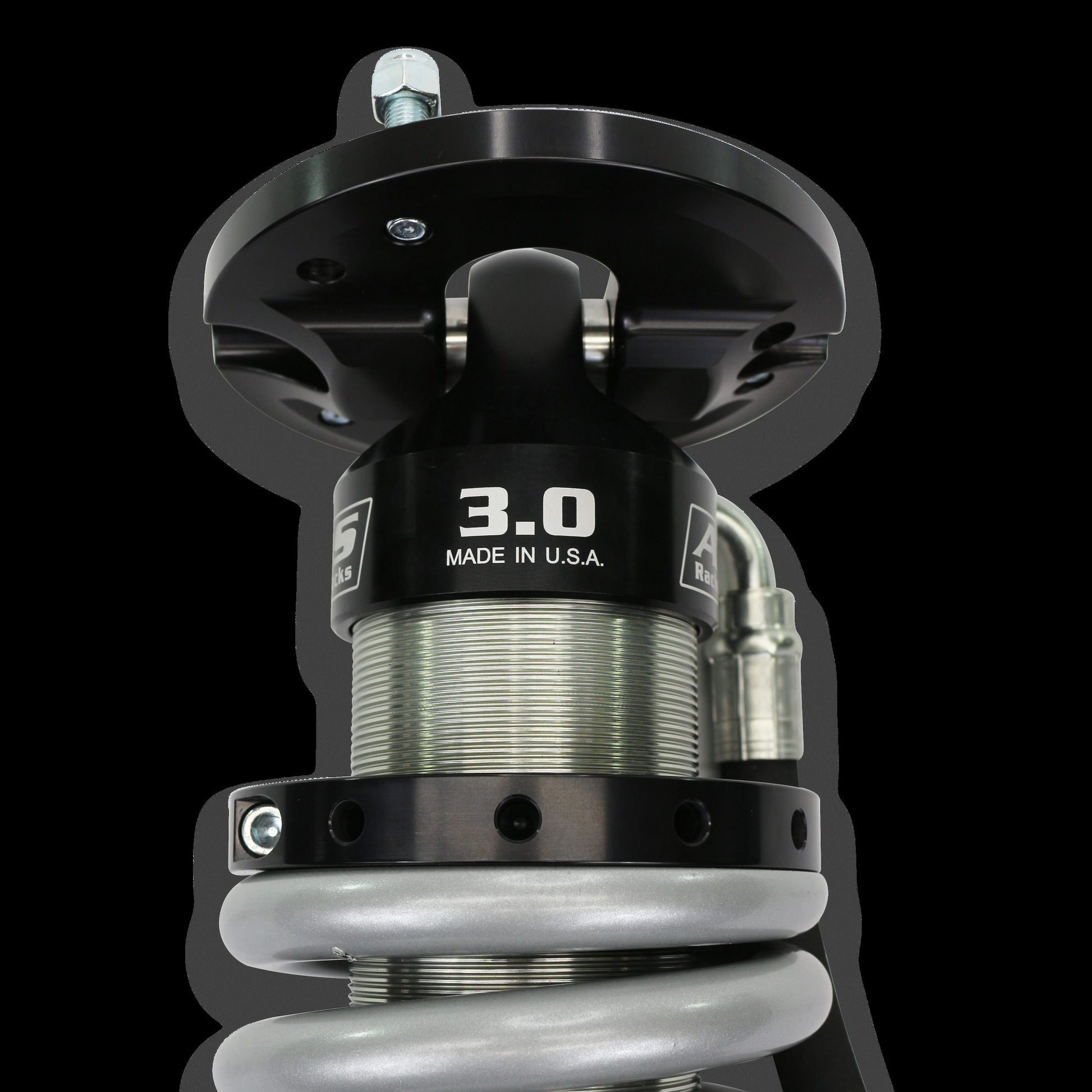

  • Black anodized billet aluminum top and bottom caps
  • Hard-chrome plated steel shock shafts for superior corrosion resistance

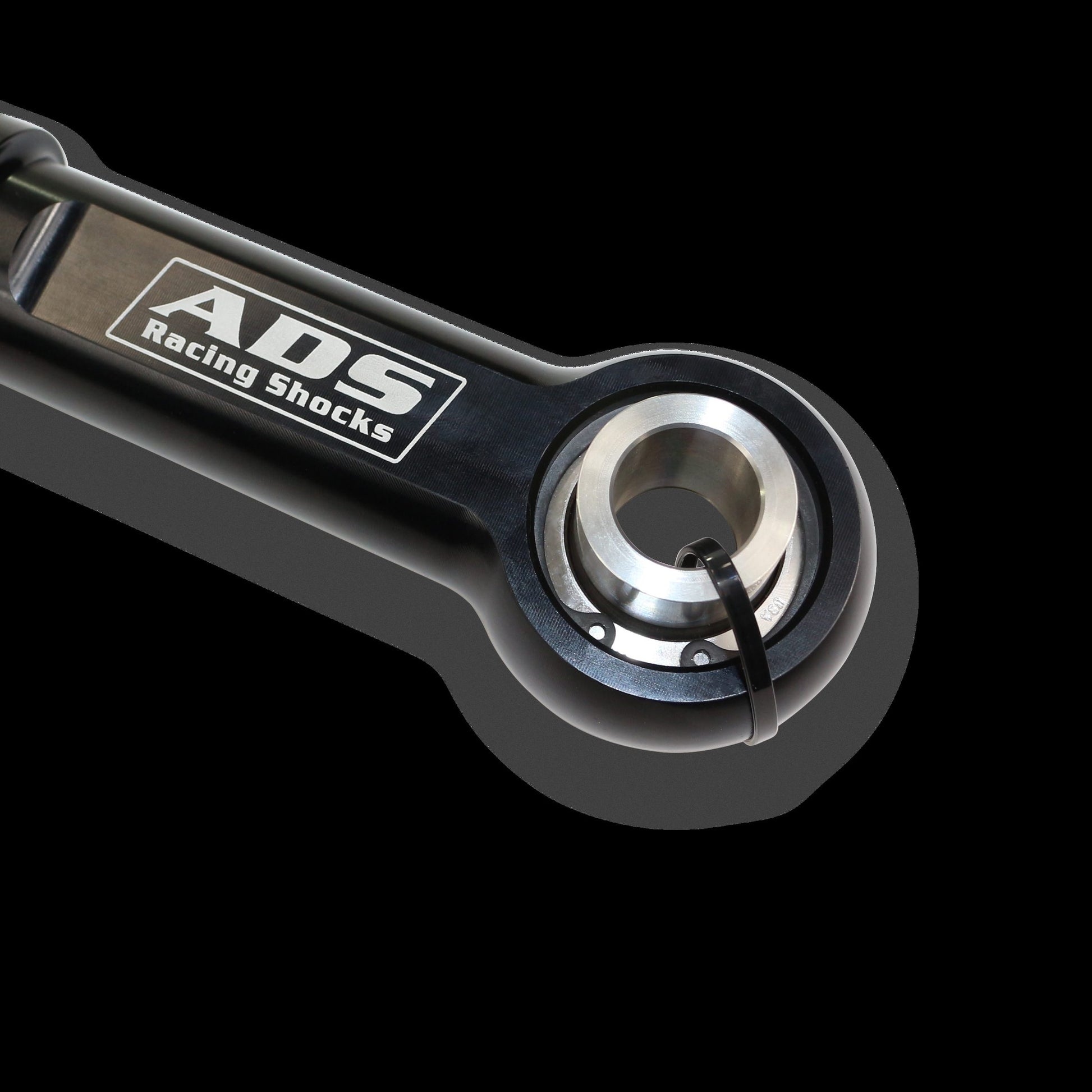

  • Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
  • Shaeffer’s high grade temperature stable synthetic hydraulic fluid
  • Fully rebuildable
  • Made in America
Active or Passive Suspension: Passive
Adjustable Compression: Yes
Adjustable Rebound: Yes
Adjustable Reservoir: Yes
Adjustable Ride Height: No
Body Color: Silver
Body Diameter: 3
Body Finish: Electric zinc plated w/ Ceramic coat
Body Material: Steel
Boot Included: No
Brand: ADS
Category: Suspension
Collapsed Length: 20.975
Drivetrain: 4WD
Emission Code: 6
Extended Length: 26.956
Gas Charged: Yes
Grade Type: Performance
Hose Length: 16
Hose Material: Rubber
Hose Outer Diameter: 0.875
Includes Bump Stop: Yes
Internal Construction Type: Mono tube
Internal Rebound Bumper: No
Internal Rebound Spring: No
Lift Range: 1.5-3
Lower Mount Type: Eyelet
Mounting Hardware Included: Yes
part type: Suspension Shock Absorber and Coil Spring Assembly
Position: Front
Quantity: Sold as a pair
Requires UCA: No
Reservoir Color: Silver

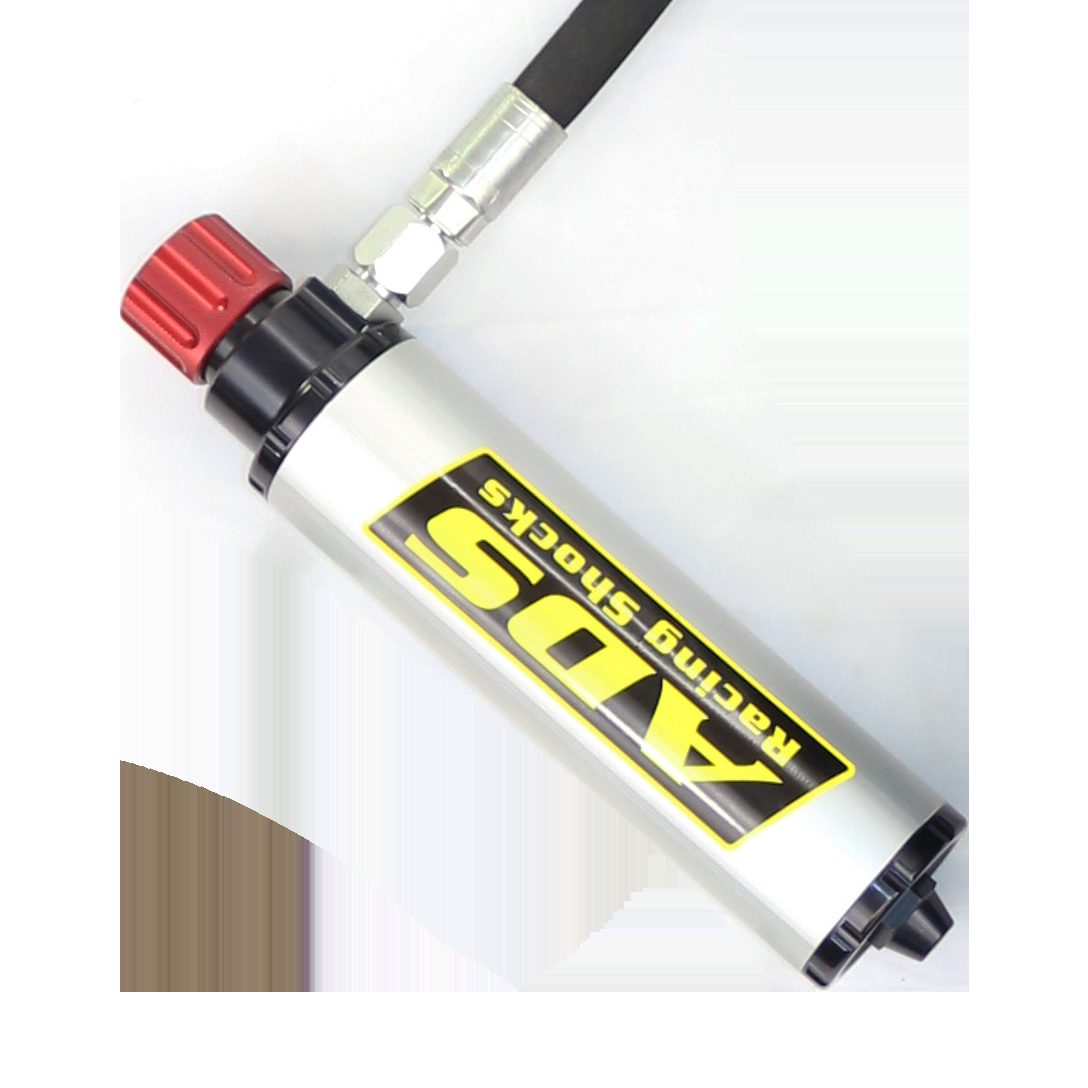

Reservoir Diameter: 2.5
Reservoir Finish: Anodized
Reservoir Length: 8
Reservoir Material: 6061 Aluminum
Reservoir Type: Remote
Shaft Diameter: 0.875
Shaft Material: Hard-chrome plated steel
Shock Travel: Extended Travel
Spring Color: Silver
Spring Finish: Powdercoated
Spring Included: Yes
Spring Material: Steel
Spring Rate: 650
Stroke: 6
Sub Category: Shocks and Struts
Travel Length: 5.980999999999998
Type: Smooth Body
Upper Mount Type: Mounting Plate
Valving Type: Progressive
Weight: 90
