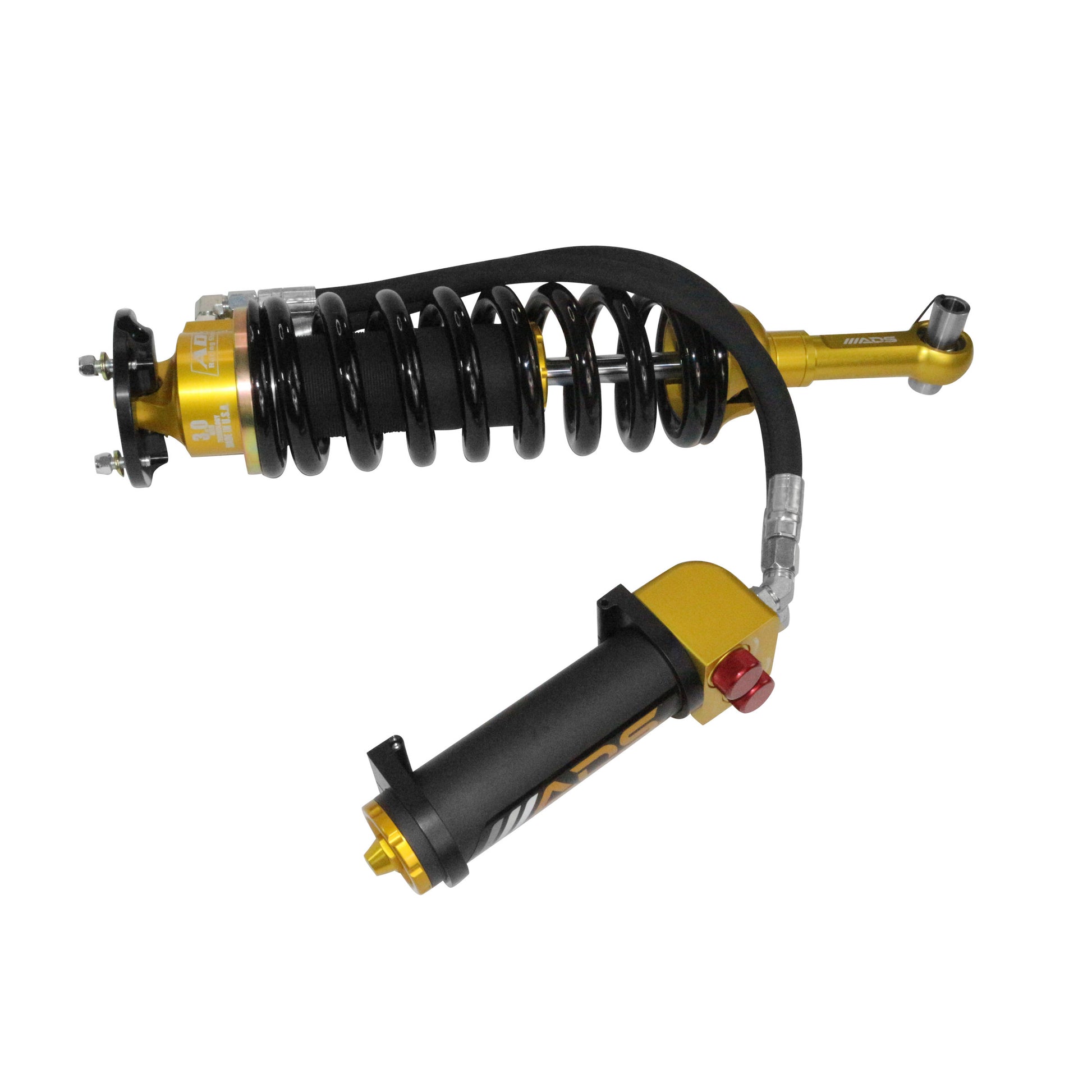

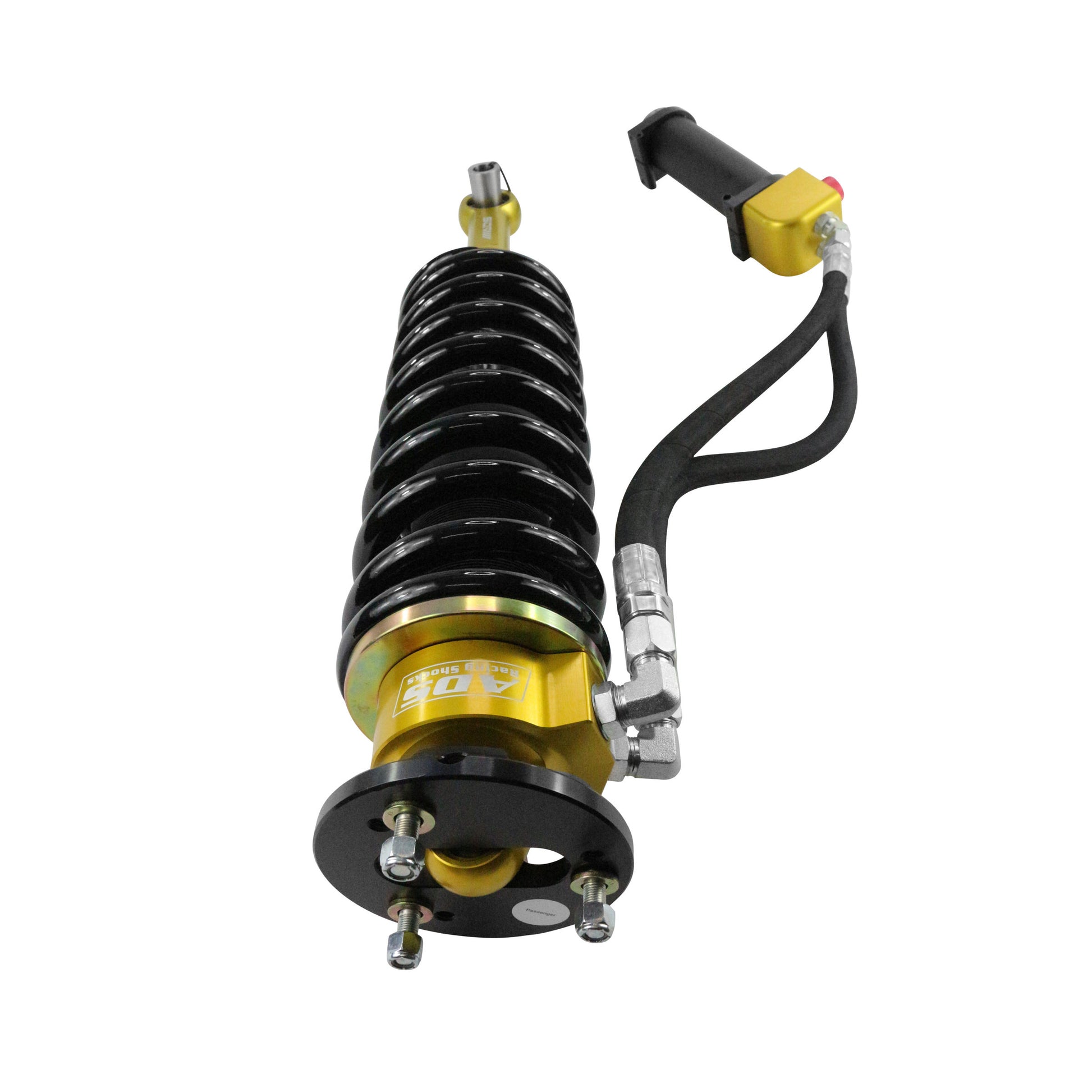

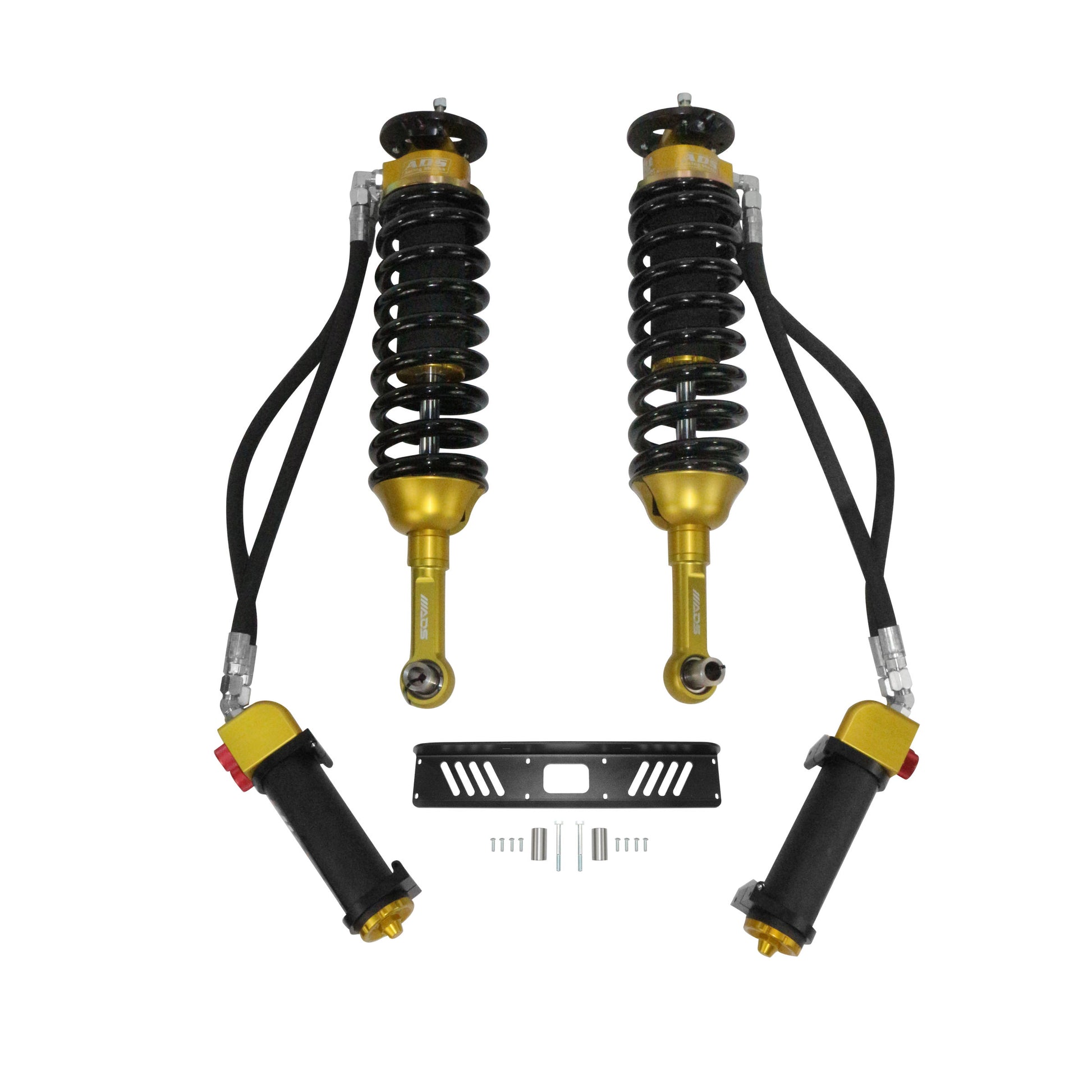

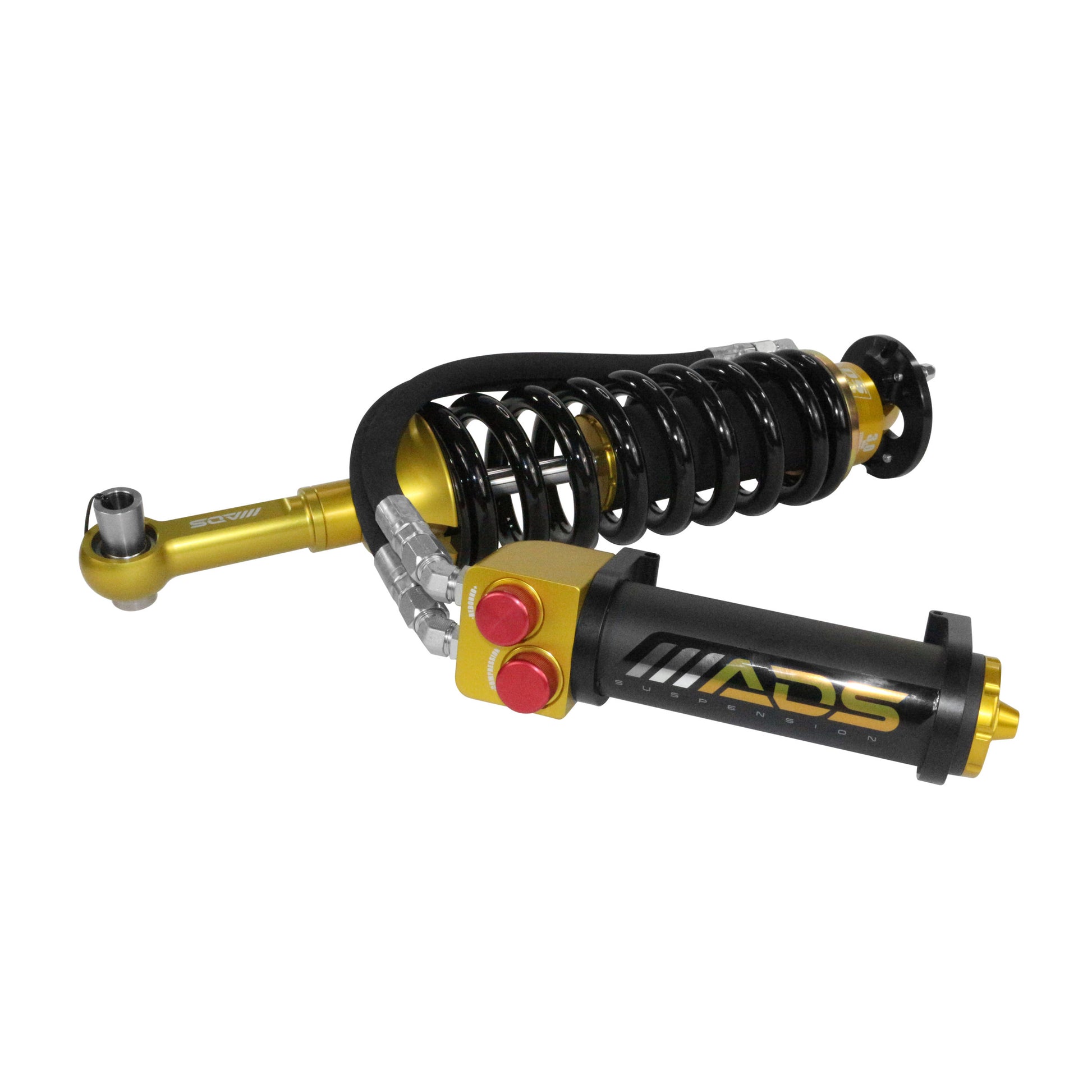

Arizona Desert Shocks - 300-0TRXF-MBR
ADS Direct Fit MBR Race Coilovers - Front
2021-2024 Ram 1500 TRX, 0-1 in. Lift
Furthermore, large 2.5" reservoirs increase fluid capacity to aid in cooling, while high-temperature seals prevent blow-by, ensuring consistent performance across a wide temperature range. Threaded end caps prevent contamination from external sources. Finally, a 3-stage urethane seal package delivers unmatched sealing performance, suitable for extreme cold snow-ridden trails and scorching deserts alike.
- · Large Bore 3.00-inch shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
- · True top-out zone provides both mechanical and hydraulic damping

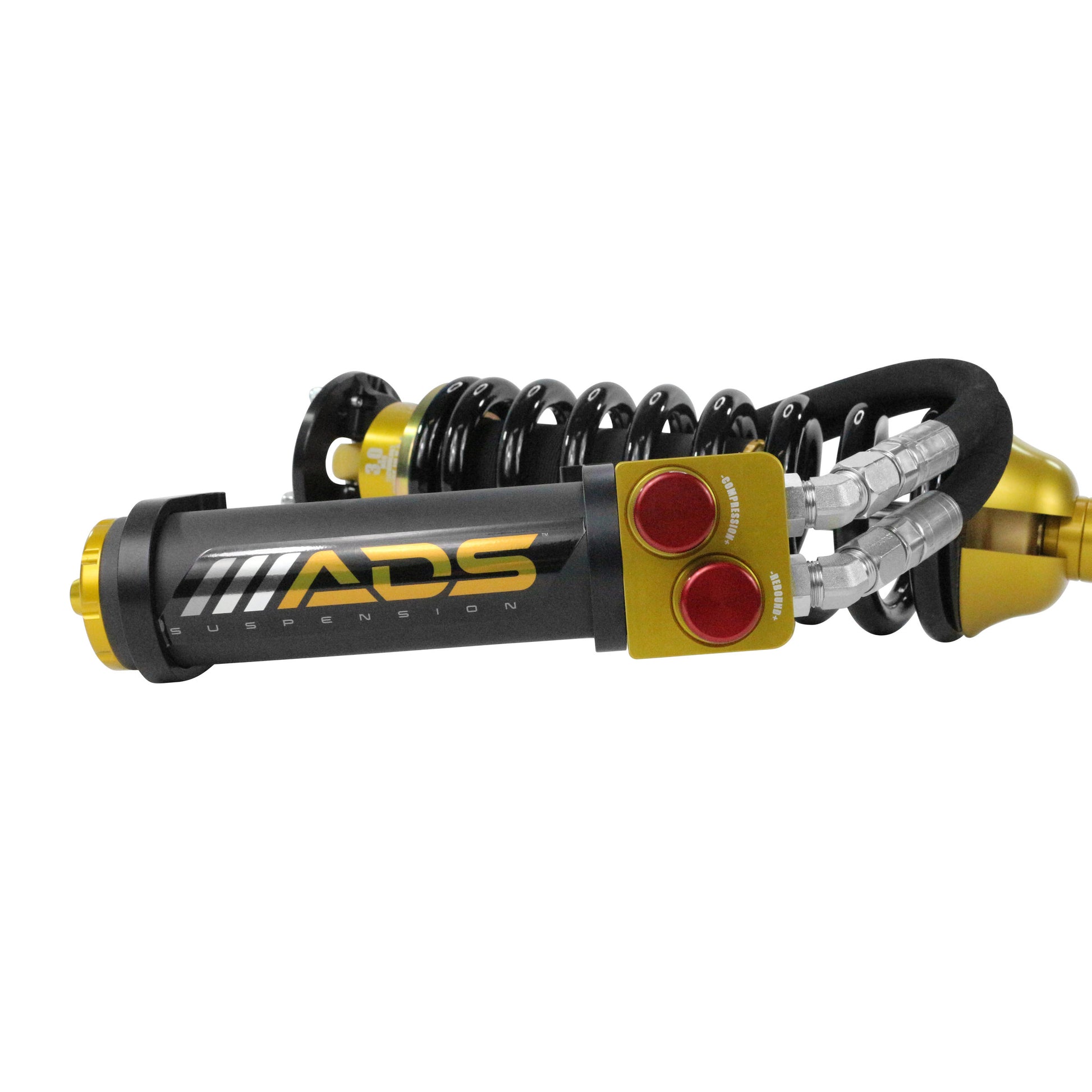

- · 4-way adjustable 2.50-inch external reservoirs connected to main body via dual-hose recirculation fluid path
- · Gold anodized billed aluminum topo and bottom caps
- · Hard-chrome plated steel shock shafts for superior corrosion resistance

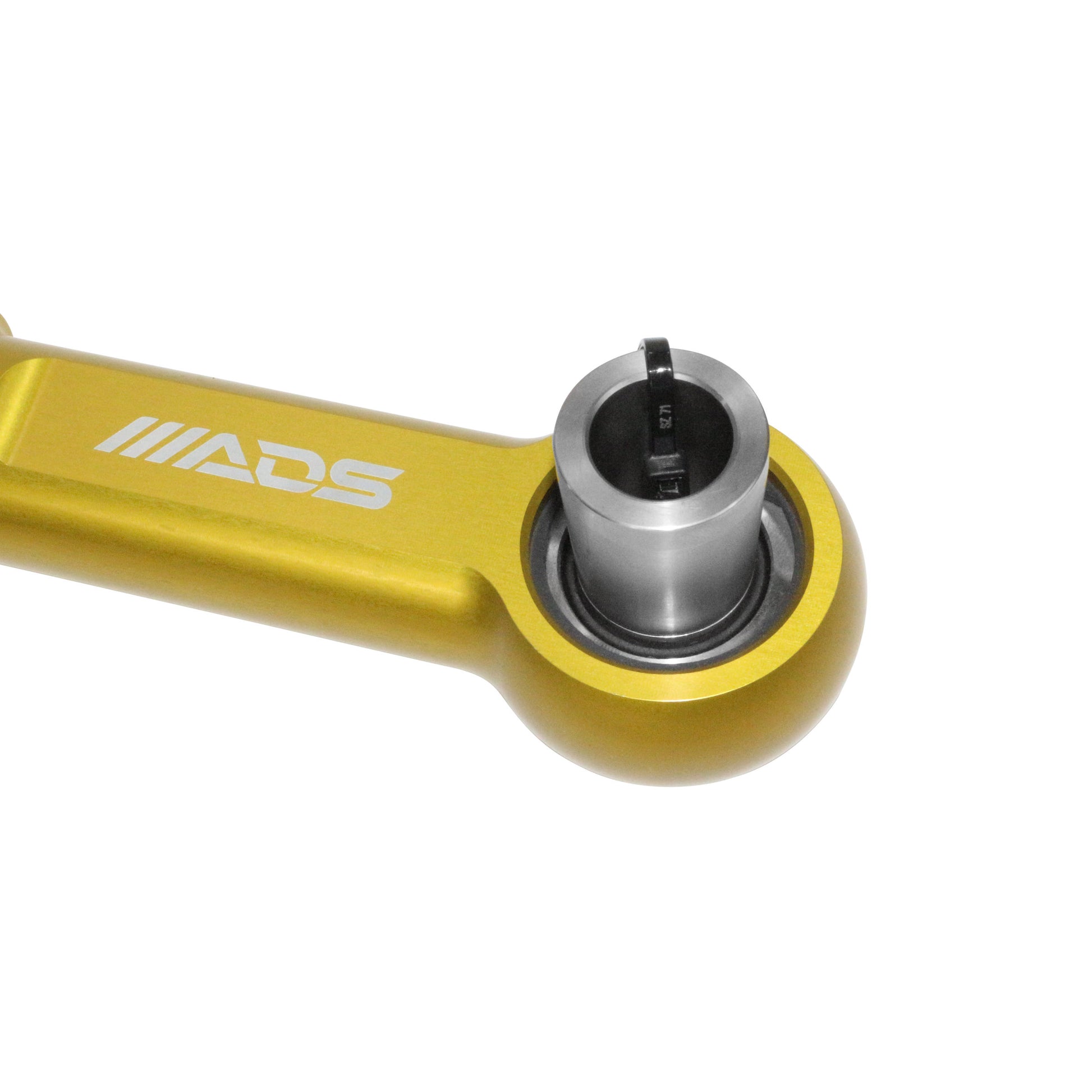

- · Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
- · Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance.
Active or Passive Suspension: Passive
Adjustable Compression: Yes
Adjustable Rebound: Yes
Adjustable Reservoir: Yes
Adjustable Ride Height: No
Body Color: Black
Body Diameter: 3
Body Finish: Ceramic coat
Body Material: Steel
Boot Included: No
Brand: ADS Racing Shocks
Category: Suspension
Collapsed Length: 19.32
Drivetrain: 4WD
Emission Code: 6
Extended Length: 25.9
Gas Charged: Yes
Grade Type: Performance
Hose Length: 24 & 25.75
Hose Material: Rubber
Hose Outer Diameter: 0.875
Includes Bump Stop: Yes
Internal Construction Type: Internal bypass
Internal Rebound Bumper: No
Internal Rebound Spring: No
Lift Range: 1
Lower Mount Type: Eyelet
Mounting Hardware Included: Yes
part type: Suspension Shock Absorber
Position: Front
Product Type: Internal bypass shock
Quantity: Sold as a pair
Requires UCA: Yes
Reservoir Color: Black
Reservoir Diameter: 2.5
Reservoir Finish: Ceramic coat
Reservoir Length: 8
Reservoir Material: 6061 Aluminum
Reservoir Type: Remote
Shaft Diameter: 0.875
Shaft Material: Hard-chrome plated steel
Shock Travel: 6.6
Spring Color: Black
Spring Finish: Powdercoated
Spring Included: Yes
Spring Material: Steel
Spring Rate: 700
Sub Category: Shocks and Struts
Travel Length: 6.6
Upper Mount Type: Mounting Plate
Valving Type: Progressive
Weight: 44.5
