Arizona Desert Shocks - 100ADS-10083

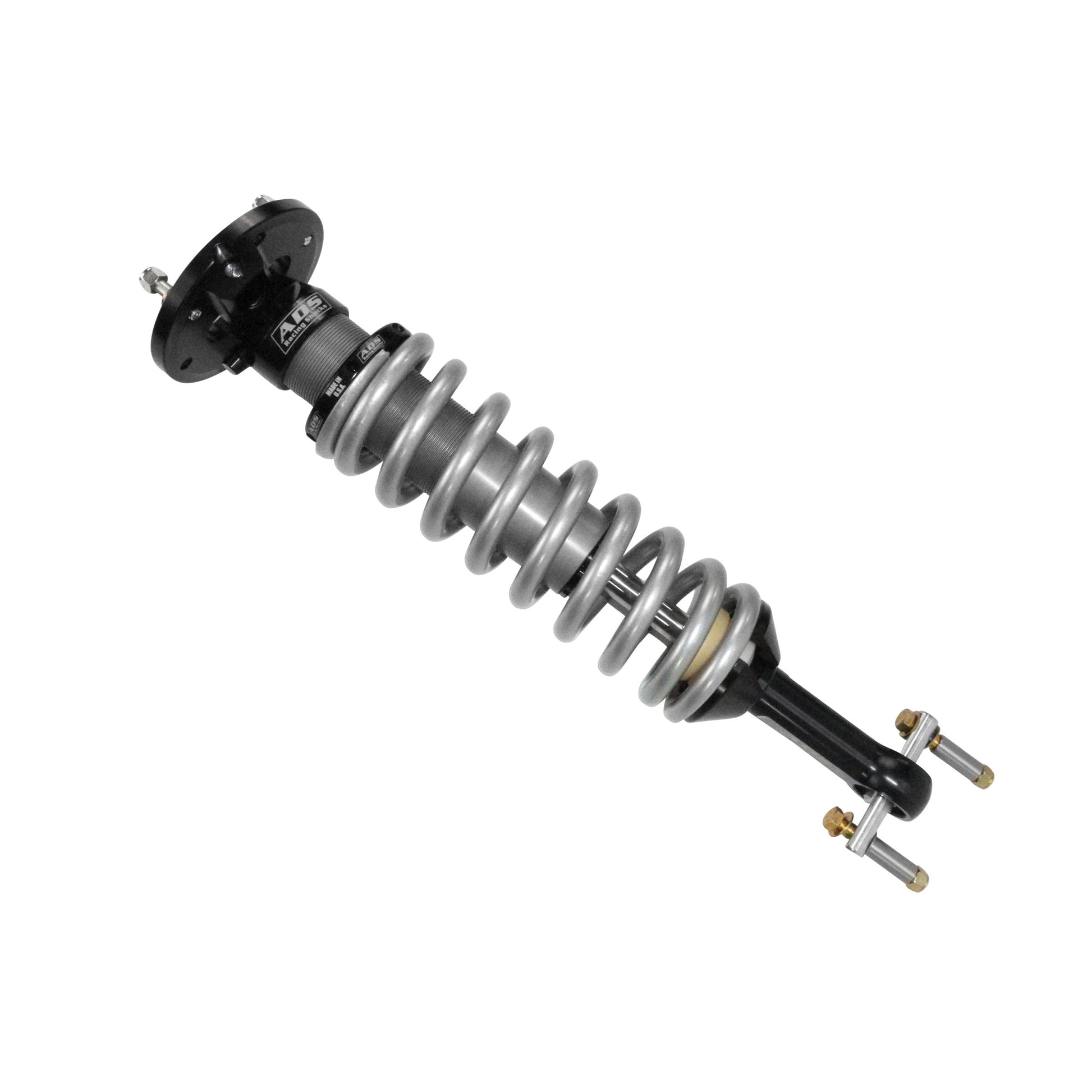

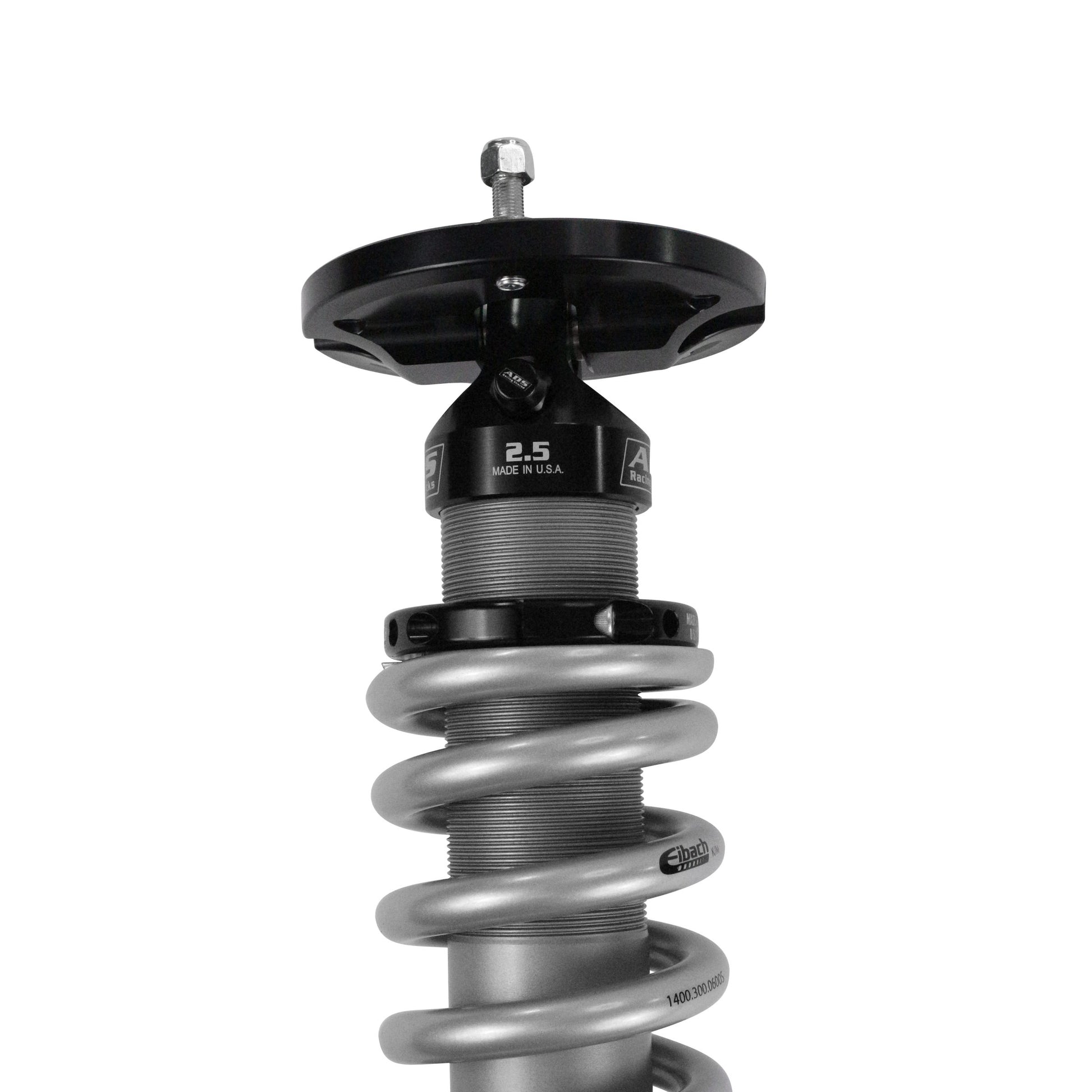

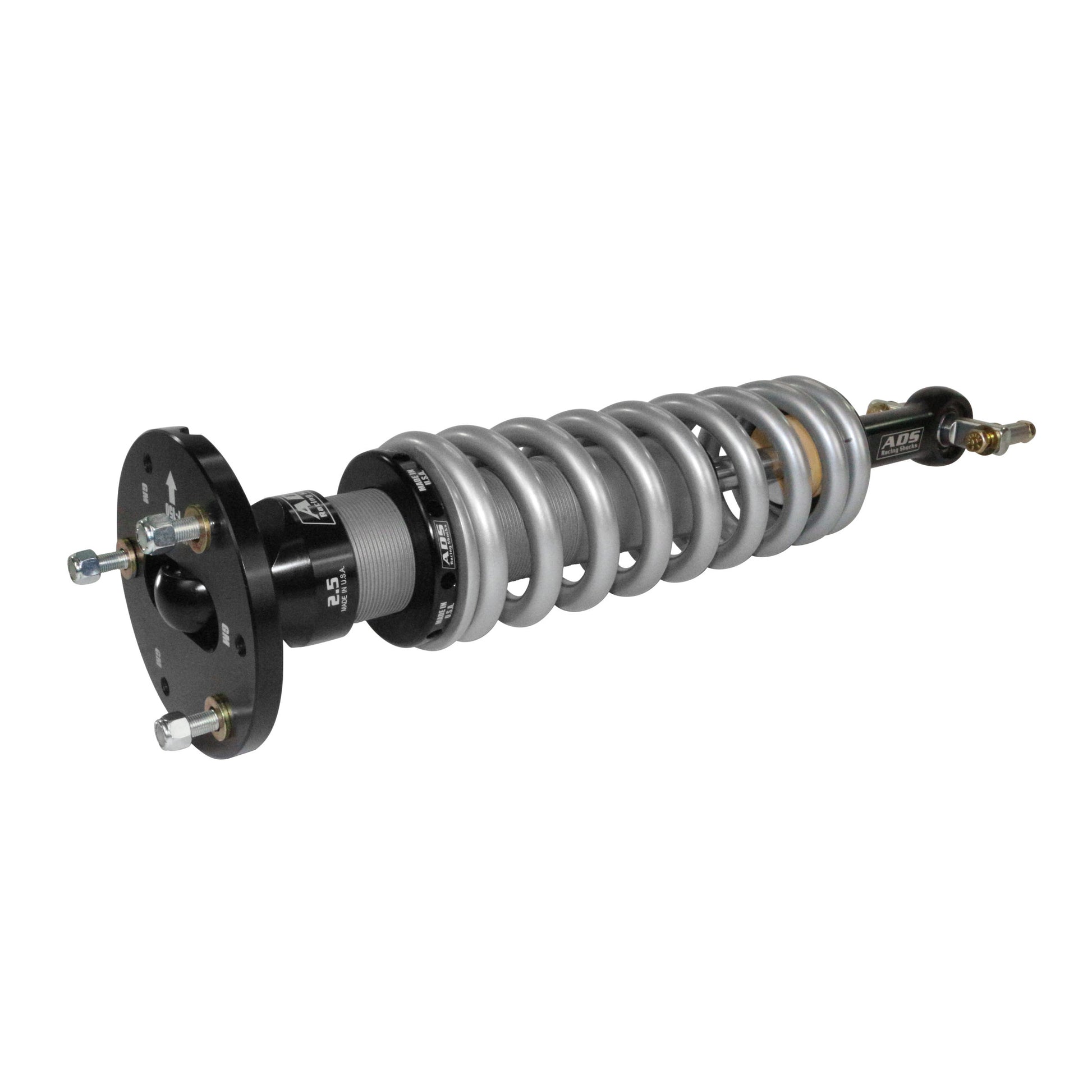

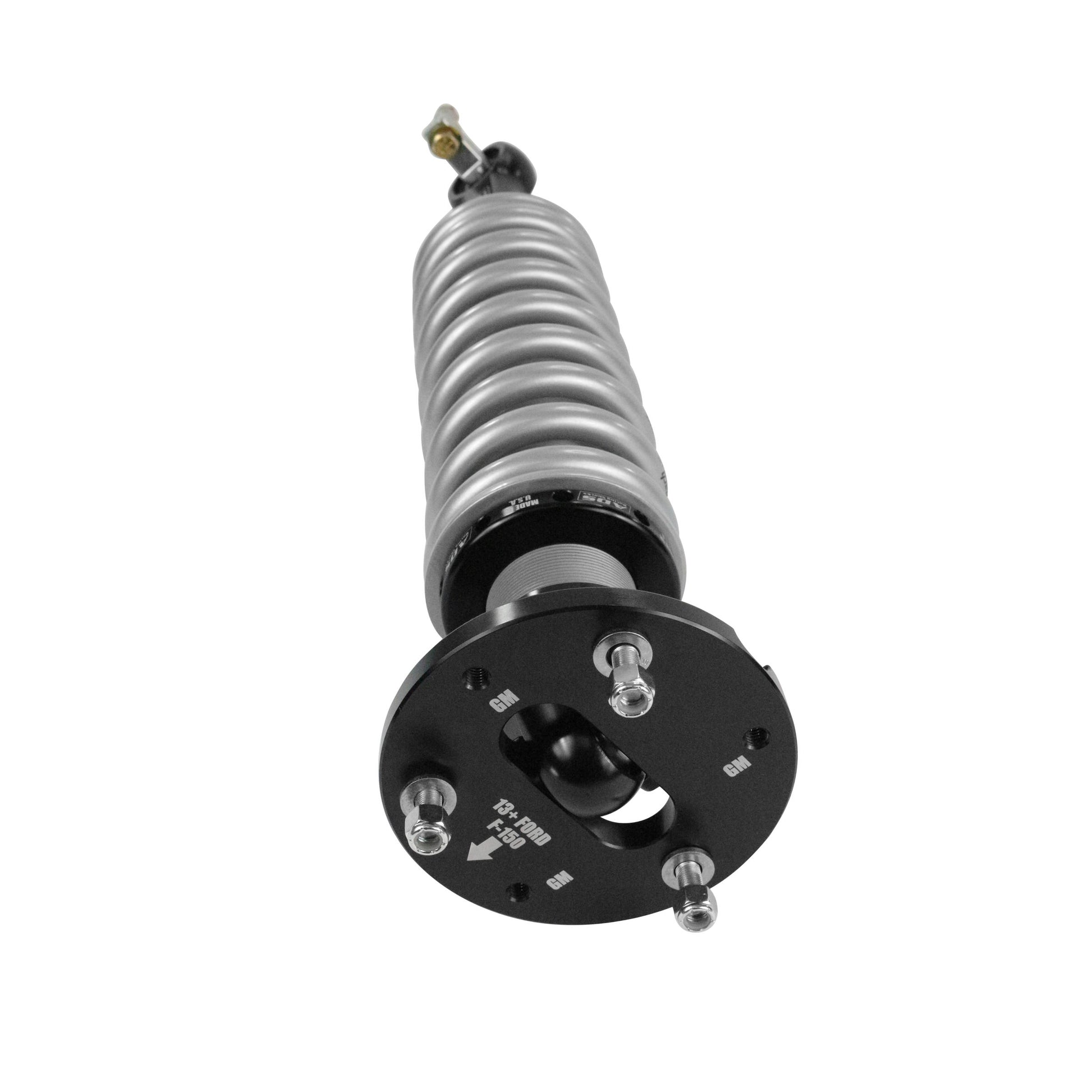

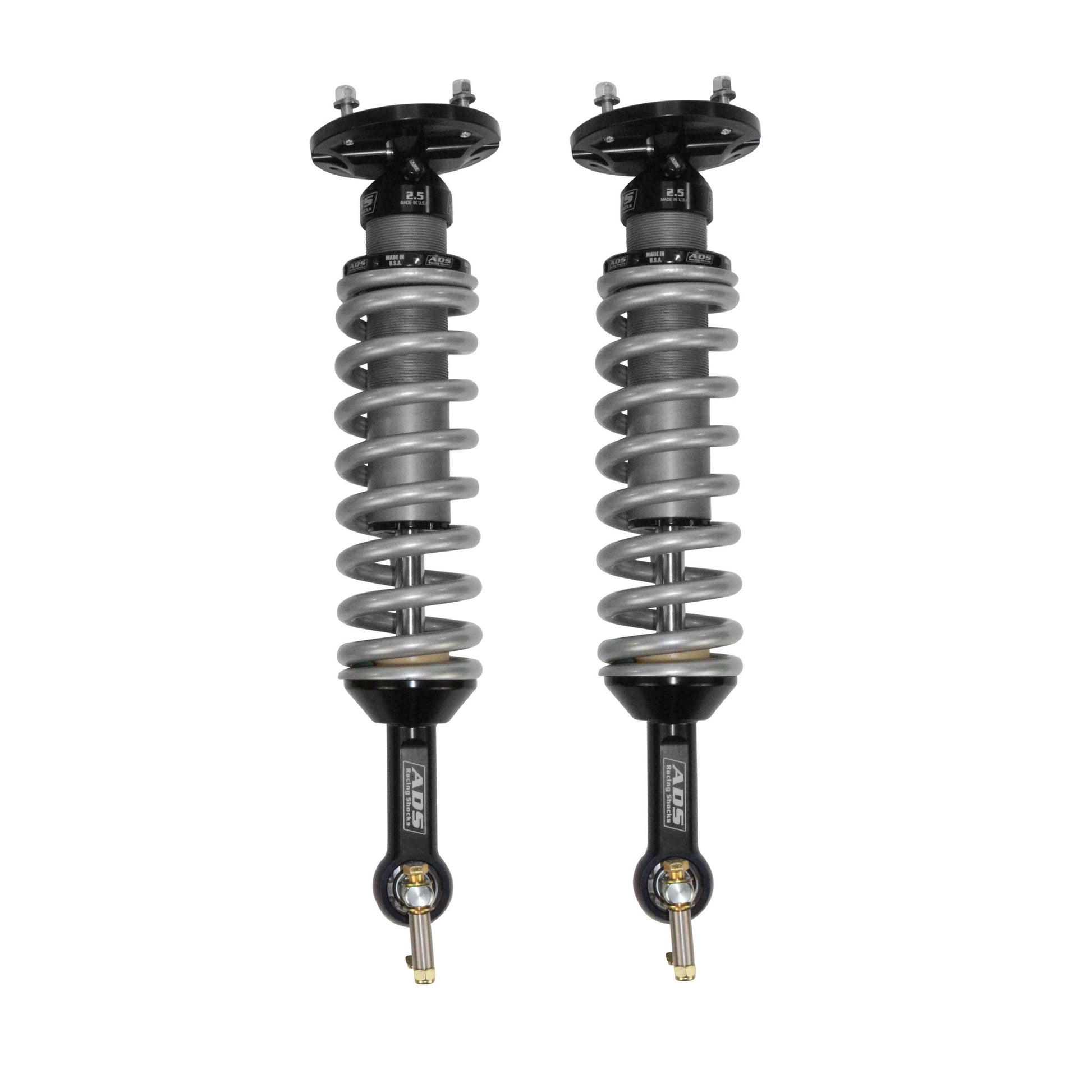

ADS Mesa 2.5" Coilovers - Front
2007-2018 GM Silverado/Sierra 1500 2WD/4WD – 2.5 in. Shocks – 0-1 in. Lift
Now that you’ve got the look and performance with your New ADS Mesa shocks, don’t overlook the other off-road must-haves! Round out your build with industry best exhaust from Flowmaster, custom shifters, and heavy-duty differential covers from B&M.
- · Internal floating piston (IFP) ensures consistent damping performance, improved responsiveness, and increased longevity and reliability
- · Large Bore 2.50-inch shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
- · UV-stable ceramic powder coated steel shock body for durability and strength
- · Black anodized billet aluminum top and bottom caps
- · 0.875-inch diameter hard-chrome plated steel shock shafts for superior corrosion resistance
- · Spacers machined from 303 stainless steel for corrosion resistance
- · High-carbon chrome plated steel spherical bearings
- · Premium full synthetic shock oil
- · Fully rebuildable
Active or Passive Suspension: Passive
Adjustable Compression: No
Adjustable Rebound: No
Adjustable Reservoir: No
Adjustable Ride Height: No
Body Color: Silver
Body Diameter: 2.5
Body Material: Steel
Brand: ADS Racing Shocks
Category: Suspension
Coil Spring Insulator(s) Included: No
Collapsed Length: 15.32
Cylinder Diameter: 2.5
Damping Type: Oil
Dust Bood Included: No
Dust Shield Included: No
Emission Code: 6
Extended Length: 19.91
Finish: Ceramic Coated
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Monotube
Internal Rebound Bumper: No
Internal Rebound Spring: No

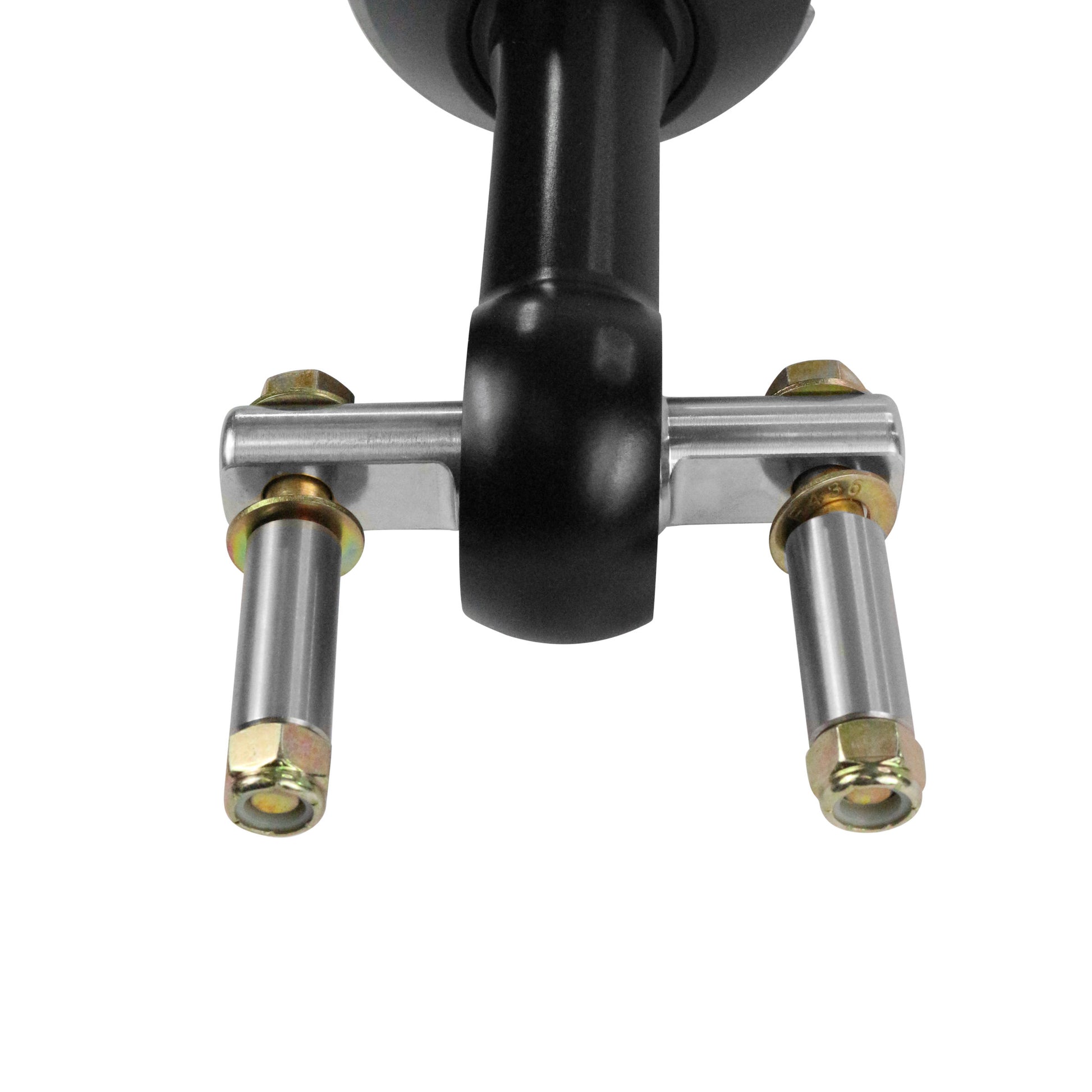

Lower Mount Type: T-Bar
Mounting Hardware Included: Yes
part type: Suspension Shock Absorber and Coil Spring Assembly
Remote Reservoir: No
Requires UCA: No
Self-Leveling: No
Shaft Diameter: 0.875
Shaft Material: Hard-chrome plated steel
Spring Color: Silver
Spring Finish: Powdercoated
Spring Included: Yes
Spring Material: Steel
Spring Rate: 600
Strut Mount Insulator(s) Included: No
Sub Category: Shocks and Struts
Travel Length: 4.59
Upper Mount Type: Mounting Plate
Valving Type: Progressive
