Arizona Desert Shocks 100ADS-10001 - ADS Billet Front Upper Control Arm Kit - Front Upper

Arizona Desert Shocks 100ADS-10001 - ADS Billet Front Upper Control Arm Kit - Front Upper

Arizona Desert Shocks | 100ADS-10001
SKU: GRML-100ADS-10001
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Arizona Desert Shocks 100ADS-10001 - ADS Billet Front Upper Control Arm Kit - Front Upper

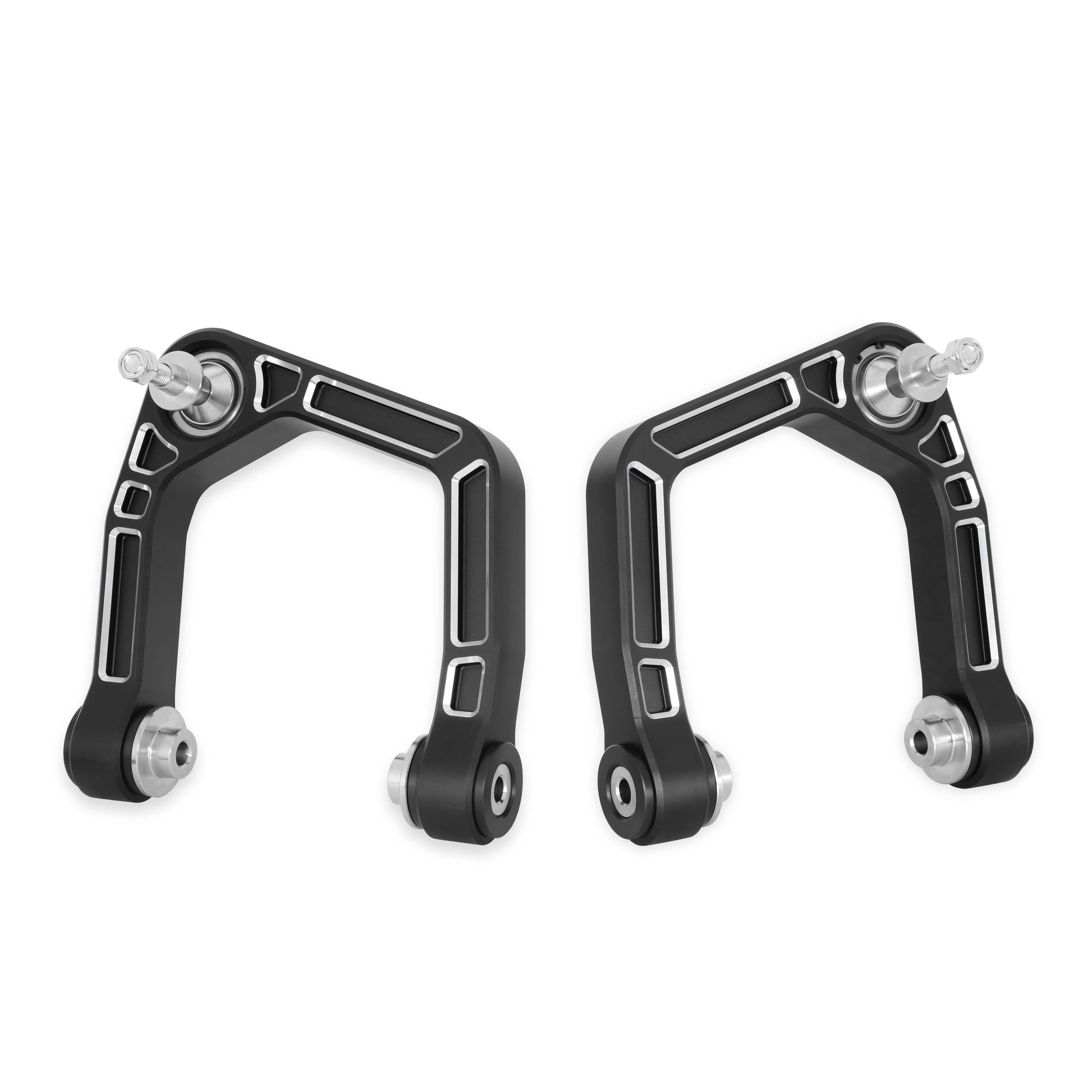

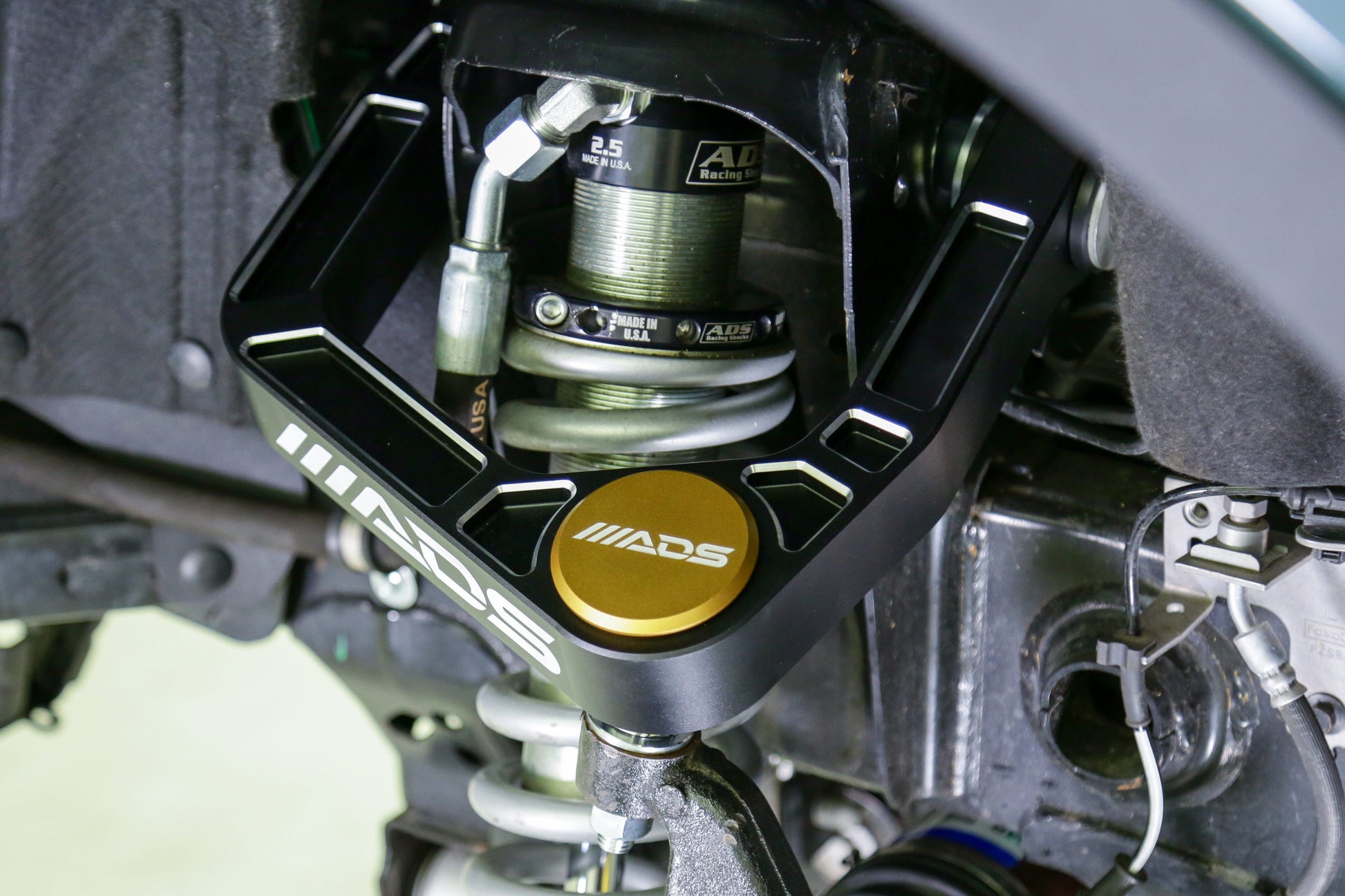

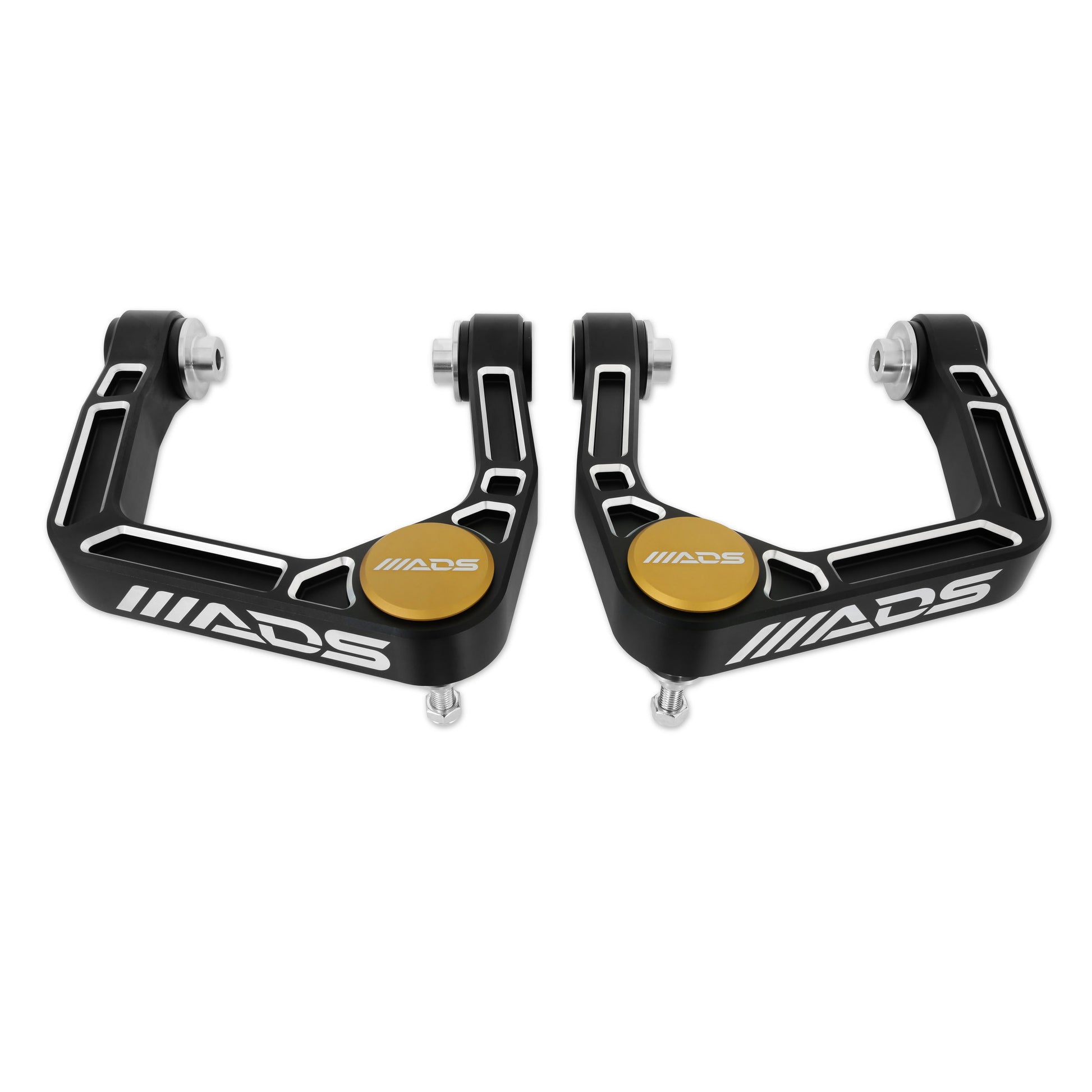

ADS Billet Front Upper Control Arm Kit - Front Upper

2022-2025 Toyota Tundra (Front Upper) (Note: Fits Vehicles With 1-3 (in) Front Lift); 2023-2025 Toyota Sequoia (Front Upper) (Note: Fits Vehicles With 1-3 (in) Front Lift)

Upgrade your Toyota with our cutting-edge Billet Aluminum Upper Control Arm. Designed to accommodate up to 4" lifts, it corrects camber and caster for a smoother ride. Crafted from CNC machined 6061 billet aluminum, it features a robust 1.25" hardened steel uniball for enhanced strength and articulation. Machined acetal copolymer bushings reduce deflection, improving handling. Stylish and durable, it boasts a black anodized finish with a laser-engraved logo on the control arm, and a striking gold anodized finish on the uniball cover, both protected by clear powder coat for ultimate UV resistance. The O-ring sealed uniball dust cover and included Grade 8 hardware ensure longevity and ease of installation. Plus, it's fully rebuildable, making it a sustainable and long-lasting upgrade for your Toyota!

  • Corrects camber and caster, accommodating lifts up to 4”

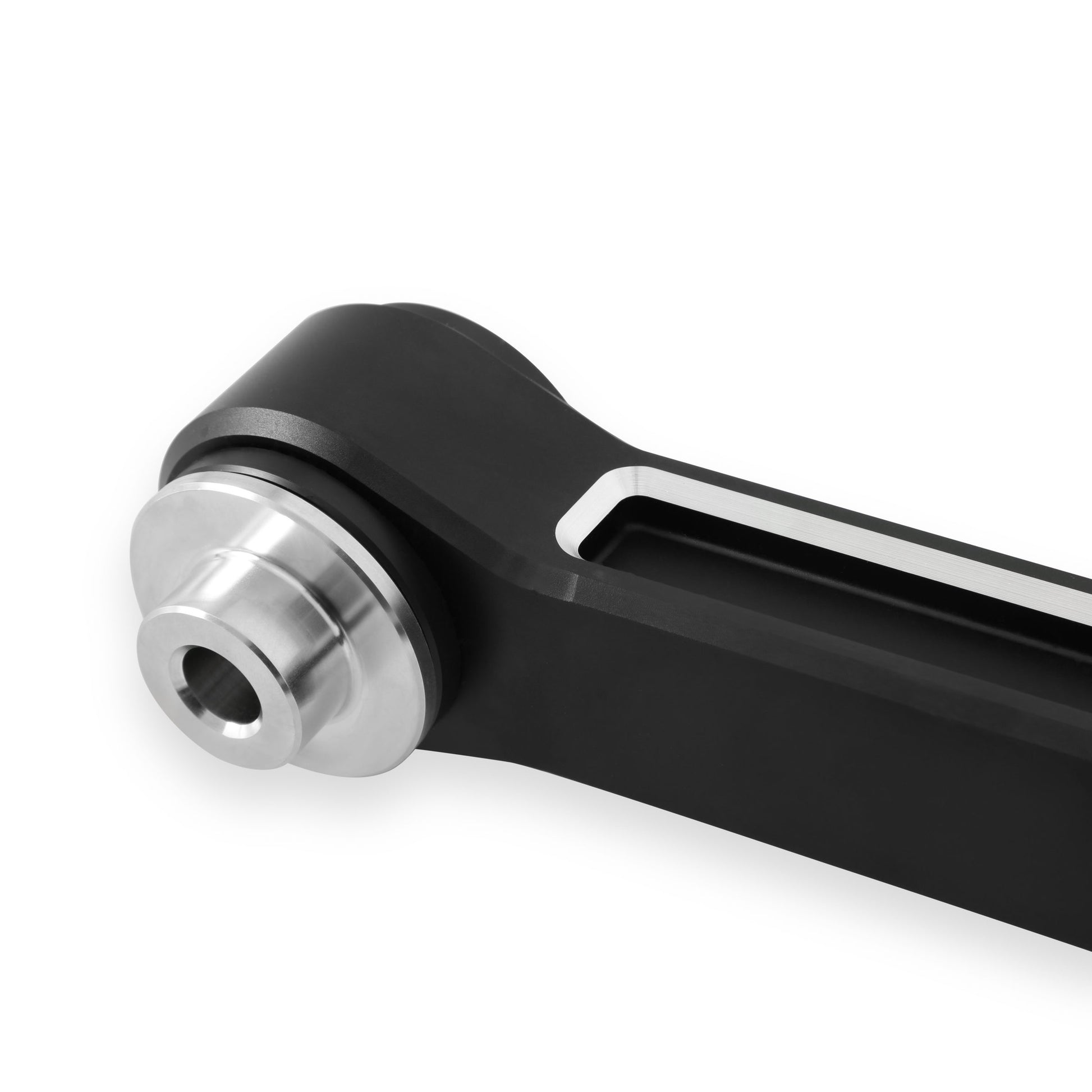

  • Machined acetal copolymer bushings provide less deflection than stock rubber

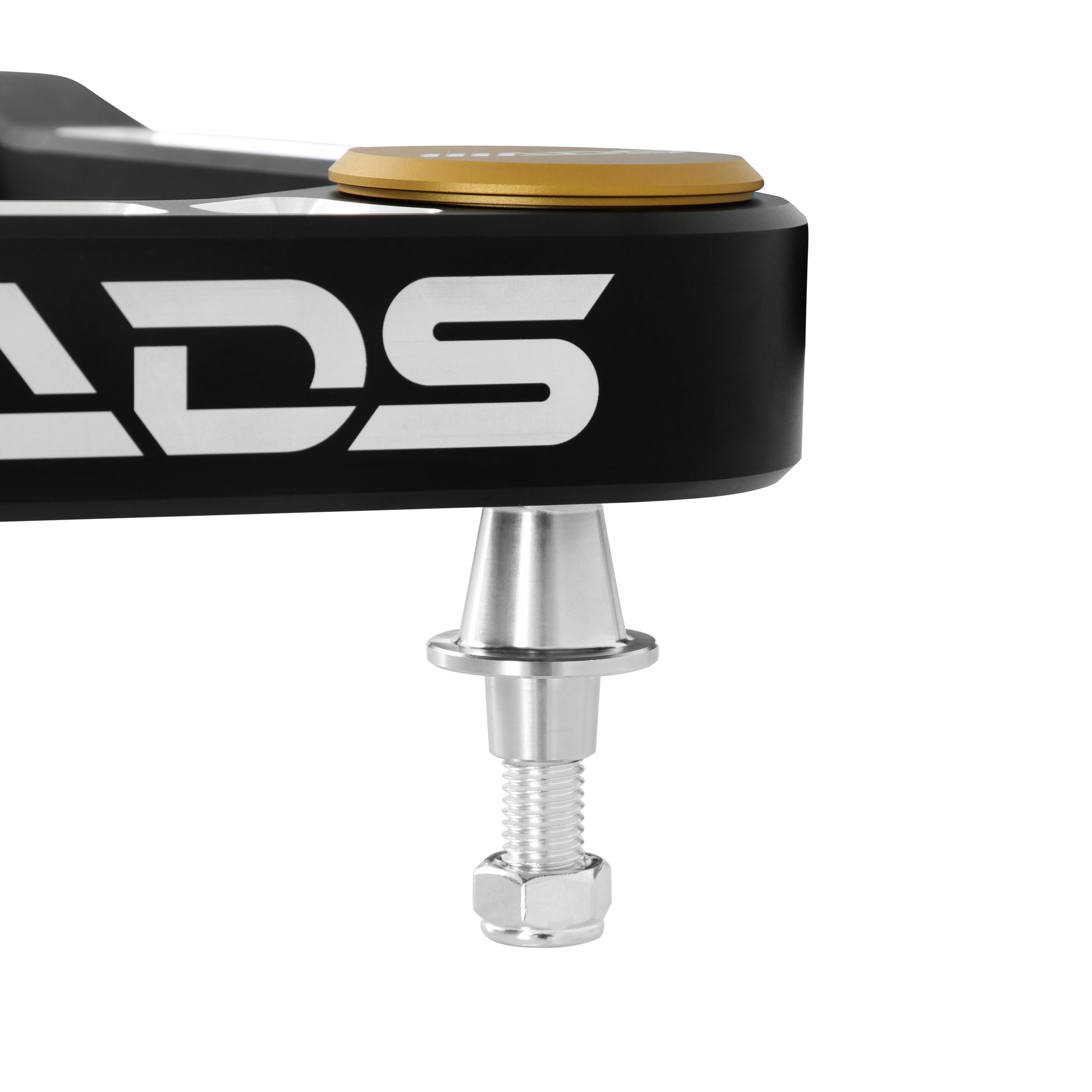

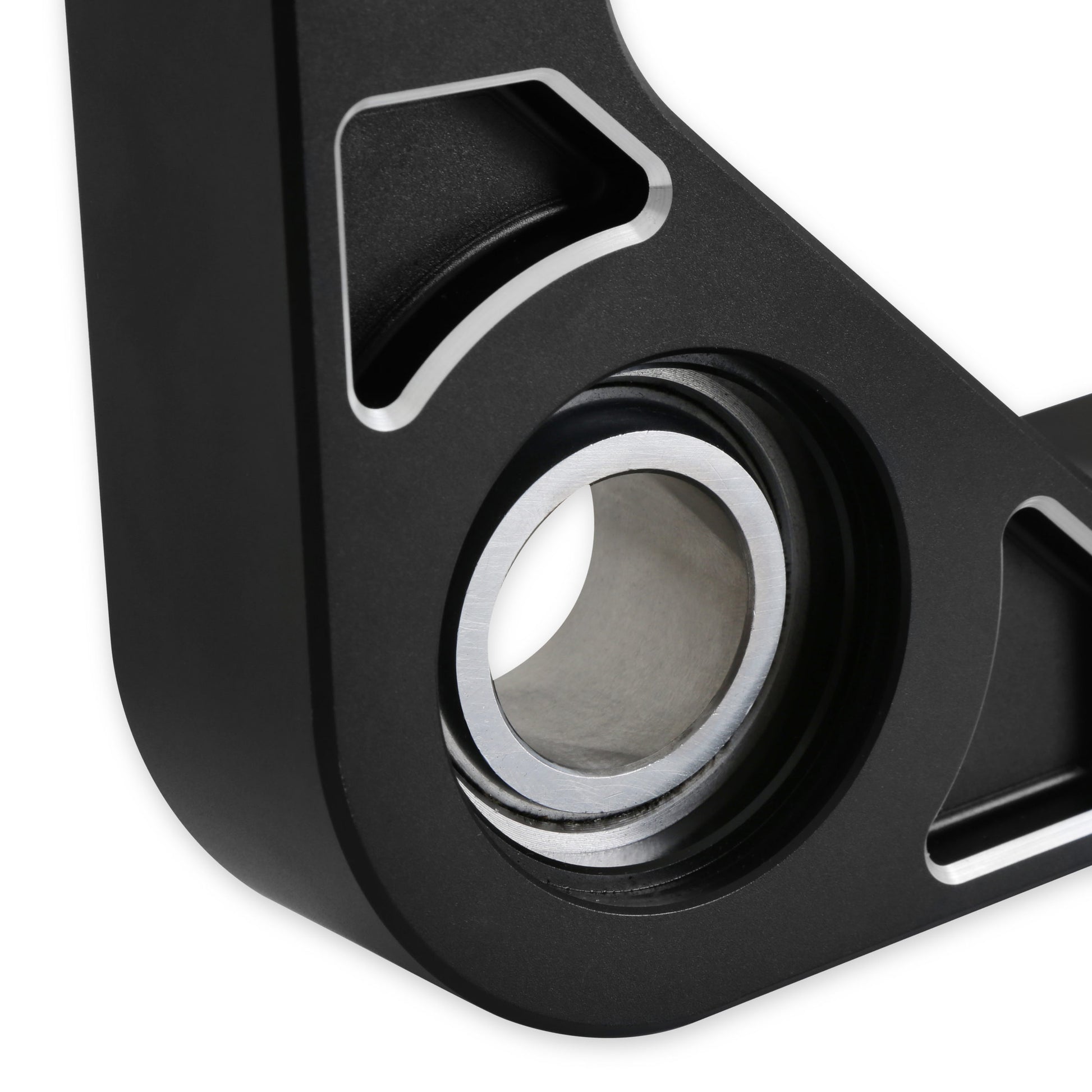

  • Utilizes standard 1.25” uniball for greater strength and articulation angle than stock balljoint
  • Control arm and dust cover are CNC machined from 6061 billet aluminum
  • Durable black anodized finish with laser engraved logo on control arm
  • Durable gold anodized finish with laser engraved logo on uniball cover
  • Clear powdercoat for UV resistance
  • No drilling of factory spindle required
  • O-ring sealed uniball dust cover
  • Grade 8 hardware included
  • Fully Rebuildable
Adjustable: No
Adjustable Damping: No
Attachments Included: No
Ball Joint Included: Yes
Ball Joint Mounting Type: Press In
Ball Joint Stud Length: N/A
Ball Joint Stud Type: Grooved
Ball Joint Thread Diameter: N/A
Brand: ADS
Bushing Material: Machined acetal copolymer
Bushings Included: Yes
Construction: Forged
Control Arm Construction: Billet
Control Arm Material: 6061 Aluminum
Control Arm Maximum Length: N/A
Control Arm Maximum Width: N/A
Emission Code: 6
Grade Type: Performance
Grease Fitting Included: Yes
Lift Range: 0-4
Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: Yes
Mounting Hole Quantity: 2
part type: Suspension Control Arm Kit
Pre-Assembled: Yes
Pre-Greased: Yes
Product Type: Control arm
Rebuildable: Yes
Reinforced: Yes
Set: Yes
Suspension Grade Type: Performance
Suspension Type: Spring
Warning: California Proposition 65
