APR - MS100229

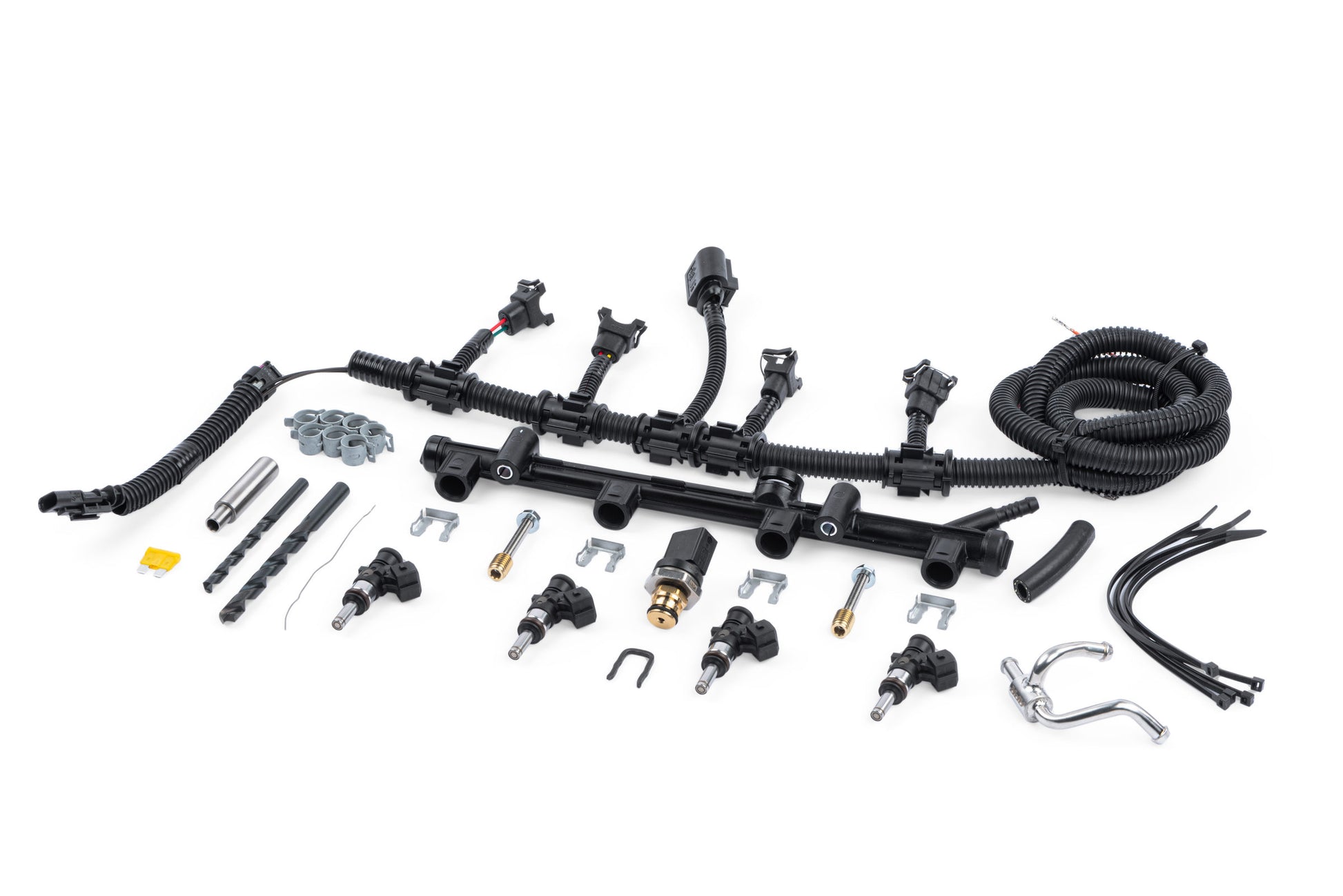

APR Port Injection System (2.0T EA888.3)
Fits Audi A3 17-19, A3 Quattro 15-20, Q3 21-24, S3 15-20, TT Quattro 15-23, TTS Quattro 16-23; VW Arteon 19-21, Golf R 15-19, GTI 15-21, Jetta 19-24
The factory injectors found in the Audi S3, Audi TTS, VW Golf ED30, VW Golf ED35, VW Golf Pirelli, VW Golf R & VW Scirocco R, Seat Leon Cupra & Seat Leon Cupra R K04 based vehicle are the largest Bosch HDEV 1 gasoline direct injection injectors currently available for the VAG 2.0T FSI EA113 engine platform. Capable of supporting over 500 HP in extreme applications, these gasoline direct injection injectors feature the proper spray pattern designed to support reliable operation in all normal conditions.

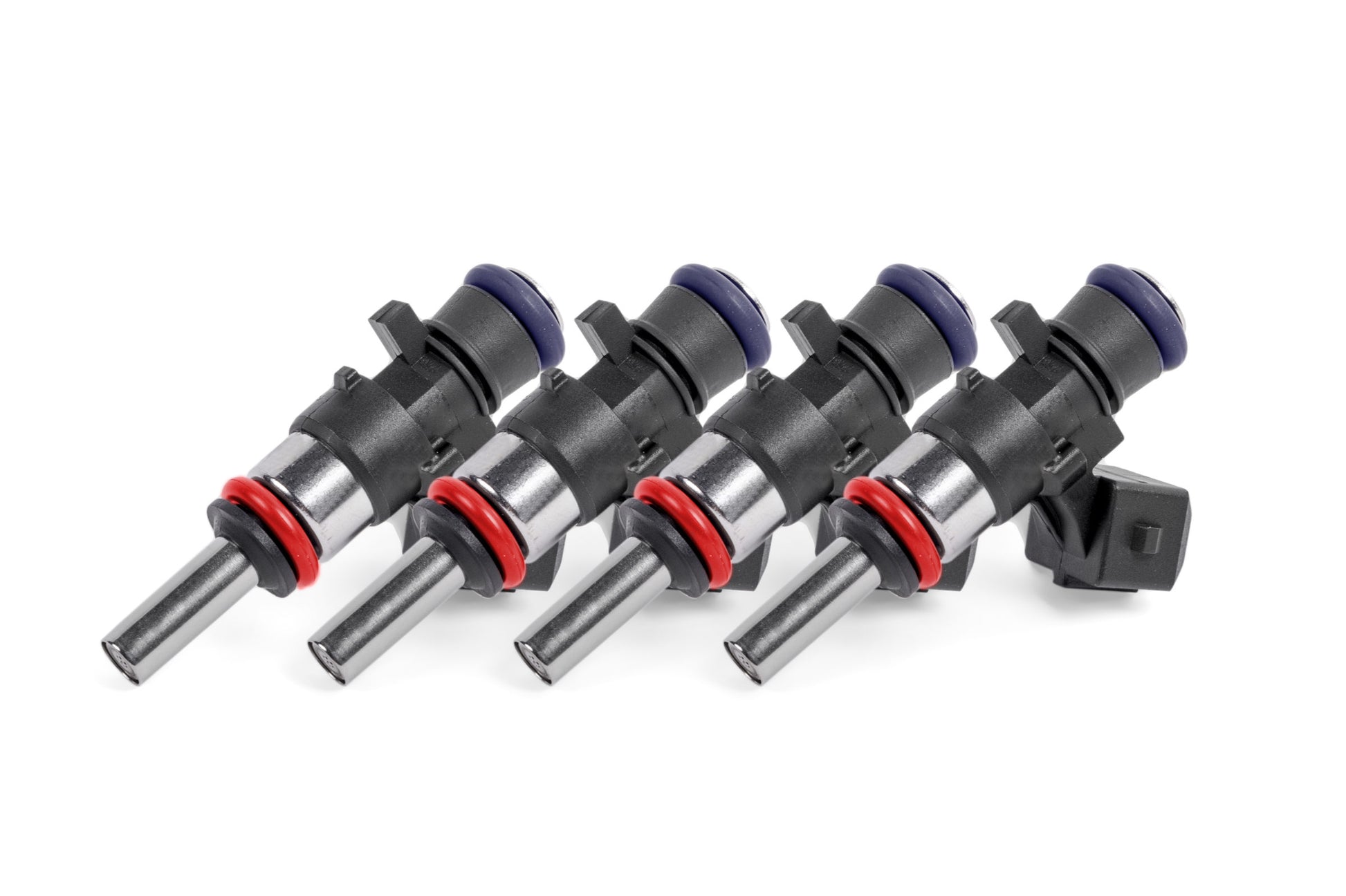

- Bosch EV 14 CKxT MPI injector (0280 158 040)
- APR Bosch Jetronic to OEM harness
- Supports up to 8 bar of use in motorsport configurations
- E85 and M100 compatible
- 30° single cone spray angle with 0° bent angle and 0° gamma angle
- 33.6mm compact body
- 24mm extended tip nozzle
- Top-feed injector
- 12 ohm coil resistance

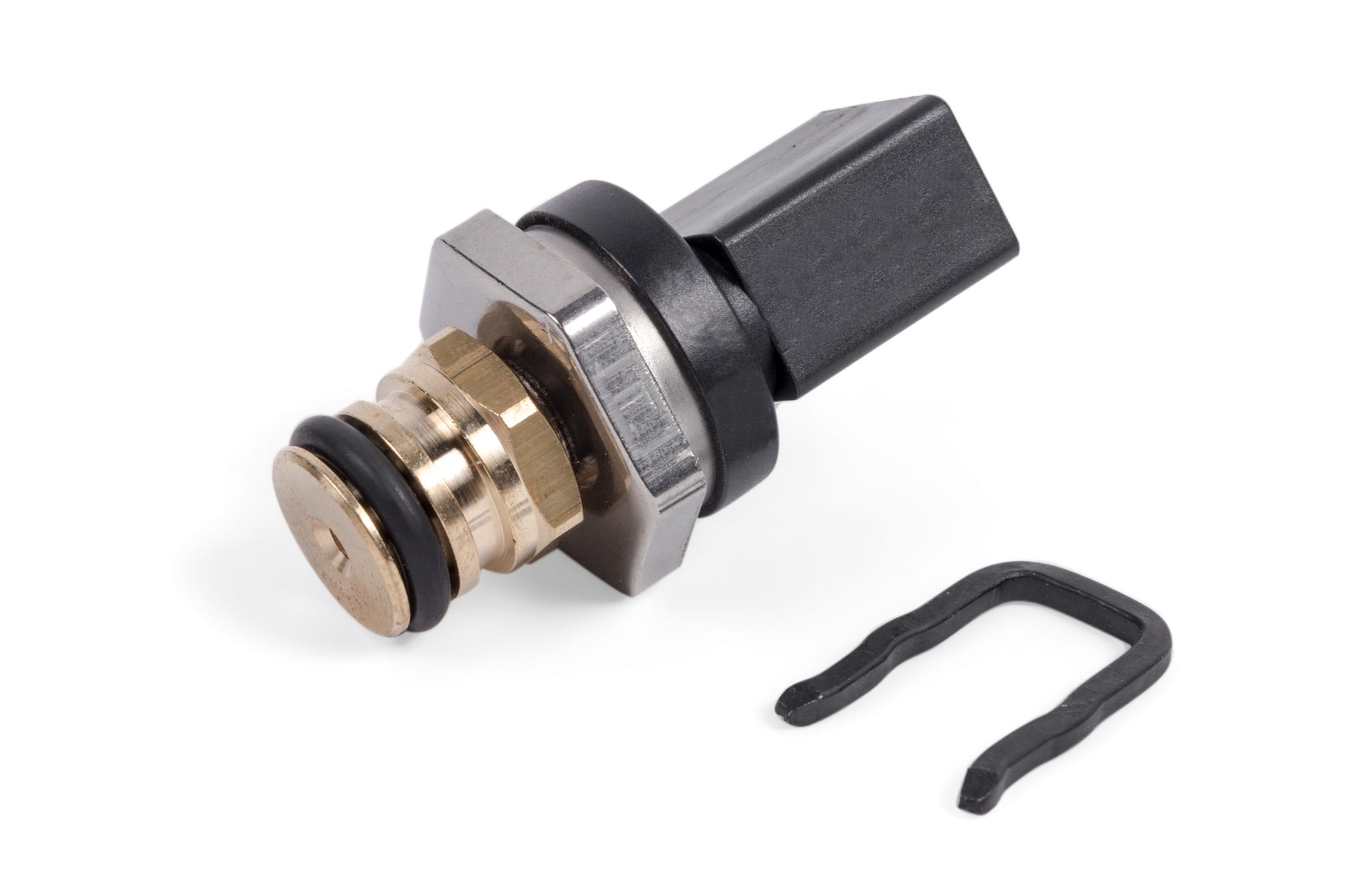

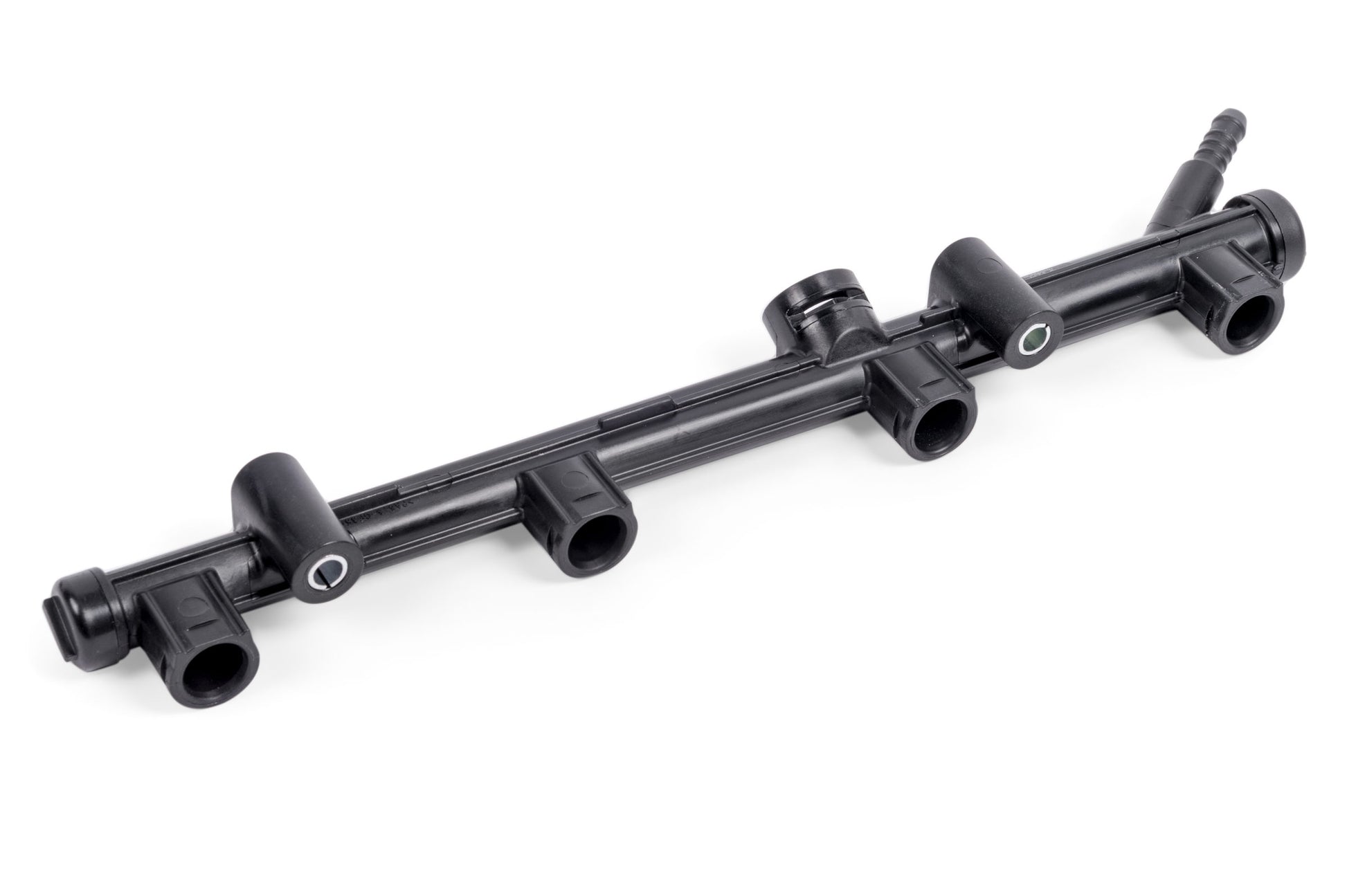

- OEM Fuel Rail, Rail Sensor, and mounting kit included

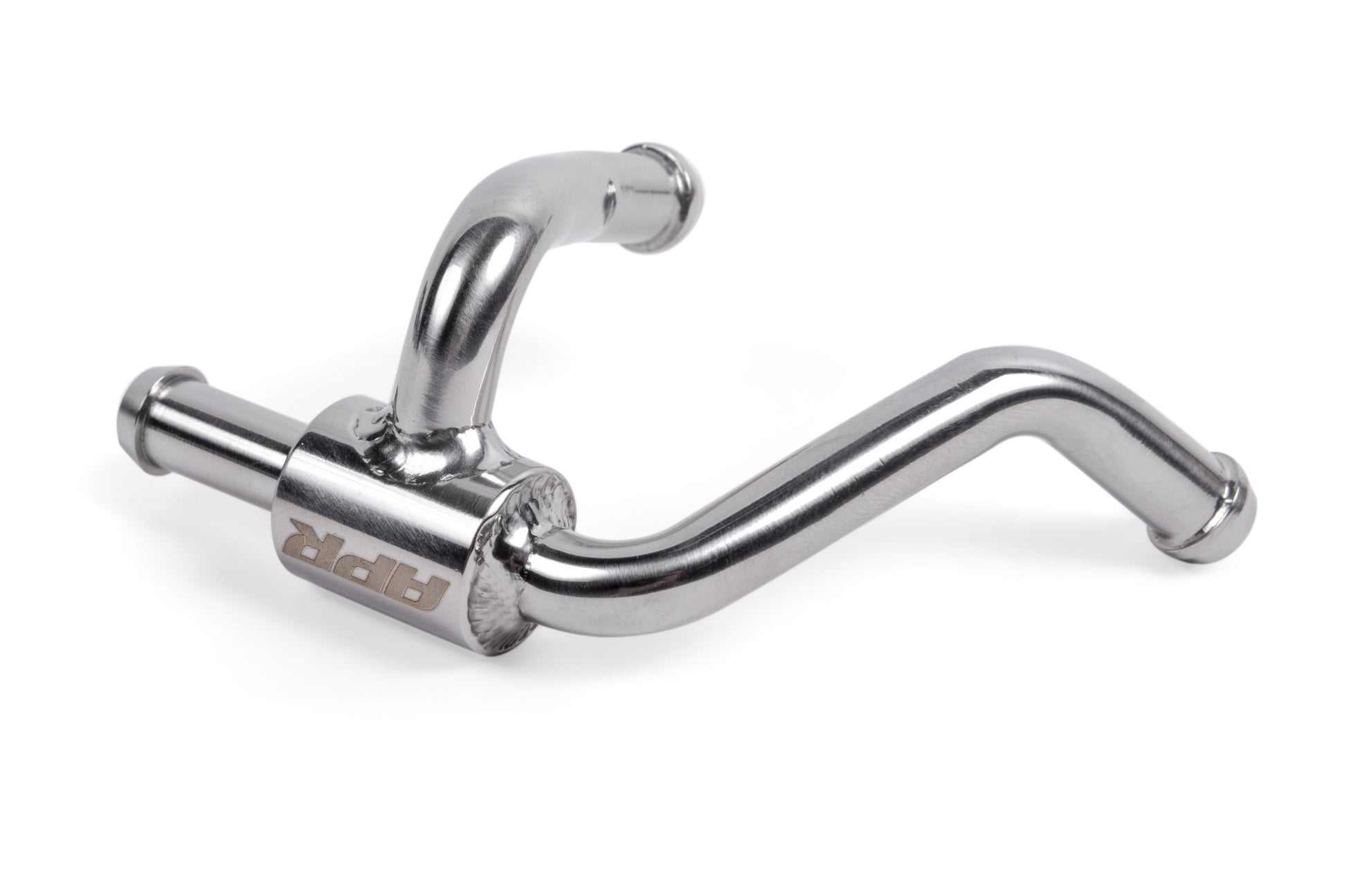

- APR fuel distribution block included
- ECU software required for use
Brand: APR
Category: Air and Fuel Delivery
Emission Code: 7
Max Pressure: 8
MPI Injector CC: 980cc/min @ 3 bar
MPI Injector Count: 4
Product Type: Fuelings Systems (Kit)
Sub Category: Fuel Injection System and Related Components
Warning: California Proposition 65
