APR - IC100025

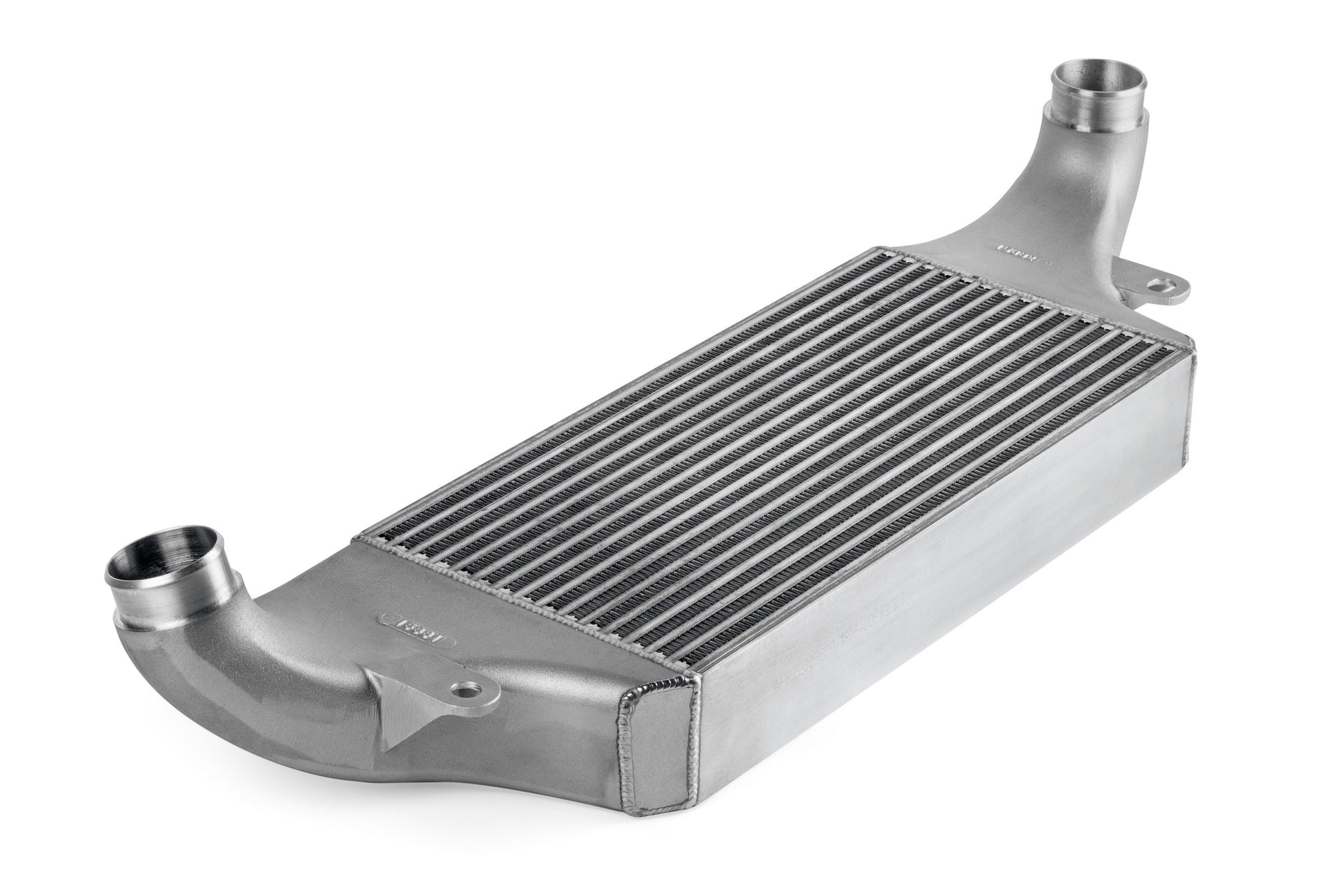

APR Intercooler System - 2.5 TFSI EVO (TT RS)
Intercooler Charge Air System; Lower Intake; 22 in. Core Width;

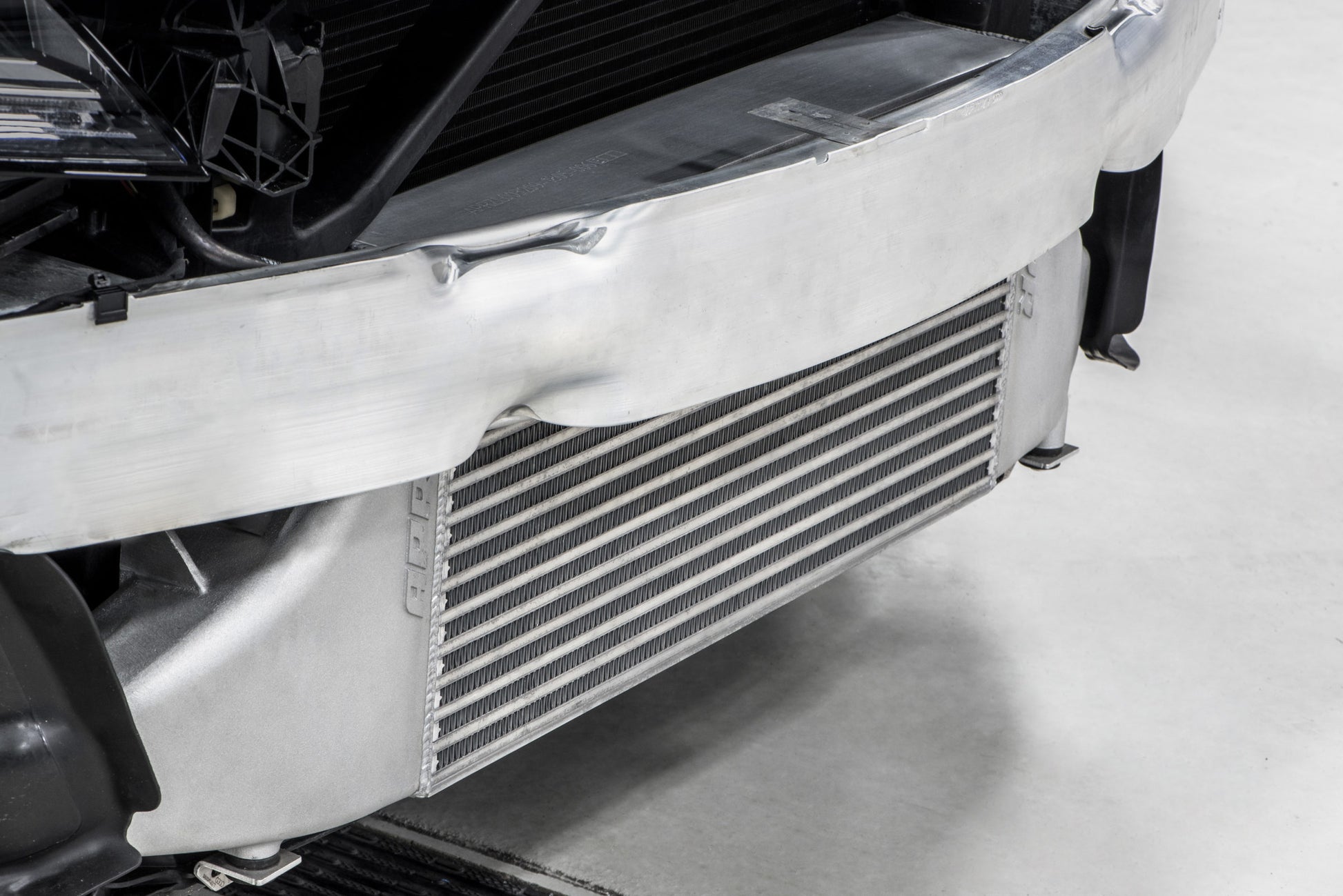

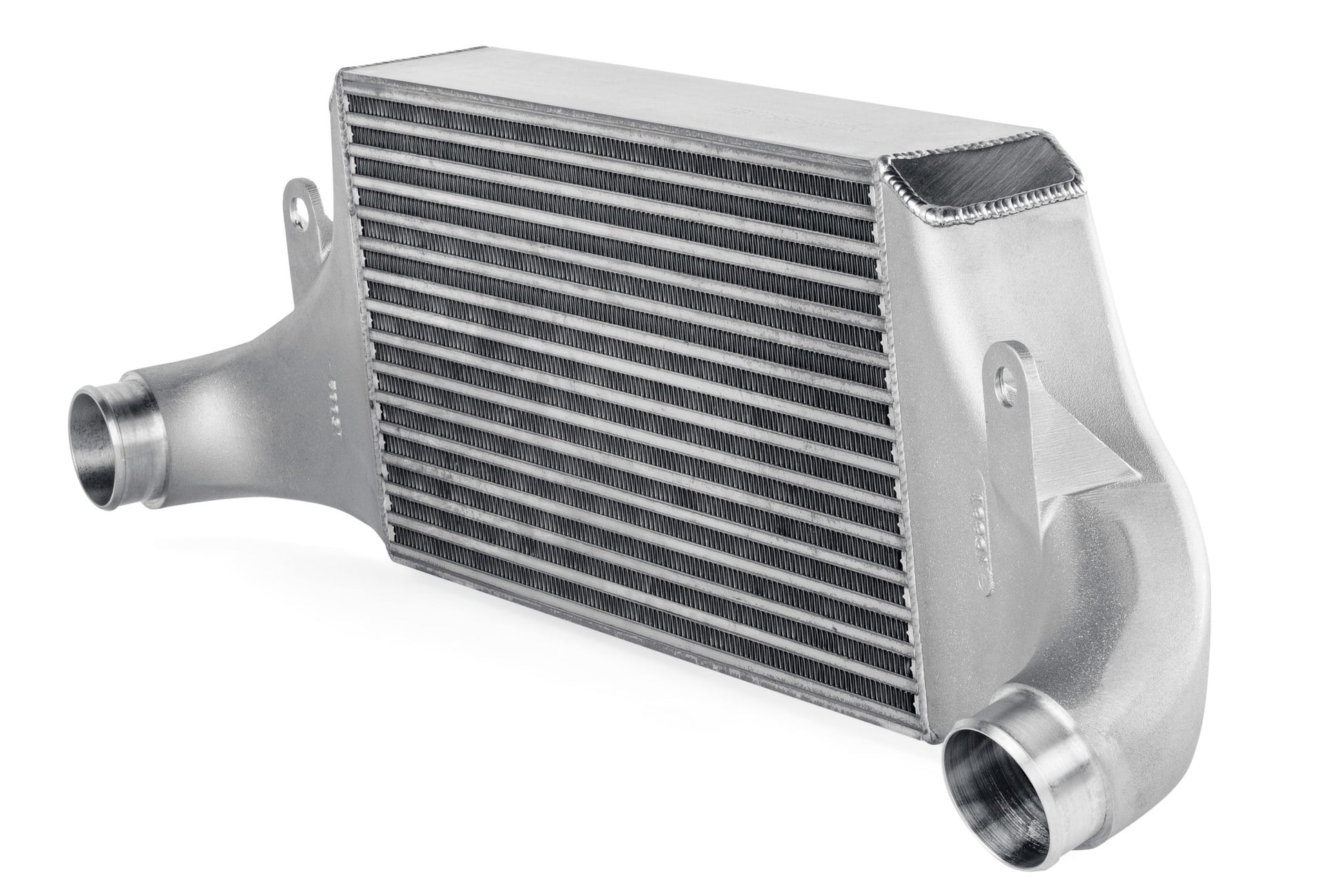

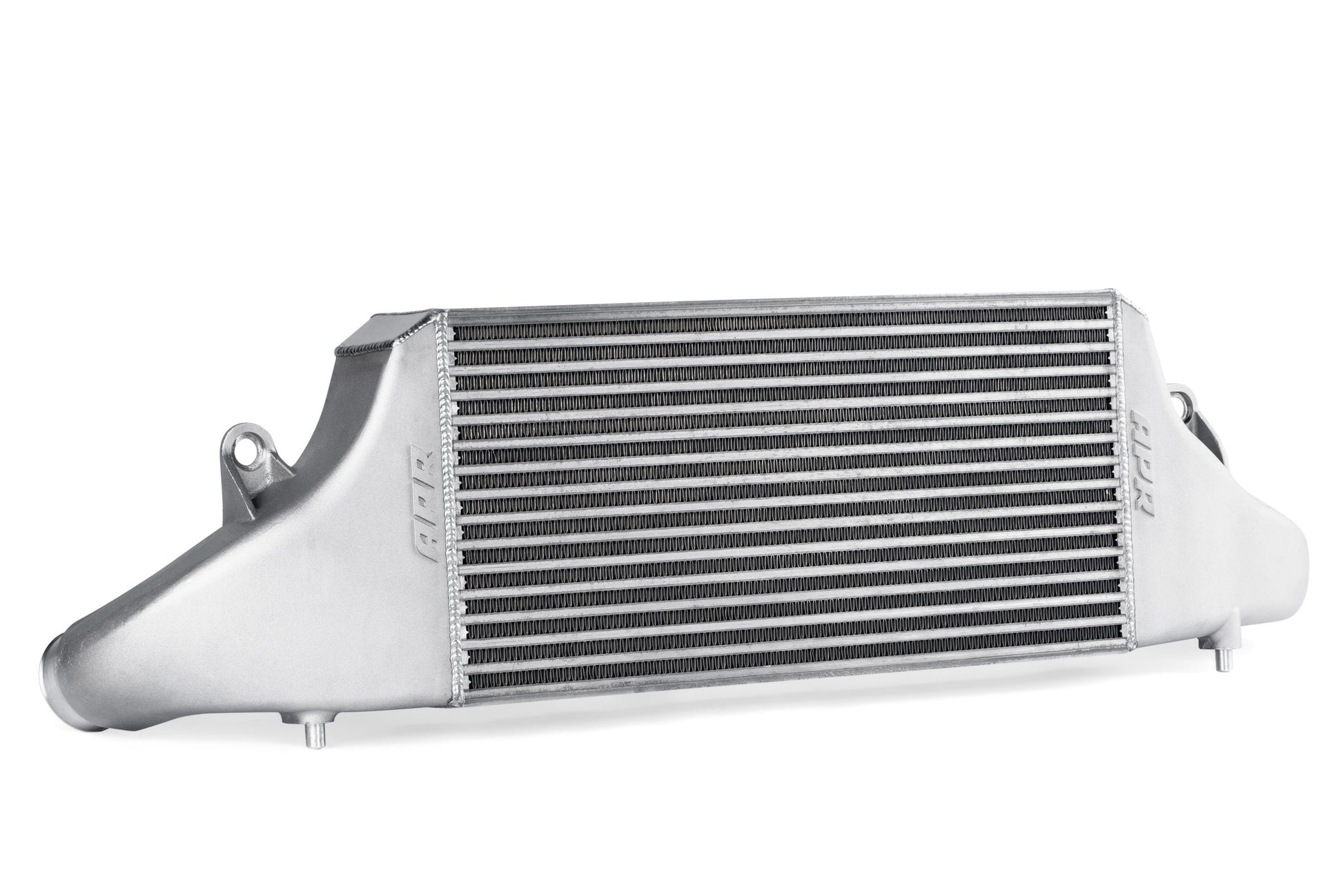

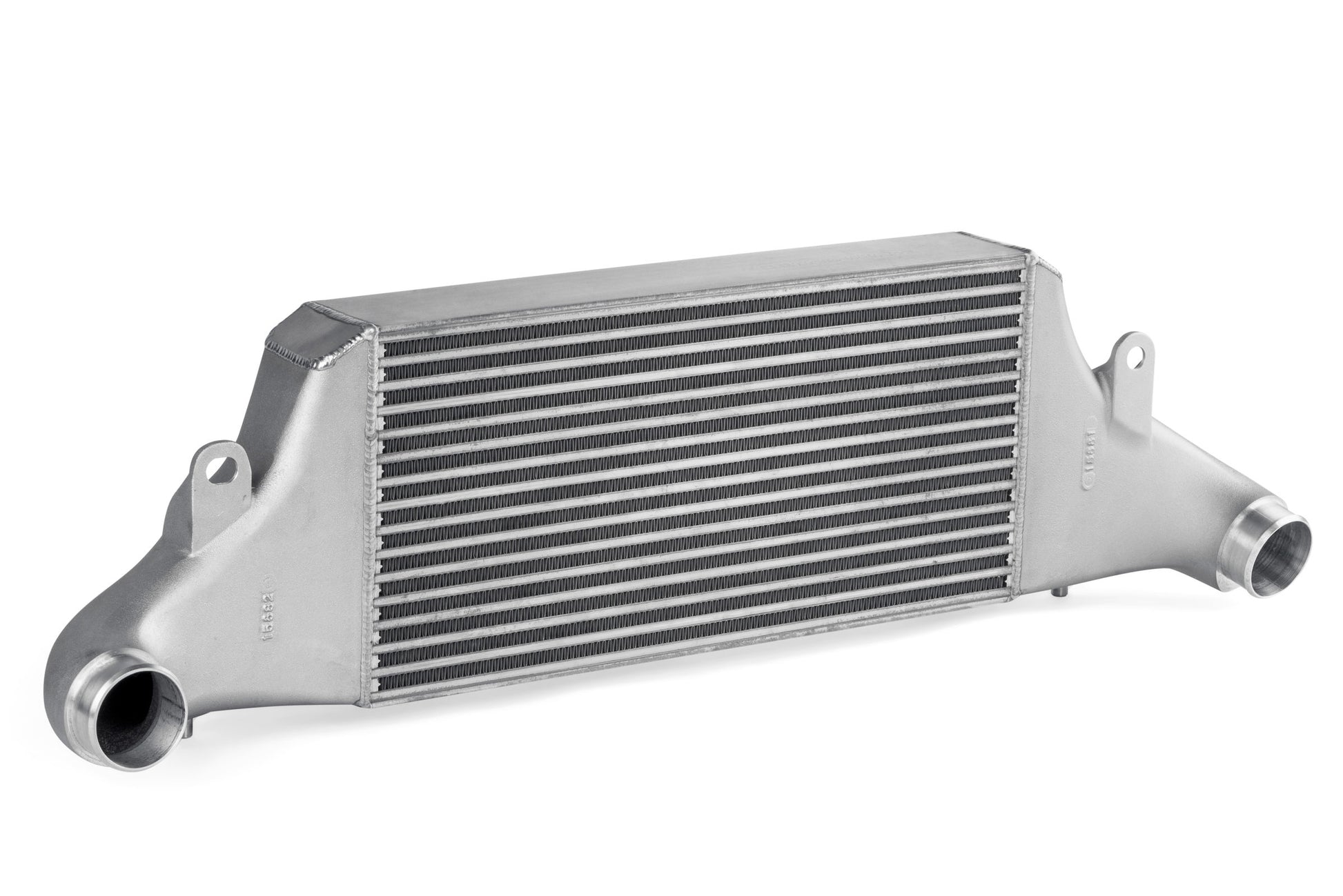

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.
- Dramatically lowers intake air temp (IAT)
- Increases HP while minimizing power-robbing heat soak!
- Dynoed 26 AWHP over to the factory system (STG 1 93)!
- Effective cooling for more than double factory horsepower levels!
- Massive frontal surface area and core volume
- 6.38" x 25.33" x 3.16" - 161.6 in² front. & 510.67 in³ volume - OEM
- 10.4" x 22.00" x 3.50" - 228.8 in² front. & 800.8 in³ volume - APR
- Highly effective core design
- Bar-and-plate core with staggered and louvered fins.
- Rigorous testing determined core style, fin density, and size.
- Low pressure drop + highly effective cooling = high performance!

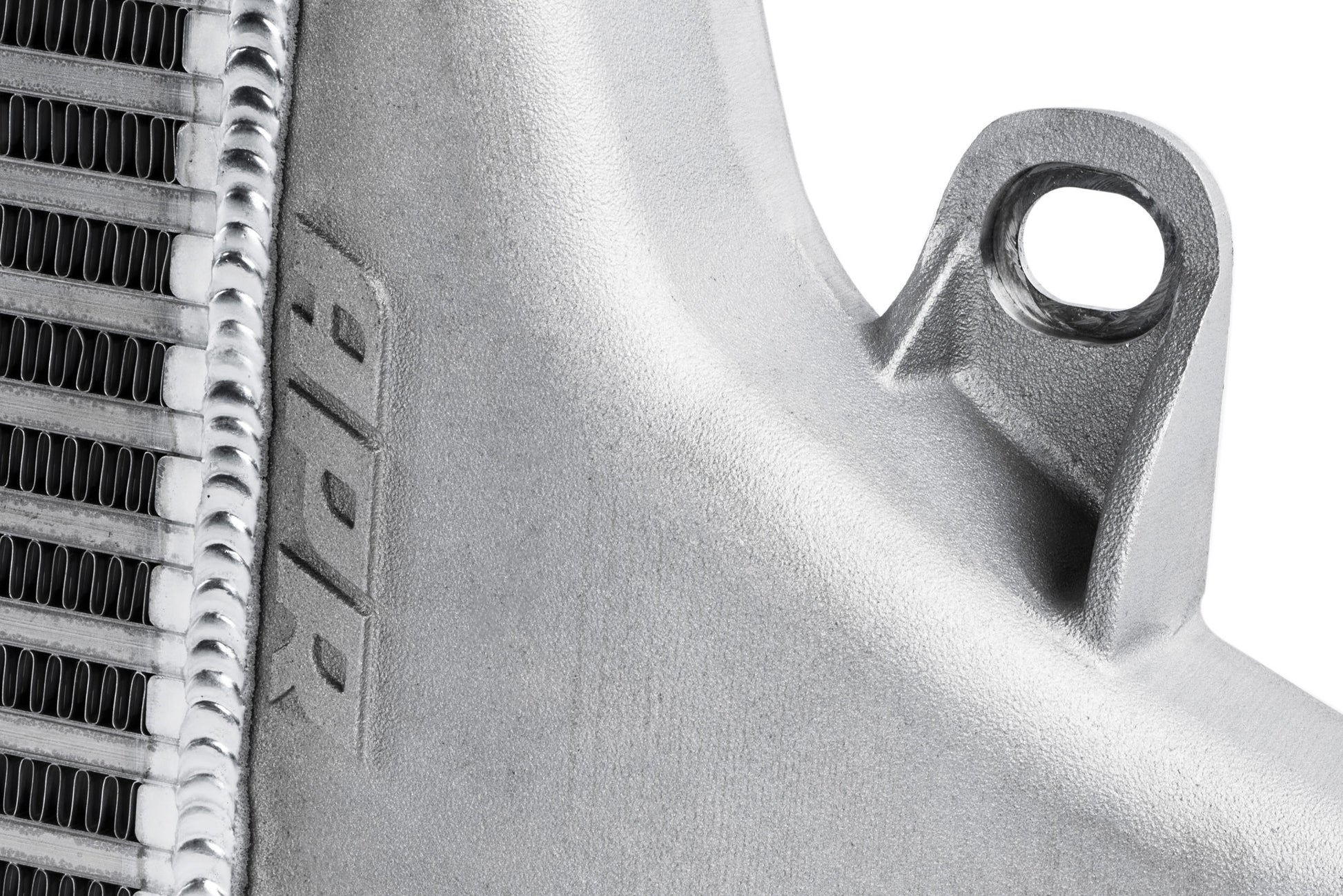

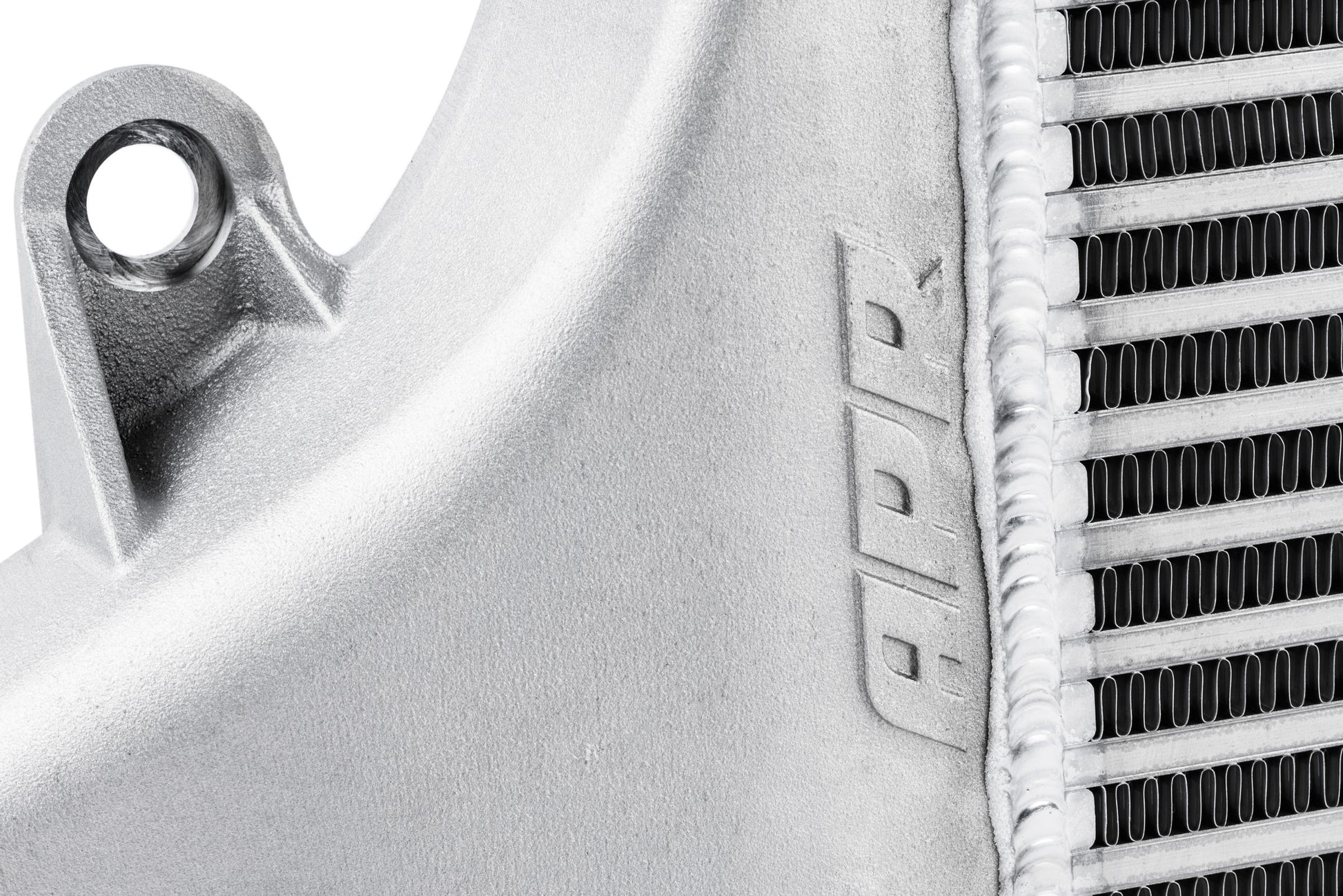

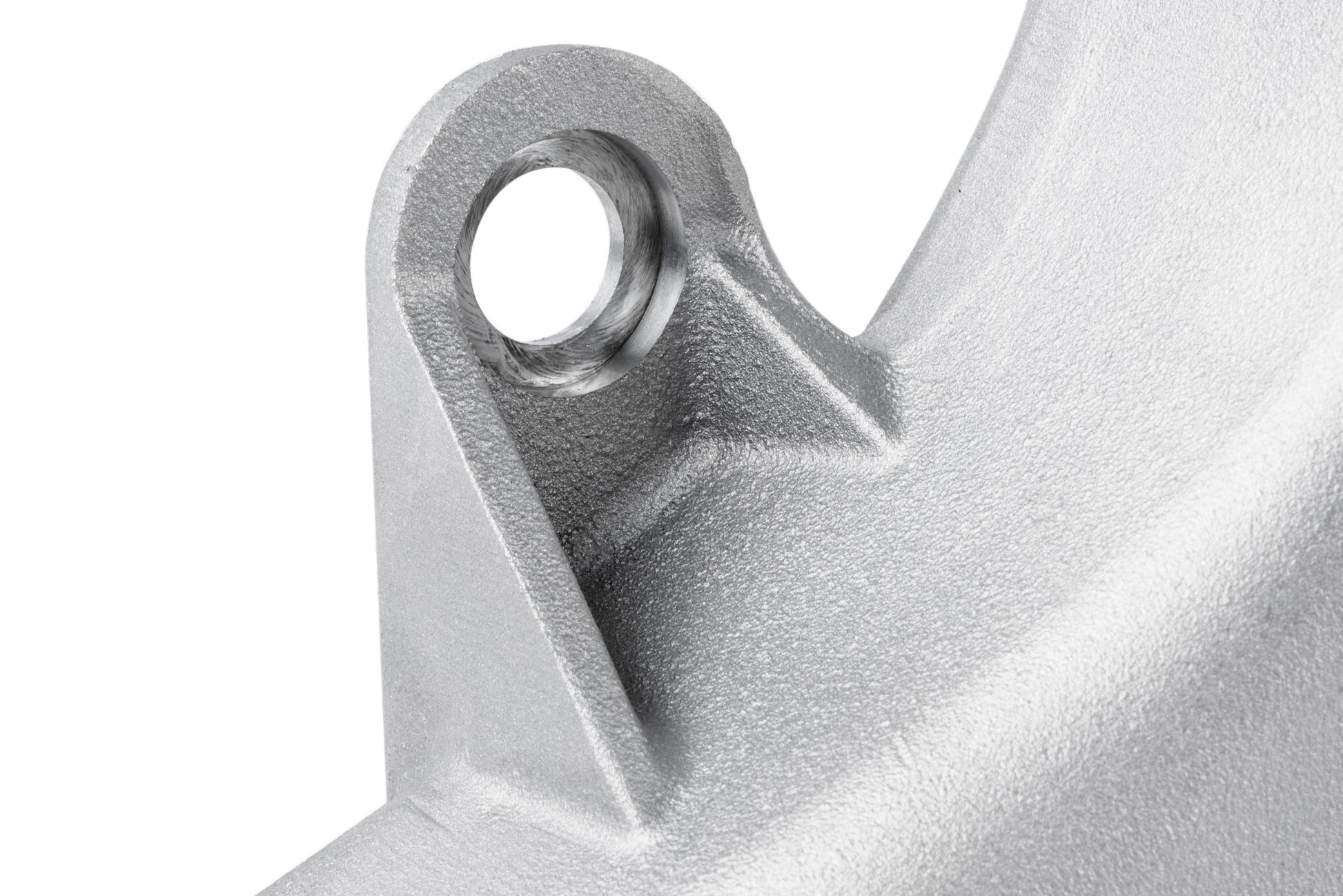

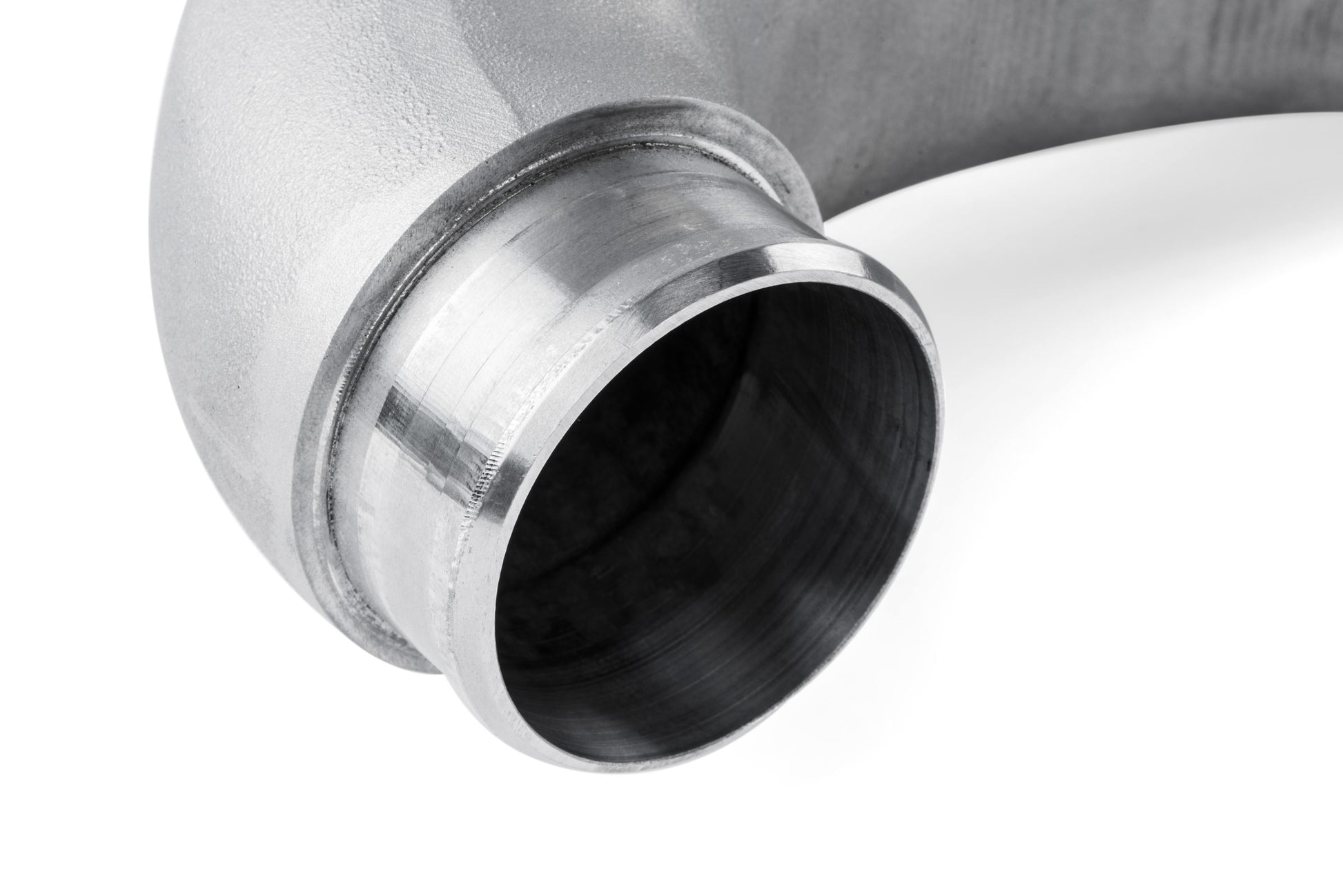

- Smooth cast end tanks
- Engineered for low turbulence/restriction and maximum flow.
- Organically shaped to promote airflow across entire core.
- Pressure tested to prevent power robbing boost leaks.
- Easy to install
- Simple plug-and-play design with no trimming or drilling necessary!
- Designed by engineers with lasers
- With the best equipment and smartest engineers, it just works!
Brand: APR
Category: Belts and Cooling
Color: Silver / Natural
Cooler Type: Air to Air
Core Frontal Area: 228.80
Core Height: 10.4
Core Type: Bar and Plate
Core Volume: 800.80
Core Width: 22, 3.5
Direct Fit: Yes
Emission Code: 7
End Tank Construction: Cast
End Tank Material: 356-F Aluminum
Product Type: Intercooler Systems
Sub Category: Radiators, Coolers and Related Components
Version: TT RS
Warning: California Proposition 65
Welding Type: TIG
