APR - IC100012

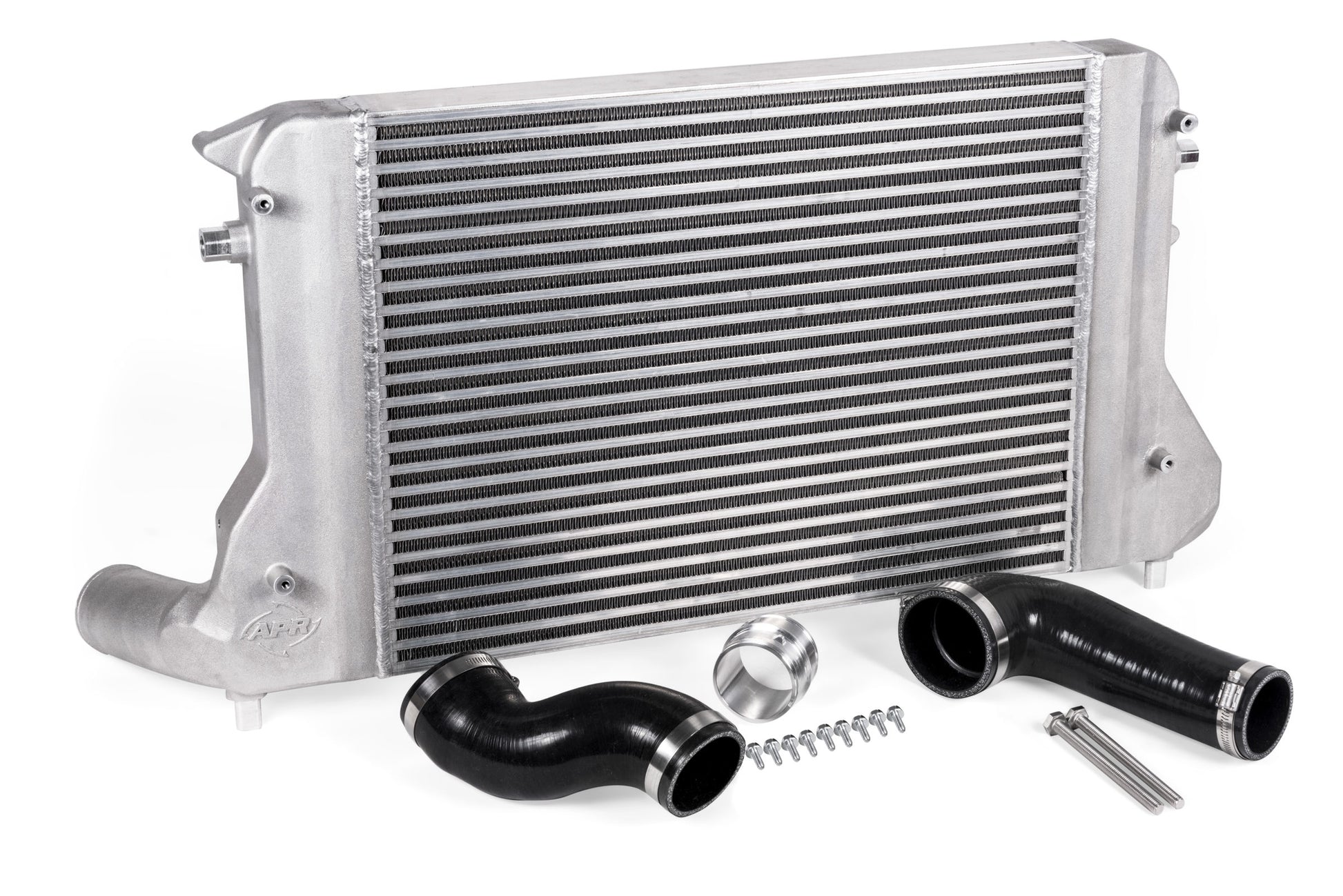

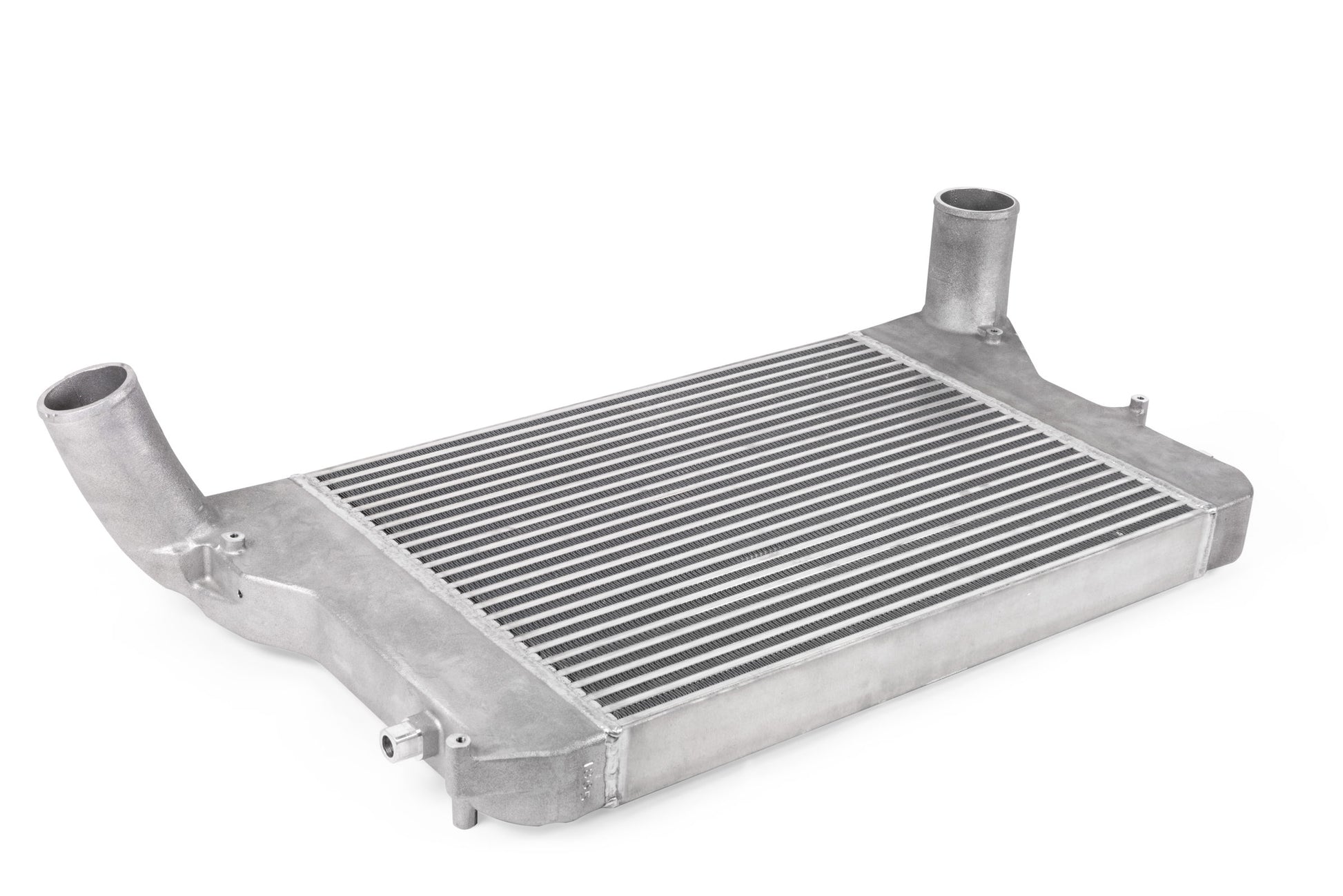

APR Intercooler System - 1.8T/2.0T EA113 / EA888 G1/2 MK5/6
Fits Audi A3 06-13, A3 Quattro 09-15, TT 08-09, TT Quattro 09-15, TTS Quattro 09-15, VW Beetle 12-13, CC 09-17, Eos 07-16, Golf R 12-13, GTI 06-14, Jetta 06-13, Passat 06-10
The APR Intercooler System dramatically lowers charge air temperature and resists heat soak far better the factory intercooler system. Through a massively increased core volume, superior intercooler core design and smooth, cast end tanks, APR's engineers were able to create an intercooler capable of supporting power levels well beyond that of the factory unit. Expect increased horsepower and torque and dramatically prolonged performance.
- Dramatically lowers intake air temperature
- Increases horsepower and torque while prolonging performance
- APR intercooler core dimensions: 2.25" x 16.25" x 22"
- 40% larger than stock
- Larger inlets and outlets
- Pressure tested for leak proof operation

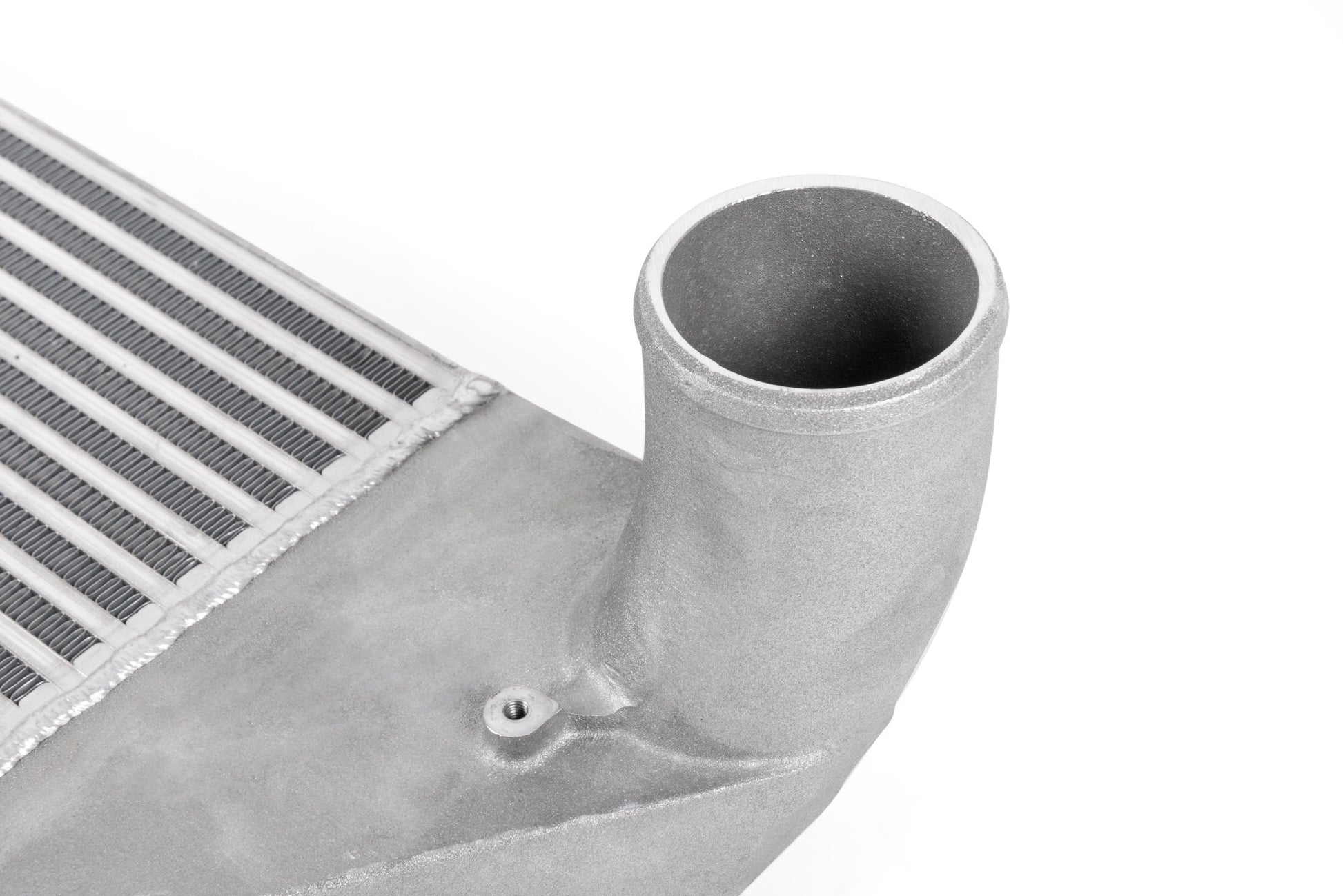

- Smooth cast aluminum end tanks
- Barbed hose connection points for a slip proof fit
- Machined mounting points for extra weight savings

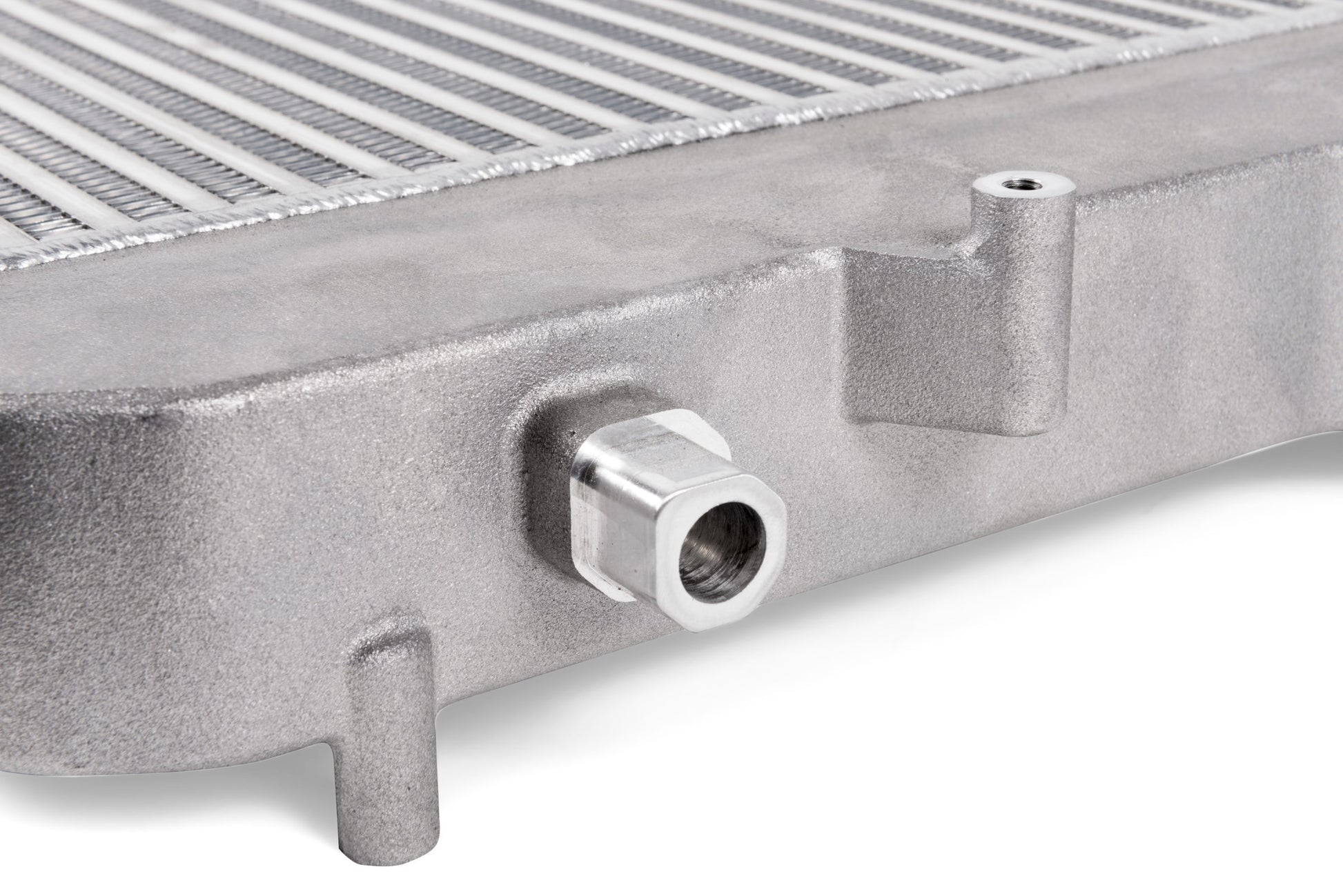

- CNC machined billet adapter
- Multi Ply Silicone Hoses with APR's EZ-Flow stepped design

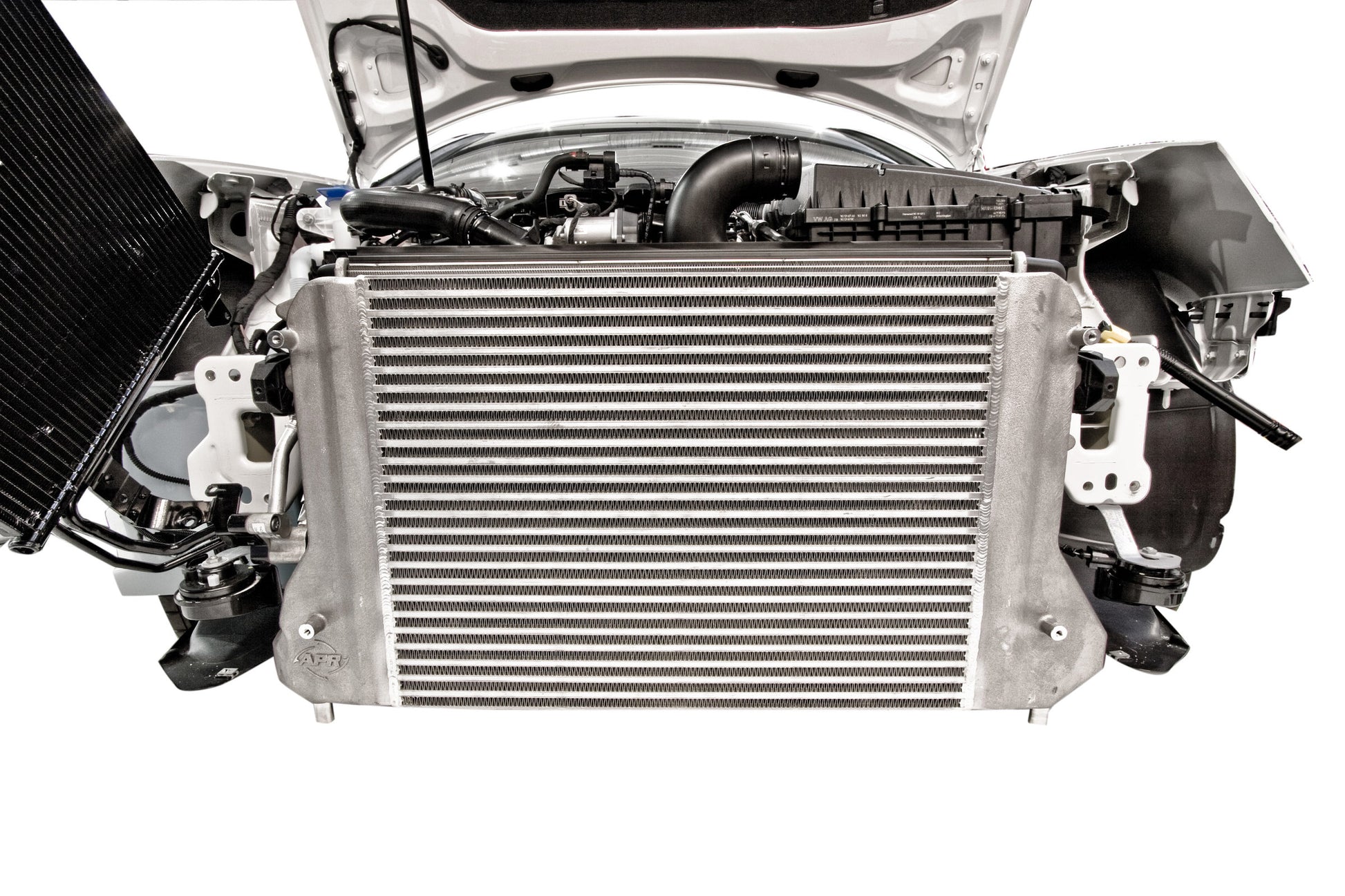

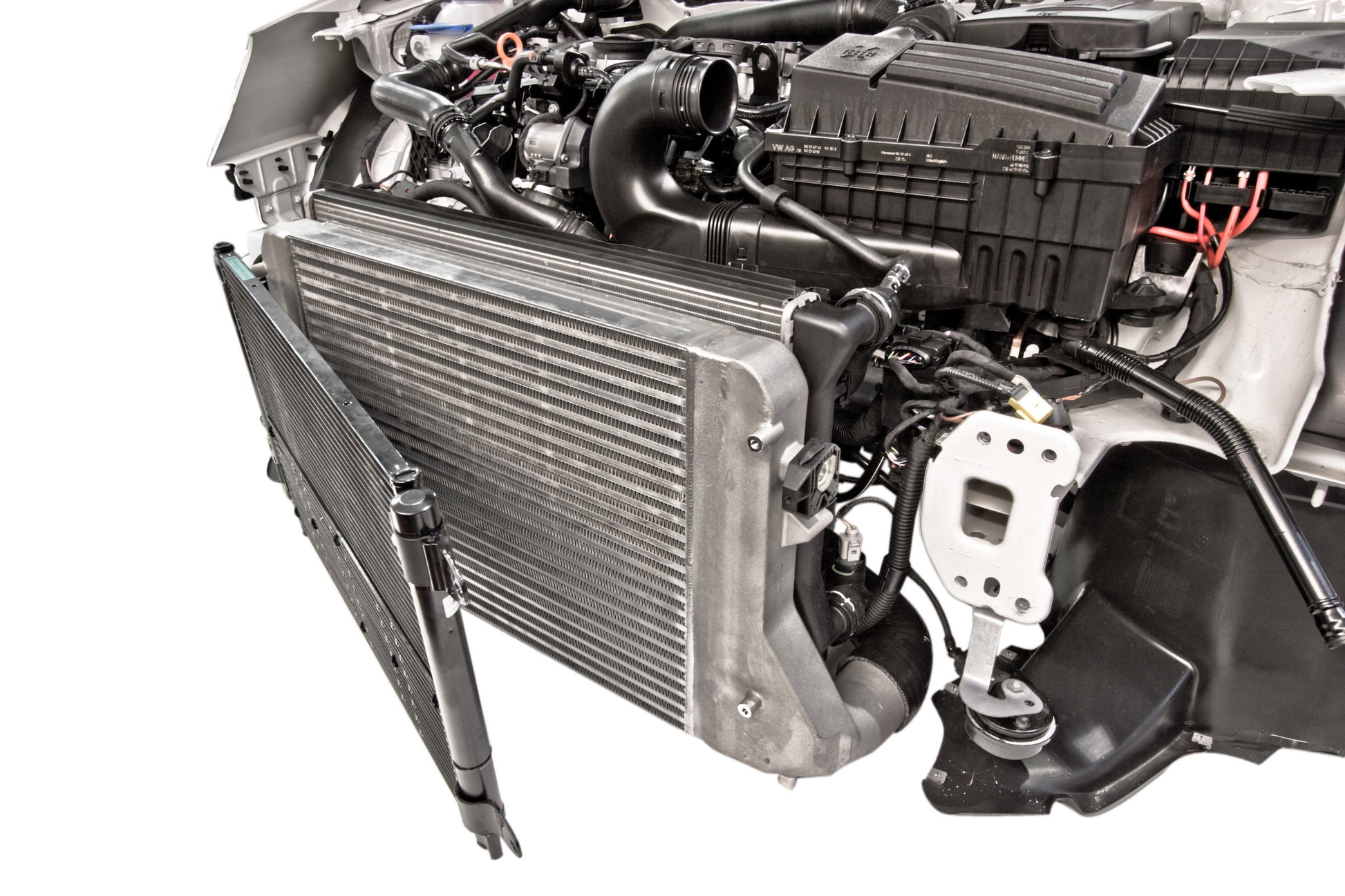

- Direct OEM fitment with no trimming necessary
- Full install directions and APR's world-renowned customer support
Brand: APR
Category: Belts and Cooling
Color: Silver / Natural
Cooler Type: Air to Air
Core Frontal Area: 357.50
Core Height: 16.25
Core Type: Bar and Plate
Core Volume: 804.38
Core Width: 2.25, 22
Direct Fit: Yes
Emission Code: 7
End Tank Construction: Cast
End Tank Material: 356-F Aluminum
Hose Clamp Type: T-Bolt
Hose Type: Silicon
Product Type: Intercooler Systems
Sub Category: Radiators, Coolers and Related Components
Version: EA113, EA888.1, & EA888.2
Warning: California Proposition 65
Welding Type: TIG
