aFe Power 46-20301 - Bladerunner Intercooler Tube Cold Side 14-16 BMW 328d (F30/31) L4-2.0L (td) N47

aFe Power 46-20301 - Bladerunner Intercooler Tube Cold Side 14-16 BMW 328d (F30/31) L4-2.0L (td) N47

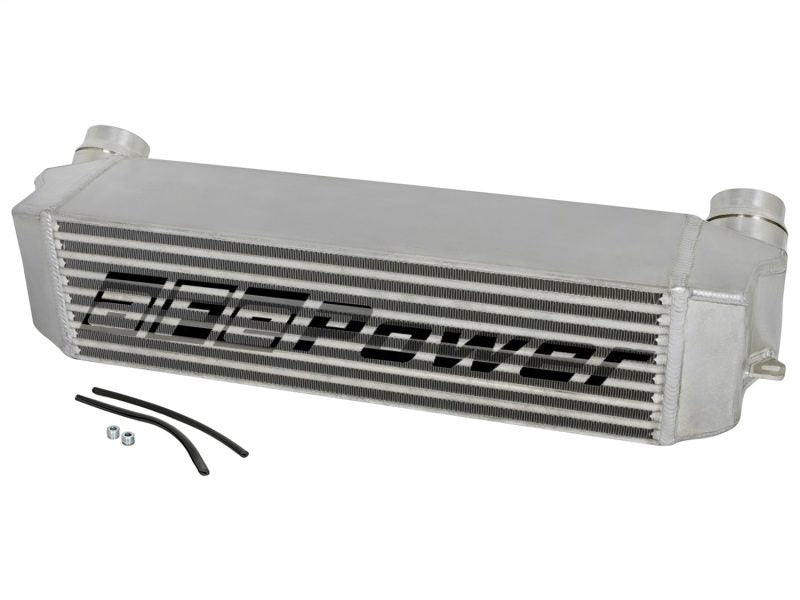

BladeRunner GT Series Intercooler BMW 328d/dx (F30/31) 14-18 L4-2.0L (td) N47

This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2014-2017 BMW 328d/dx (F30/F31) L4-2.0L (td) with the N47 engine, this BladeRunner intercooler utilizes a 5 in. bar and plate core design. This design outflows the factory tube and fin core design, while the 3/16 in. TIG-Welded end tanks offer superior strength and durability. In testing, this intercooler showed flow gains up to 15% and lowered the intake air temperatures. End Tanks: The unique BladeRunner end tanks are constructed out of 3/16 in. thick aluminum plates and include two 1/8 in. NPT ports for sensors or water-methanol injection. 5 in. Bar and Plate Core Design: The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory. TIG-Welded: 100% TIG-Welded inside and out by a certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks. Pressure Tested: The BladeRunner Intercooler is test pressure rated at 200psi. Perfect Fit: Utilizes the factory mounting locations for a hassle-free installation. The intercooler and tubes utilize billet factory style quick connects to assure a leak-free connection.

• Outflows Factory Intercooler Up To 15Percent
• Lowers Manifold Intake Air Temperature
• Incorporates Factory Style Quick Conn. For Intercooler Tubes
• 100 Percent TIG-Welded
• No Cutting Or Modifications Are Needed
