Aeromotive - 19303

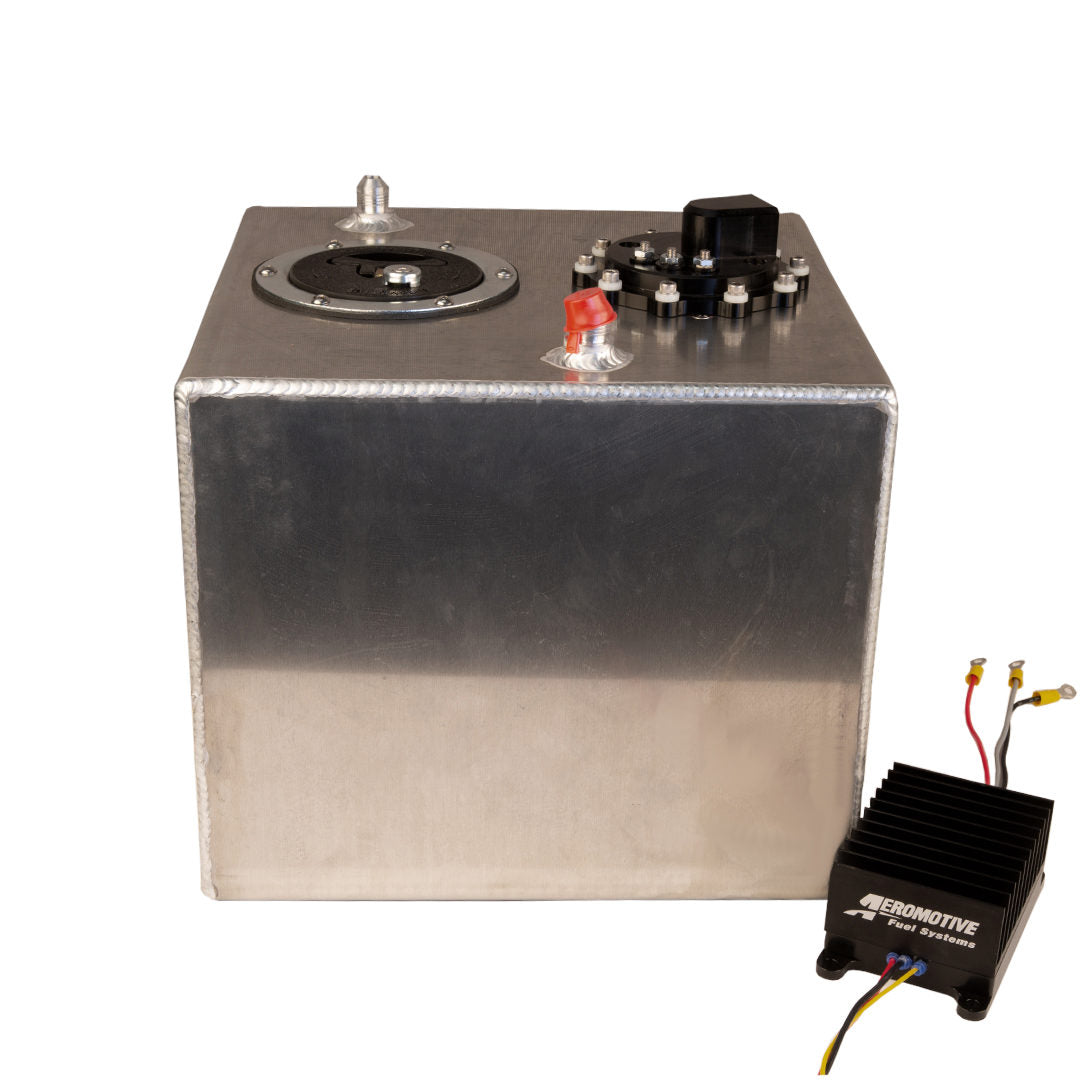

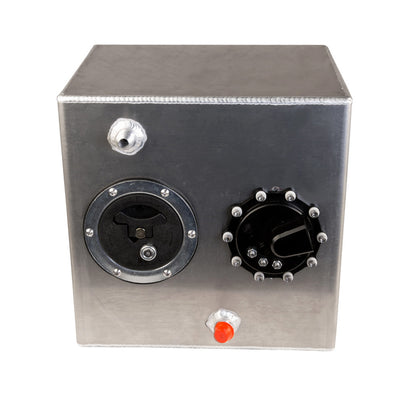

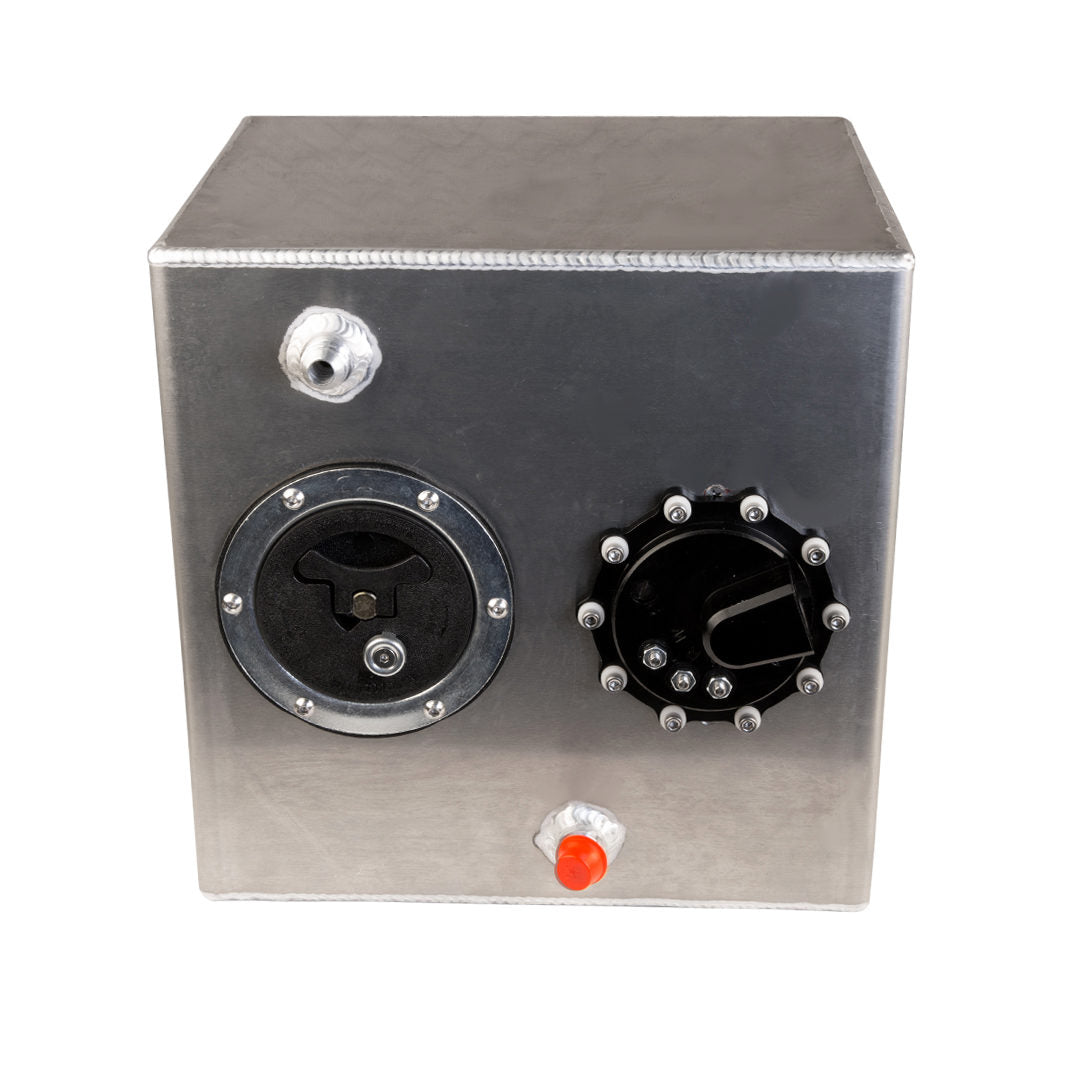

Brushless 90° 3.5 GPM 6-Gal Stealth Fuel Cell with True Variable Speed Controller. Baffled to control slosh and includes ORB-10 outlet, AN-08 return and AN-08 - Rollover protected vent. 90° pump outlet and remote TVS for low profile.
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
Attached Sump: No
Baffled: Yes
Capacity: 6
Color: Natural
EmissionFullDES: 3 - This Product is ILLEGAL for Street or Off Highway use and is only intended for Closed Course Competition use, Except for 1965 and older US Manufactured, California Certified vehicles; 1967and older US Manufactured, Federal Certified vehicles, or 1967 and older Foreign Manufactured vehicles , which may have this product installed as long as the vehicle still meets emissions standards for the year of the vehicle and retains any original or retrofit emissions control devices, including EGR, A.I.R and any NOx device required for the year of the vehicle.
Filler Neck Attached: Yes
Finish: Natural
Fuel Cap Included: Yes
Fuel Pump Included: Yes
Fuel System Compatibility: Carburation & Fuel Injection
Fuel Type: Gas
Grade Type: Performance
Height: 10
Integrated Controller: Yes
Length: 12
Lock Ring Included: Yes
Material: Aluminum
Maximum Current Draw: 12 @ 40 psi
Maximum Flow Rating: 3.5 GPM
Maximum Pressure: 90
Motor Style: Brushless
Mounting Hardware Included: No
Mounting Straps Included: No
Negative Ground: Yes
O-Ring Included: Yes
Outlet Outside Diameter: ORB - 10
Outlet Type: Female
Pulse Width Modulation Compatible: No
Pump Design: Spur Gear
Return Fitting Size: ORB-08
Sending Unit Included: No
Series: Stealth Fuel Cell
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Threaded Stud
Universal Or Specific Fit: Universal
Voltage: 12-16V
Width: 12
Wire Quantity: 3
Wiring Harness Included: No
