Aeromotive - 18665
Fuel Cell and Pump - 340 Stealth - 20 gal - 20 x 24 x 10 in Tall - 8 AN Outlet - 8 AN Return - 8 AN Vents - Sender - Aluminum - Natural - Each

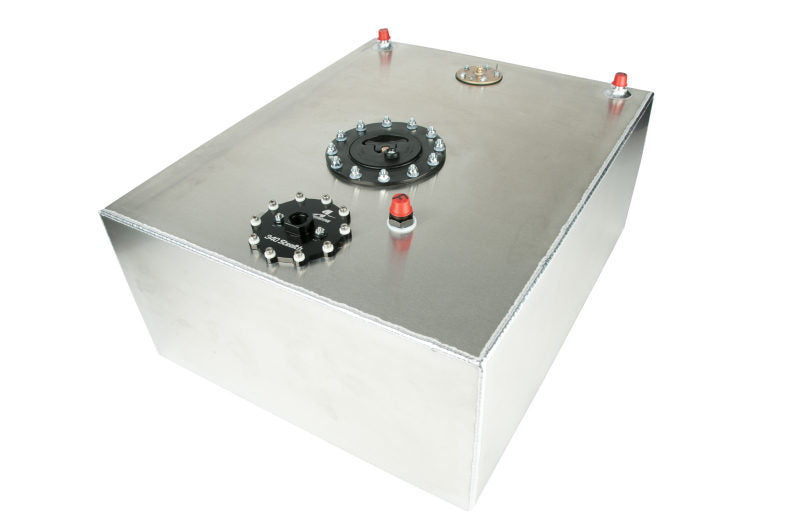

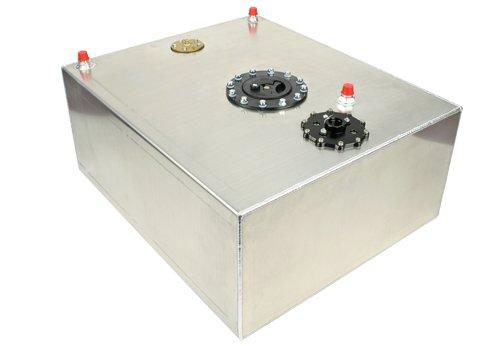

20g 340 Stealth Fuel Cell.
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
Attached Sump: No
Baffled: Yes
Capacity: 20
Color: Natural
Filler Neck Attached: Yes
Finish: Natural
Fuel Cap Included: Yes
Fuel Pump Included: Yes
Fuel System Compatibility: Carburation & Fuel Injection
Fuel Type: Gas
Grade Type: Performance
Height: 10
Integrated Controller: No
Length: 24
Lock Ring Included: Yes
Material: Aluminum
Maximum Current Draw: 13A @ 40PSI
Maximum Flow Rating: 340LPH
Maximum Pressure: 105PSI
Motor Style: Brushed
Mounting Hardware Included: No
Mounting Straps Included: No
Negative Ground: Yes
O-Ring Included: Yes
Outlet Outside Diameter: ORB-06
Outlet Type: Female
Pressure Range: 3-65
Pulse Width Modulation Compatible: Yes
Pump Design: Turbine Impeller
Return Fitting Size: ORB-06
Sending Unit Included: No
Series: Stealth Fuel Cell
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Threaded Stud
Universal Or Specific Fit: Universal
Voltage: 12-16V
Width: 20
