Aeromotive 18658 - 69 F-Body Camaro 340 Series Stealth Fuel Tank

Aeromotive 18658 - 69 F-Body Camaro 340 Series Stealth Fuel Tank

Aeromotive | 18658
SKU: AFS-18658
$1,096.99 USD
$1,154.13 USD $1,096.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

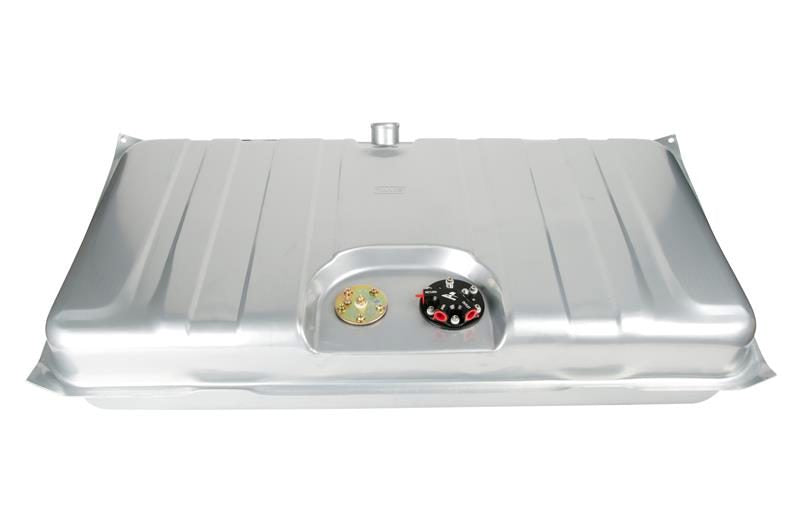

Aeromotive 18658 - 69 F-Body Camaro 340 Series Stealth Fuel Tank

69 GM Camaro Stealth Fuel Tank

69 F-Body Camaro/Firebird 340 Series Stealth Fuel Tank.

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Attached Sump: No
Baffled: Yes
Capacity: 18
Color: Silver
Filler Neck Attached: Yes
Finish: Powder Coated
Fuel Cap Included: No
Fuel Pump Included: Yes
Fuel System Compatibility: Carburation & Fuel Injection
Fuel Type: Gas
Grade Type: Performance
Height: 10
Integrated Controller: No
Length: 41
Lock Ring Included: Yes
Material: Steel
Maximum Current Draw: 13A @ 40PSI
Maximum Flow Rating: 340LPH
Maximum Pressure: 105PSI
Motor Style: Brushed
Mounting Hardware Included: No
Mounting Straps Included: No
Negative Ground: Yes
O-Ring Included: Yes
Outlet Outside Diameter: ORB-06
Outlet Type: Female
Pressure Range: 3-65
Pulse Width Modulation Compatible: Yes
Pump Design: Turbine Impeller
Return Fitting Size: ORB-06
Sender Ohm Range: 0-90
Sending Unit Included: Yes
Series: Stealth
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Threaded Stud
Universal Or Specific Fit: Specific
Voltage: 12-16V
Width: 22
