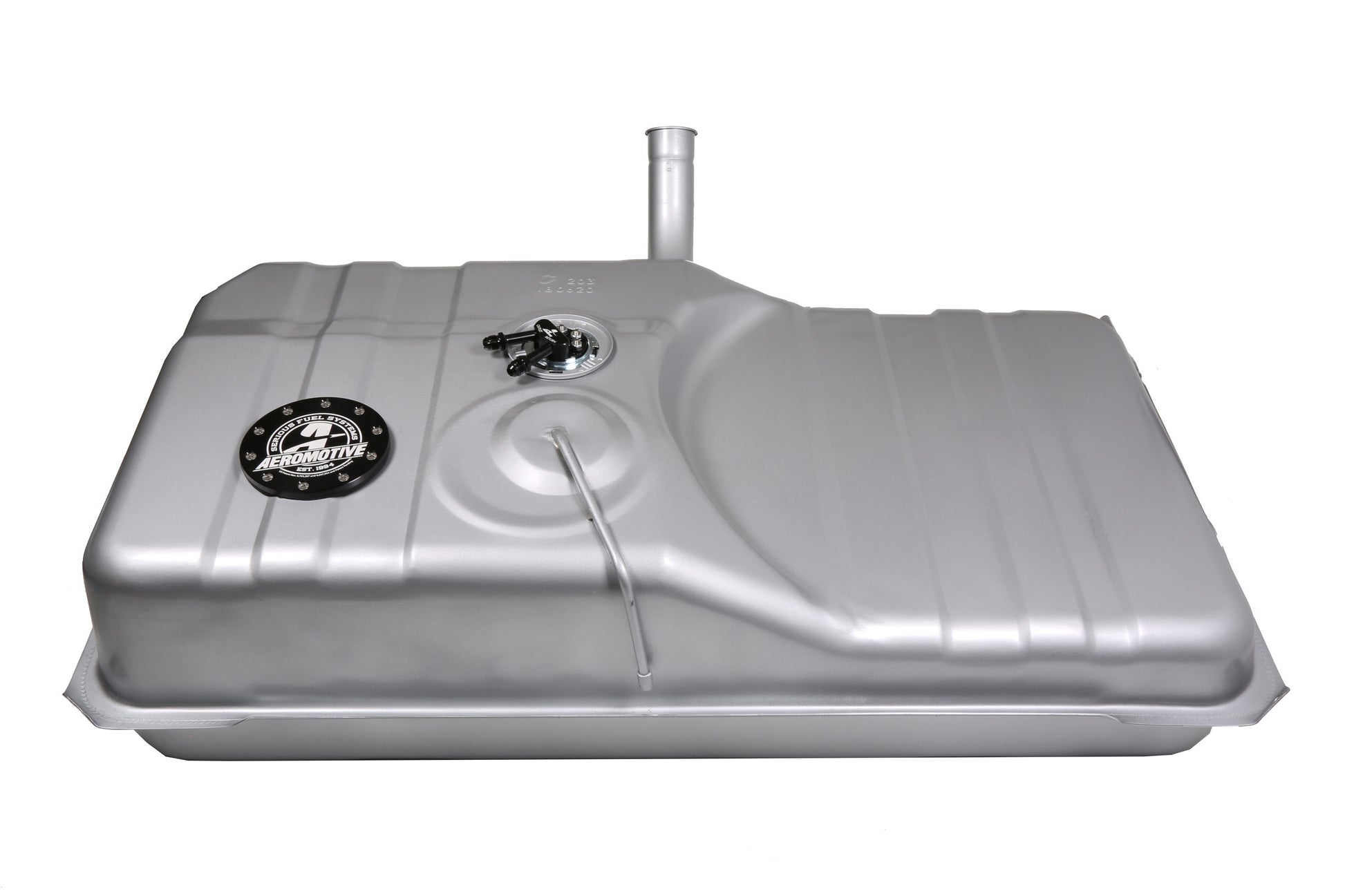

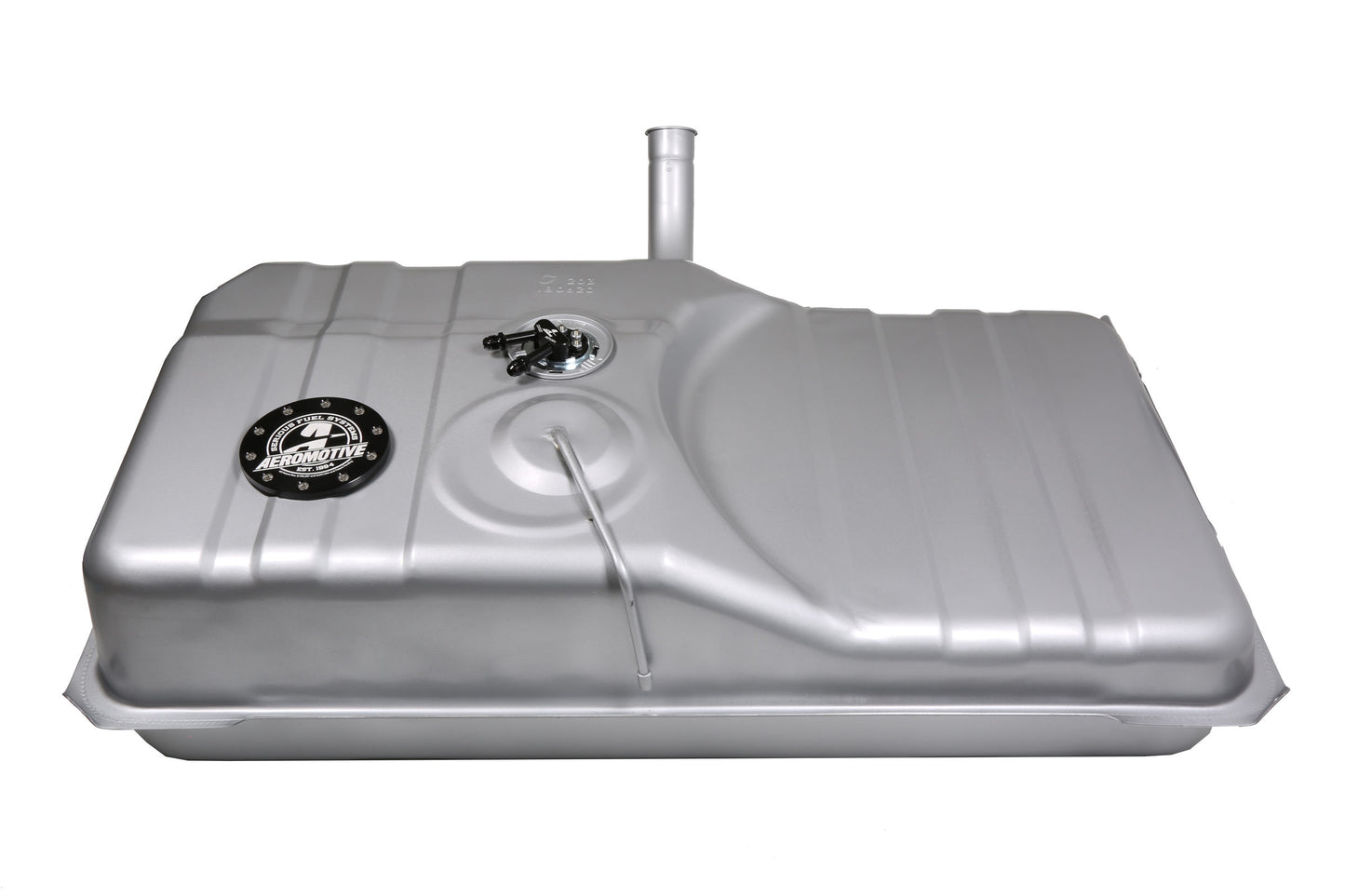

Aeromotive 18435 - 74-77 Chevrolet Camaro & 74-78 Pontiac Firebird 340 Stealth Gen 2 Fuel Tank

Aeromotive 18435 - 74-77 Chevrolet Camaro & 74-78 Pontiac Firebird 340 Stealth Gen 2 Fuel Tank

Aeromotive | 18435
SKU: AFS-18435
$880.99 USD
$923.48 USD $880.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Aeromotive 18435 - 74-77 Chevrolet Camaro & 74-78 Pontiac Firebird 340 Stealth Gen 2 Fuel Tank

Fuel Tank - Gen ll Stealth - 340 lph Pump - 6 AN Male Outlet - 6 AN Male Return - Sending Unit - Steel - Silver Paint - GM F-Body 1974-77 - Kit

Fuel Tank, 340 Stealth Gen 2, 74-77 Camaro, 74-78 Firebird .

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Attached Sump: No
Baffled: Yes
Capacity: 21
Color: Silver
Filler Neck Attached: Yes
Finish: Powder Coated
Fuel Cap Included: No
Fuel Pump Included: Yes
Fuel System Compatibility: Carburation & Fuel Injection
Fuel Type: Gas
Grade Type: Performance
Height: 22
Integrated Controller: No
Length: 44
Lock Ring Included: Yes
Material: Steel
Maximum Current Draw: 13A @ 40PSI
Maximum Flow Rating: 340LPH
Maximum Pressure: 105 PSI
Motor Style: Brushed
Mounting Hardware Included: No
Mounting Straps Included: No
Negative Ground: Yes
O-Ring Included: Yes
Outlet Outside Diameter: ORB-06
Outlet Type: Female
Pressure Range: 3-65
Pulse Width Modulation Compatible: Yes
Pump Design: Turbine Impeller
Return Fitting Size: ORB-06
Sender Ohm Range: 0-90
Sending Unit Included: Yes
Series: Gen II Stealth
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Threaded Stud
Universal Or Specific Fit: Specific
Voltage: 12-16V
Width: 11
