Aeromotive - 18396

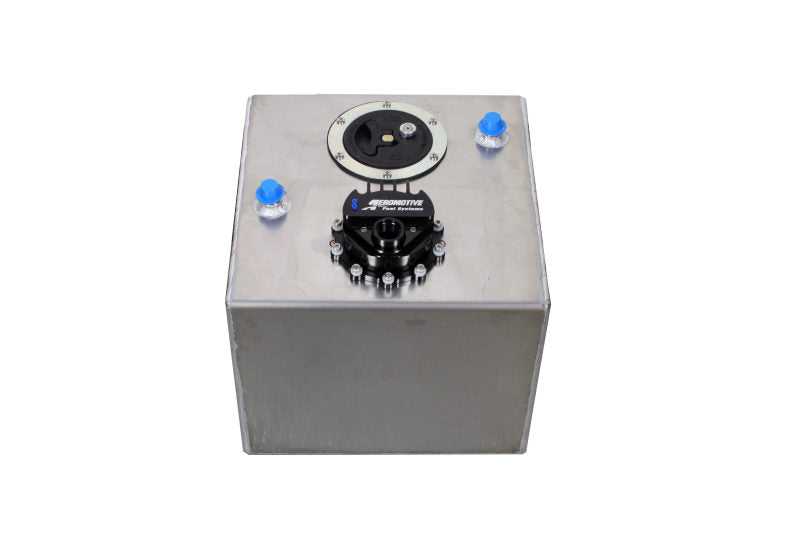

Brushless 3.5 Spur Gear 6 Gallon Fuel Cell with Variable Speed Controller
Variable Speed Controlled Fuel Cell, 6 Gal, Brushless Spur 3.5.
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
Attached Sump: No
Baffled: Yes
Capacity: 6
Color: Natural
Filler Neck Attached: Yes
Finish: Natural
Fuel Cap Included: Yes
Fuel Pump Included: Yes
Fuel System Compatibility: Carburation & Fuel Injection
Fuel Type: Gas
Grade Type: Performance
Height: 10
Integrated Controller: Yes
Length: 12
Lock Ring Included: Yes
Material: Aluminum
Maximum Current Draw: 12 @ 40 psi
Maximum Flow Rating: 3.5 GPM
Maximum Pressure: 90
Motor Style: Brushless
Mounting Hardware Included: No
Mounting Straps Included: No
Negative Ground: Yes
O-Ring Included: Yes
Outlet Outside Diameter: ORB - 10
Outlet Type: Female
Pulse Width Modulation Compatible: No
Pump Design: Spur Gear
Return Fitting Size: ORB-08
Sending Unit Included: No
Series: Stealth Fuel Cell
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Threaded Stud
Universal Or Specific Fit: Universal
Voltage: 12-16V
Width: 12
Wire Quantity: 3
Wiring Harness Included: No
