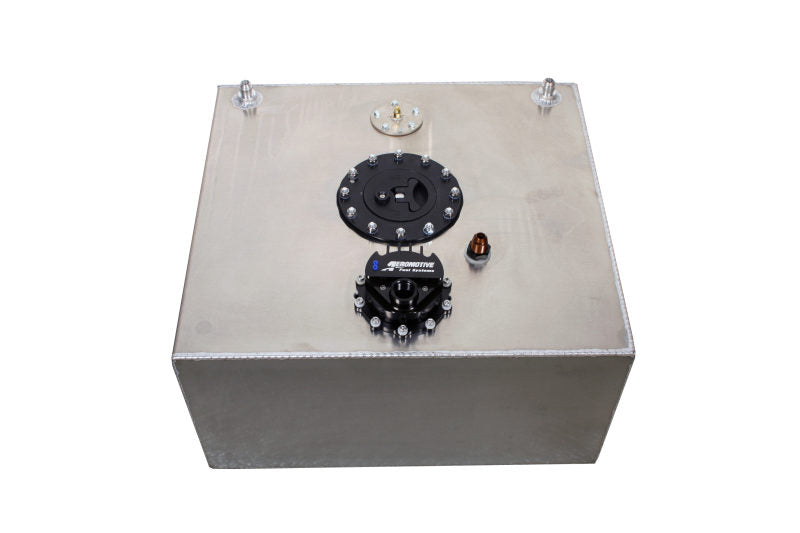

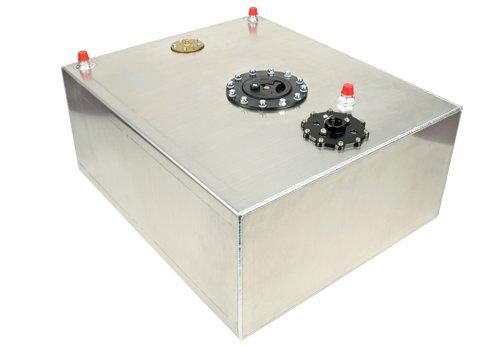

Aeromotive - 18372
Fuel Cell and Pump - 5.0 Brushless Stealth Fuel Cell - 15 gal - 20 x 18 x 10 in Tall - 10 AN O-Ring Outlet - 8 AN Return - 8 AN Vents - Aluminum - Natural - E85 / Gas / Methanol - Universal - Each
Fuel Cell, 15 Gal, Brushless Spur Gear 5.0gpm.
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
Attached Sump: No
Baffled: Yes
Capacity: 15
Color: Natural
Filler Neck Attached: Yes
Finish: Natural
Fuel Cap Included: Yes
Fuel Pump Included: Yes
Fuel System Compatibility: Carburation & Fuel Injection
Fuel Type: Gas
Grade Type: Performance
Height: 10
Integrated Controller: No
Length: 18
Lock Ring Included: Yes
Material: Aluminum
Maximum Current Draw: 12 @ 40 psi
Maximum Flow Rating: 5.0 GPM
Maximum Pressure: 150
Motor Style: Brushless
Mounting Hardware Included: No
Mounting Straps Included: No
Negative Ground: Yes
O-Ring Included: Yes
Outlet Outside Diameter: ORB - 12
Outlet Type: Female
Pulse Width Modulation Compatible: No
Pump Design: Spur Gear
Return Fitting Size: ORB-10
Sender Ohm Range: 0-90
Sending Unit Included: Yes
Series: Stealth Fuel Cell
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Threaded Stud
Universal Or Specific Fit: Universal
Voltage: 12-16V
Width: 20
Wire Quantity: 3
Wiring Harness Included: No
