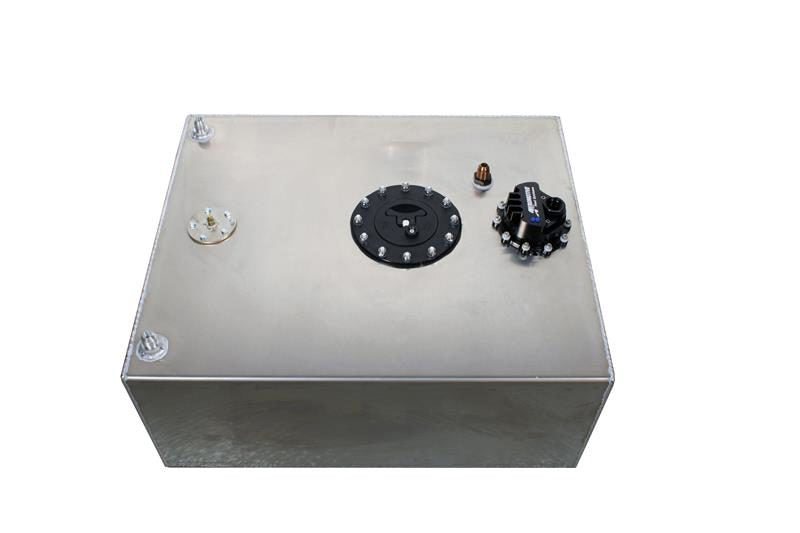

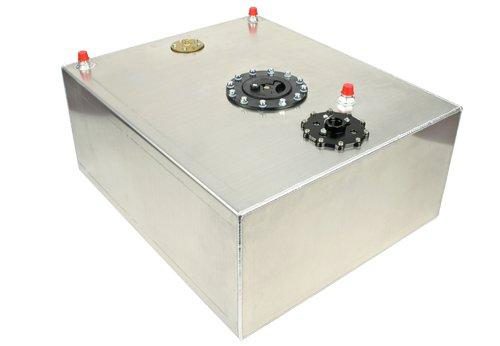

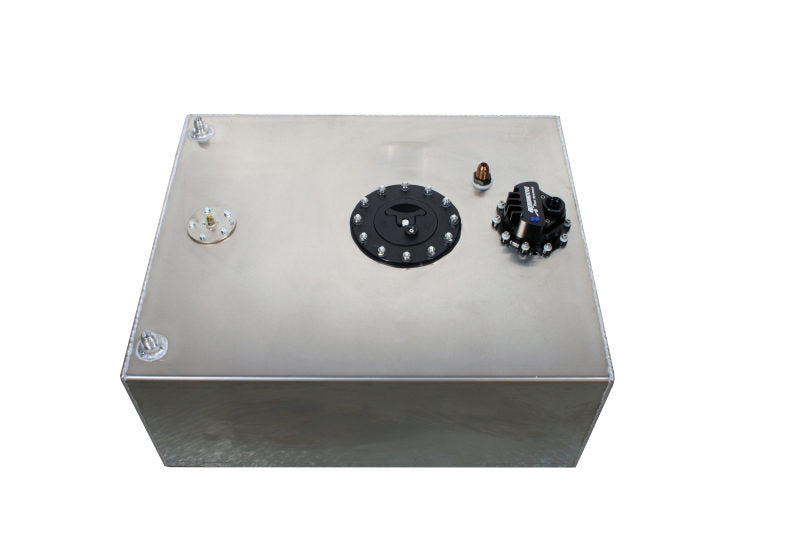

Aeromotive 18371 - Fuel Cell - 20 Gal - Brushless Gear Pump Module 3.5gpm Spur Pro

Aeromotive 18371 - Fuel Cell - 20 Gal - Brushless Gear Pump Module 3.5gpm Spur Pro

Aeromotive | 18371
SKU: AFS-18371
$2,643.99 USD
$2,782.65 USD $2,643.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Aeromotive 18371 - Fuel Cell - 20 Gal - Brushless Gear Pump Module 3.5gpm Spur Pro

3.5 Brushless Stealth Fuel Cell - 20 Gallon

Fuel Cell, 20 Gal, Brushless Spur Gear 3.5gpm.

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Attached Sump: No
Baffled: Yes
Capacity: 20
Color: Natural
Filler Neck Attached: Yes
Finish: Natural
Fuel Cap Included: Yes
Fuel Pump Included: Yes
Fuel System Compatibility: Carburation & Fuel Injection
Fuel Type: Gas
Grade Type: Performance
Height: 10
Integrated Controller: No
Length: 24
Lock Ring Included: Yes
Material: Aluminum
Maximum Current Draw: 12 @ 40 psi
Maximum Flow Rating: 3.5 GPM
Maximum Pressure: 90
Motor Style: Brushless
Mounting Hardware Included: No
Mounting Straps Included: No
Negative Ground: Yes
O-Ring Included: Yes
Outlet Outside Diameter: ORB - 10
Outlet Type: Female
Pulse Width Modulation Compatible: No
Pump Design: Spur Gear
Return Fitting Size: ORB-08
Sender Ohm Range: 0-90
Sending Unit Included: Yes
Series: Stealth Fuel Cell
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Threaded Stud
Universal Or Specific Fit: Universal
Voltage: 12-16V
Width: 20
Wire Quantity: 3
Wiring Harness Included: No
