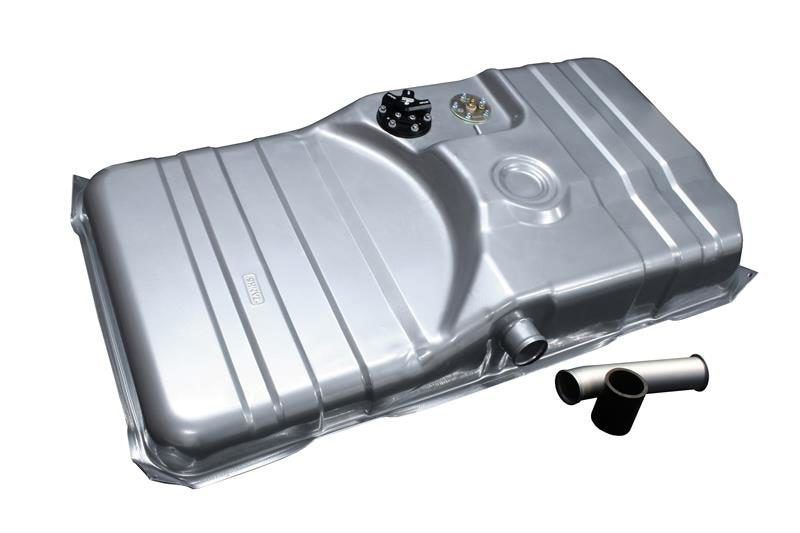

Aeromotive 18335 - 74-77 Camaro / 74-78 Firebird 340 Stealth Fuel Tank

Aeromotive 18335 - 74-77 Camaro / 74-78 Firebird 340 Stealth Fuel Tank

Aeromotive | 18335
SKU: AFS-18335
$1,206.99 USD
$1,269.95 USD $1,206.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Aeromotive 18335 - 74-77 Camaro / 74-78 Firebird 340 Stealth Fuel Tank

'74-'77 Camaro and '74-'78 Firebird 340 Stealth Fuel Tank

Fuel Tank, 340 Stealth, 74-77 Camaro, 74-78 Firebird.

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Attached Sump: No
Baffled: Yes
Capacity: 21
Color: Silver
Filler Neck Attached: Yes
Finish: Powder Coated
Fuel Cap Included: No
Fuel Pump Included: Yes
Fuel System Compatibility: Carburation & Fuel Injection
Fuel Type: Gas
Grade Type: Performance
Height: OEM
Integrated Controller: No
Length: OEM
Lock Ring Included: Yes
Material: Steel
Maximum Current Draw: 13A @ 40PSI
Maximum Flow Rating: 340LPH
Maximum Pressure: 105PSI
Motor Style: Brushed
Mounting Hardware Included: No
Mounting Straps Included: No
Negative Ground: Yes
O-Ring Included: Yes
Outlet Outside Diameter: ORB-06
Outlet Type: Female
Pressure Range: 3-65
Pulse Width Modulation Compatible: Yes
Pump Design: Turbine Impeller
Return Fitting Size: ORB-06
Sender Ohm Range: 0-90
Sending Unit Included: Yes
Series: Stealth
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Threaded Stud
Universal Or Specific Fit: Specific
Voltage: 12-16V
Width: OEM
