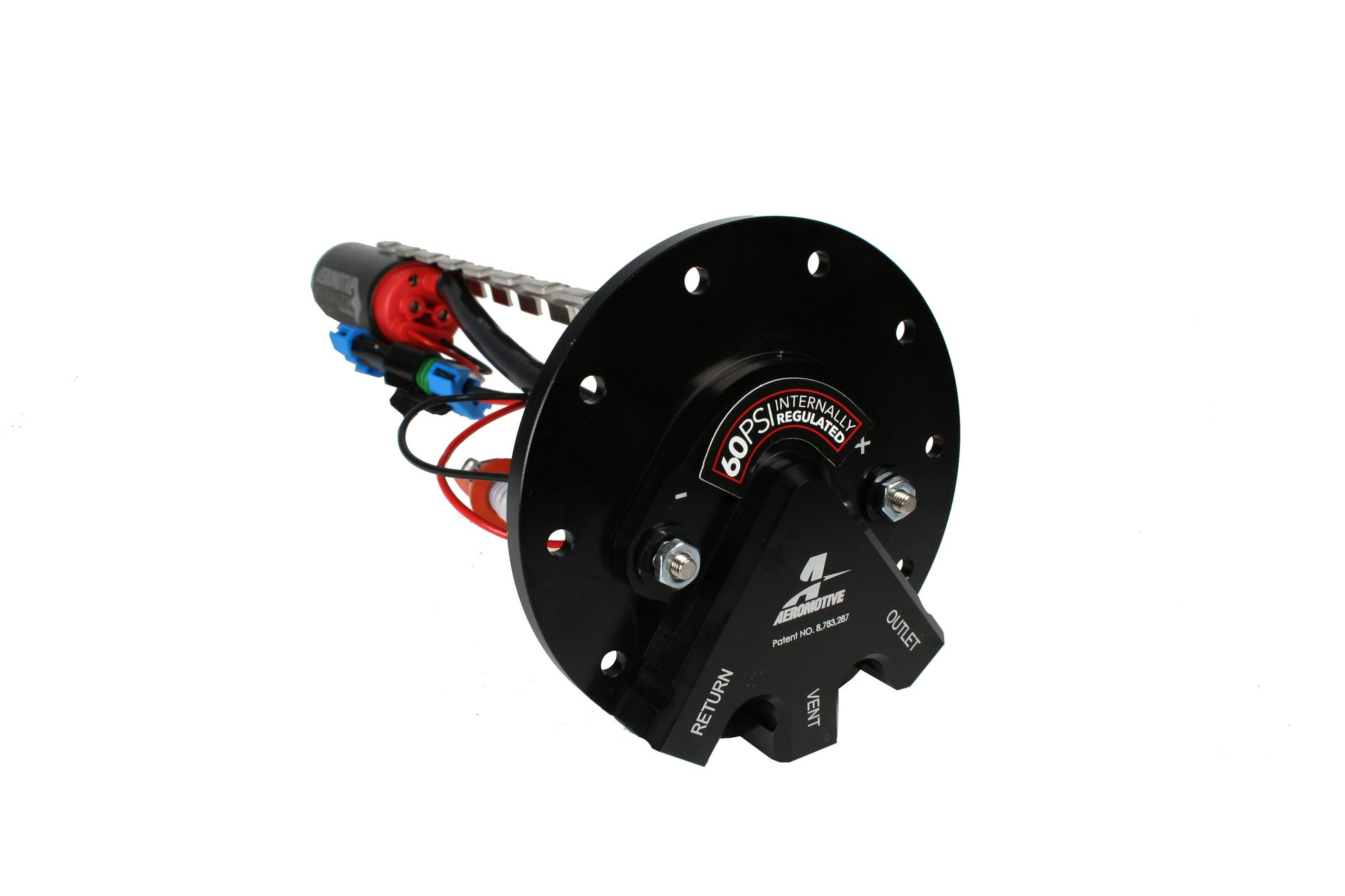

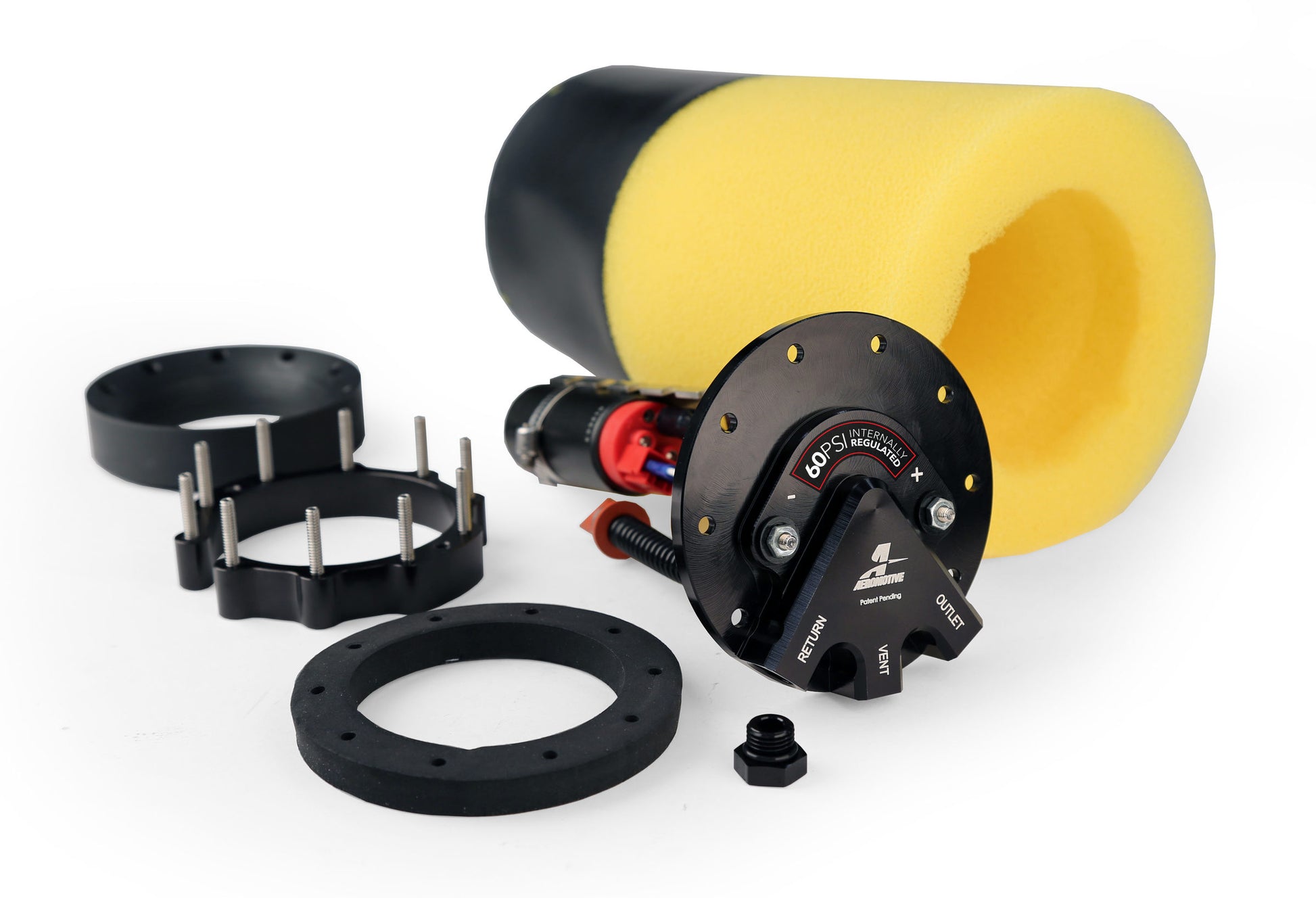

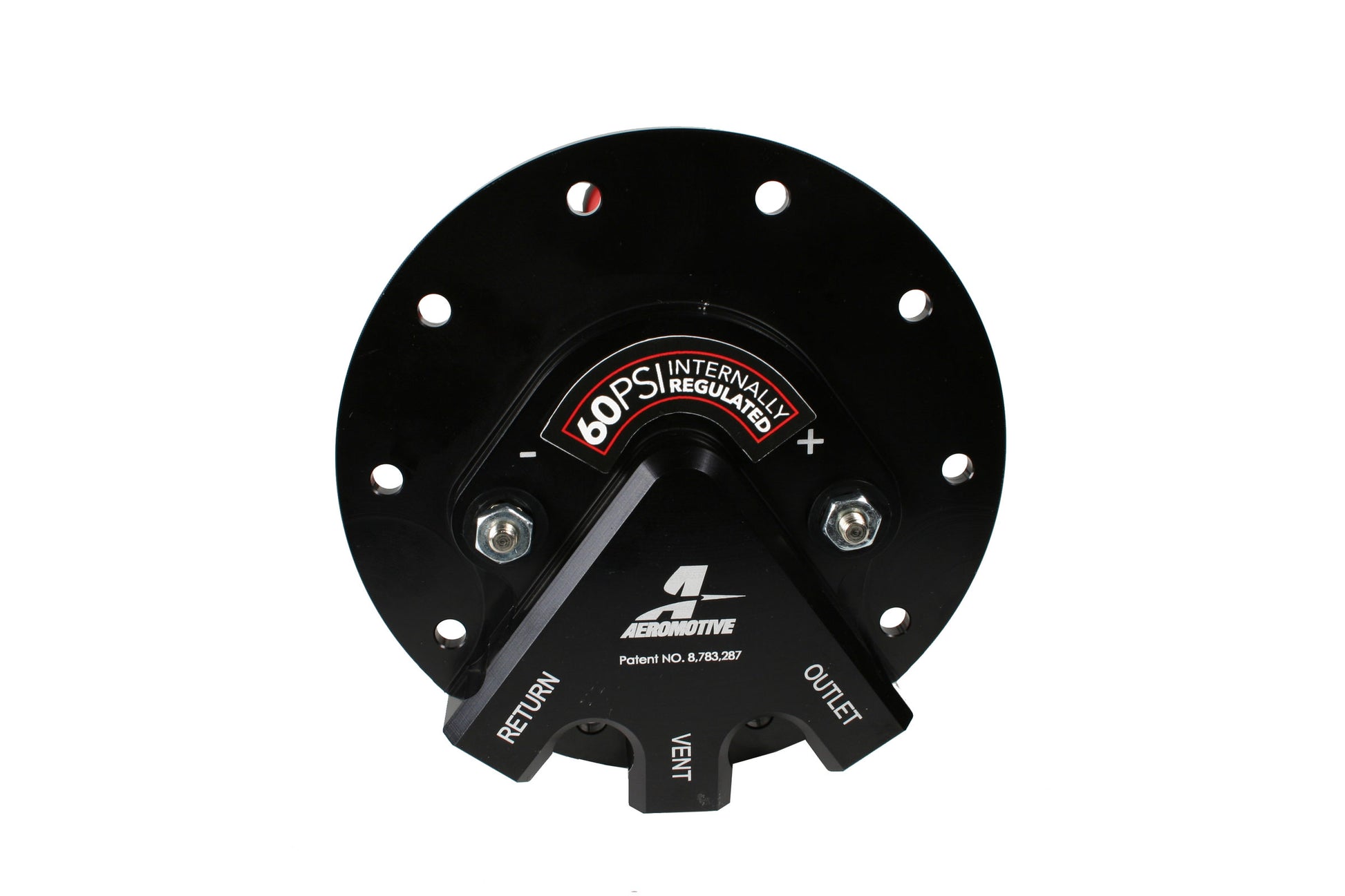

Aeromotive - 18329
Fuel Pump - EFI Returnless Phantom - Electric - In-Tank - 340 gph at 55-60 psi - 6 AN Female O-Ring Outlet / Return / Vent - Install Kit - E85 / Gas / Diesel - Kit
EFI Returnless Phantom 325, 58-60 PSI Internally Regulated. ORB-06 Outlet and Vent Ports. Requires AN-06 Supply Line and High Flow Filter.
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
EFI HP on Gas: 450 FI
EFI HP on Gas: 600 NA
Filter Included: No
Fuel Delivery Type: Fuel Injection
Fuel Sending Unit Included: No
Fuel Type: Gas/E85
Gasket Or Seal Included: Yes
Grade Type: Performance
Integrated Controller: No
Internal Or External: Internnal
Maximum Current Draw: 13
Maximum Flow Rating: 340
Maximum Pressure: 55-60
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Negative Ground: Yes
Outlet Outside Diameter: AN-06
Outlet Type: Female Thread
Pulse Width Modulation Compatible: Yes
Pump Design: turbine impeller
Regulator Included: No
Seal And Lock Ring Included: Yes
Series: Phantom
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Threaded Stud
Universal Or Specific Fit: Universal
Voltage: 12
Wiring Harness Included: No
