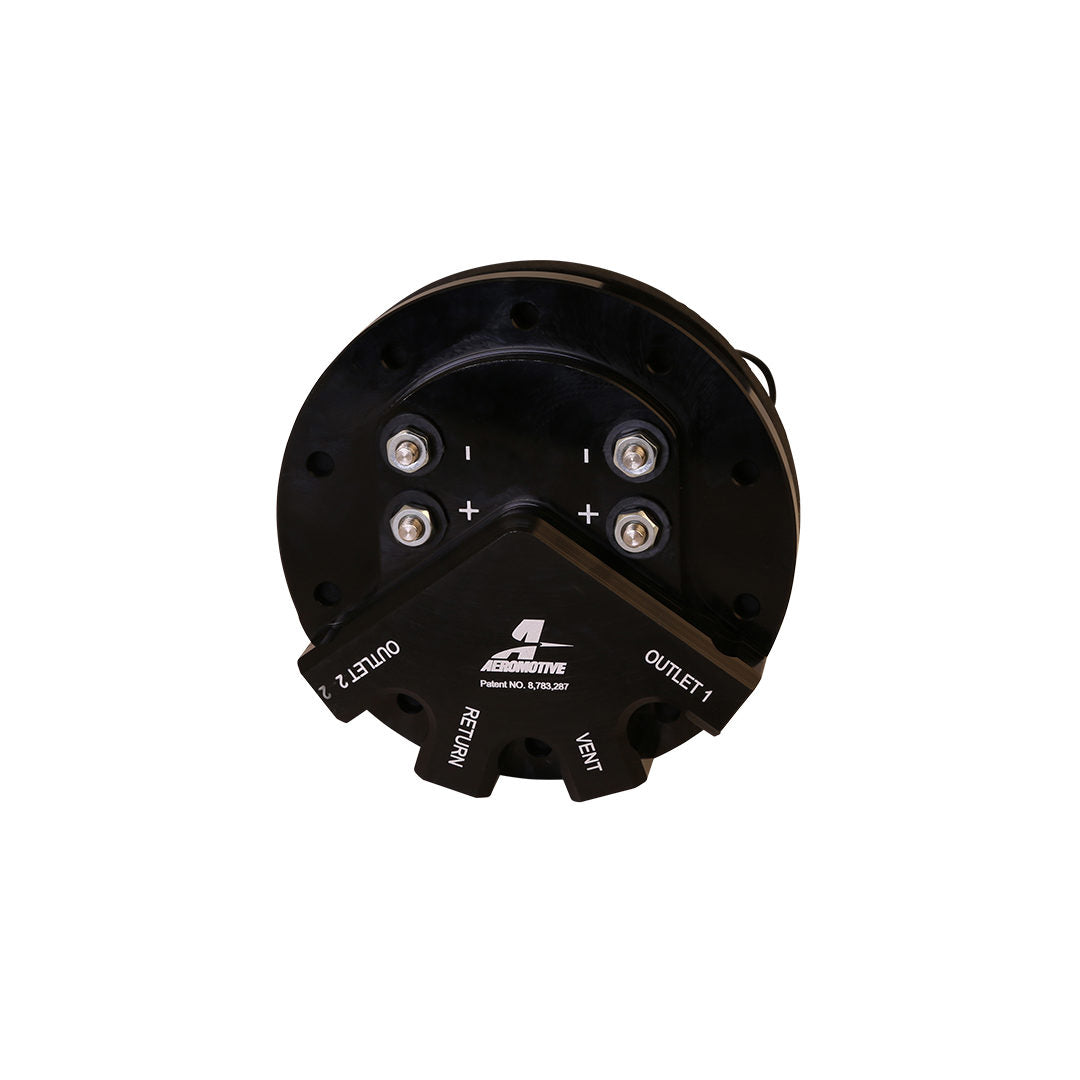

Aeromotive 18309 - Fuel Pump - Universal - Phantom Dual 340 - 6-10in Depth

Aeromotive 18309 - Fuel Pump - Universal - Phantom Dual 340 - 6-10in Depth

Aeromotive | 18309
SKU: AFS-18309
$908.99 USD
$956.19 USD $908.99 USD
Sale Sold out
Shipping calculated at checkout.

22 in stock

Aeromotive 18309 - Fuel Pump - Universal - Phantom Dual 340 - 6-10in Depth

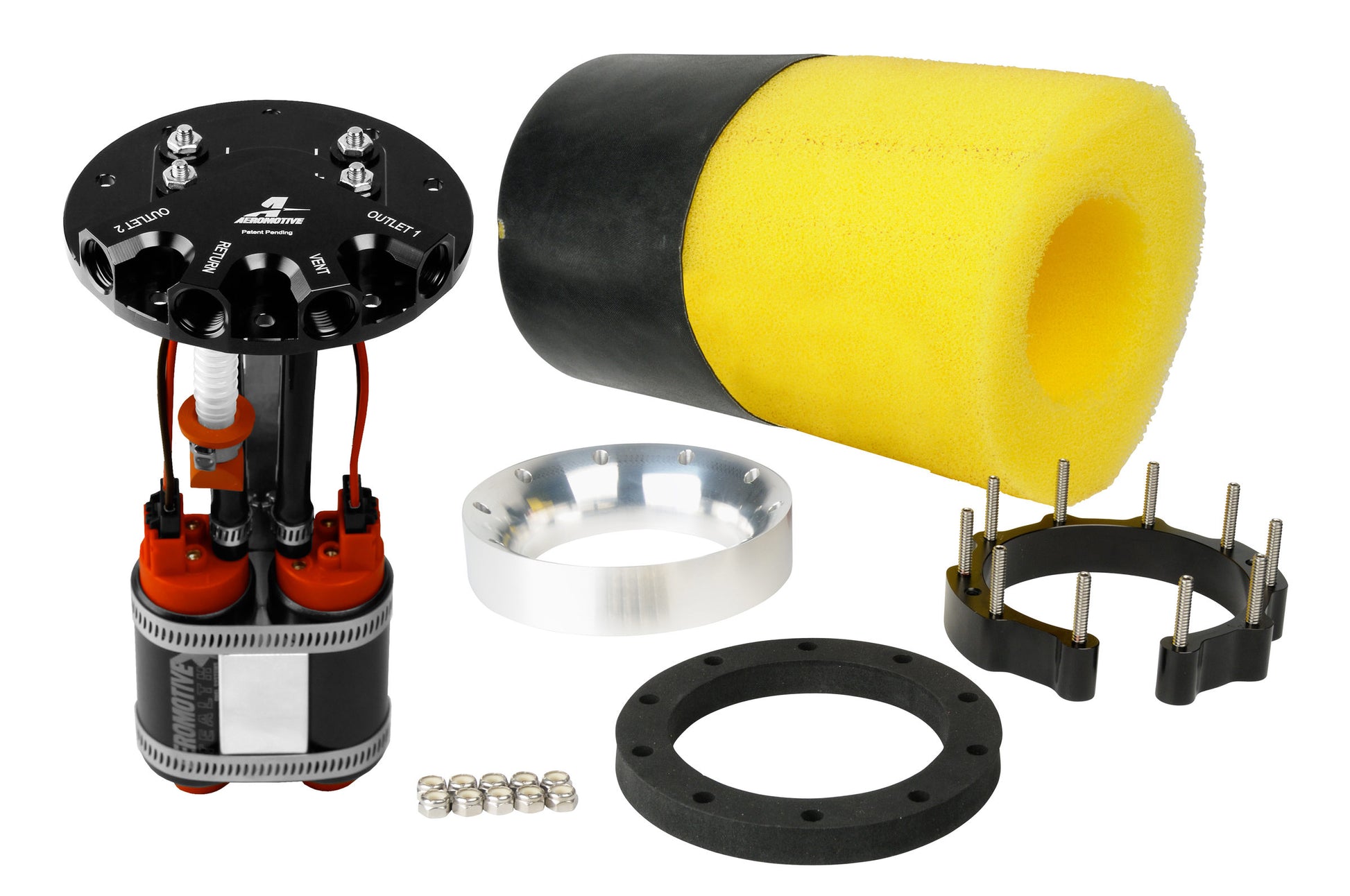

Fuel Pump - Dual Phantom - Electric - In-Tank - 680 gph at 90 psi - Dual 6 AN Female O-Ring Outlets - 6 AN Female O-Ring Return / Vent - Install Kit - E85 / Gas - Kit

Fuel Pump, Universal, Phantom, Dual 340, 6-10" Depth .

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Carb HP on E85: 1400
Carb HP on Gas: 2000
EFI HP on E85: 1190
EFI HP on Gas: 1700
Filter Included: No
Fuel Delivery Type: Carburation & Fuel Injection
Fuel Sending Unit Included: No
Fuel Type: Gas
Gasket Or Seal Included: Yes
Grade Type: Performance
Integrated Controller: No
Internal Or External: Internnal
Maximum Current Draw: 13 / each
Maximum Flow Rating: 340 x 2
Maximum Pressure: 40
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Negative Ground: Yes
Outlet Outside Diameter: AN-06 X2
Outlet Type: Female Thread
Pulse Width Modulation Compatible: No
Pump Design: turbine impeller
Regulator Included: No
Seal And Lock Ring Included: Yes
Series: Phantom
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Threaded Stud
Universal Or Specific Fit: Universal
Voltage: 12
Wiring Harness Included: No
