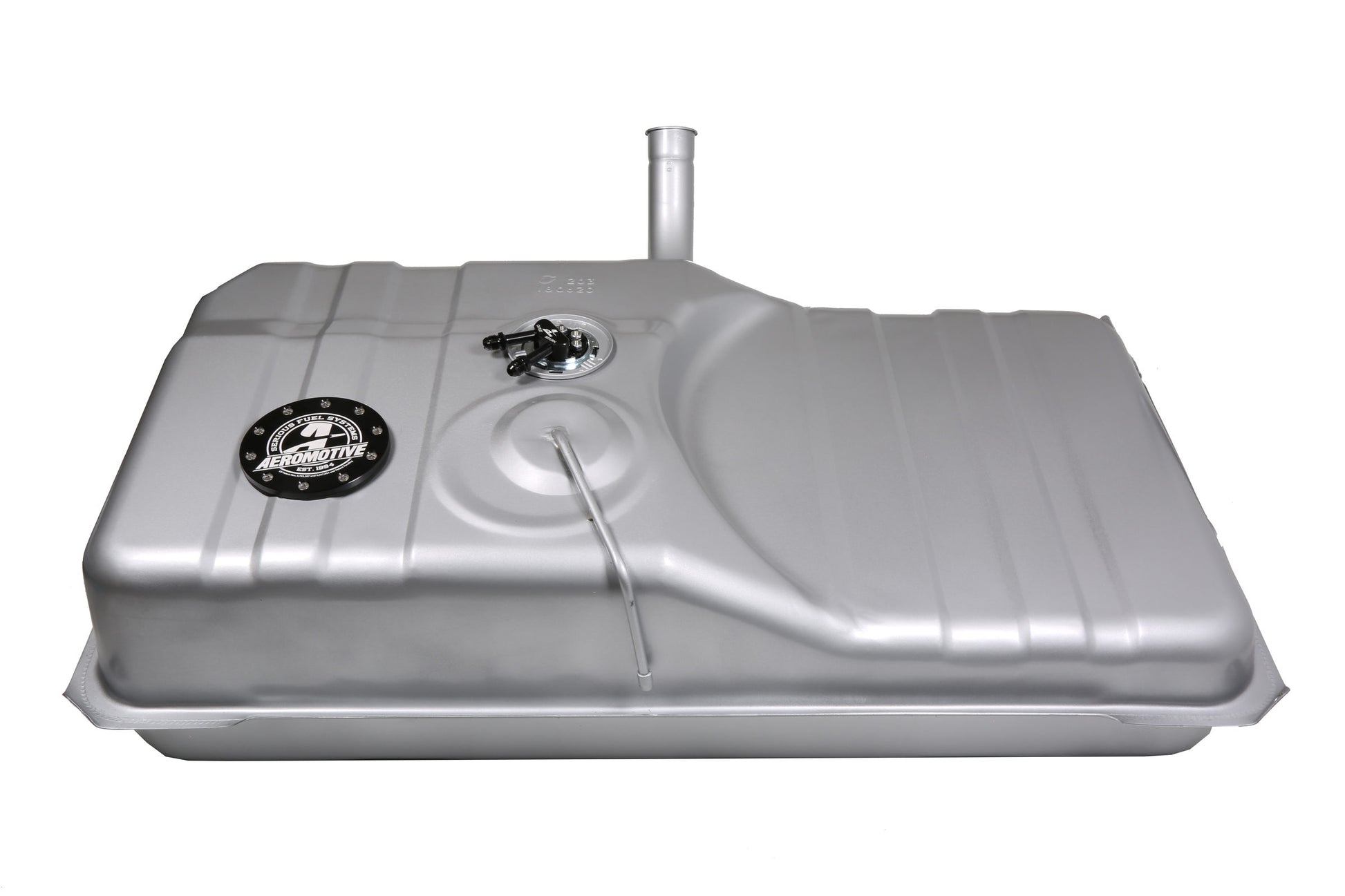

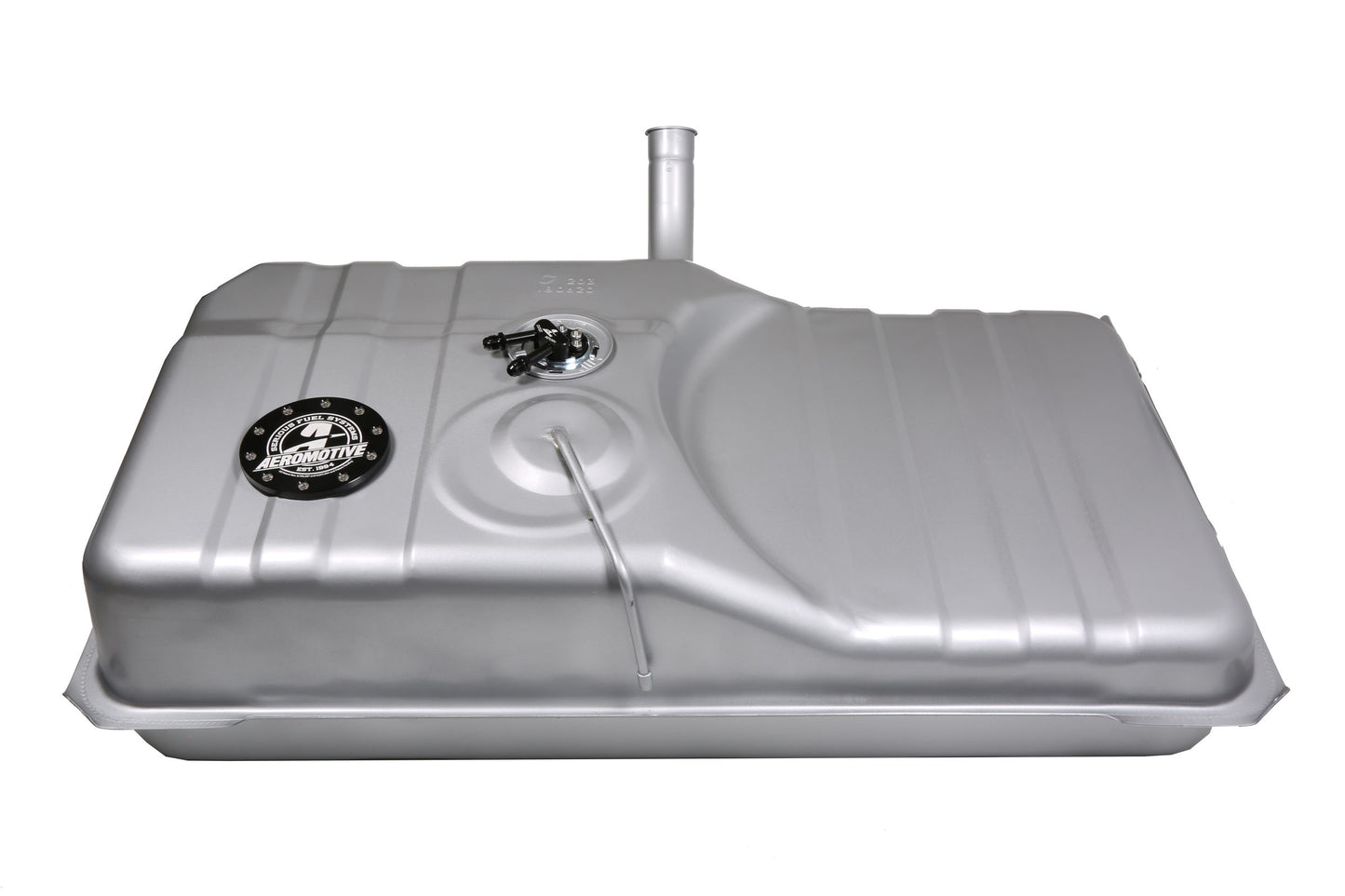

Aeromotive 18135 - 74-77 Chevrolet Camaro & 74-78 Pontiac Firebird 200 Stealth Gen 2 Fuel Tank

Aeromotive 18135 - 74-77 Chevrolet Camaro & 74-78 Pontiac Firebird 200 Stealth Gen 2 Fuel Tank

Aeromotive | 18135
SKU: AFS-18135
$767.99 USD
$808.18 USD $767.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Aeromotive 18135 - 74-77 Chevrolet Camaro & 74-78 Pontiac Firebird 200 Stealth Gen 2 Fuel Tank

Gen II Stealth Fuel Tank, '74-'77 Camaro, '74-'78 Firebird - 200lph

Fuel Tank, 200 Stealth Gen 2, 74-77 Camaro, 74-78 Firebird.

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Attached Sump: No
Baffled: Yes
Capacity: 21
Color: Silver
Filler Neck Attached: Yes
Finish: Powder Coated
Fuel Cap Included: No
Fuel Pump Included: Yes
Fuel System Compatibility: Carburation & Fuel Injection
Fuel Type: Gas
Grade Type: Performance
Height: 22
Integrated Controller: No
Length: 44
Lock Ring Included: Yes
Material: Steel
Maximum Current Draw: 8.3A @ 40PSI
Maximum Flow Rating: 200LPH
Maximum Pressure: 95 PSI
Motor Style: Brushed
Mounting Hardware Included: No
Mounting Straps Included: No
Negative Ground: Yes
O-Ring Included: Yes
Outlet Outside Diameter: ORB-06
Outlet Type: Female
Pressure Range: 3-65
Pulse Width Modulation Compatible: Yes
Pump Design: Turbine Impeller
Return Fitting Size: ORB-06
Sender Ohm Range: 0-90
Sending Unit Included: Yes
Series: Gen II Stealth
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Threaded Stud
Universal Or Specific Fit: Specific
Voltage: 12-16V
Width: 11
