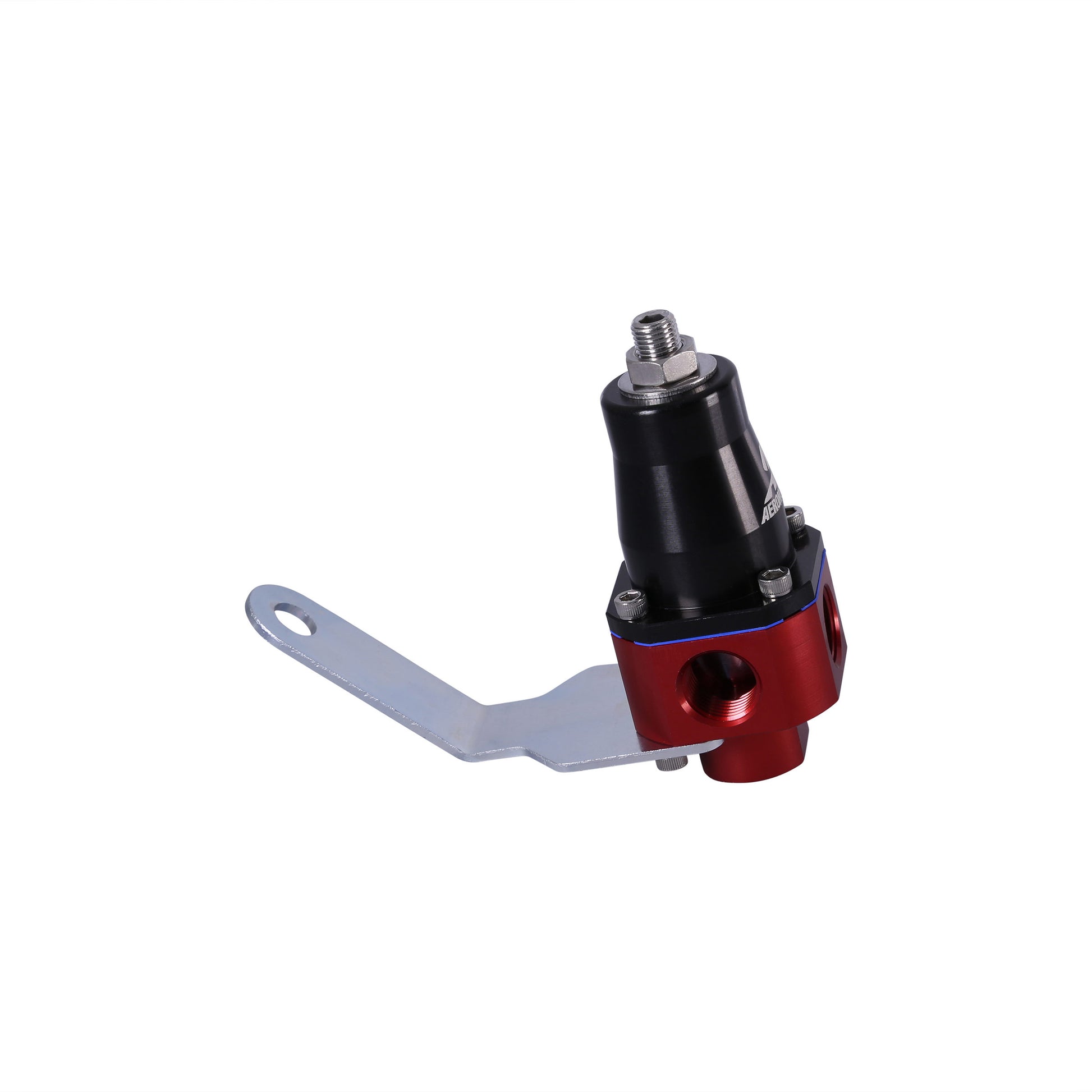

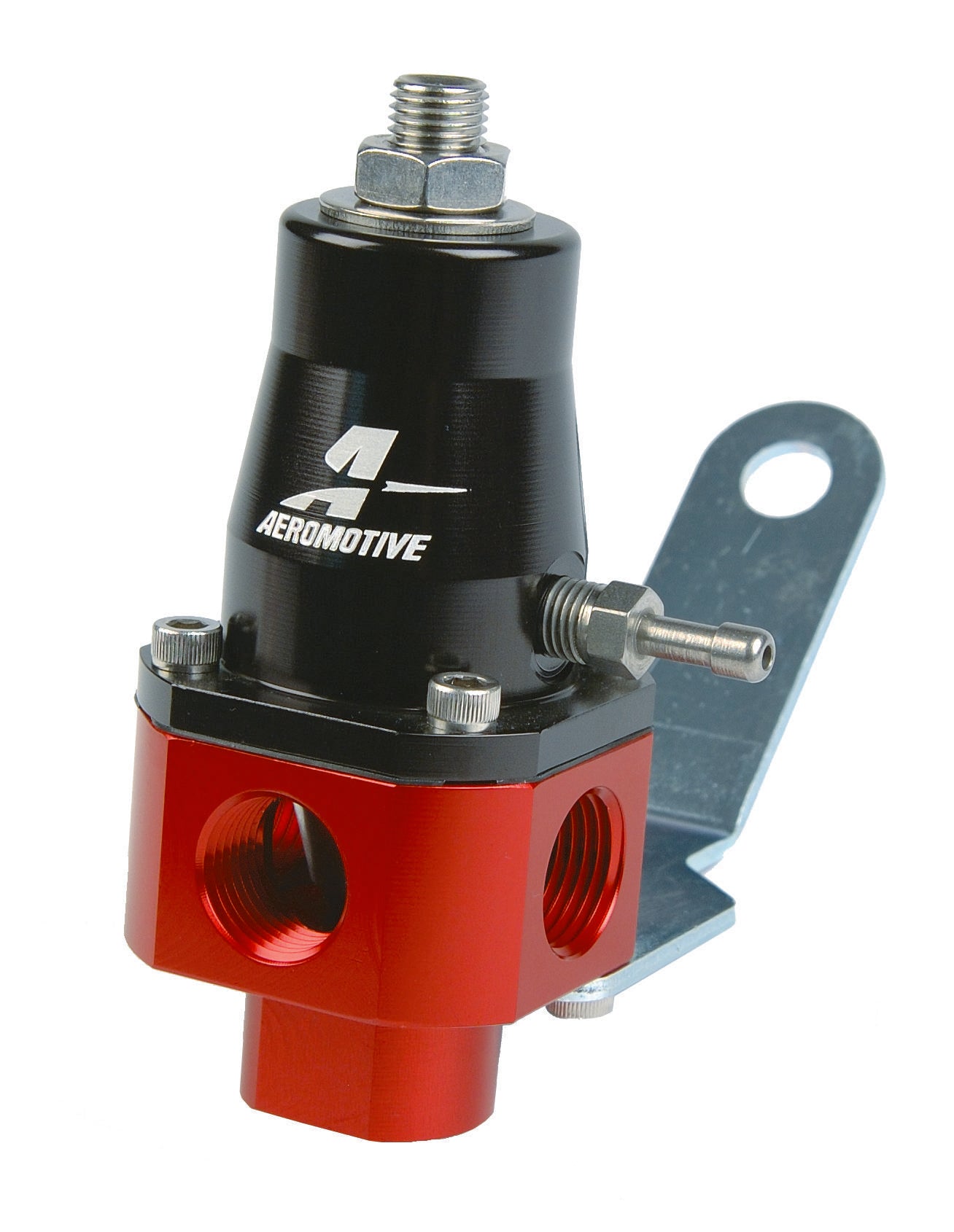

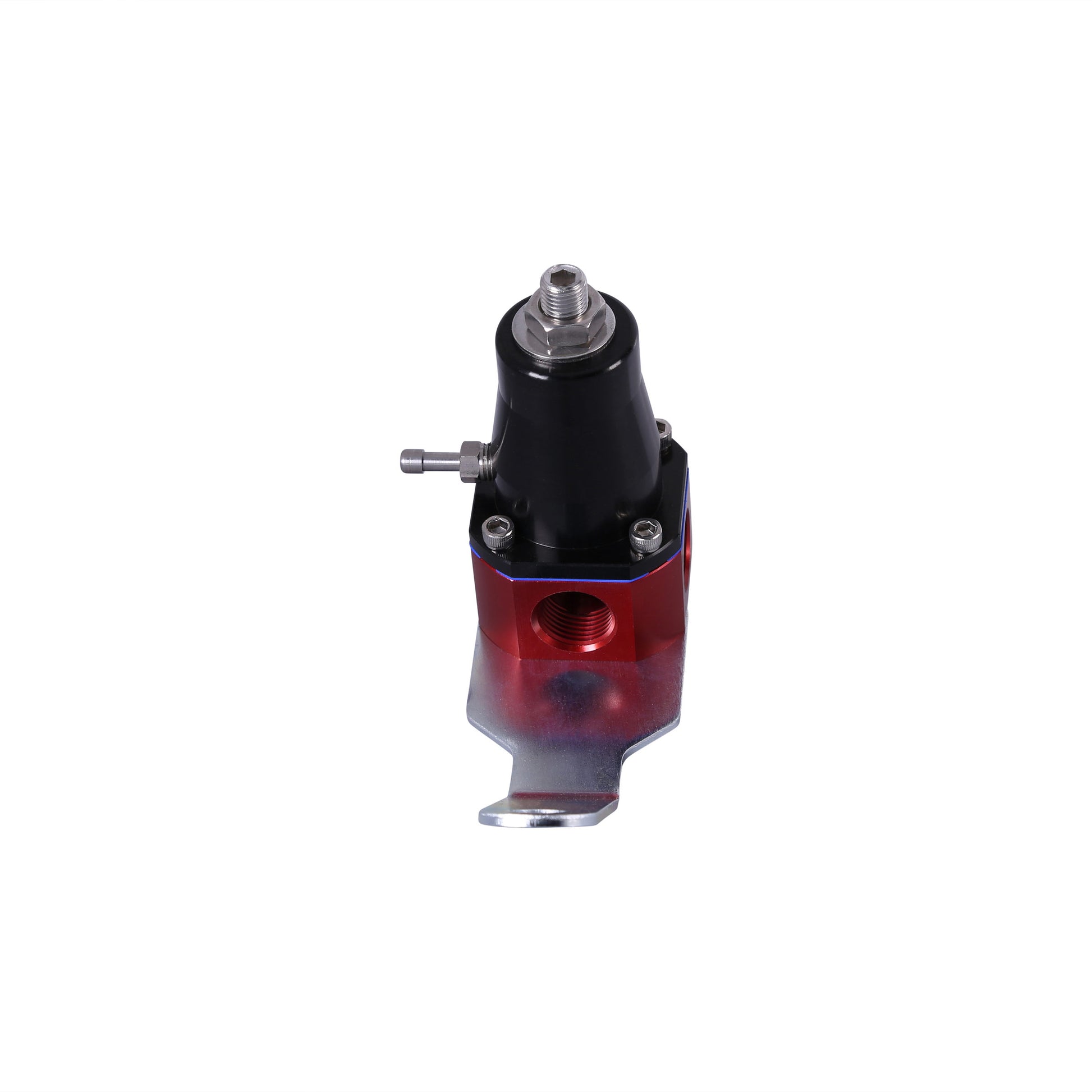

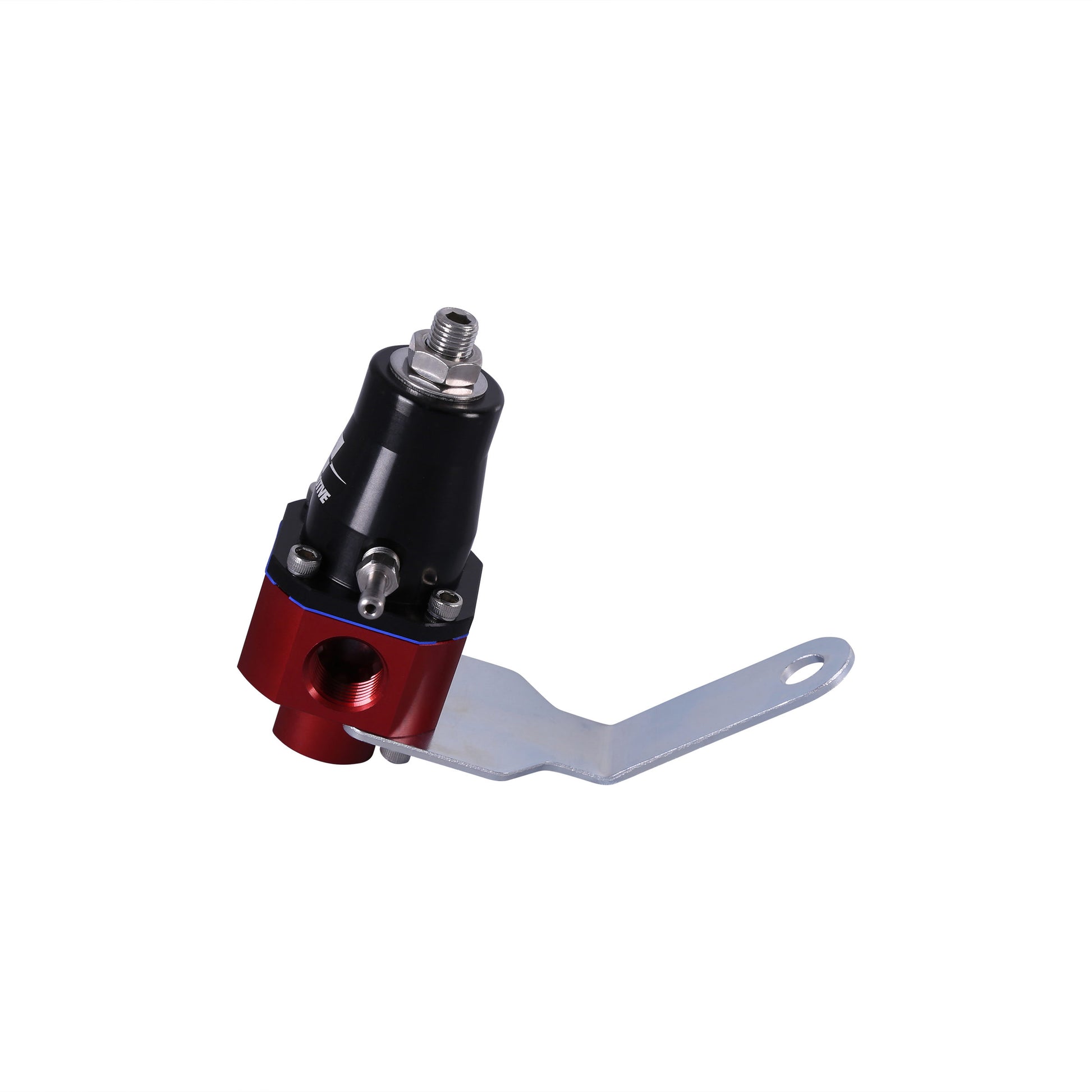

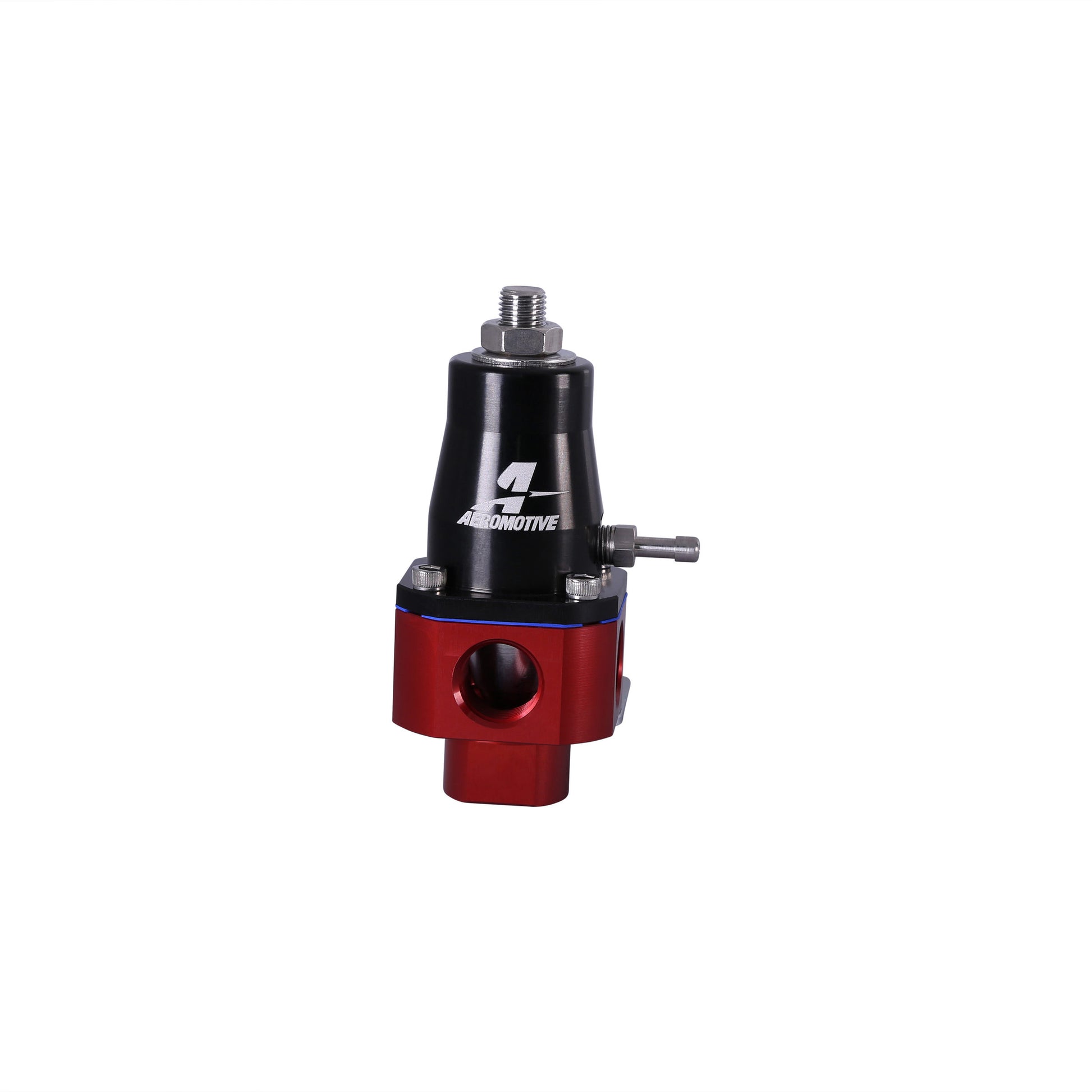

Aeromotive - 13301
Fuel Pressure Regulator - 3 to 60 psi - In-Line - 3/8 in NPT Inlet - 3/8 in NPT Outlet - 3/8 in NPT Return - Black / Red Anodized - E85 / Gas / Diesel - Each
Universal Bypass Regulator - 3-Port 3/8? NPT.

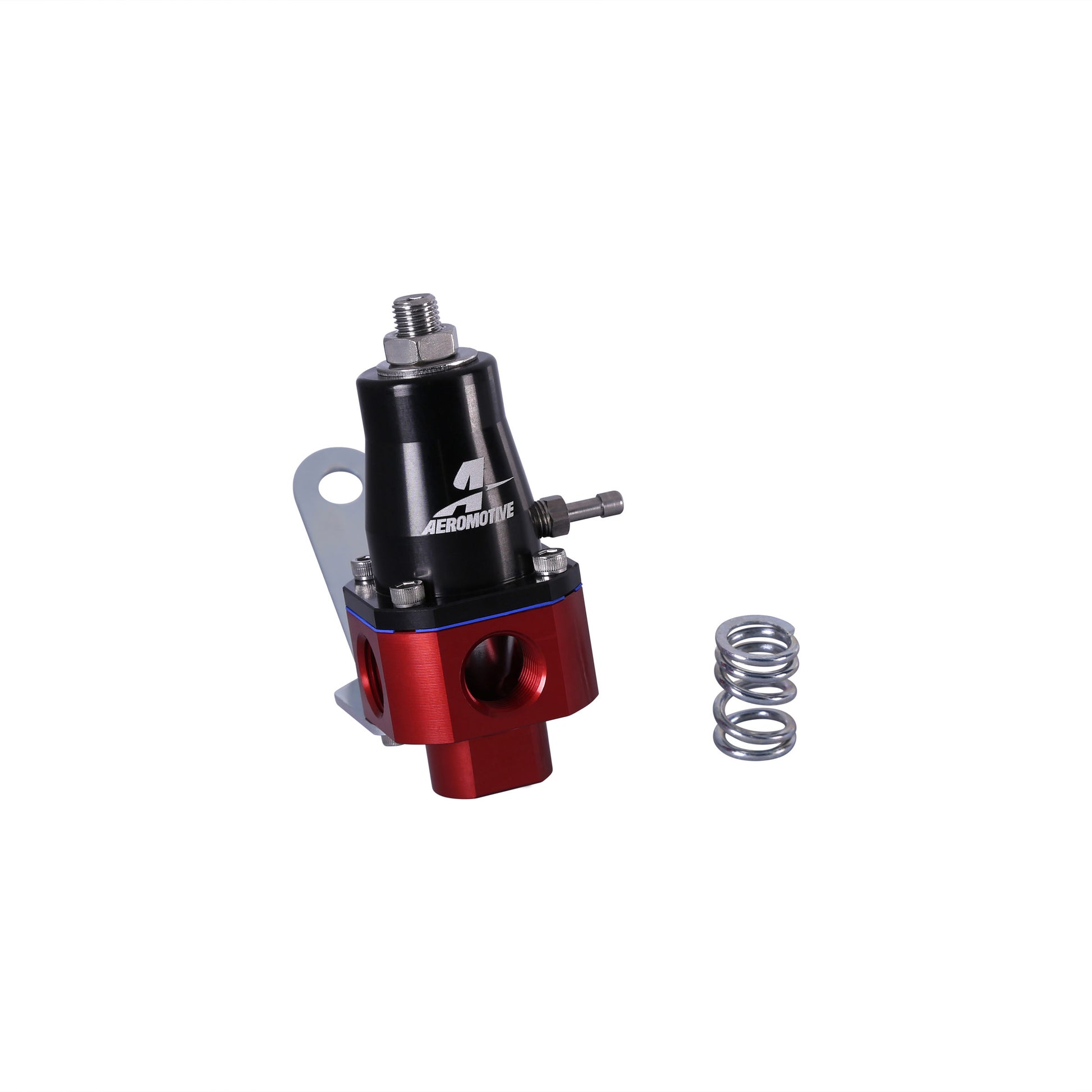

A dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides. Capable of regulating any fuel pump between 100 and 250 GPH. Fuel pressure rises on a 1:1 ratio when referencing boost. All ports are 3/8' NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass design provides the ultimate, dynamic fuel pressure control.?Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.
