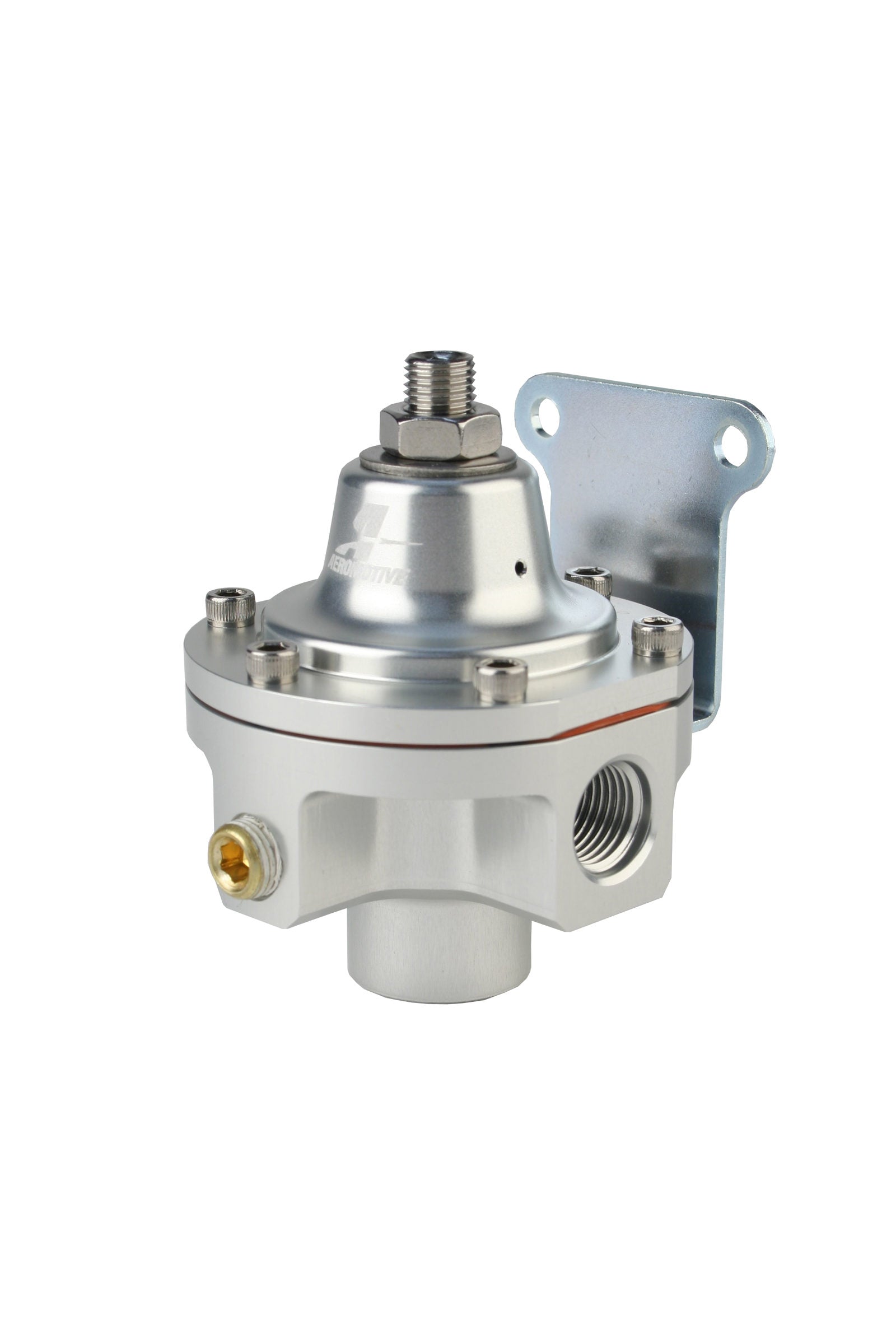

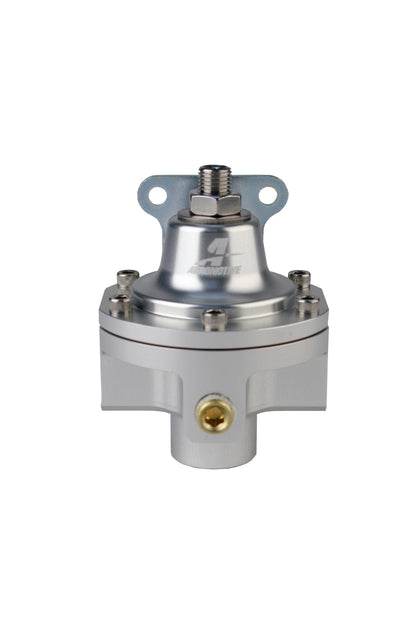

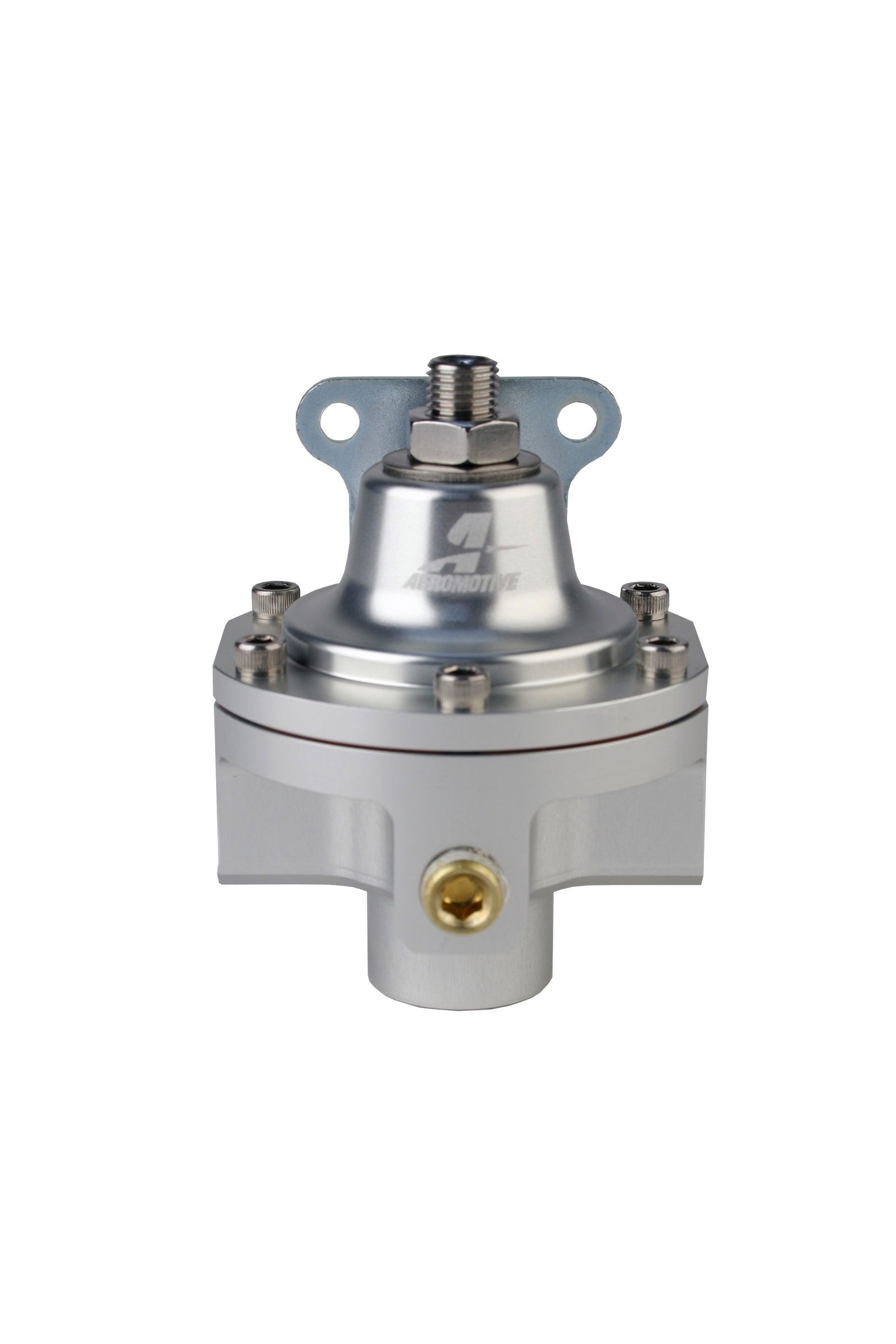

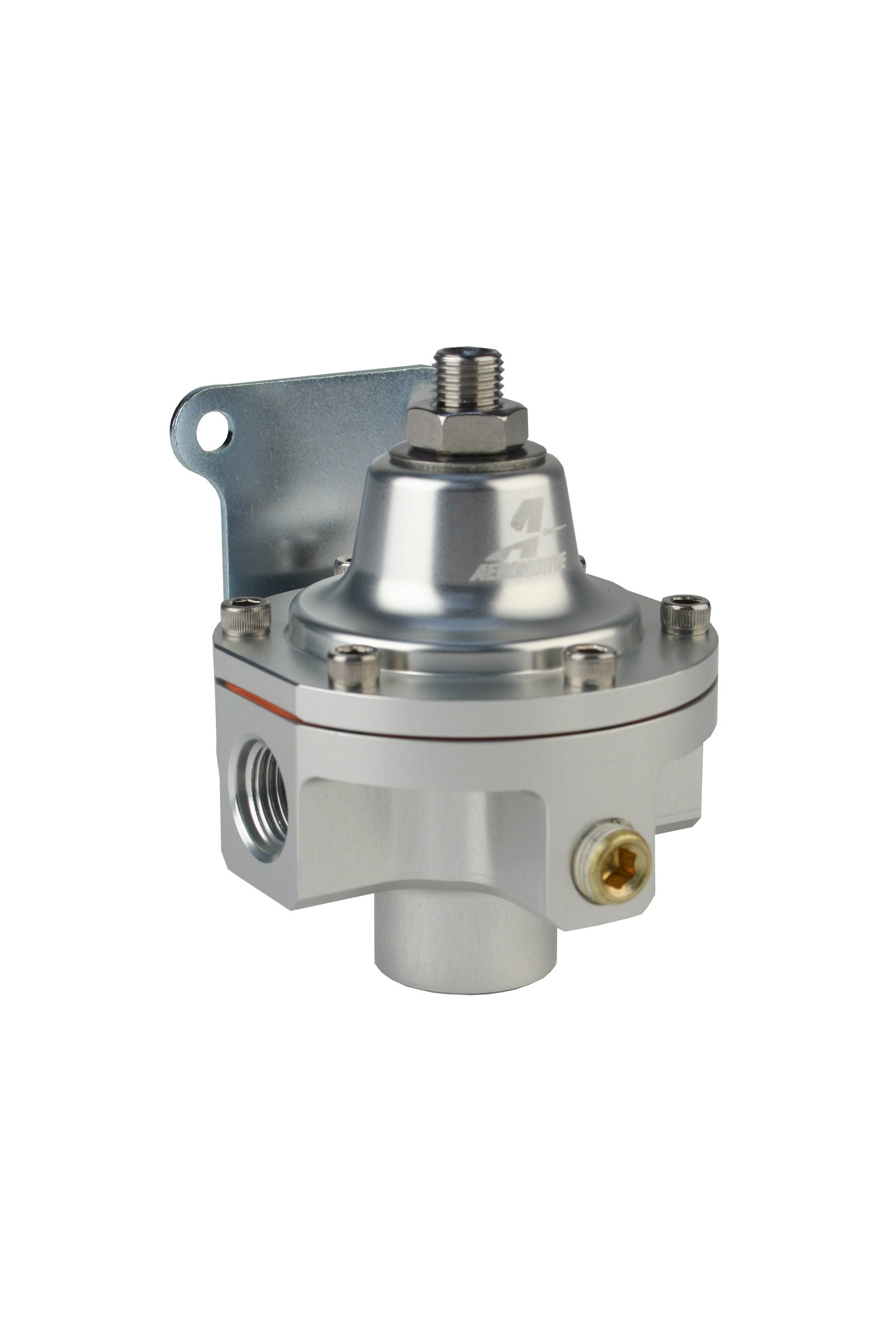

Aeromotive 13222 - 3-Port Carbureted Bypass Regulator - 2 x ORB-06 / 1 x ORB-6

Aeromotive 13222 - 3-Port Carbureted Bypass Regulator - 2 x ORB-06 / 1 x ORB-6

Aeromotive | 13222
SKU: AFS-13222
Regular price $264.99 USD
Regular price $278.36 USD Sale price $264.99 USD
Sale Sold out
Shipping calculated at checkout.

3 in stock

Quantity

Aeromotive 13222 - 3-Port Carbureted Bypass Regulator - 2 x ORB-06 / 1 x ORB-6

Fuel Pressure Regulator - Ultra Low Pressure - 2 to 5 psi - In-Line - 6 AN Female O-Ring Female Inlet - 6 AN Female O-Ring Female Outlet - Clear Anodized - E85 / Gas / Diesel - Kit

Carbureted Adjustable Regulator, Low Pressure, 1.5-5psi, 2-Port, ORB-06.

Our new Ultra Low-Pressure Regulator features a completely unique valve, designed to support high flow at a very low pressure. Intended for multiple smaller carburetors, such as the classic Weber, Mikuni, Dellorto, and the Solex. Adjustable from 2-5 PSI. Ideal for small carburetors. (1) ORB-06 inlet port and (2) ORB-06 outlet ports. 1/8? NPT gauge port. Clear anodized finish for a subtle look.

Adjustable: Yes
Color: Silver
Fuel Delivery Type: Carburation
Gauge Included: No
Gauge Port: Yes
Grade Type: Performance
Inlet Gender: Female
Inlet Gender.1: Female
Inlet Port Diameter: ORB-06
Marine Approved: No
Maximum Pressure: 5
Minimum Pressure: 2
Mounting Bracket Included: Yes
Outlet Port Diameter: ORB-06
Port Quantity: 3
Pressure Range: 2-5
Vacuum/Boost Port: No
