Aeromotive - 13207

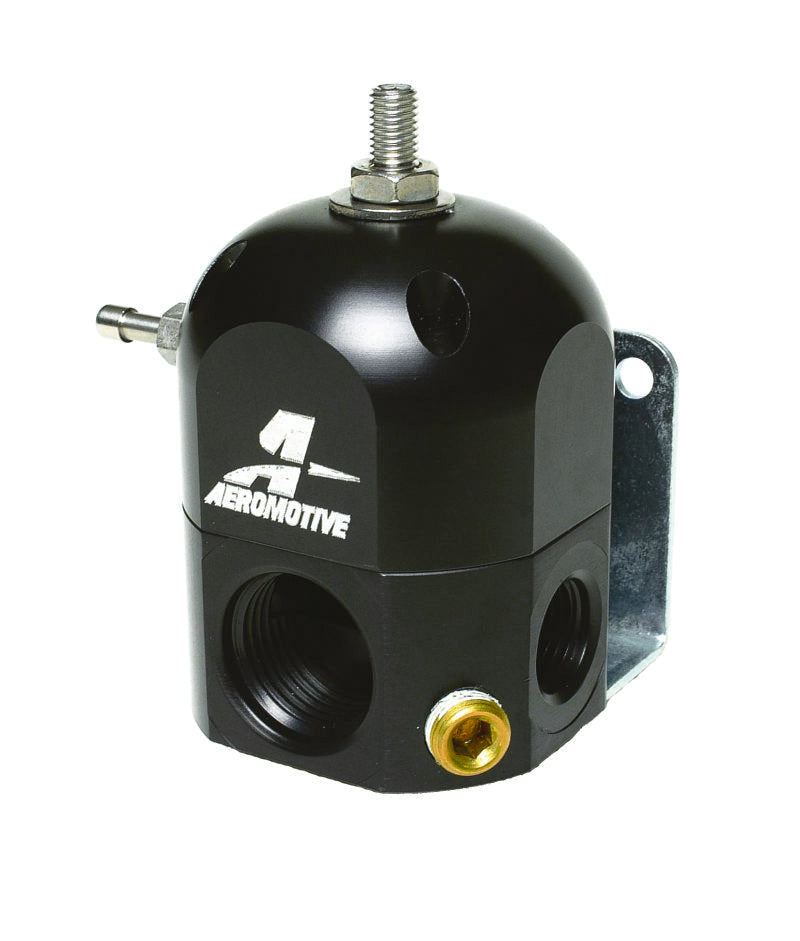

Fuel Pressure Regulator - A1000 Marine - 3 to 15 psi - In-Line - 10 AN Female O-Ring Inlet - Dual 6 AN Female O-Ring Outlets - 8 AN O-Ring Return - Bypass - 1/8 in NPT Port - E85 / Gas / Diesel - Each
Marine Carb 2-port Bypass Regulator.
Full volume at perfect pressure, the A1000 Regulator was designed for use with our Marine A1000 Fuel Pump or any similar style pump. This regulator is perfect for naturally aspirated or blow-through turbo-charged or supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-8 return port. (2) O RB-6 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost.
Adjustable: Yes
Color: Black
Fuel Delivery Type: Carburation
Gauge Included: No
Gauge Port: Yes
Grade Type: Performance
Inlet Gender: Female
Inlet Gender.1: Female
Inlet Port Diameter: ORB-10
Marine Approved: Yes
Maximum Pressure: 15
Minimum Pressure: 5
Mounting Bracket Included: Yes
Outlet Port Diameter: ORB-06
Port Quantity: 3
Pressure Range: 5-15
Return Port Diameter: ORB-08
Return Port Gender: Female
Vacuum/Boost Port: Yes
