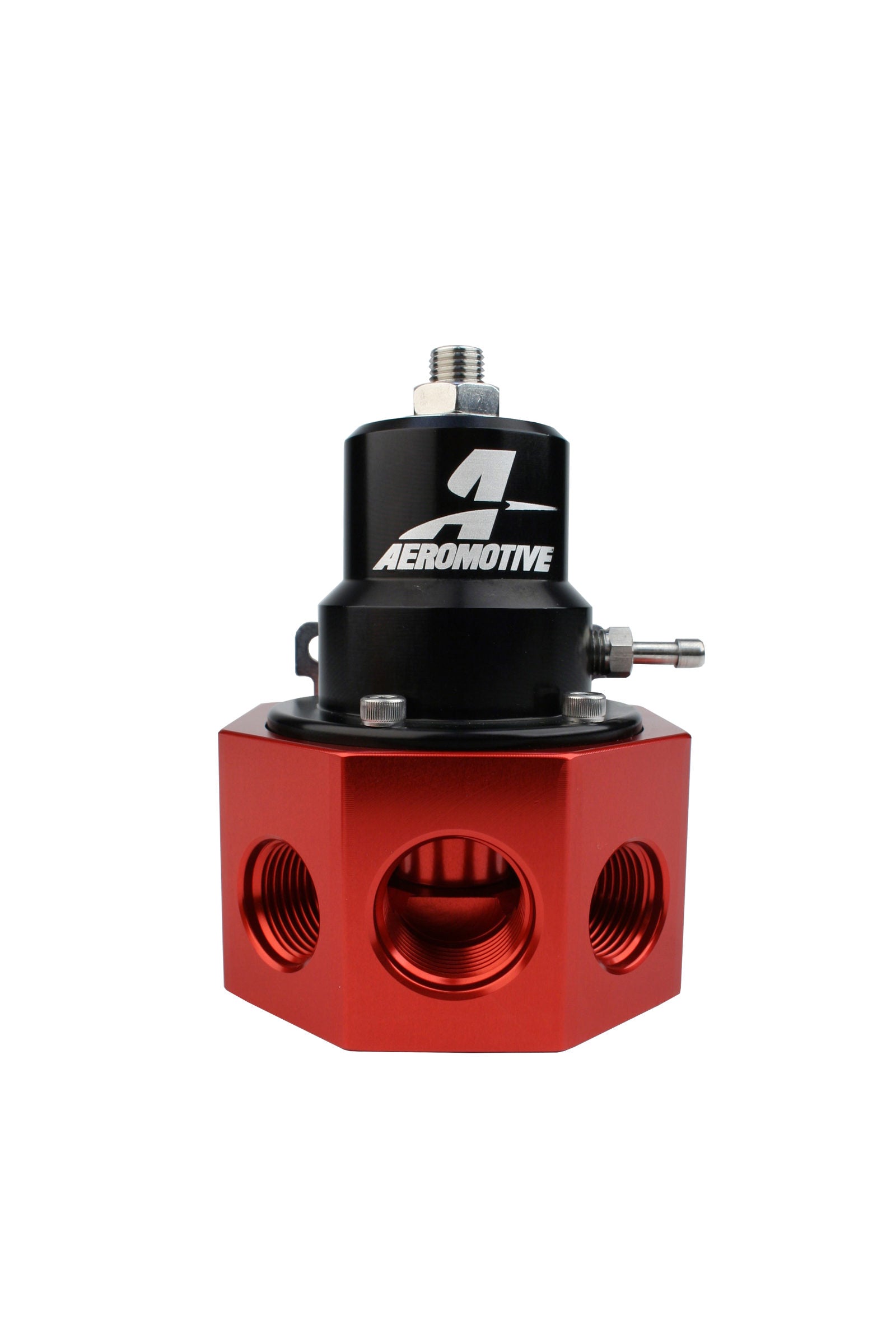

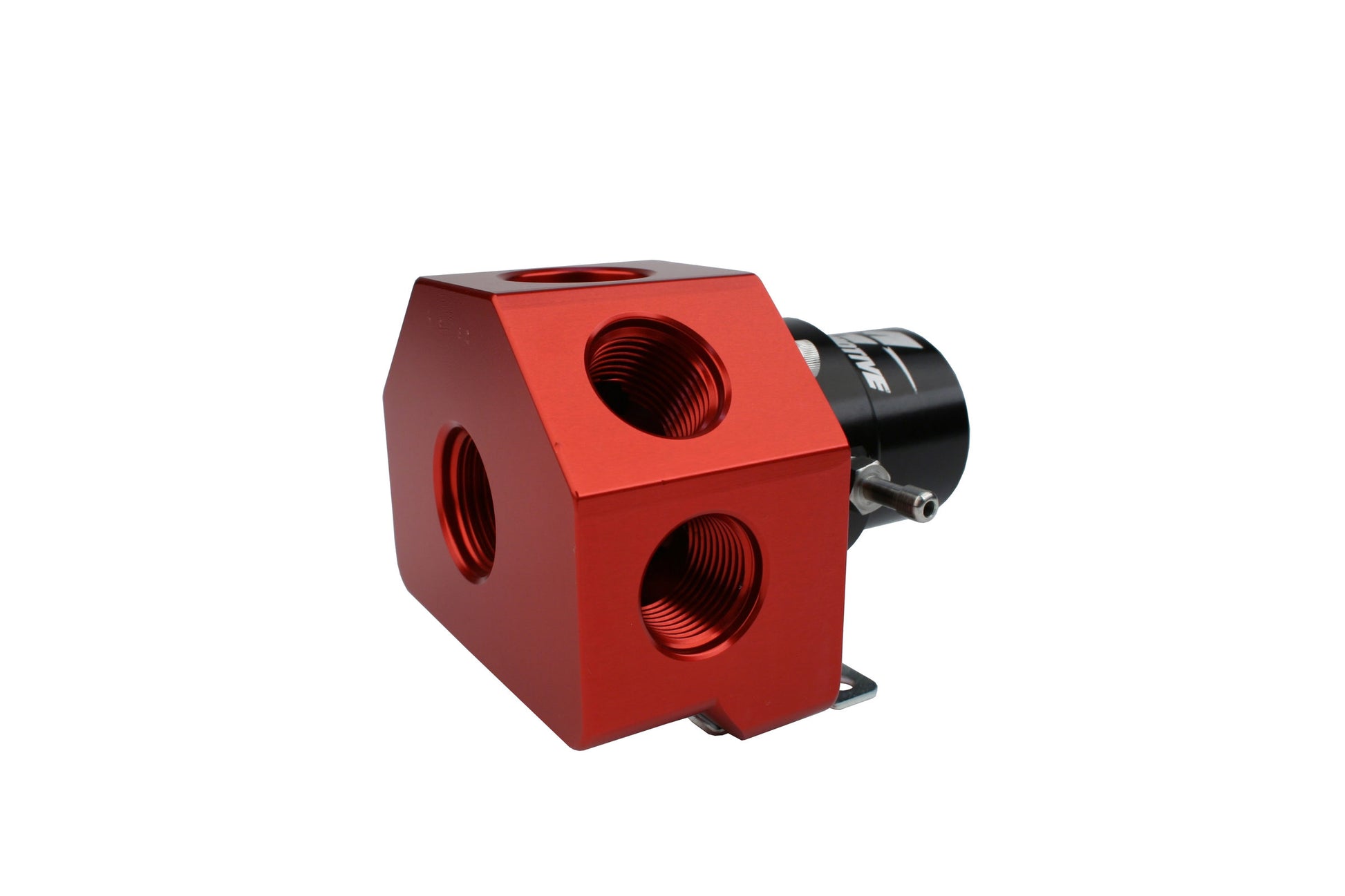

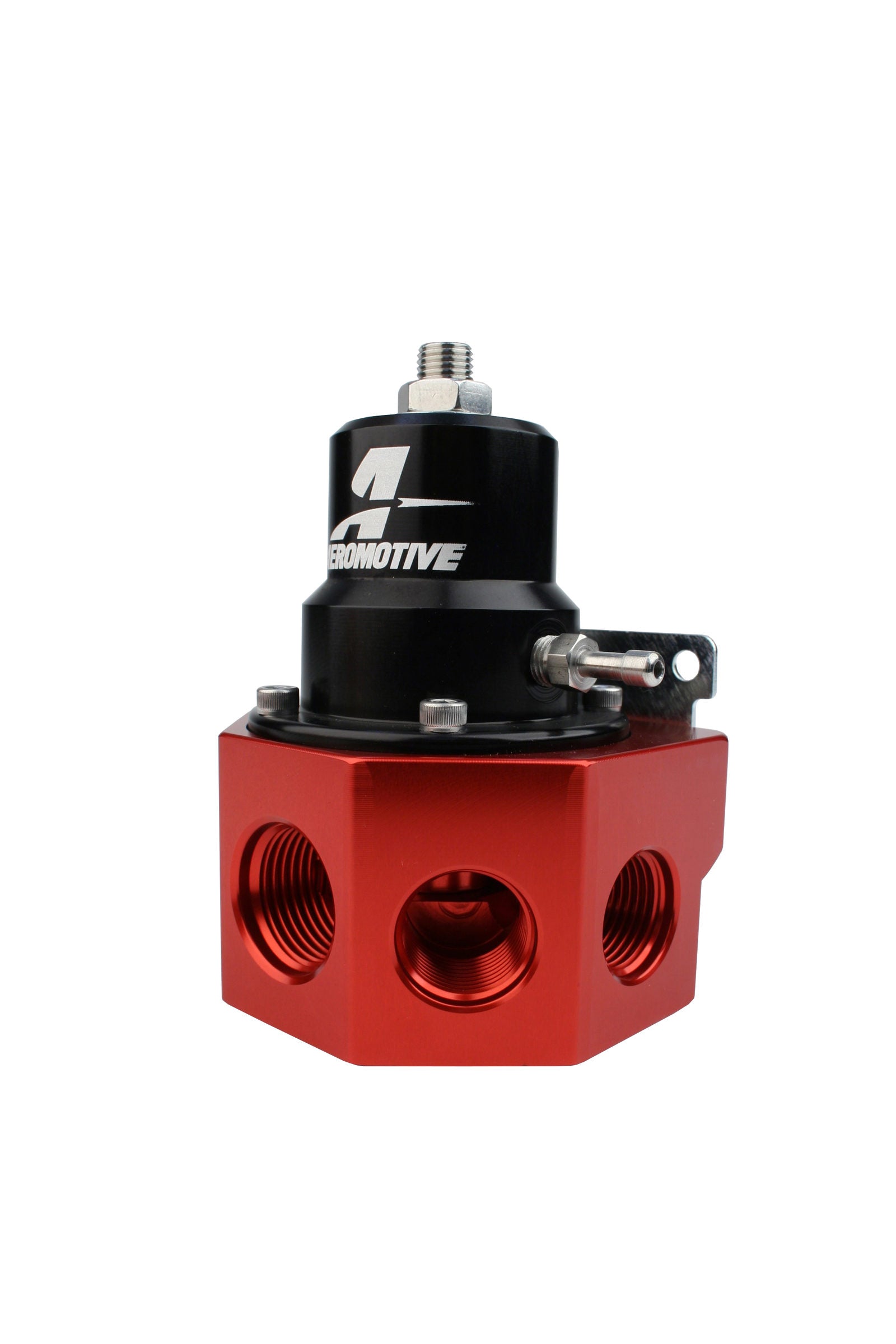

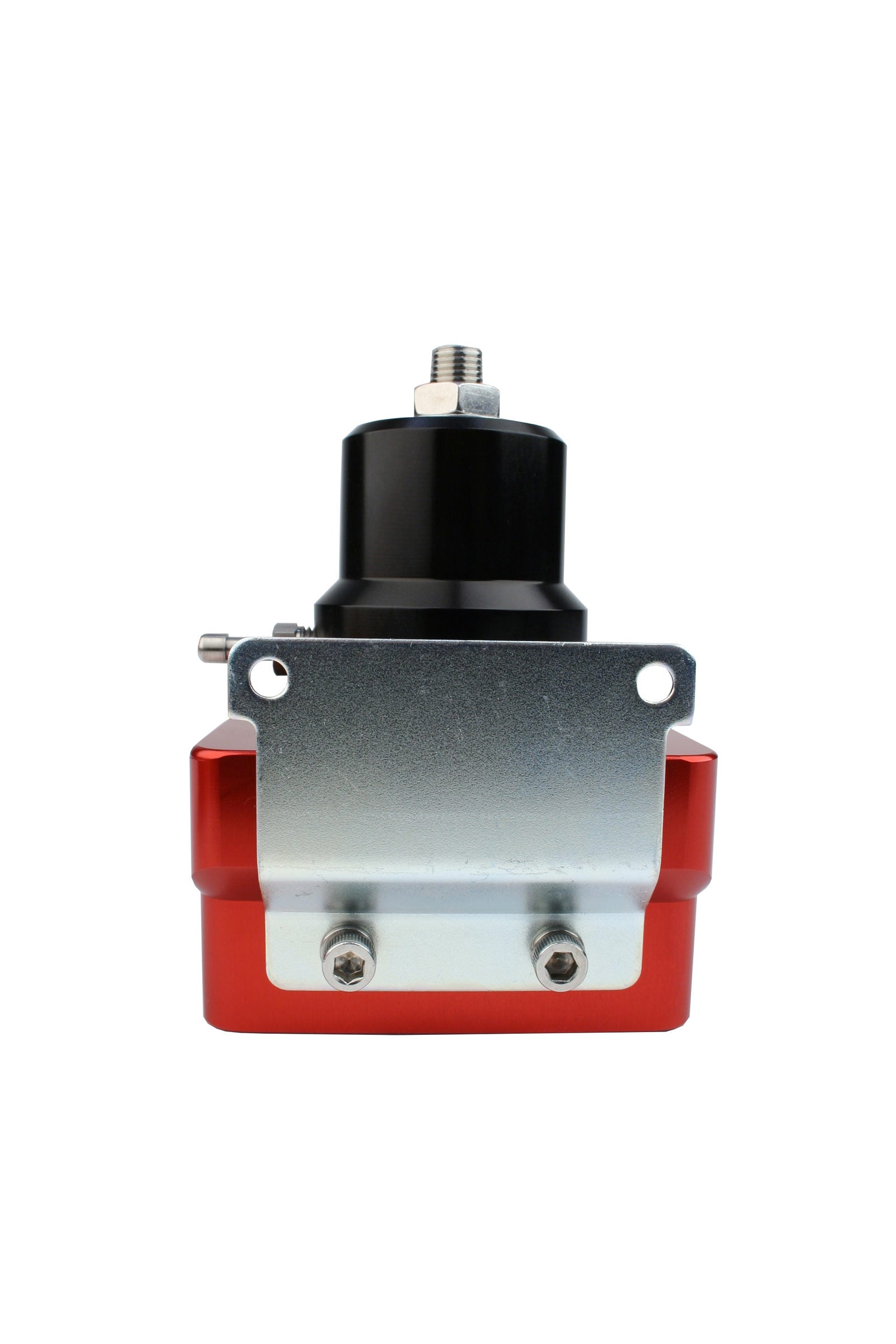

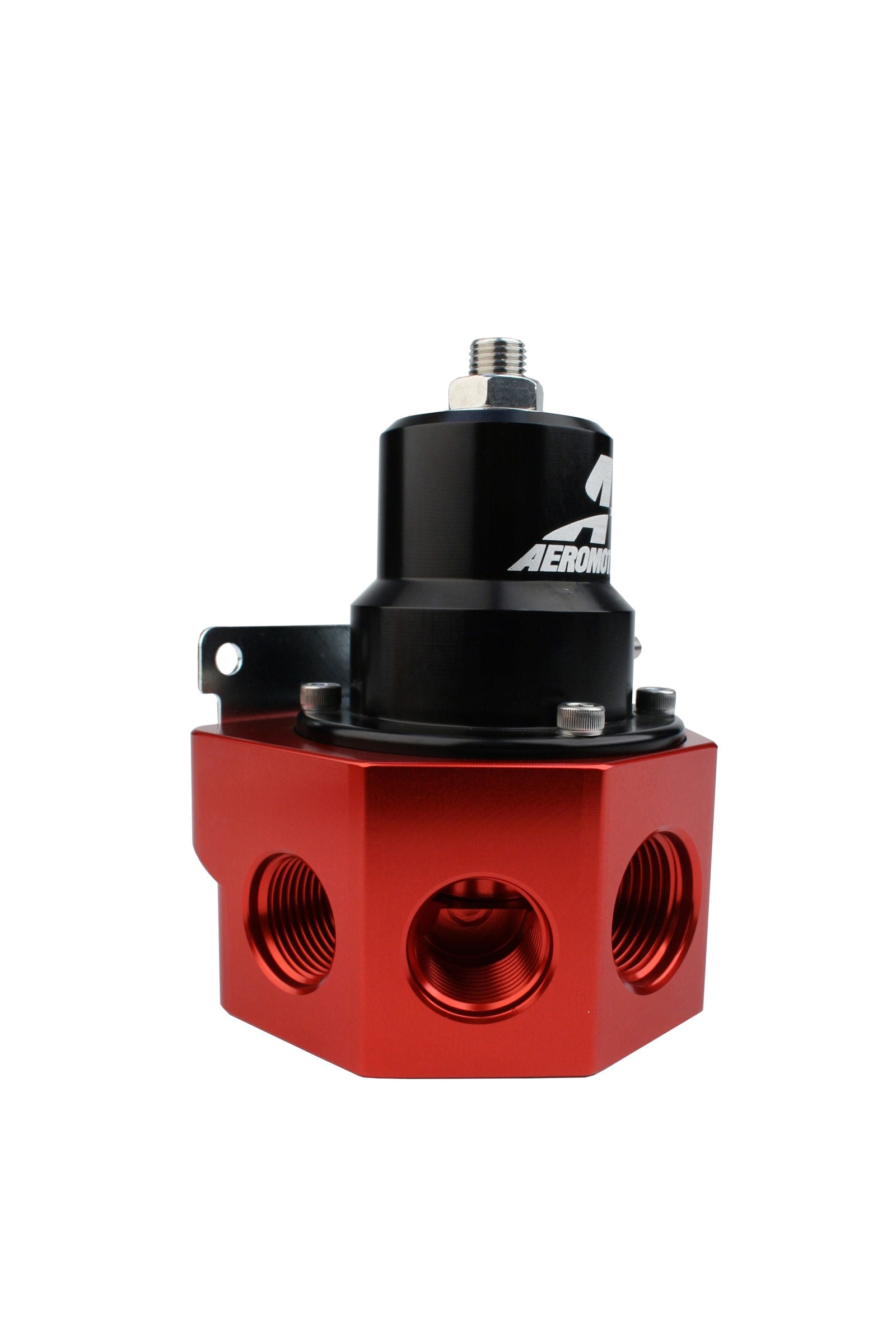

Aeromotive - 13202
Fuel Pressure Regulator - A2000 - 2 to 20 psi - In-Line - 10 AN Female O-Ring Inlet - Four 8 AN Female O-Ring Outlets - 10 AN O-Ring Return - Black / Red Anodized - E85 / Gas / Diesel - Each
A2000 Carbureted Bypass Regulator - 4-Port.
Dynamic flow and rock steady pressure make this regulator perfect for naturally aspirated or carbureted blow-through applications. The A2000 Bypass Regulator provides unmatched boost reference and high flow capacity. Compatible with any high volume electric or mechanical fuel pump. Adjustable from 2-20 PSI. Bypass design provides the ultimate, dynamic fuel delivery system. (Requires AN-10 return line.) Fuel pressure rises on a 1:1 ratio when referencing boost. ORB-10 inlet and return ports. P/N 13202 provides (4) ORB-08 outlet ports.?Note: High pressure, boost reference applications require high volume, high pressure fuel pumps. EFI capable, electric or mechanical pumps like the Aeromotive Pro-Series (P/N 11102), Eliminator (P/N 11104), or Belt Drive Fuel Pump (P/N 11105) are strongly recommended.
