Aeromotive - 12333
Dual Outlet Oil/Fuel Filter, ORB-10

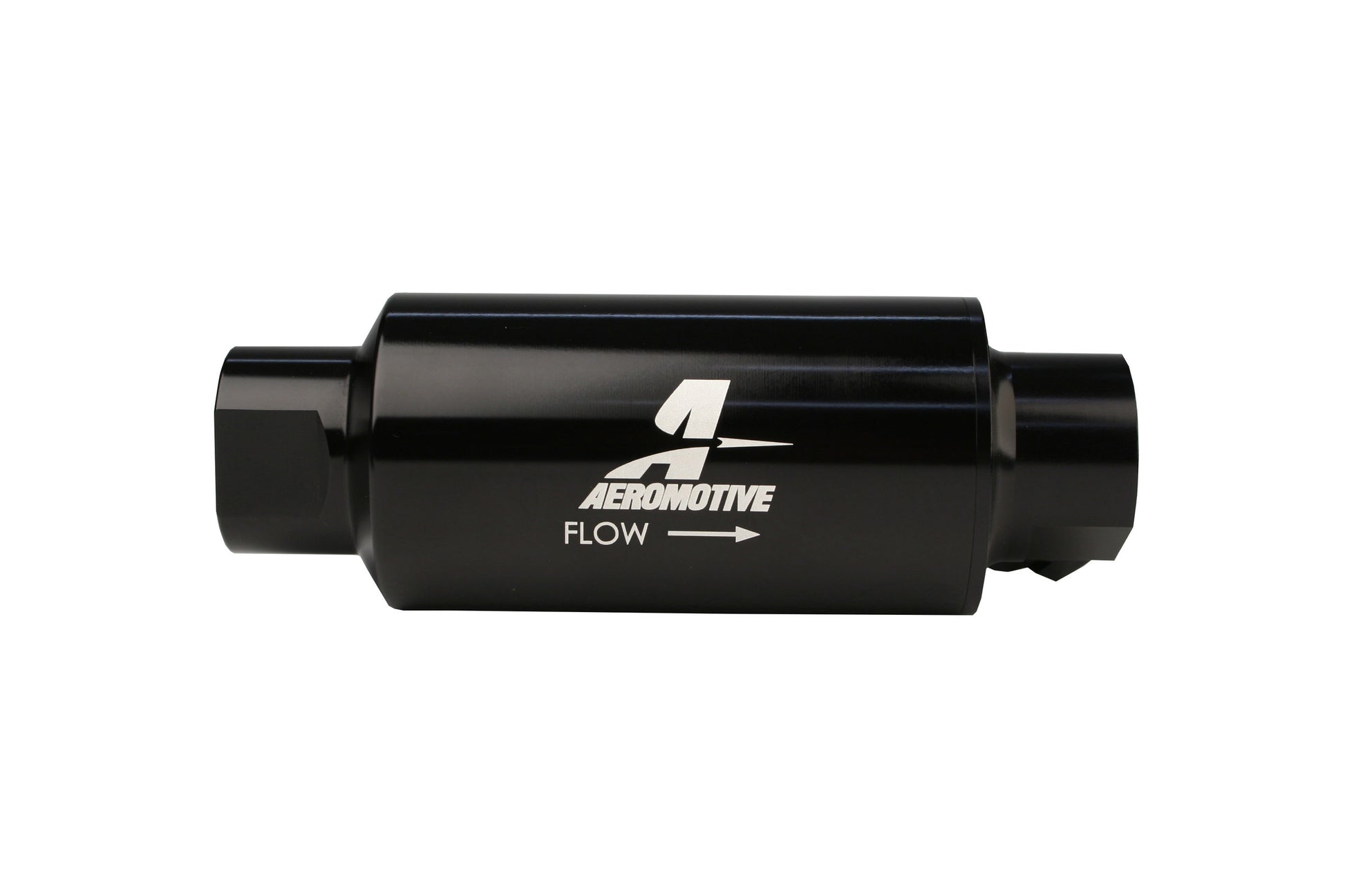

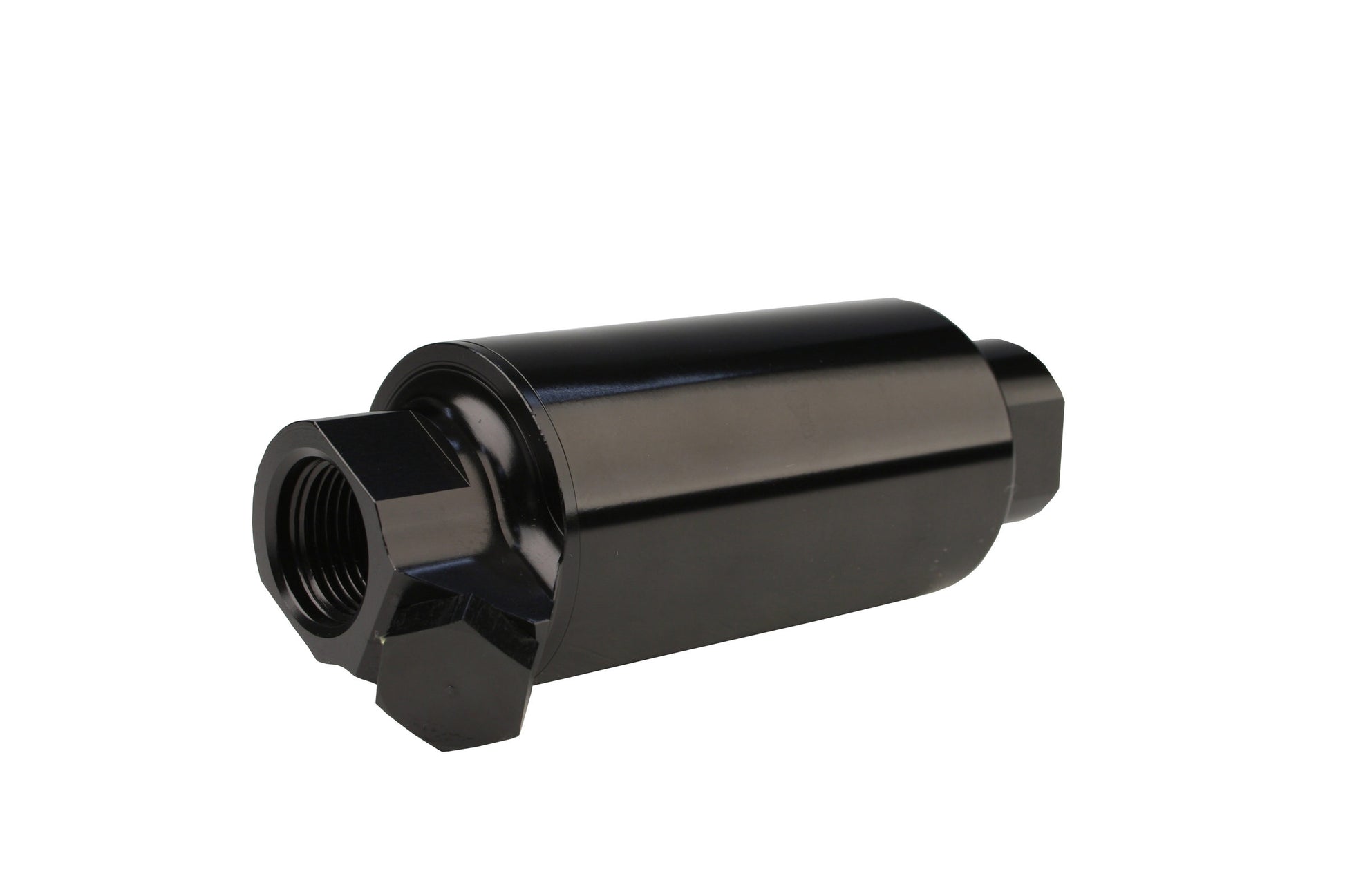

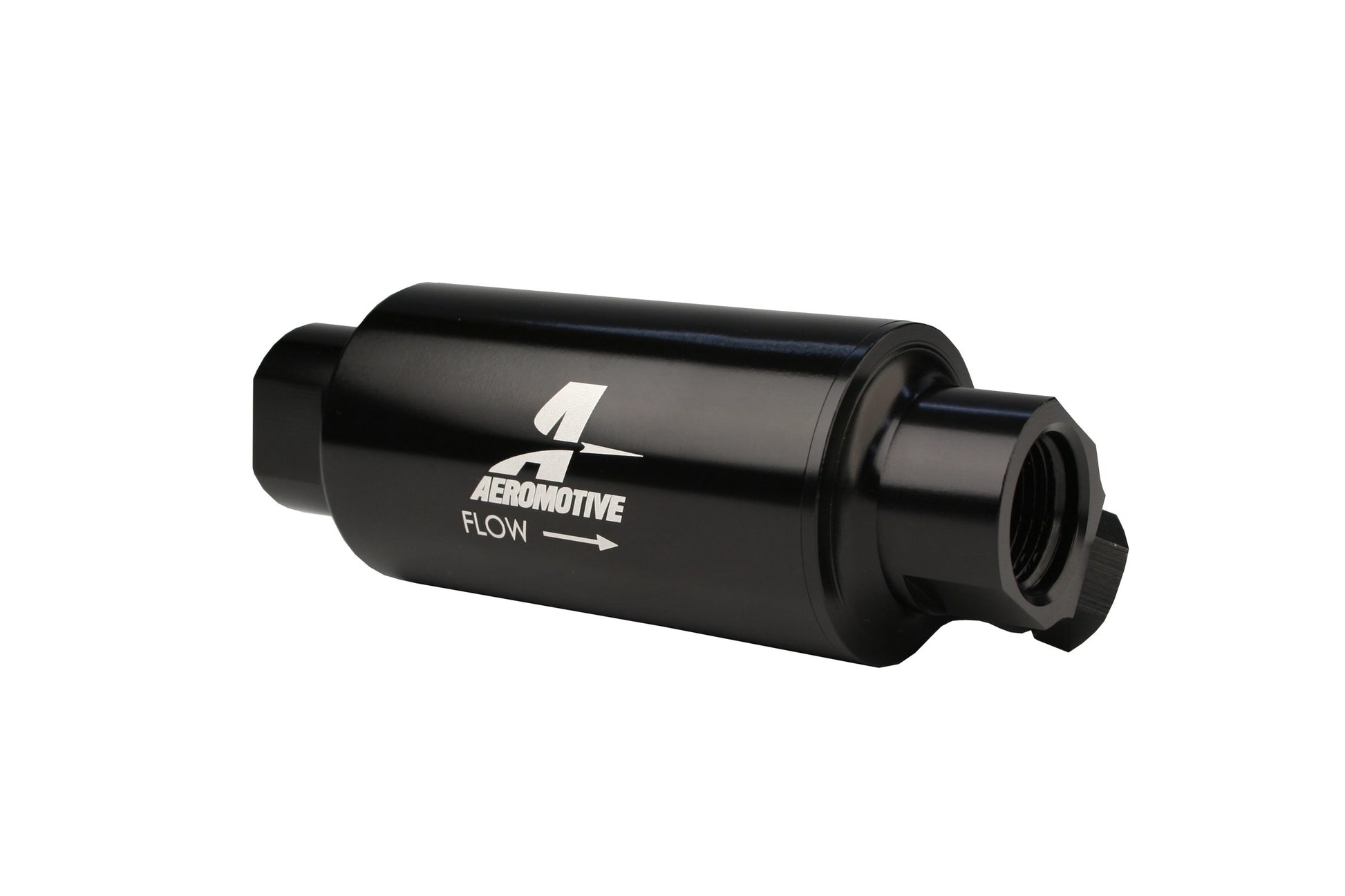

Filter w/ Dual Outlet, 10-m Fabric Element, In-Line, ORB10 Inlet / Outlet plus ORB-06 Outlet, Bright-Dip Black, 2" OD.
New Dual Outlet Oil/Fuel Filters with secondary outlet port. The new fuel/oil filters eliminate the need for additional fittings and y-blocks allowing you to feed separate systems from one filter. Features 10-Micron filter element. P/N 12333 features ORB-10 inlet and outlet ports with ORB-06 secondary port. Port plug for secondary port included.
Clamps Included: No
Color: Black
End 1 Gender: Female
End 2 Gender: Female
Filter Element Included: Yes
Filter Element Material: Cellulose
Filter Housing Color: Black
Filter Housing Diameter: 2.0
Filter Housing Finish: Anodized
Filter Housing Length: 5.5
Filter Housing Material: Billet Aluminum
Fitting Type: AN-10
Fittings Included: No
Flow Rate: 2000
Fuel Filter Style: Inline
Fuel Type: Gas / Diesel
Gasket Or Seal Included: Yes
Housing Material: Aluminum
Inlet Attachment: Female Thread
Inlet Outside Diameter: AN-10
Inlet Quantity: 1
Inlet Size: AN-10
Length: 5.5
Maximum Fuel Pressure (psi): 70
Micron Rating: 10
Mounting Bracket Included: No
Mounting Type: External
Outlet Attachment: Female Thread
Outlet Outside Diameter: AN-10
Outlet Quantity: 1
Outlet Size: AN-10
Outside Diameter: 2.0
Outside Diameter (In): 2.0
Overall Length: 5.5
Overall Length (In): 5.5
Quantity: Sold individually.
Shape: Straight
Smallest Particle Filtered: 10 microns
Universal Or Specific Fit: Universal
