Aeromotive

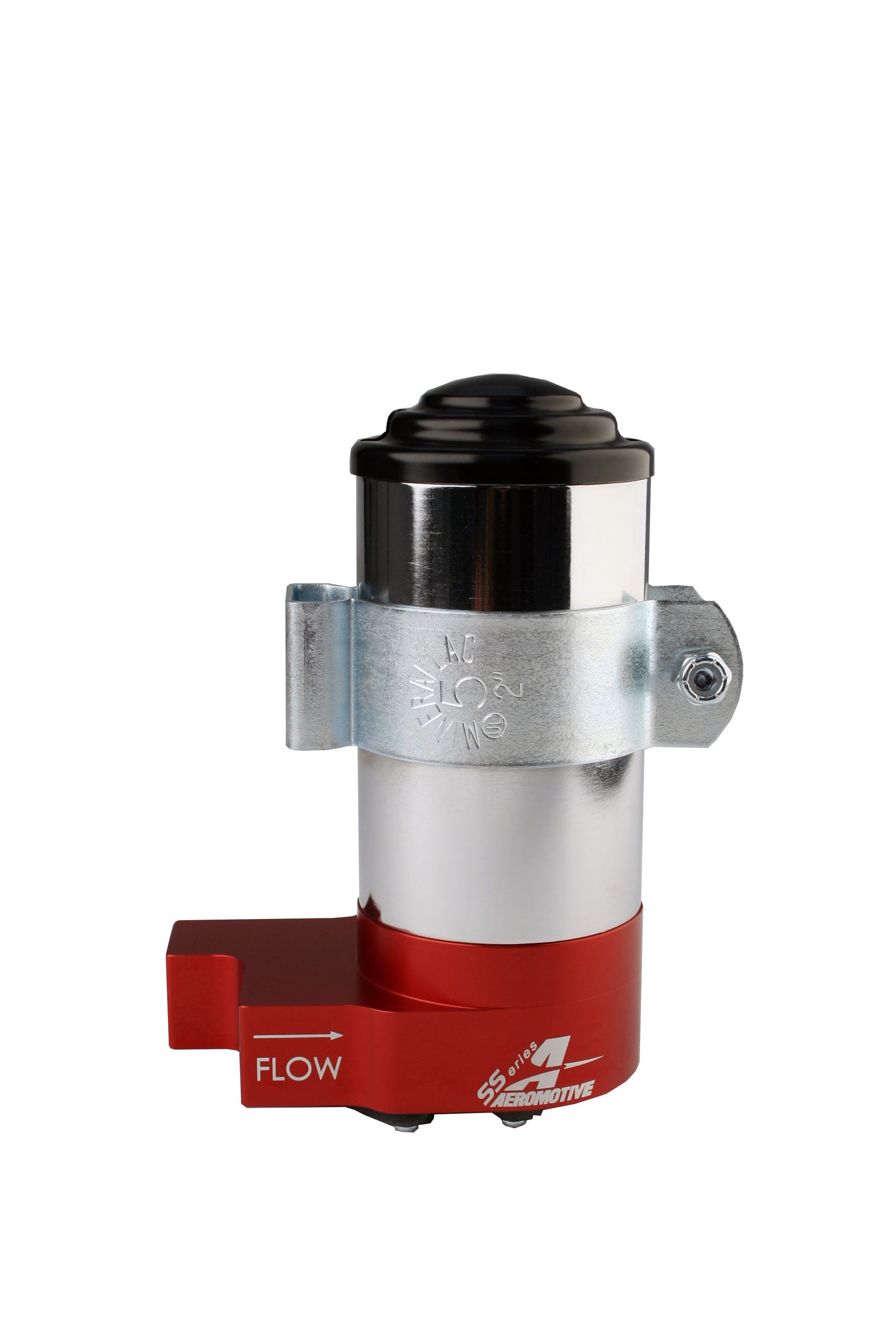

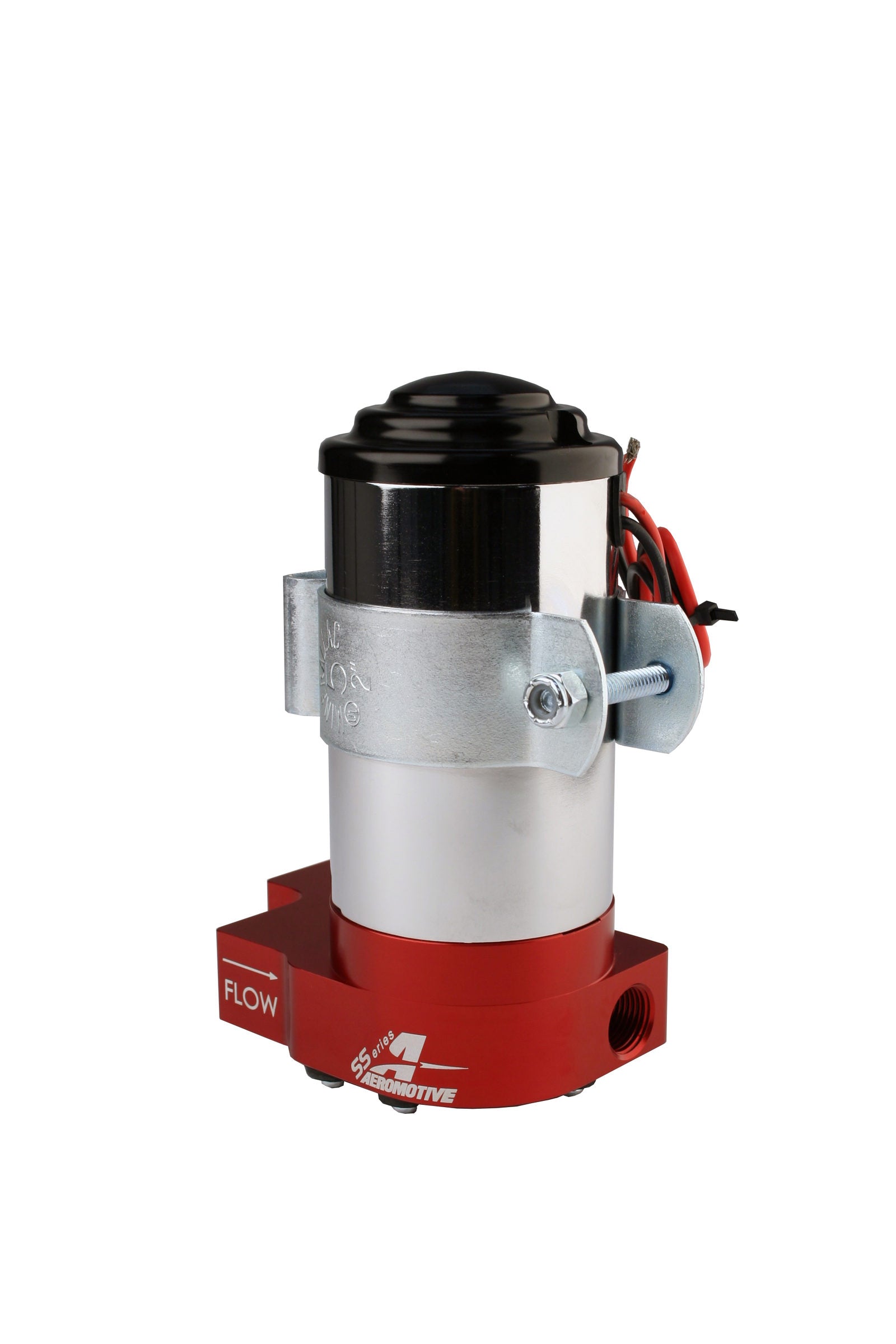

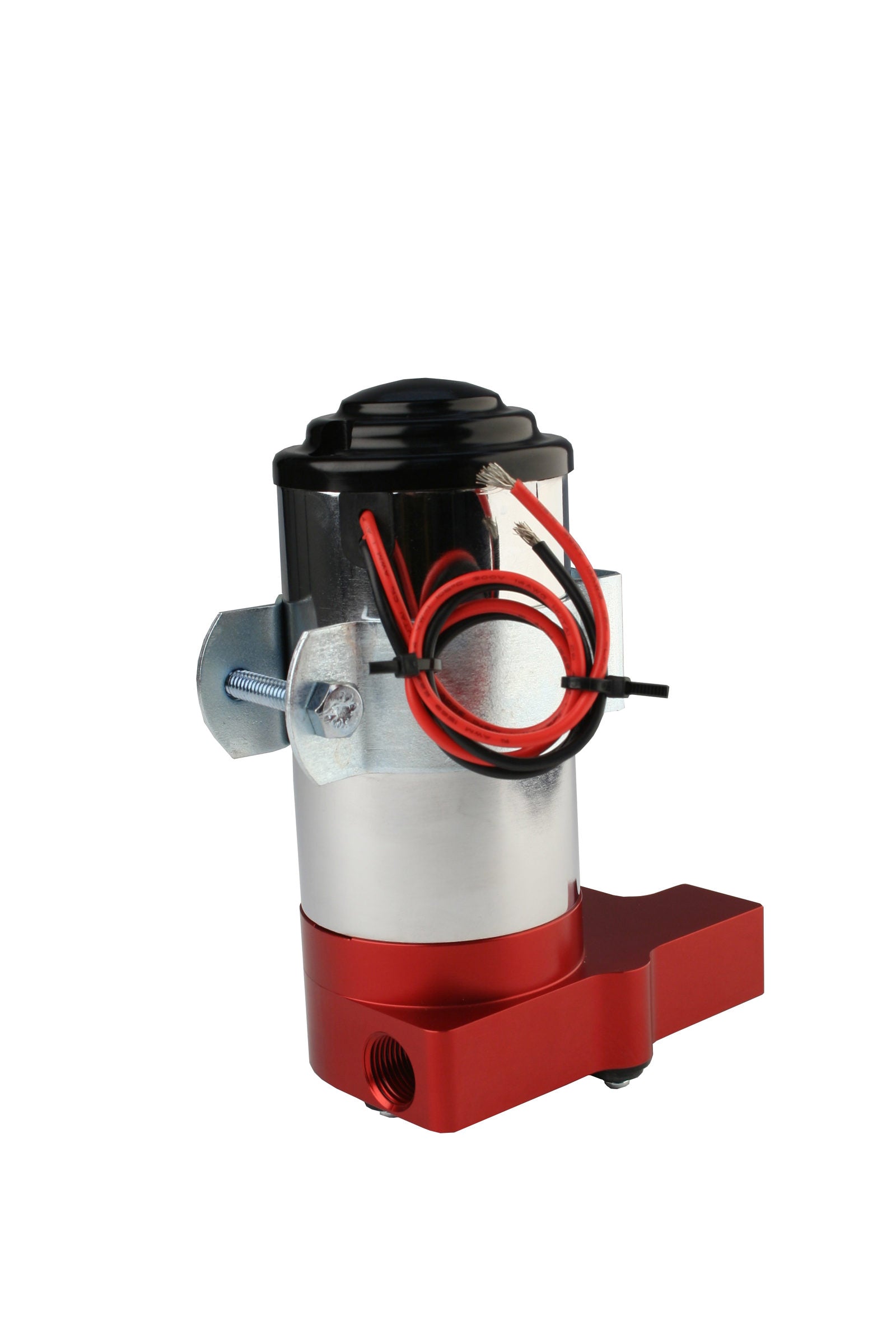

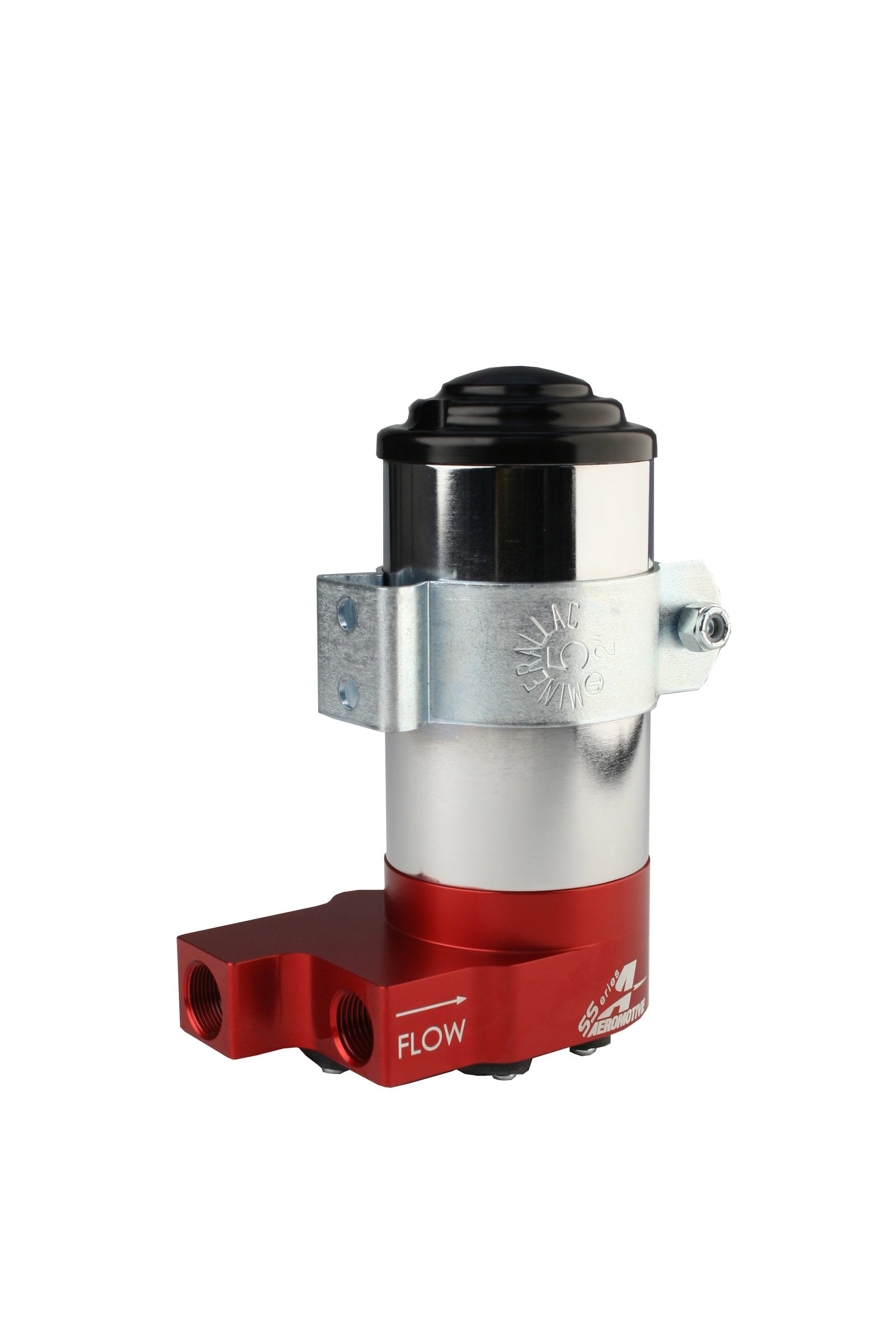

Aeromotive 11203 - SS Series Billet (14 PSI) Carbureted Fuel Pump - 3/8in NPT Ports

MSRP: $393.20
$357.45
( saved $35.75 )
Write a Review
  • Aeromotive 11203 - SS Series Billet (14 PSI) Carbureted Fuel Pump - 3/8in NPT Ports
  • Aeromotive 11203 - SS Series Billet (14 PSI) Carbureted Fuel Pump - 3/8in NPT Ports
  • Aeromotive 11203 - SS Series Billet (14 PSI) Carbureted Fuel Pump - 3/8in NPT Ports
  • Aeromotive 11203 - SS Series Billet (14 PSI) Carbureted Fuel Pump - 3/8in NPT Ports
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
AFS-11203
UPC:
684980000207
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Aeromotive - 11203

Fuel Pump - SS - Electric - In-Line - 140 gph Free Flow - 3/8 in NPT Female Inlet / Outlet - 14 psi Internal Regulator - Red - E85 / Gas - Each

SS Series Billet (14 PSI) Carbureted Fuel Pump (3/8 ? NPT) ports.

A carbureted fuel pump that allows you to step up your performance by maintaining optimal line pressure and delivering high volume. The Street/Strip Pump was engineered for 200-750 HP carbureted engines making this a perfect choice for a daily driver, street rod or demanding ET-bracket race car. P/N 11203 features 3/8' NPT inlet and outlet ports. Perfect for use with either a Bypass Regulator (P/N 13301) or one of our Carbureted Adjustable Regulators. (P/N 13201, 13205). Fuel flow exceeds 140 GPH at 13.5 volts. Pump provides 14 PSI fuel pressure - perfect for cars that leave hard. Pumping mechanism features our proprietary composite rotor, stainless steel vanes and precision ground, heat treated steel plates. Ideal for dedicated nitrous delivery. Alcohol compatible. Low current draw (under 5 amps).

Carb HP on E85: 525
Carb HP on Gas: 750
Filter Included: No
Fuel Delivery Type: Carbureted
Fuel Sending Unit Included: No
Fuel Type: Gas/E85
Gasket Or Seal Included: No
Grade Type: Performance
Inlet Outside Diameter: 3/8"
Inlet Type: Female Thread
Integrated Controller: No
Marine Approved: No
Maximum Current Draw: 16 @ 9 psi
Maximum Flow Rating: 140 GPH
Maximum Pressure: 20
Motor Style: Brushed
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Outside Diameter: 3/8"
Outlet Type: Female Thread
Pulse Width Modulation Compatible: Yes
Pump Design: Rotary Vane
Regulator Included: No
Seal And Lock Ring Included: No
Series: SS
Strainer Included: No
Terminal Quantity: 0
Terminal Type: Lead Wire
Universal Or Specific Fit: Universal
Voltage: 12
Wire Quantity: 2
Wiring Harness Included: No
