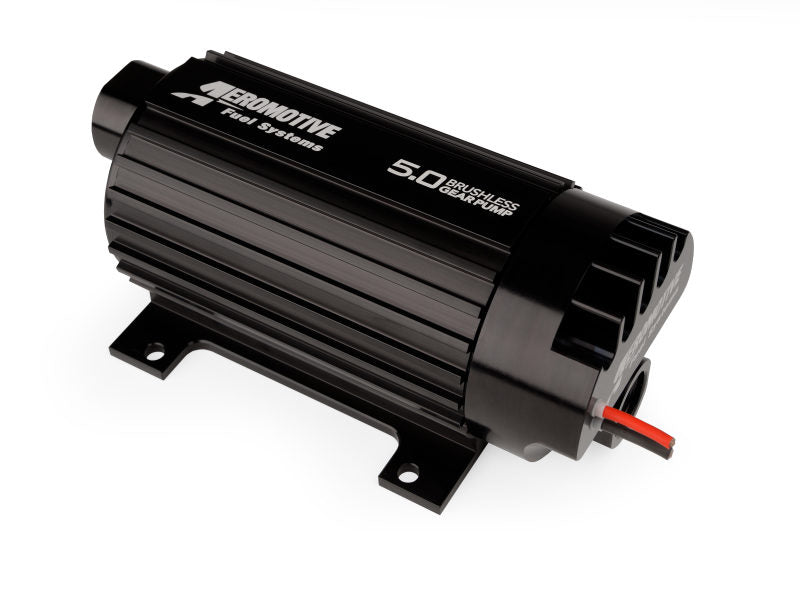

Aeromotive - 11196
Fuel Pump - Pro-Series 5.0 - Electric - Variable Speed - In-Line - 1850 lb/hr at 9 psi - 12 AN Female O-Ring Inlet - 10 AN Female O-Ring Outlet - Black - E85 / Gas - Each

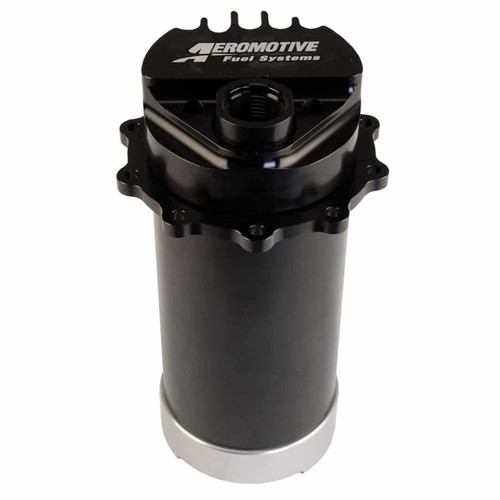

Variable Speed Controlled Fuel Pump, In-line, Signature Brushless Spur Gear 5.0gpm (Pump Sleeve Includes Mounting Provisions).
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
Carb HP on E85: 2520
Carb HP on Gas: 3600
EFI HP on E85: 2380
EFI HP on Gas: 3400
Filter Included: No
Fuel Delivery Type: Carburation & Fuel Injection
Fuel Sending Unit Included: No
Fuel Type: Gas/E85
Gasket Or Seal Included: No
Grade Type: Performance
Inlet Outside Diameter: ORB - 12
Inlet Type: Female Thread
Integrated Controller: Yes
Internal Or External: External
Marine Approved: No
Maximum Current Draw: 12 @ 40 psi
Maximum Flow Rating: 5.0 GPM
Maximum Pressure: 90
Motor Style: Brushless
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Outside Diameter: ORB - 10
Outlet Type: Female Thread
Pulse Width Modulation Compatible: No
Pump Design: Spur Gear
Regulator Included: No
Seal And Lock Ring Included: No
Series: 5.0GPM
Strainer Included: No
Terminal Quantity: 0
Terminal Type: Lead Wire
Universal Or Specific Fit: Universal
Voltage: 12
Wire Quantity: 3
Wiring Harness Included: No
