Aeromotive - 11192

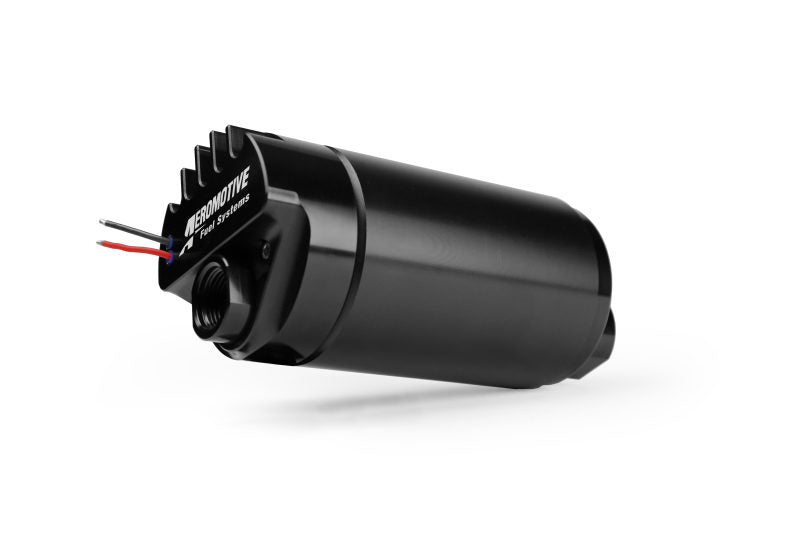

Brushless In-Line 5.0 Spur Gear Pump with Variable Speed Controller
Variable Speed Controlled Fuel Pump, Round, In-line, Brushless, Spur, 5.0.
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
- Fuel injected engines: GAS up to 3400 FWHP – naturally aspirated up to 2600 FWHP – forced air induction
- Carbureted engines: GAS Up to 3600 FWHP – naturally aspirated Up to 2700 FWHP – forced air induction
- Fuel injected engines: E85 up to 2380 FWHP – naturally aspirated up to 1820 FWHP – forced air induction
- Carbureted engines: E85 Up to 2520 FWHP – naturally aspirated Up to 1890 FWHP – forced air induction
- Fuel injected engines: METHANOL up to 1,190 FWHP – naturally aspirated up to 910 FWHP – forced air induction
- Carbureted engines: METHANOL Up to 1,260 FWHP – naturally aspirated Up to 945 FWHP – forced air induction
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional external mount pumps.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- ORB-12 inlet and ORB-10 outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
Carb HP on E85: 2520
Carb HP on Gas: 3600
EFI HP on E85: 2380
EFI HP on Gas: 3400
Filter Included: No
Fuel Delivery Type: Carburation & Fuel Injection
Fuel Sending Unit Included: No
Fuel Type: Gas/E85
Gasket Or Seal Included: No
Grade Type: Performance
Inlet Outside Diameter: ORB - 12
Inlet Type: Female Thread
Integrated Controller: Yes
Internal Or External: External
Marine Approved: No
Maximum Current Draw: 12 @ 40 psi
Maximum Flow Rating: 5.0 GPM
Maximum Pressure: 90
Motor Style: Brushless
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Outside Diameter: ORB - 10
Outlet Type: Female Thread
Pulse Width Modulation Compatible: No
Pump Design: Spur Gear
Regulator Included: No
Seal And Lock Ring Included: No
Series: 5.0GPM
Strainer Included: No
Terminal Quantity: 0
Terminal Type: Lead Wire
Universal Or Specific Fit: Universal
Voltage: 12
Wire Quantity: 3
Wiring Harness Included: No
