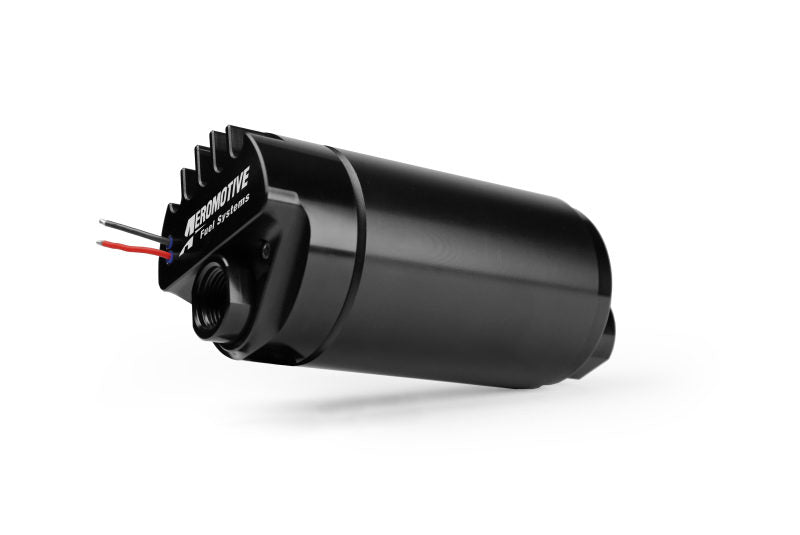

Aeromotive - 11189
In-Line Brushless A1000 with Variable Speed Controller
Variable Speed Controlled Fuel Pump, Round, In-line, Brushless, A1000-Series.
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
- Fuel Injected Engines: GAS up to 1300 FWHP – naturally aspirated up to 1000 FWHP – forced air induction
- Carbureted Engines: GAS up to 1500 FWHP – naturally aspirated up to 1200 FWHP – forced air induction
- Fuel Injected Engines: E85 up to 910 FWHP – naturally aspirated up to 700 FWHP – forced air induction
- Carbureted Engines: E85 up to 1050 FWHP – naturally aspirated up to 840 FWHP – forced air induction
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional A1000 pump.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- Quieter than the traditional A1000 pump.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- ORB-10 inlet and outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
Carb HP on E85: 1050
Carb HP on Gas: 1500
EFI HP on E85: 910
EFI HP on Gas: 1300
Filter Included: No
Fuel Delivery Type: Carburation & Fuel Injection
Fuel Sending Unit Included: No
Fuel Type: Gas/E85
Gasket Or Seal Included: No
Grade Type: Performance
Inlet Outside Diameter: ORB - 10
Inlet Type: Female Thread
Integrated Controller: Yes
Internal Or External: External Or Internal
Maximum Current Draw: 12 @ 40 psi
Maximum Flow Rating: 1000
Maximum Pressure: 90
Motor Style: Brushless
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Outside Diameter: ORB - 10
Outlet Type: Female Thread
Pulse Width Modulation Compatible: No
Pump Design: Rotary Vane
Regulator Included: No
Seal And Lock Ring Included: No
Series: A1000
Strainer Included: No
Terminal Quantity: 0
Terminal Type: Lead Wire
Universal Or Specific Fit: Universal
Voltage: 12
Wire Quantity: 3
Wiring Harness Included: No
