Aeromotive - 11106
Fuel Pump - A750 - Electric - In-Line / In-Tank - 450 lb/hr at 45 psi - 8 AN Female O-Ring Inlet - 6 AN Female O-Ring Outlet - Red - E85 / Gas - Each

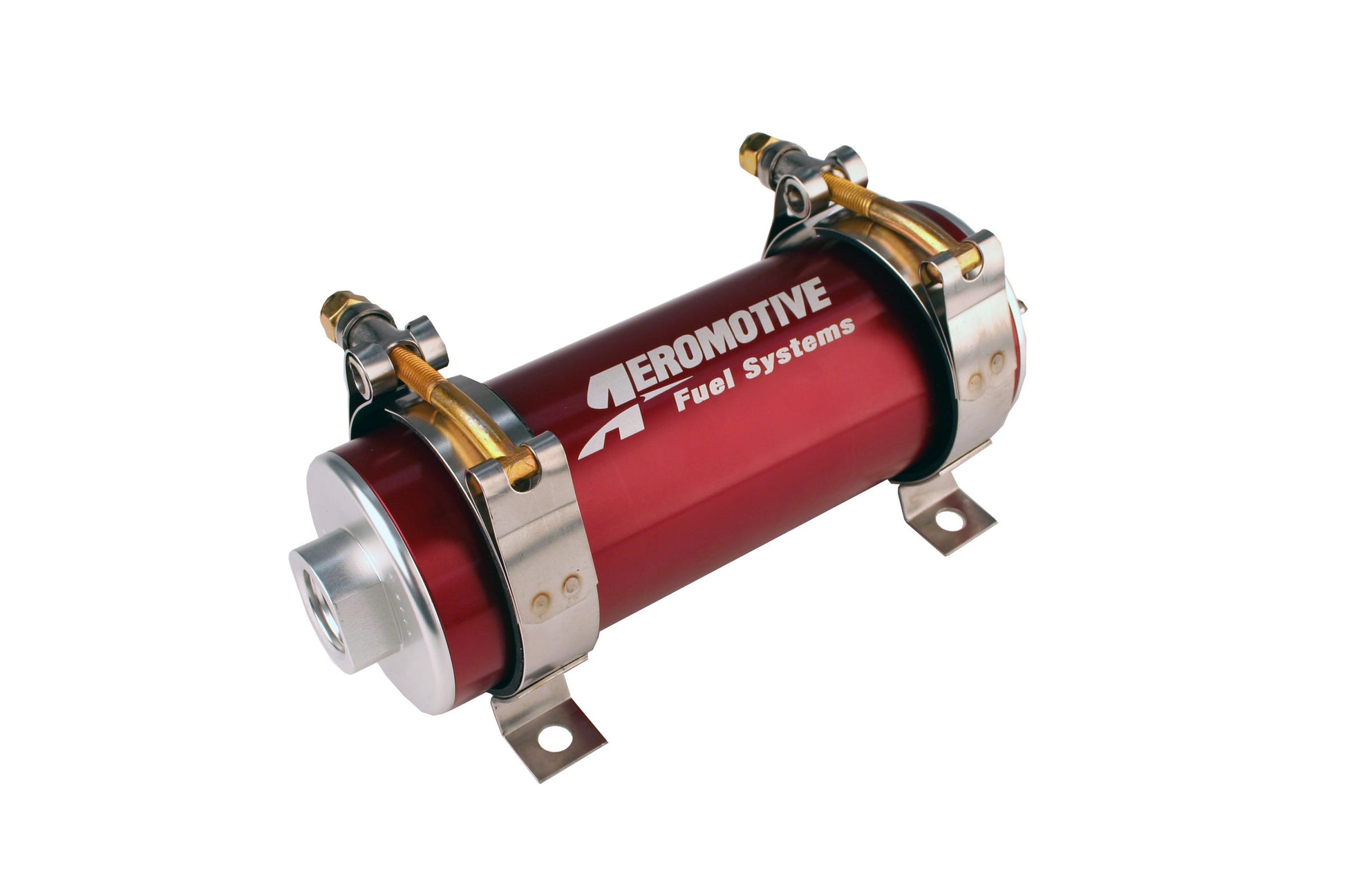

A750 EFI Fuel Pump - Red.
Compact, quiet and durable, these billet, in-line pumps are ideal for low to medium HP applications. Perfect for street rods and muscle cars, fuel injected or carbureted. Fuel Injected Engines: up to 800 HP naturally aspirated and up to 600 HP forced air induction. Carbureted Engines: up to 1,000 HP naturally aspirated and up to 800 HP forced air induction. ORB-8 inlet ports and ORB-6 outlet ports. Compact size facilitates easy mounting. Fully submersible for custom, in-tank placement.
- Fuel Injected Engines: up to 800 HP naturally aspirated and up to 600 HP forced air induction
- Carbureted Engines: up to 1,000 HP naturally aspirated and up to 800 HP forced air induction
- ORB-8 inlet ports and ORB-6 outlet ports
- Compact size facilitates easy mounting
- Fully submersible for custom, in-tank placement
Carb HP on E85: 700
Carb HP on Gas: 1000
EFI HP on E85: 560
EFI HP on Gas: 800
Filter Included: No
Fuel Delivery Type: Carburation & Fuel Injection
Fuel Sending Unit Included: No
Fuel Type: Gas/E85
Gasket Or Seal Included: No
Grade Type: Performance
Inlet Outside Diameter: ORB - 10
Inlet Type: Female Thread
Integrated Controller: No
Internal Or External: External Or Internal
Maximum Current Draw: 10 @ 45 psi
Maximum Flow Rating: 750
Maximum Pressure: 90
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Outside Diameter: ORB-6
Outlet Type: Female Thread
Pulse Width Modulation Compatible: Yes
Pump Design: Rotary Vane
Regulator Included: No
Seal And Lock Ring Included: No
Series: A750
Strainer Included: No
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Threaded Stud
Universal Or Specific Fit: Universal
Voltage: 12
Wire Quantity: 0
Wiring Harness Included: No
