Aeromotive

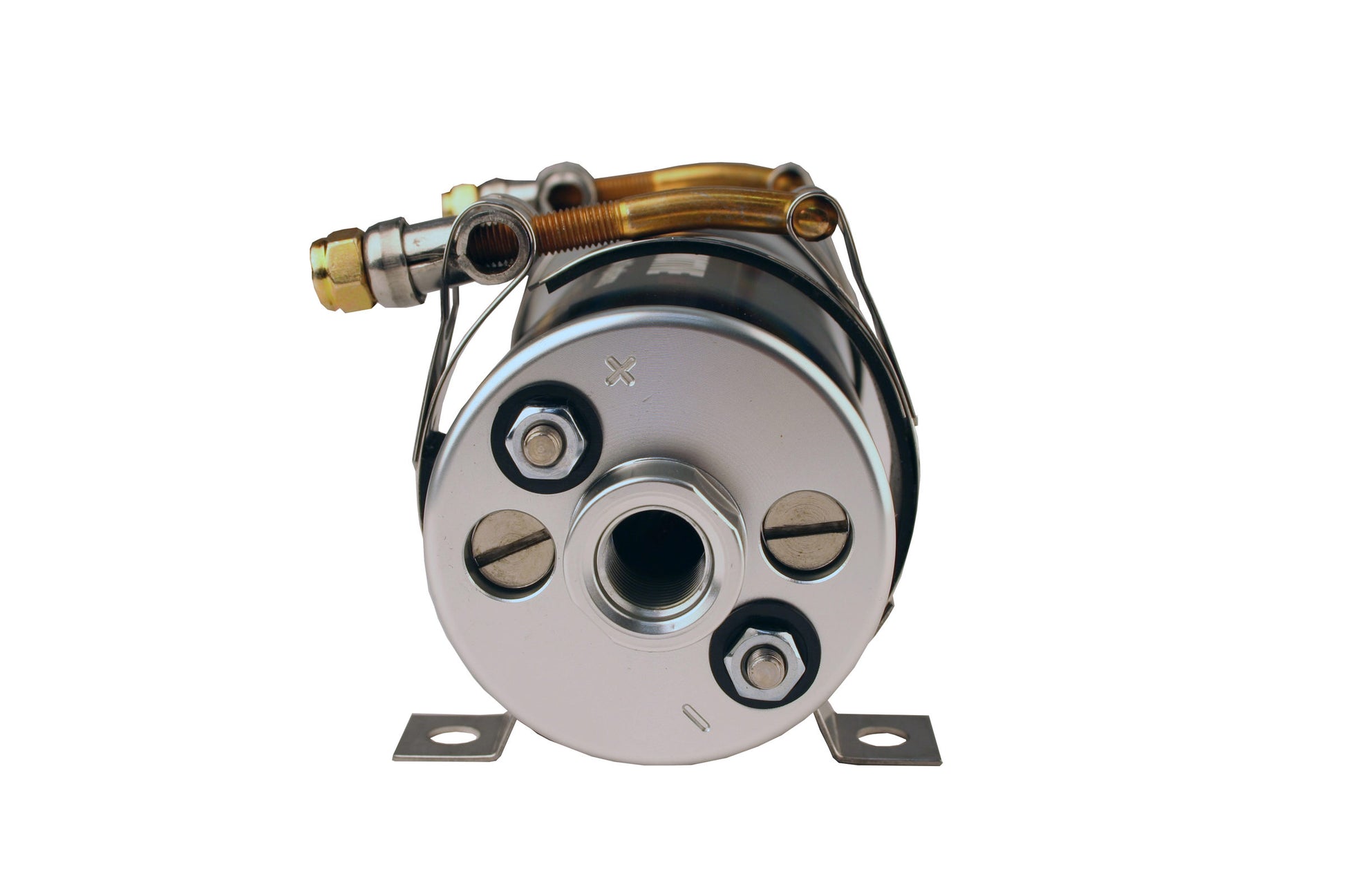

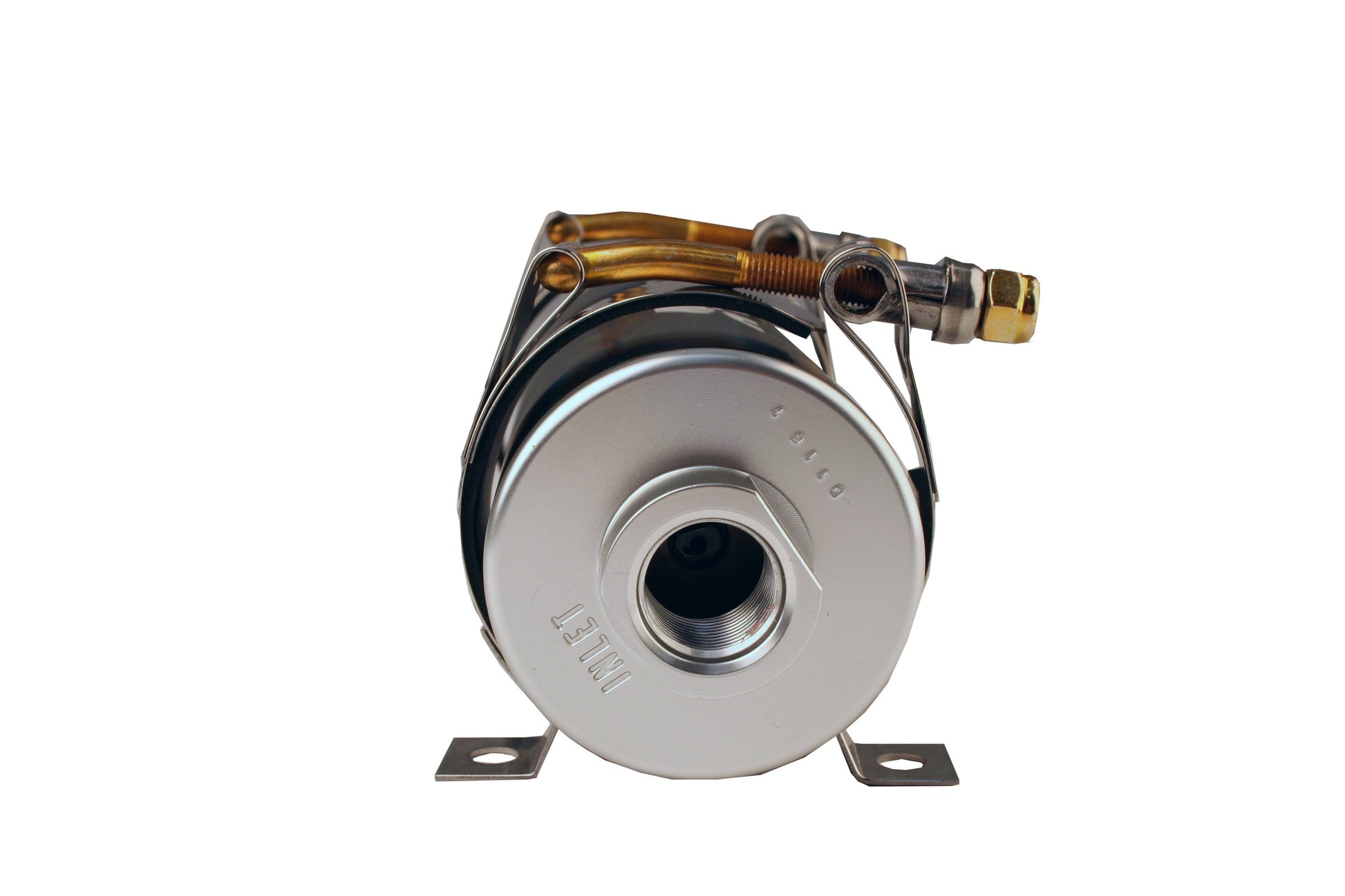

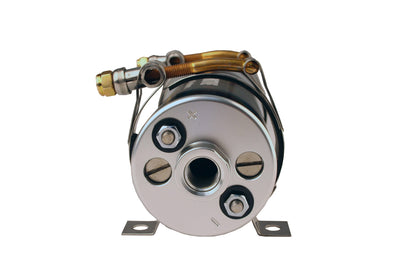

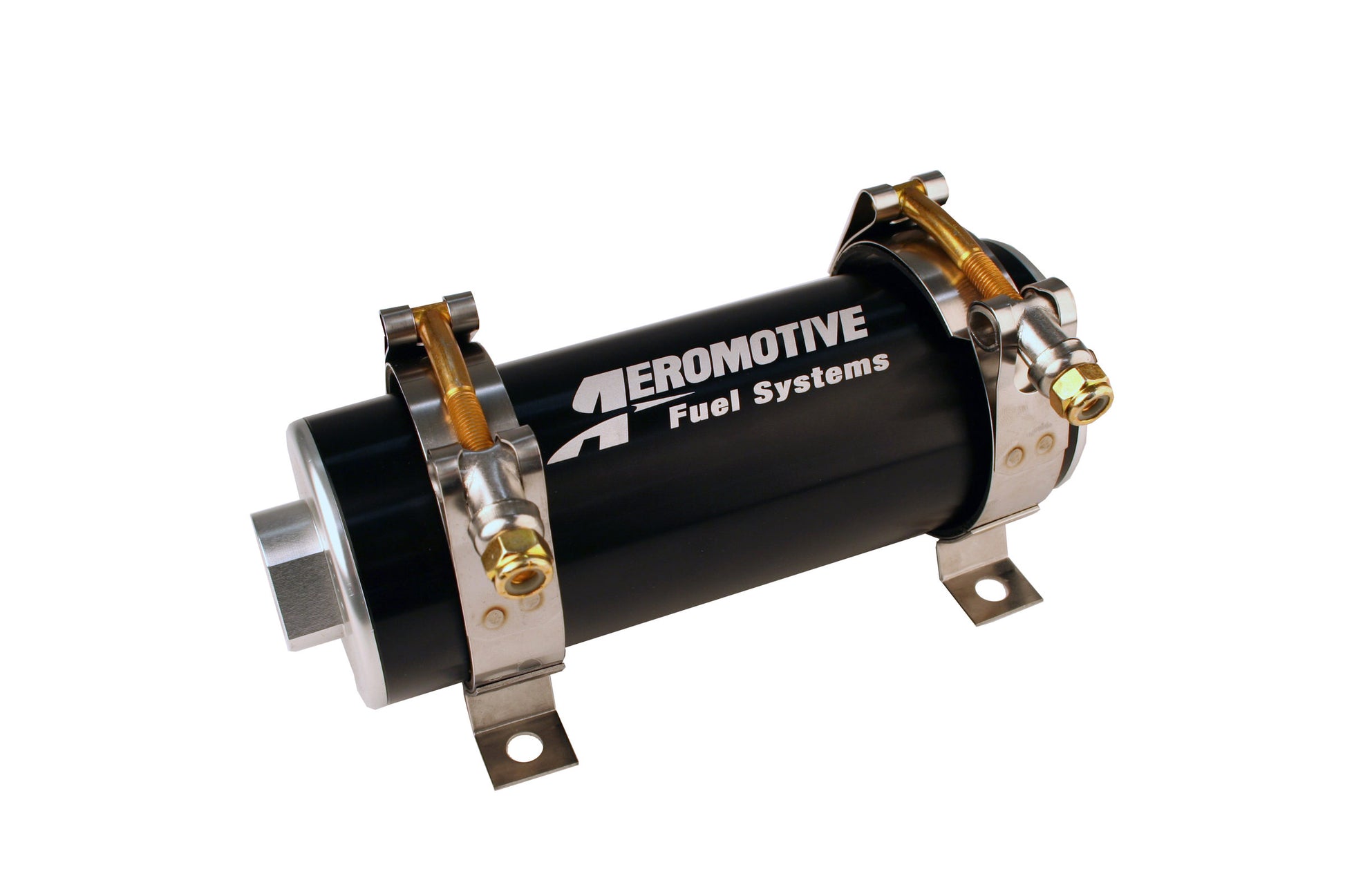

Aeromotive 11103 - 700 HP EFI Fuel Pump - Black

MSRP: $527.94
$479.95
( saved $47.99 )
Write a Review
  • Aeromotive 11103 - 700 HP EFI Fuel Pump - Black
  • Aeromotive 11103 - 700 HP EFI Fuel Pump - Black
  • Aeromotive 11103 - 700 HP EFI Fuel Pump - Black
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
AFS-11103
UPC:
684980000795
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Aeromotive - 11103

Fuel Pump - A750 - Electric - In-Line / In-Tank - 450 lb/hr at 45 psi - 8 AN Female O-Ring Inlet - 6 AN Female O-Ring Outlet - Black - E85 / Gas / Diesel - Each

A750 EFI Fuel Pump - Black.

Compact, quiet, and durable, these billet, in-line pumps are ideal for low to medium HP applications. Perfect for street rods and muscle cars, fuel injected or carbureted. Fuel Injected Engines: up to 800 HP naturally aspirated and up to 600 HP forced air induction. Carbureted Engines: up to 1,000 HP naturally aspirated and up to 800 HP - forced air induction. It has ORB-8 inlet ports and ORB-6 outlet ports. Compact size facilitates easy mounting. For Carbureted applications use regulator P/N 13204 or P/N 13304. Fully submersible for custom, in-tank placement.

  • Fuel Injected Engines: up to 800 HP naturally aspirated and up to 600 HP forced air induction
  • Carbureted Engines: up to 1,000 HP naturally aspirated and up to 800 HP - forced air induction. It has ORB-8 inlet ports and ORB-6 outlet ports
  • Compact size facilitates easy mounting.
  • For Carbureted applications use regulator P/N 13204 or P/N 13304.
  • Fully submersible for custom, in-tank placement.

Carb HP on E85: 700
Carb HP on Gas: 1000
EFI HP on E85: 560
EFI HP on Gas: 800
Filter Included: No
Fuel Delivery Type: Carburation & Fuel Injection
Fuel Sending Unit Included: No
Fuel Type: Gas/E85
Gasket Or Seal Included: No
Grade Type: Performance
Inlet Outside Diameter: ORB - 10
Inlet Type: Female Thread
Integrated Controller: No
Internal Or External: External Or Internal
Maximum Current Draw: 14 @ 45 psi
Maximum Flow Rating: 750
Maximum Pressure: 100
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Outside Diameter: ORB-6
Outlet Type: Female Thread
Pulse Width Modulation Compatible: Yes
Pump Design: Rotary Vane
Regulator Included: No
Seal And Lock Ring Included: No
Series: A750
Strainer Included: No
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Threaded Stud
Universal Or Specific Fit: Universal
Voltage: 12
Wire Quantity: 0
Wiring Harness Included: No
