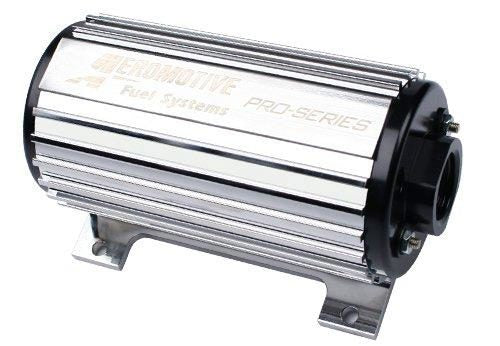

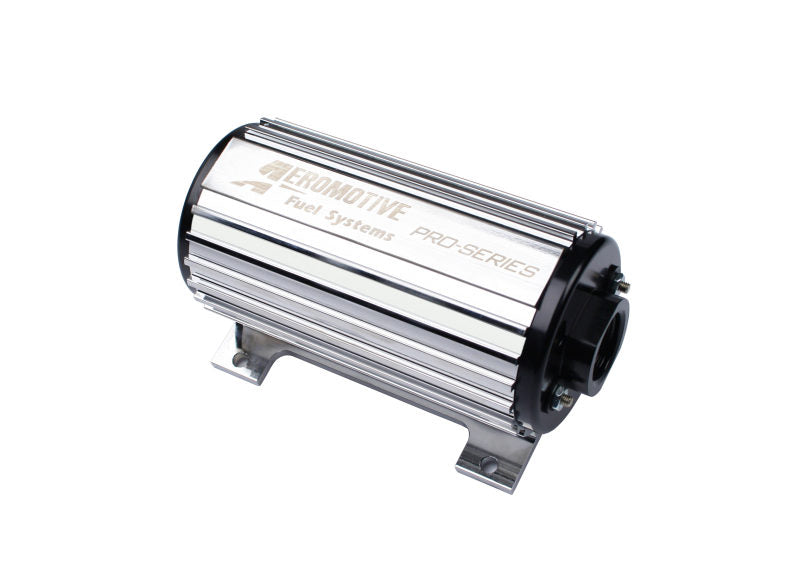

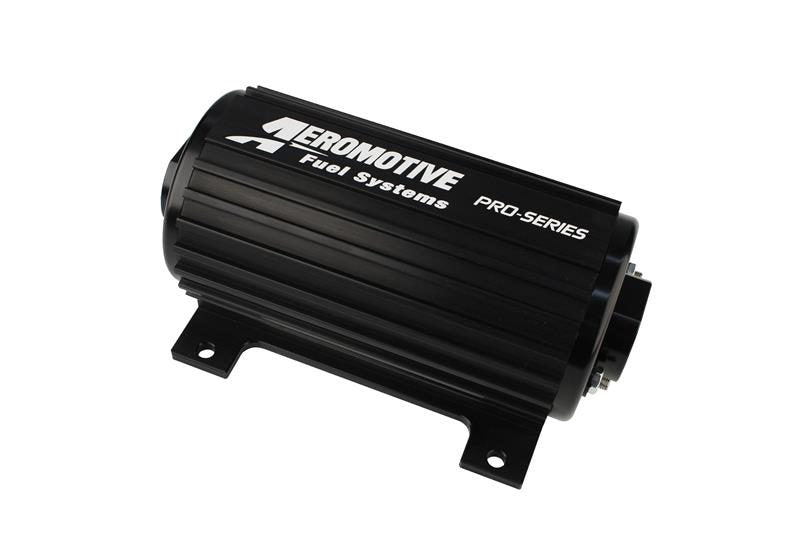

Aeromotive 11102 - Pro-Series Fuel Pump - EFI or Carbureted Applications

MSRP: $1,134.04
$1,030.95
( saved $103.09 )
Write a Review
  • Aeromotive 11102 - Pro-Series Fuel Pump - EFI or Carbureted Applications
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
AFS-11102
UPC:
684980000344
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Aeromotive - 11102

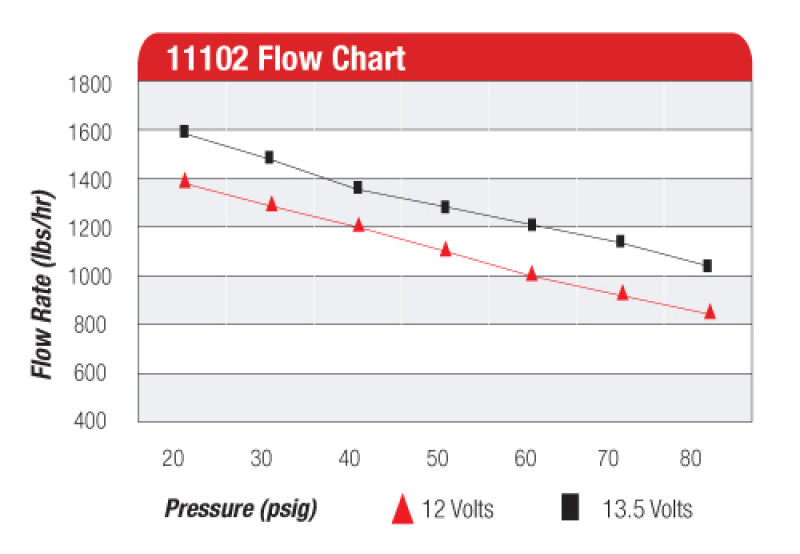

Fuel Pump - Pro Series - Electric - In-Line / In-Tank - 200 gph at 45 psi - 12 AN Female O-Ring Inlet / Outlet - Nickel Plated - E85 / Gas - Each

Pro-Series Fuel Pump - EFI or Carbureted applications (includes fittings & o-rings).

Designed for crazy horsepower, it's hard to find a more powerful, higher flowing, in-line fuel pump anywhere. Engineered for high-horsepower racing engines, this beautiful pump features our innovative 'dual chamber' pump design. Fuel injected engines: up to 2200 HP naturally aspirated and up to 1700 HP forced air induction. Carbureted engines: up to 2600 HP naturally aspirated and up to 2000 HP forced air induction. Has ORB-12 inlet and outlet ports. Two ORB-12 / AN-12 male adapter fittings included. Perfect for 'blow-through' carbureted engines up to 2000 HP. Fully submersible for custom, in-tank placement. This product is not compatible for use with diesel fuel.

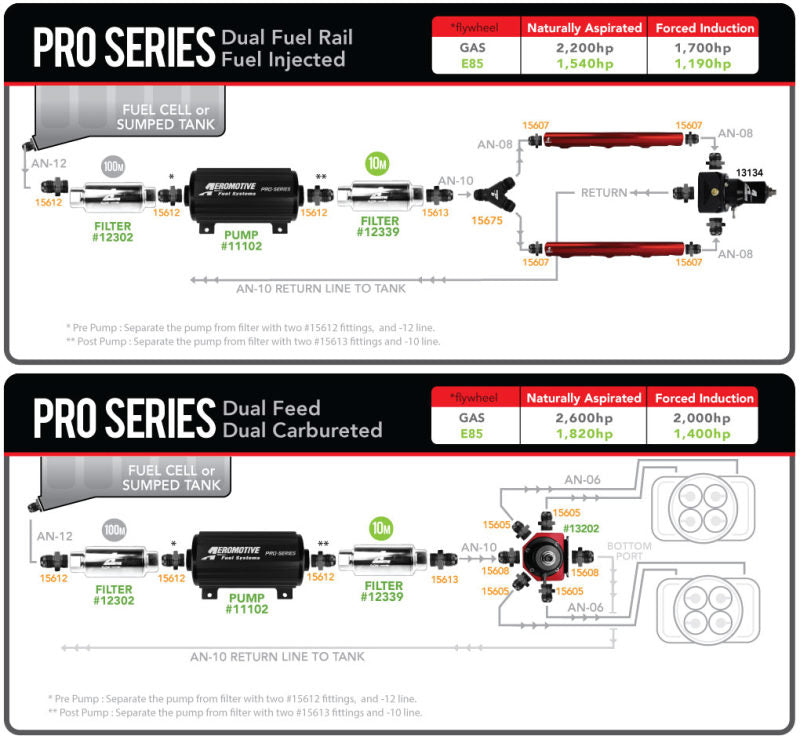

  • Fuel injected engines: up to 2200 HP naturally aspirated and up to 1700 HP forced air induction
  • Carbureted engines: up to 2600 HP naturally aspirated and up to 2000 HP forced air induction. Has ORB-12 inlet and outlet ports. Two ORB-12 / AN-12 male adapter fittings included. Perfect for 'blow-through' carbureted engines up to 2000 HP
  • Fully submersible for custom, in-tank placement.
  • This product is not compatible for use with diesel fuel.

Carb HP on E85: 1820
Carb HP on Gas: 2600
EFI HP on E85: 1540
EFI HP on Gas: 2200
Filter Included: No
Fuel Delivery Type: Carburation & Fuel Injection
Fuel Sending Unit Included: No
Fuel Type: Gas/E85
Gasket Or Seal Included: No
Grade Type: Performance
Inlet Outside Diameter: ORB - 12
Inlet Type: Female Thread
Integrated Controller: No
Internal Or External: External Or Internal
Marine Approved: No
Maximum Current Draw: 14 @ 9 psi
Maximum Pressure: 90
Motor Style: Brushed
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Outside Diameter: ORB - 12
Outlet Type: Female Thread
Pulse Width Modulation Compatible: Yes
Pump Design: Rotary Vane
Regulator Included: No
Seal And Lock Ring Included: No
Series: Pro-Series
Strainer Included: No
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Threaded Stud
Universal Or Specific Fit: Universal
Voltage: 12
Wire Quantity: 0
Wiring Harness Included: No
