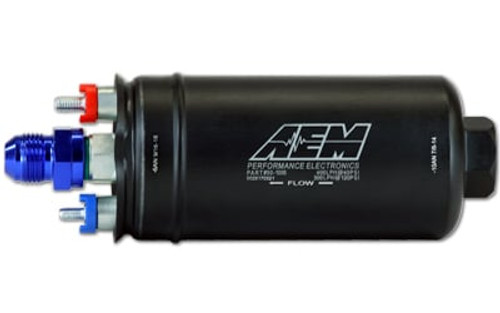

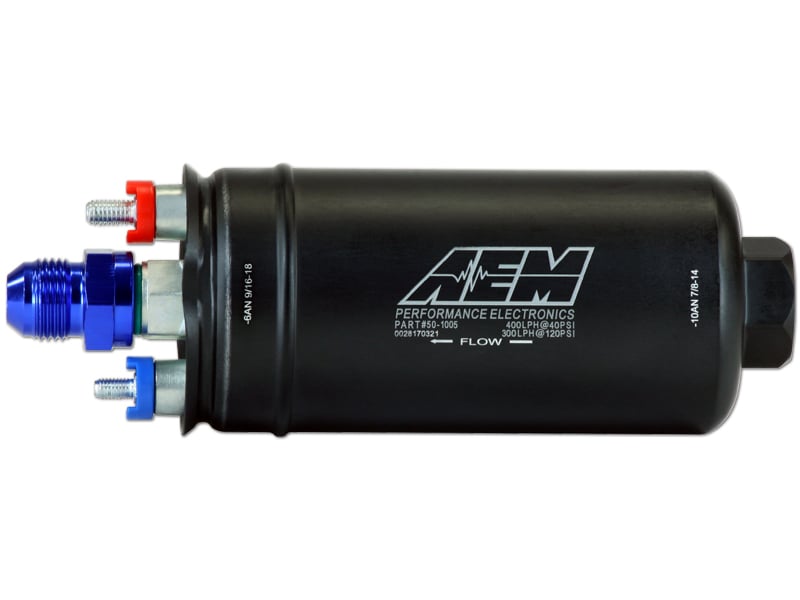

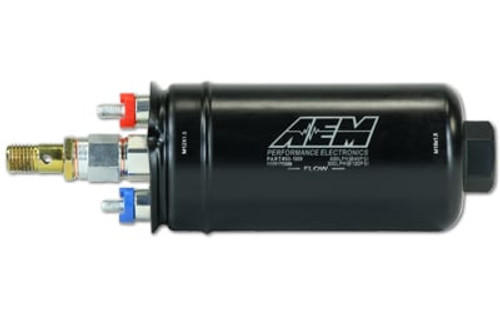

AEM - 50-1005

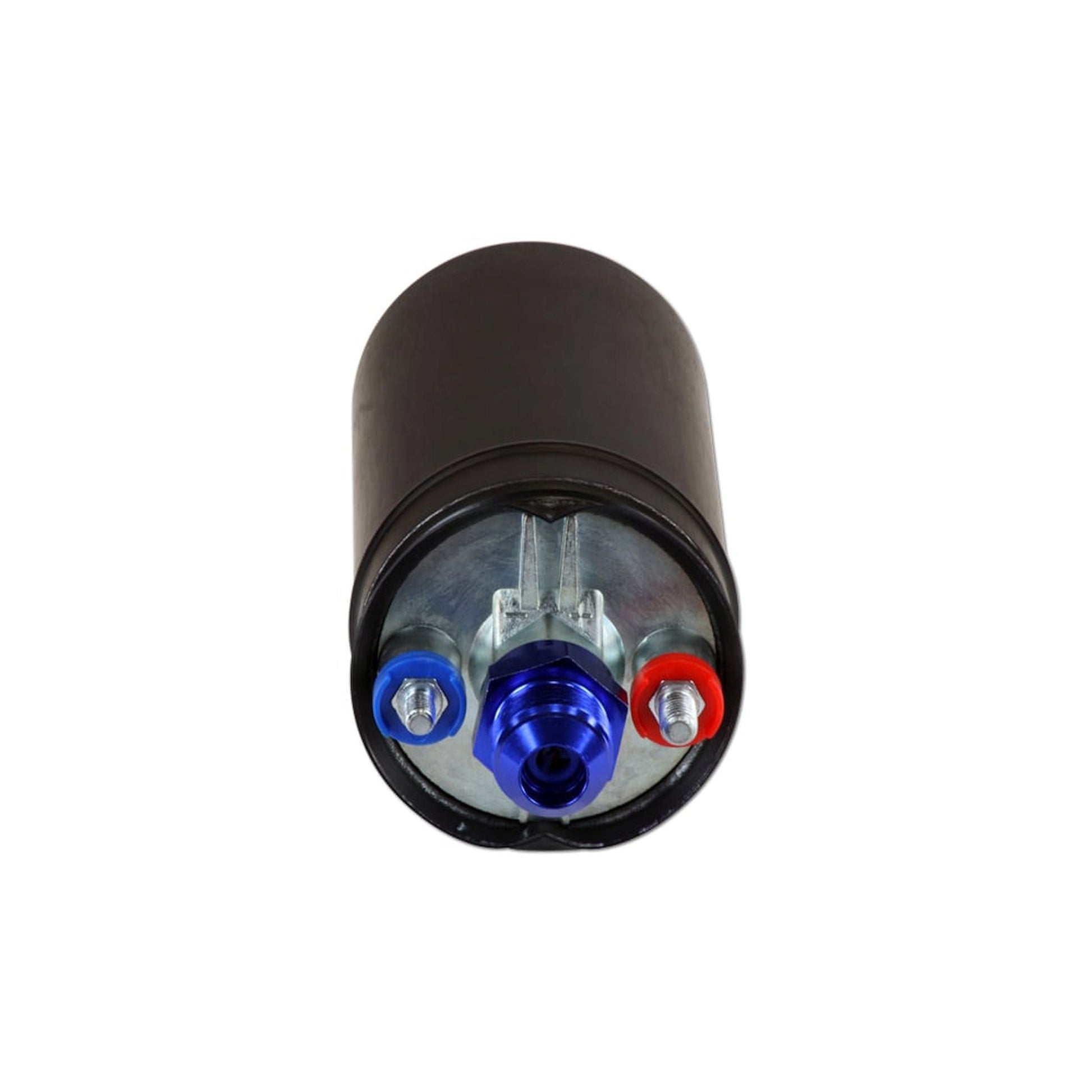

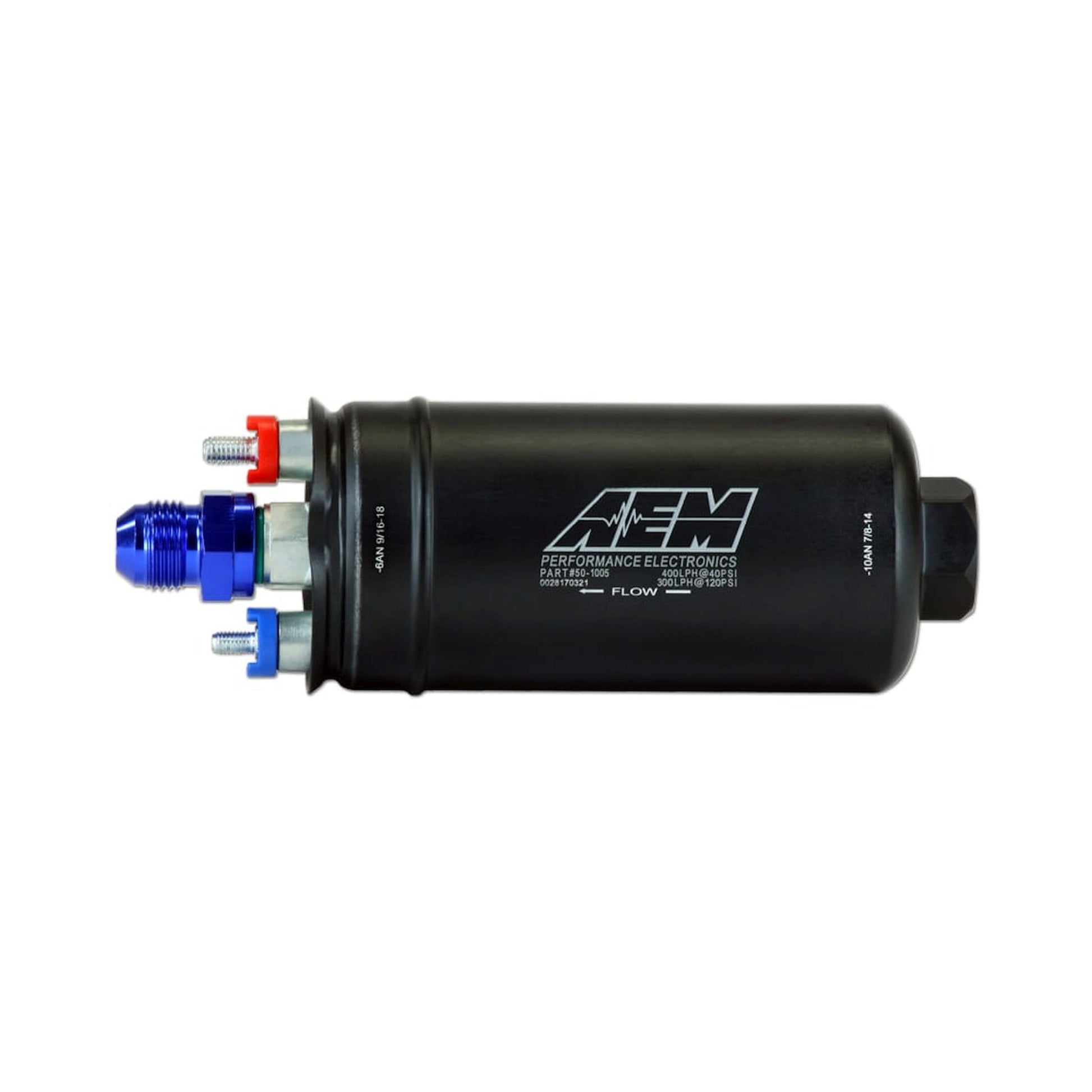

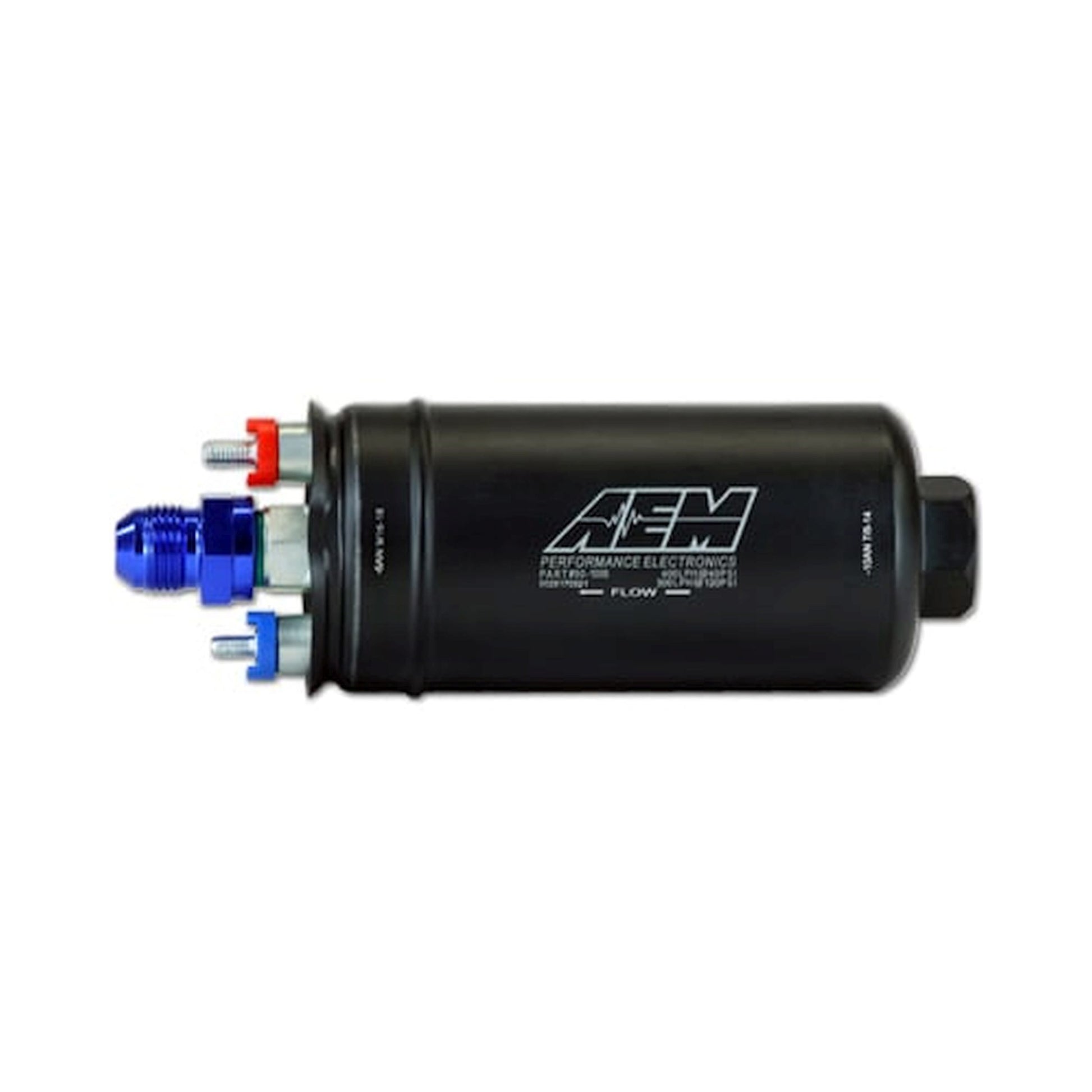

Fuel Pump - High Flow - Electric - In-Line - 400 lph at 40 psi - 10 AN Female O-Ring Inlet - 6 AN Female O-Ring Outlet - Install Kit - Gas - Kit
400lph Inline High Flow Fuel Pump, -10AN Inlet and -6AN Outlet, Incl Fuel Pump, installation instructions, -6AN to -8AN check valve fitting, wiring terminal ends,covers,nuts, Included hardware is not application specific
AEM's 400LPH AN Fittings High Flow, High-Pressure Inline Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It can be installed externally or in-tank using optional hardware that is sold separately (see part numbers, below). It utilizes the industry standard "044 Style" envelope and -10 AN female inlet and -6 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The 50-1005 fuel pump delivers incredible performance and value.
- Designed for high output naturally aspirated and forced induction EFI vehicles

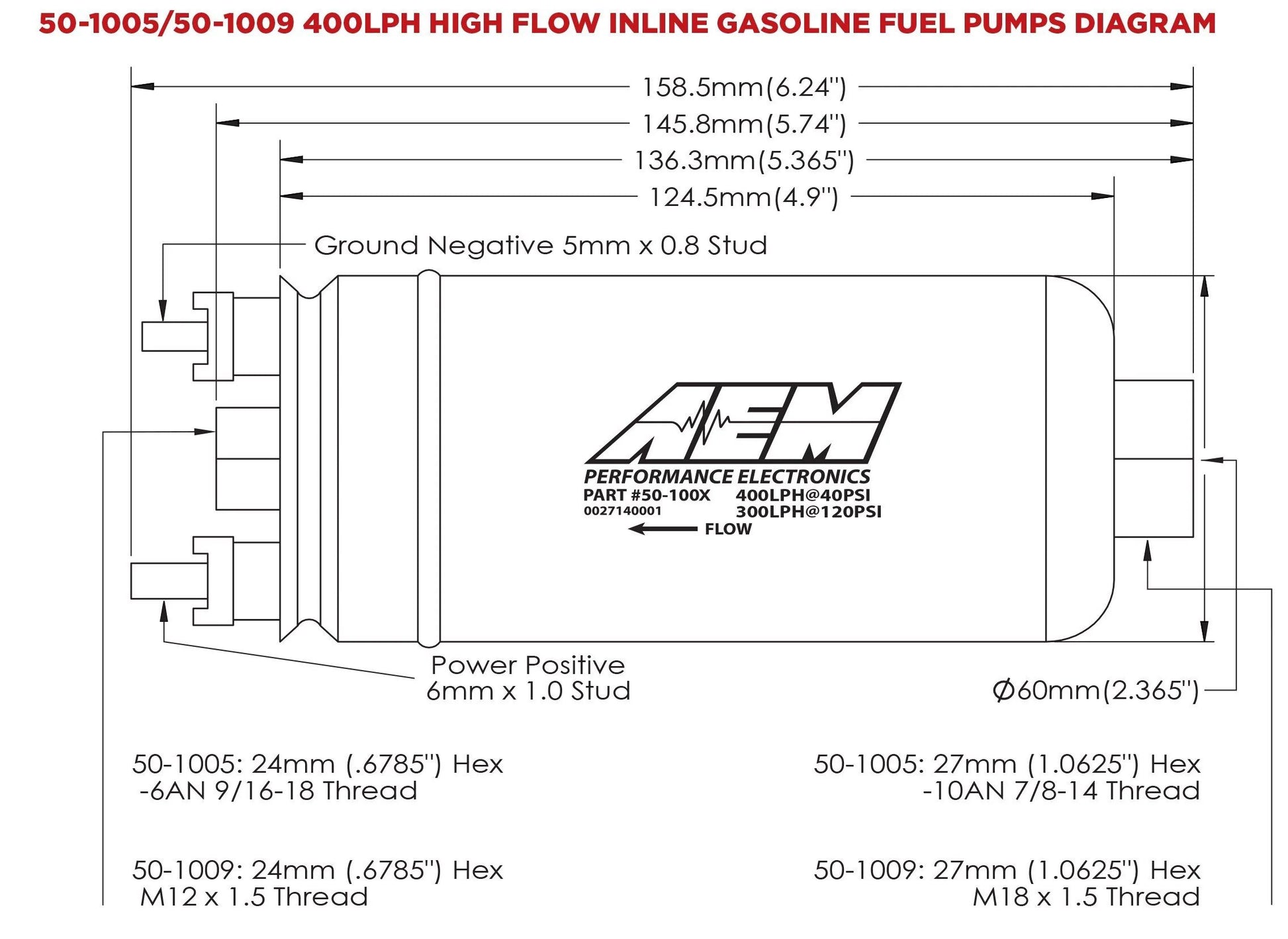

- Popular "044 Style" physical configuration, but with AN inlet & discharge port connections

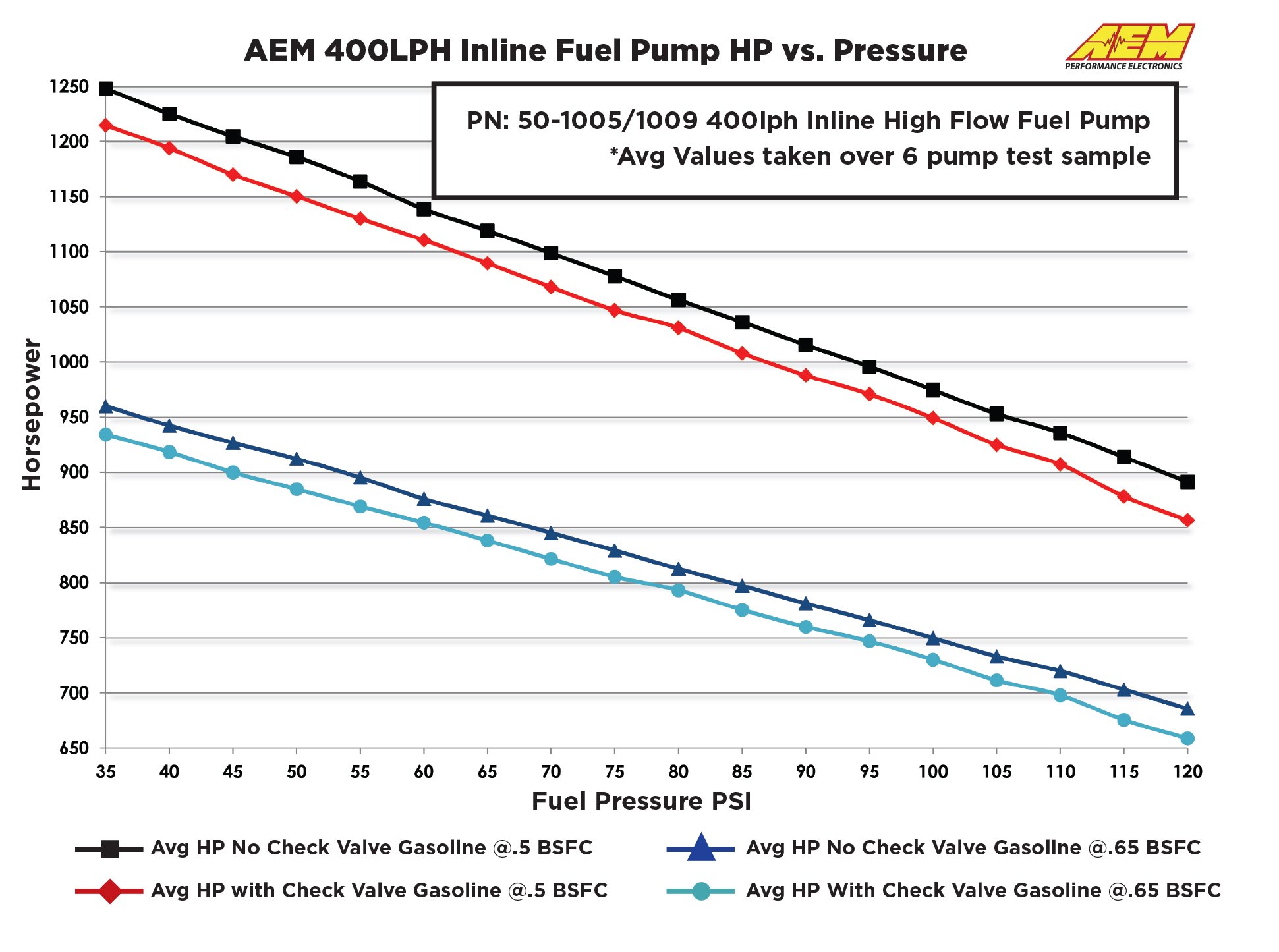

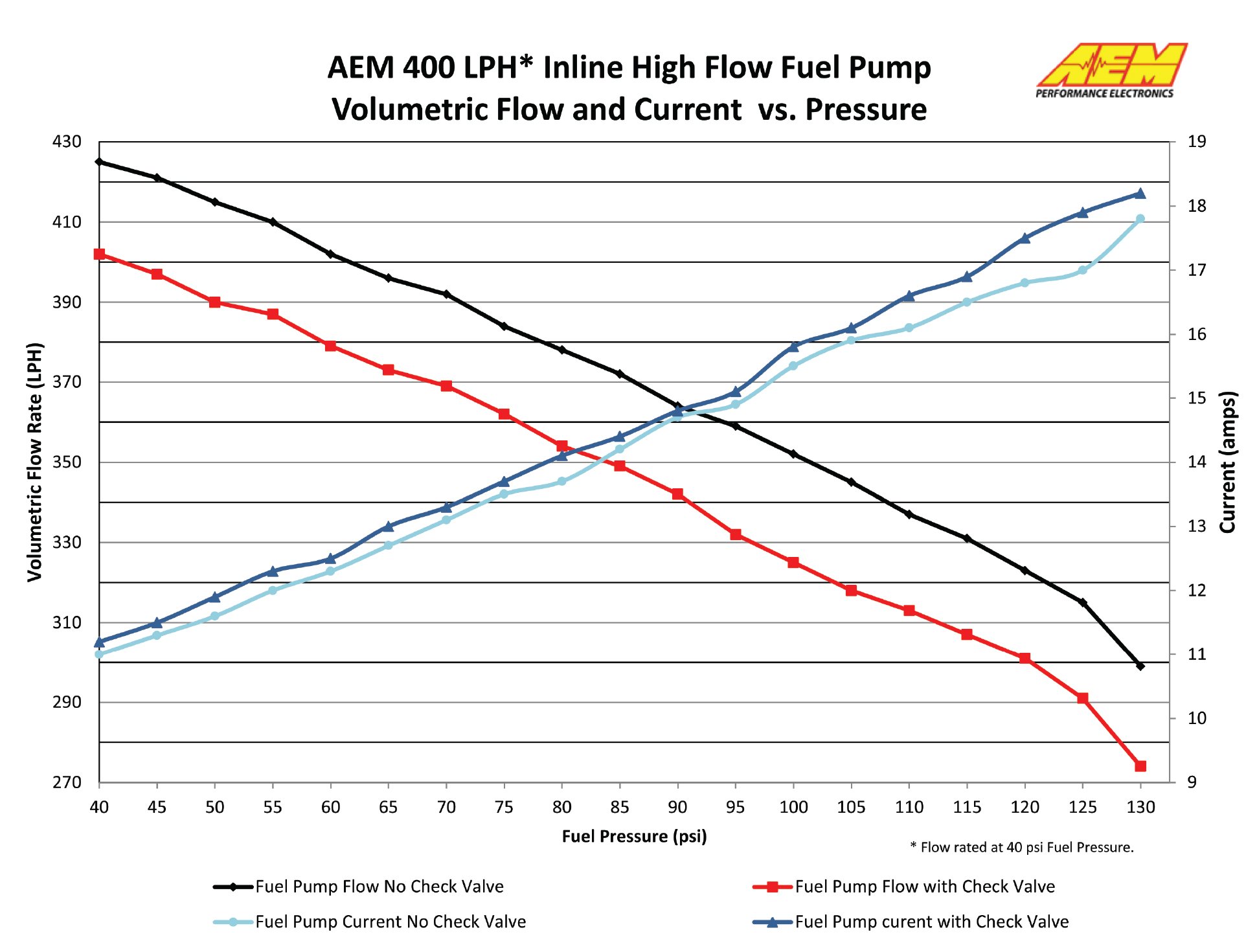

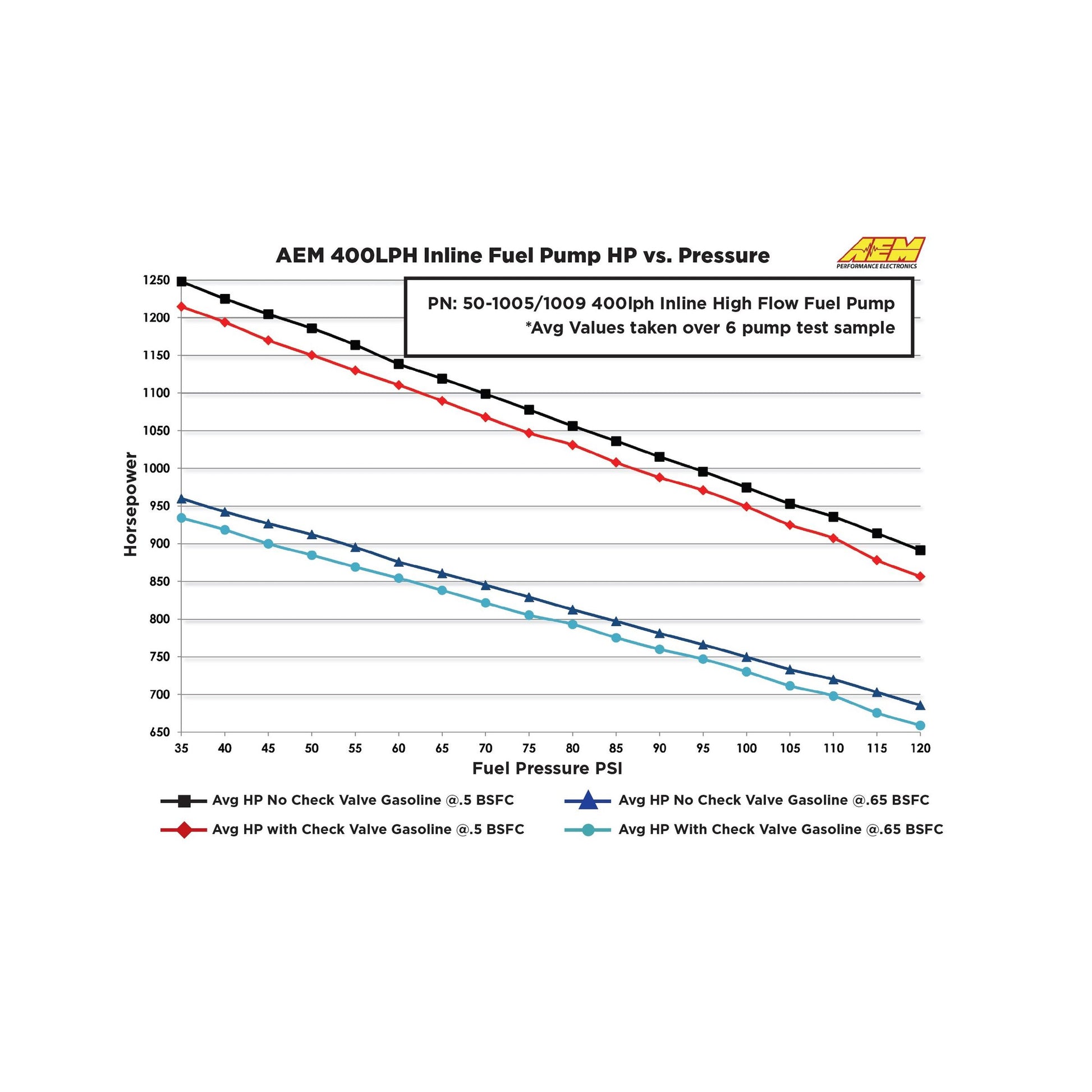

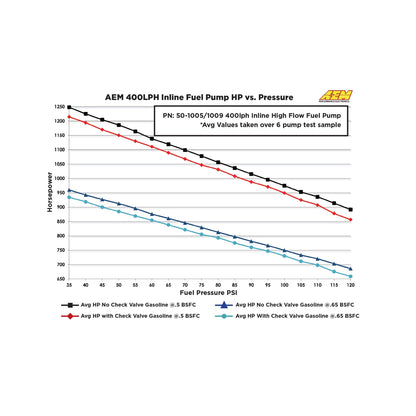

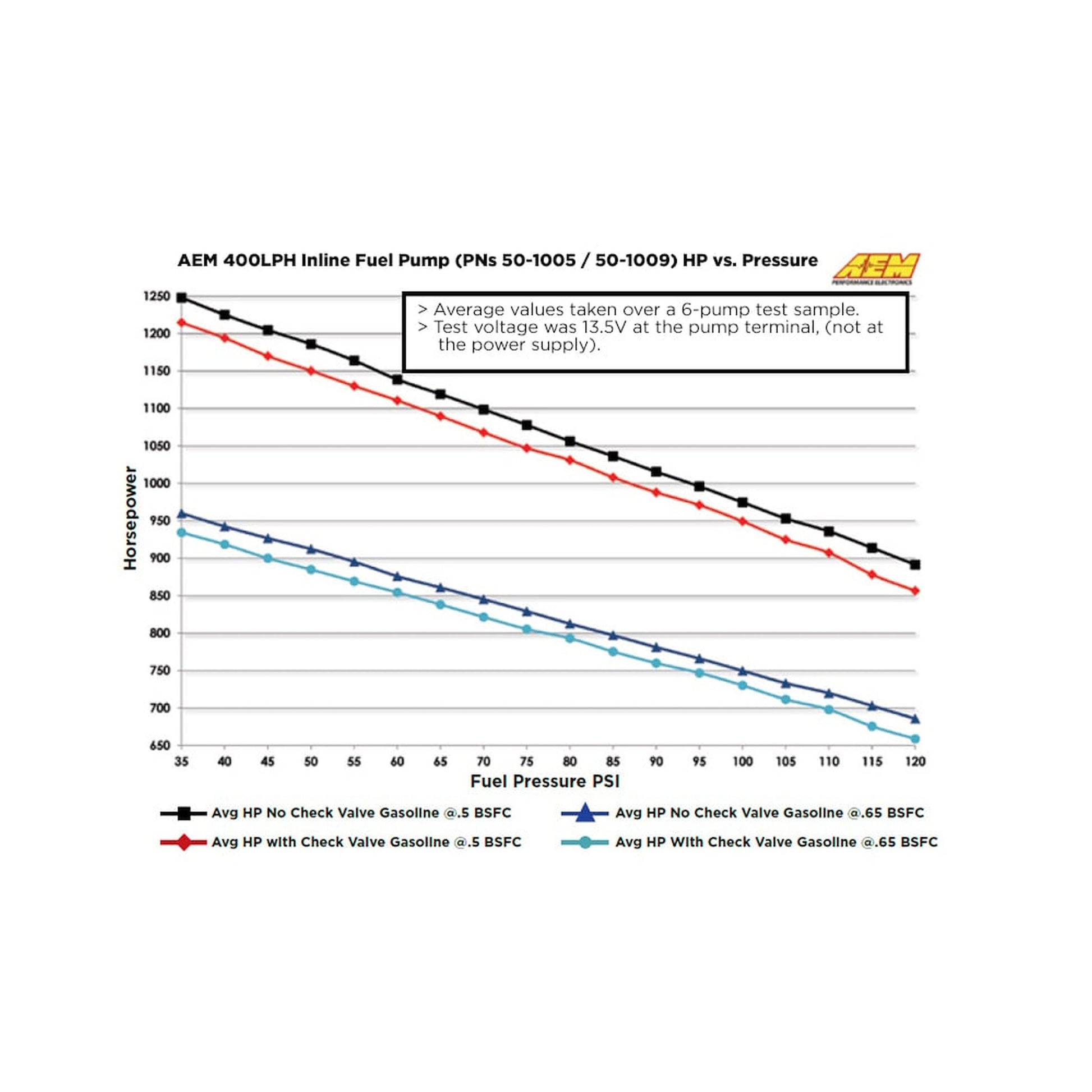

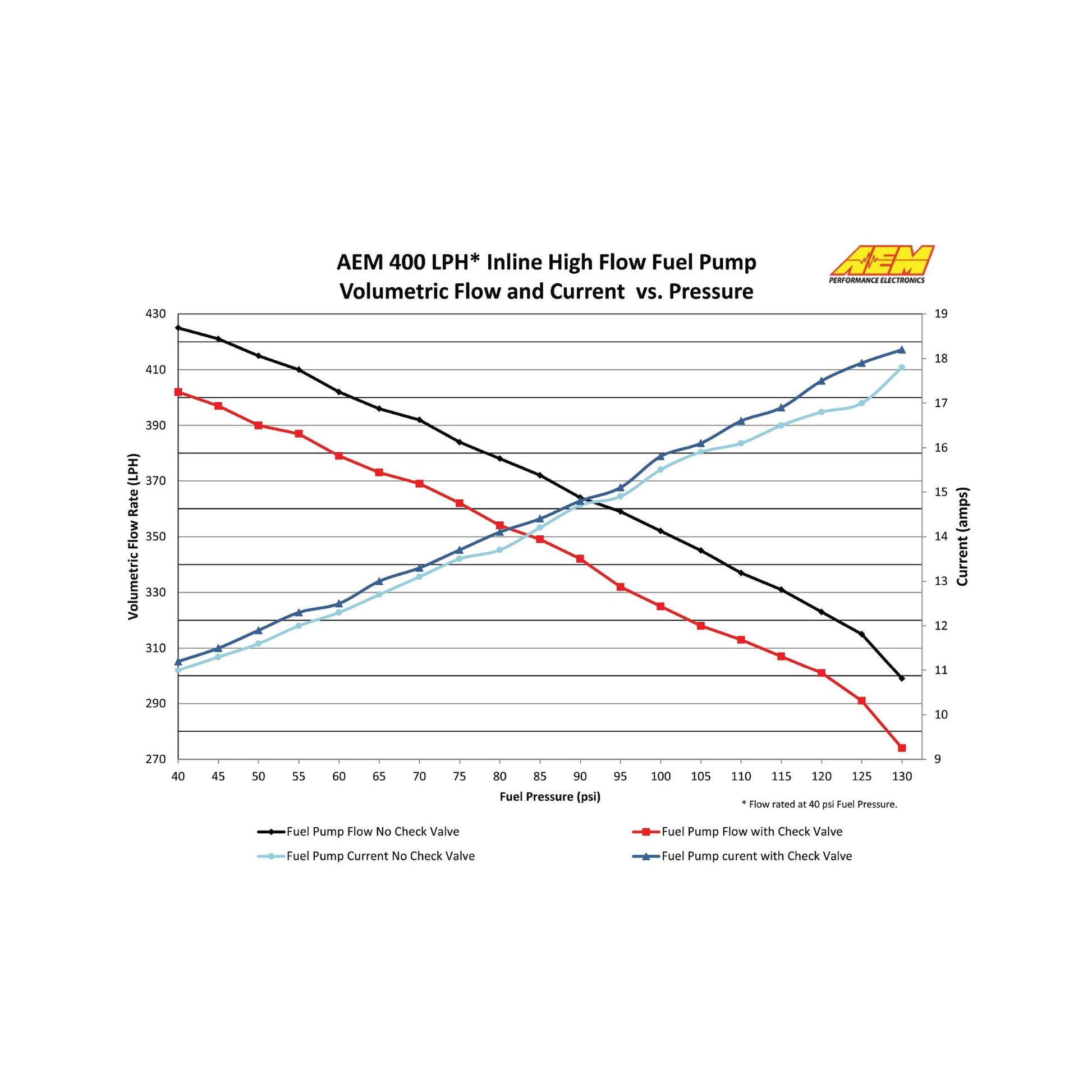

- Maintains very high flow even at boosted fuel pressures; 340LPH @ 73 PSI (30 psi boost)
- Installs externally or in-tank
- Each pump individually tested to flow minimum of 400LPH (100gph) @ 40 PSI
- Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)

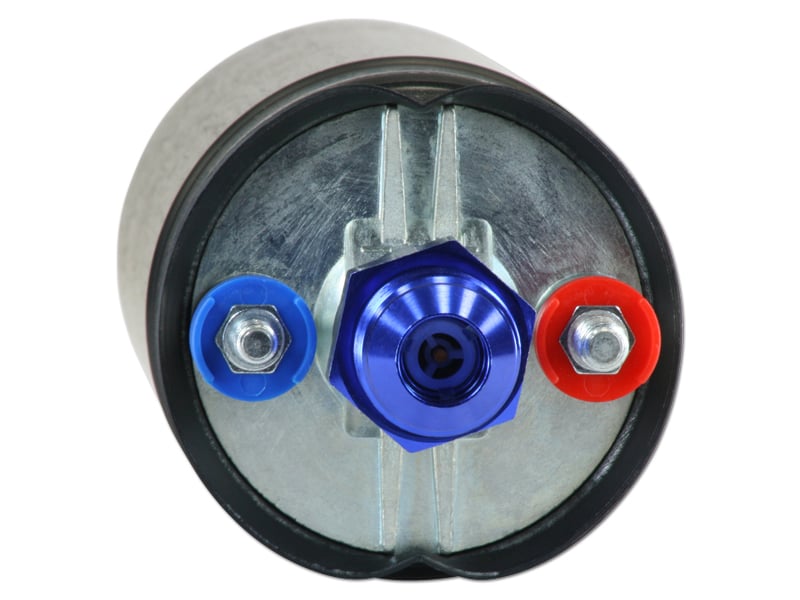

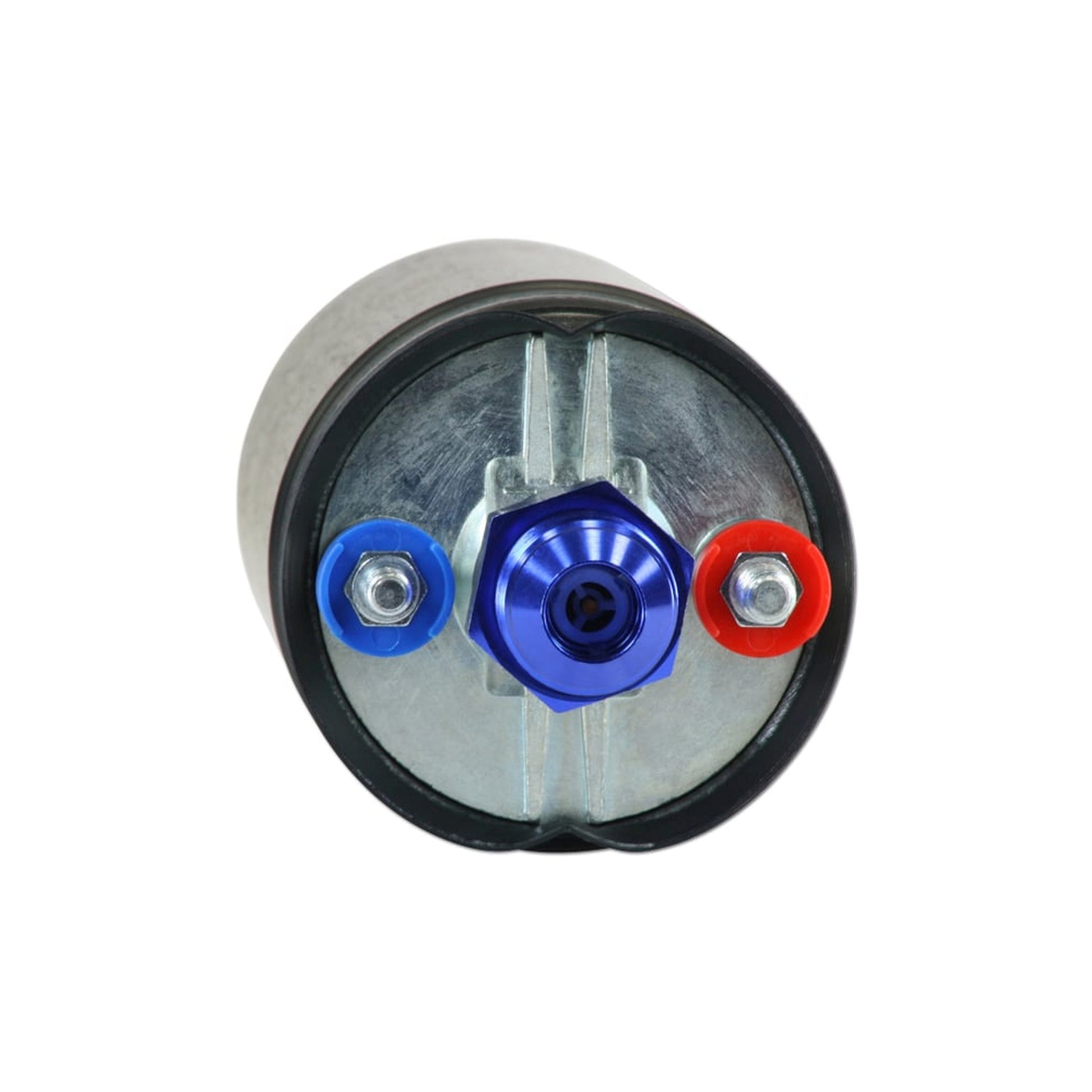

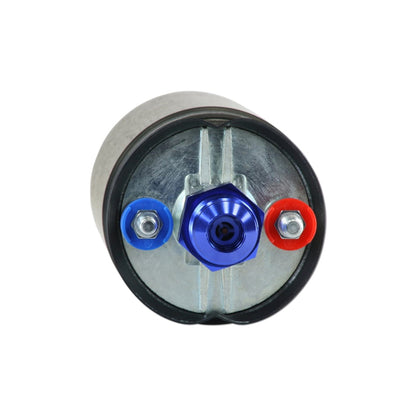

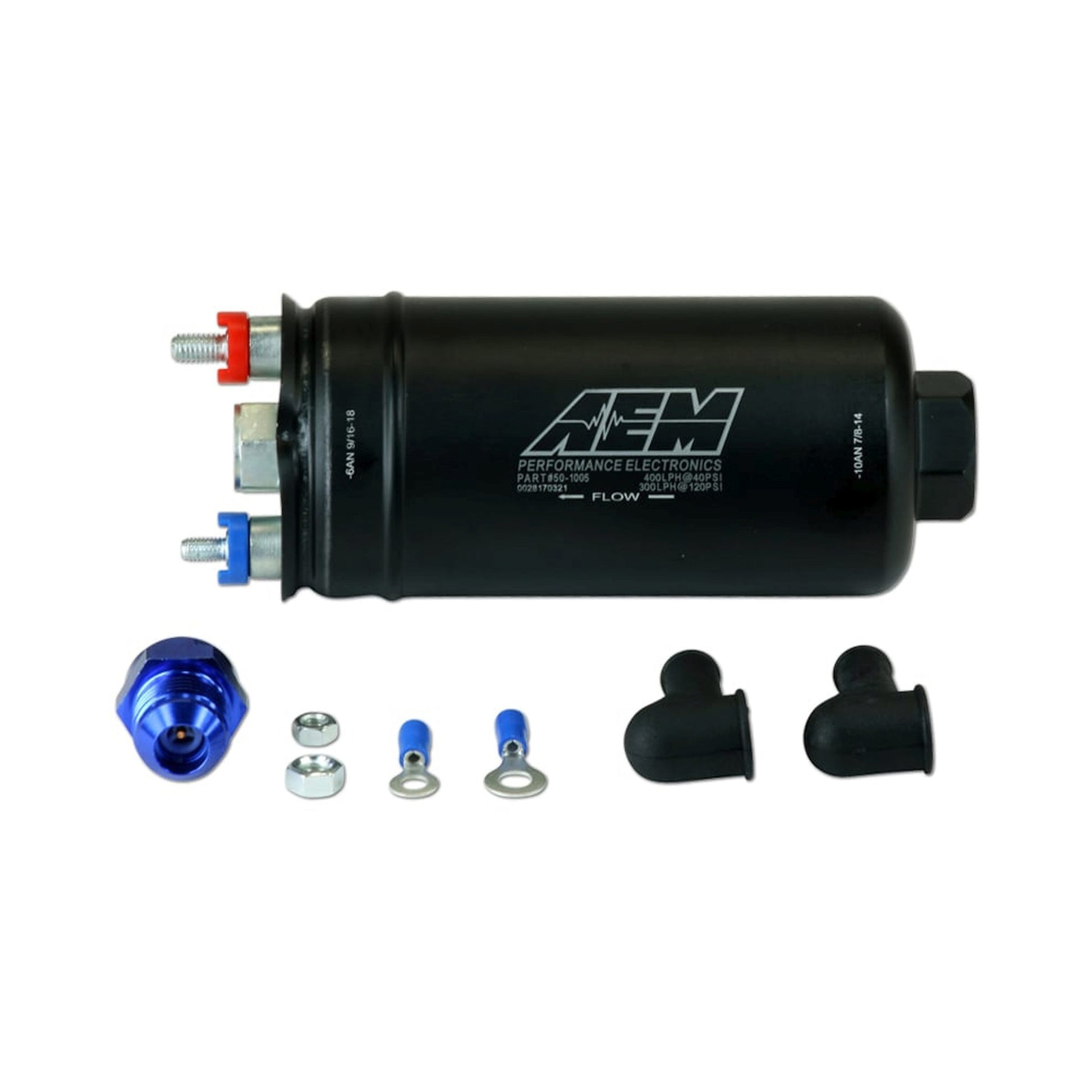

- Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
- Optional -10 ORB fitting pre-filter, -6 and -8 discharge adapters without the integral check valves
