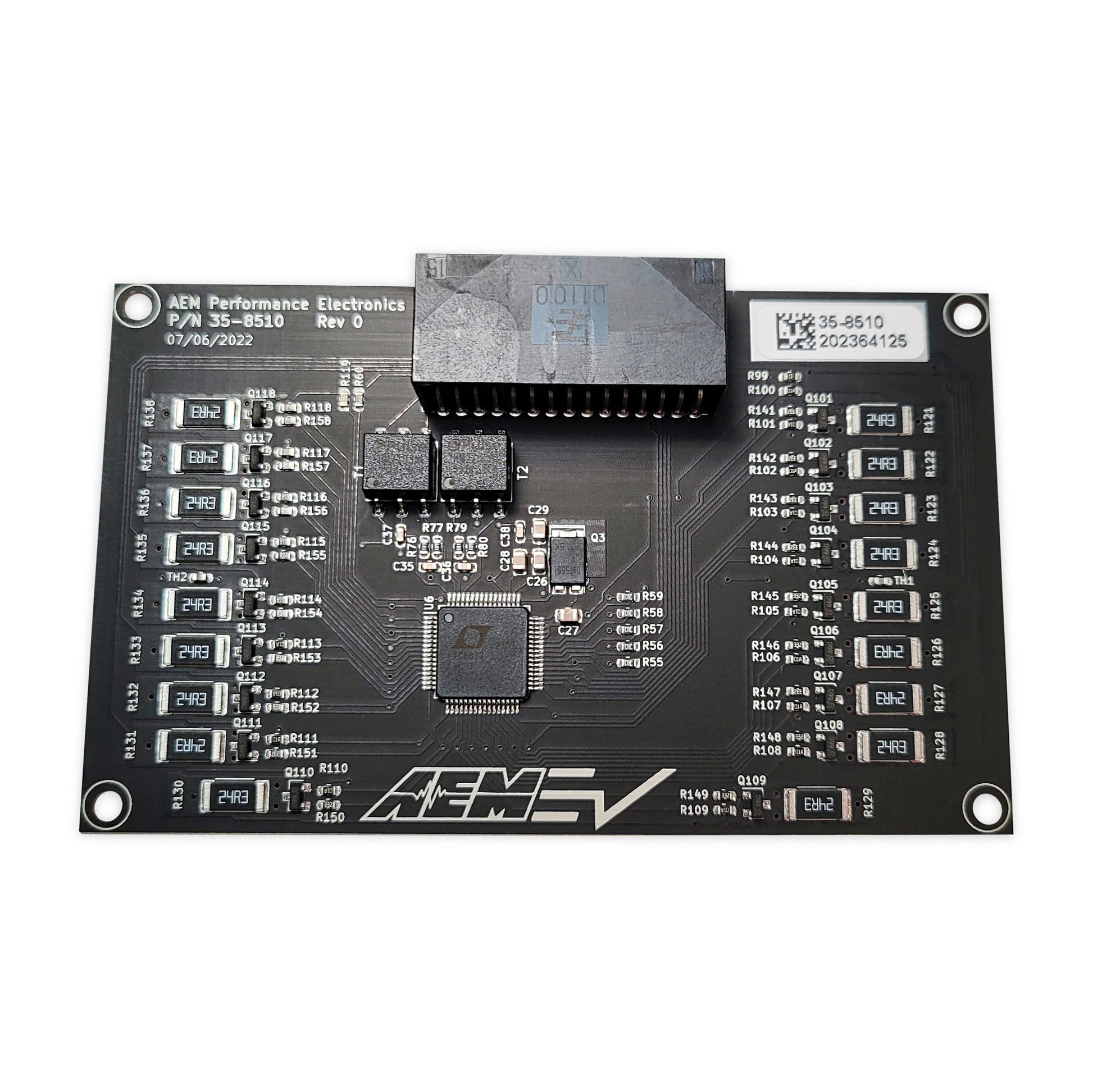

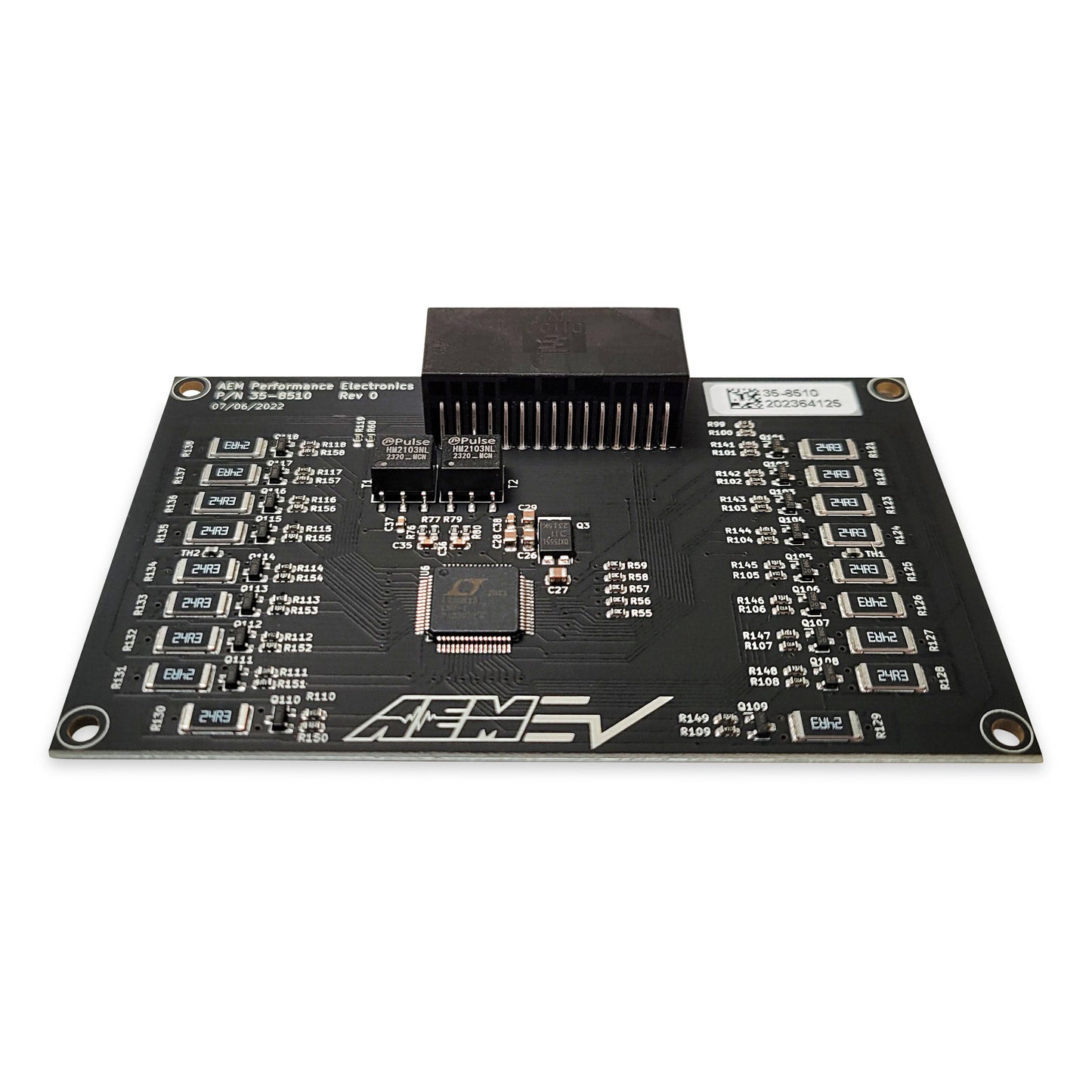

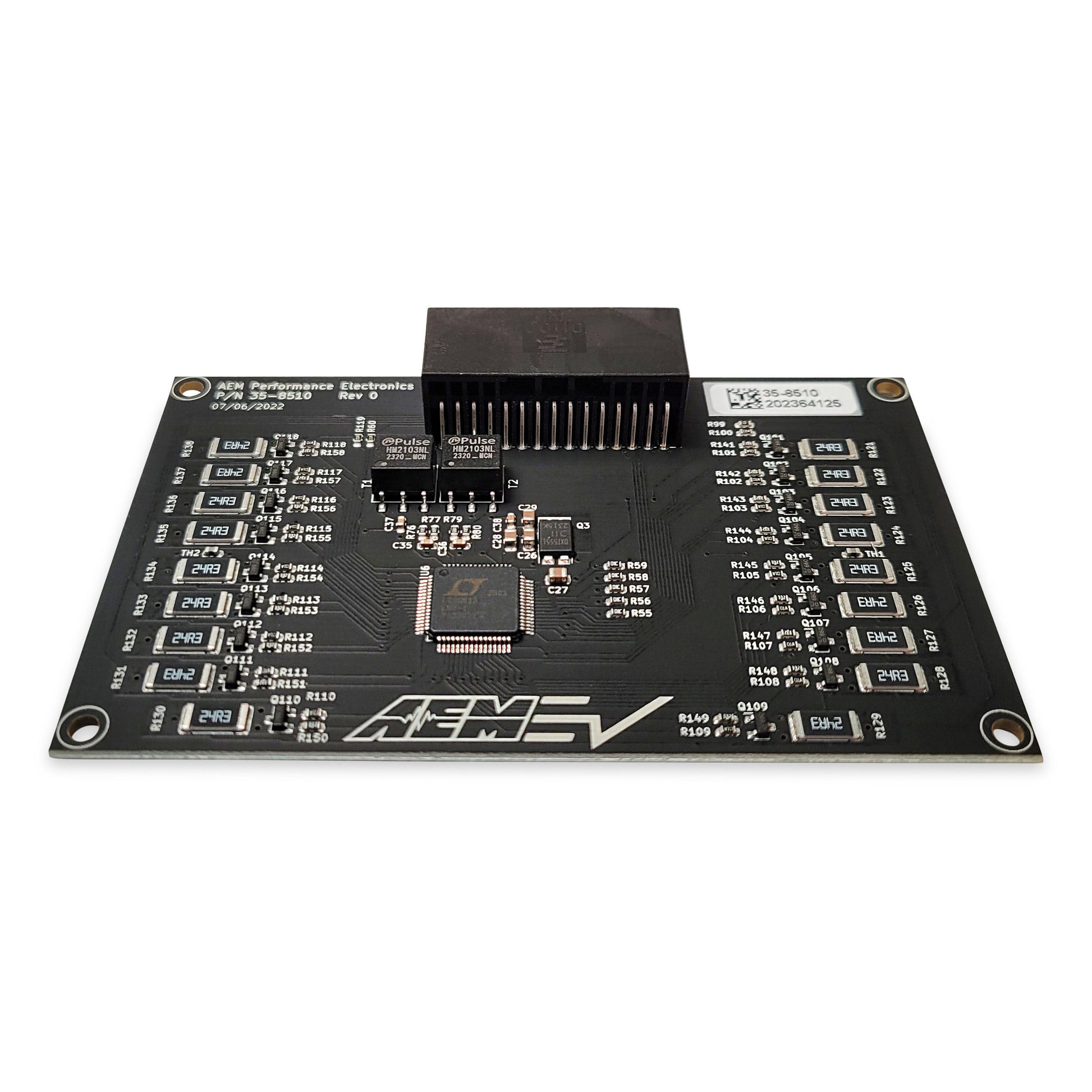

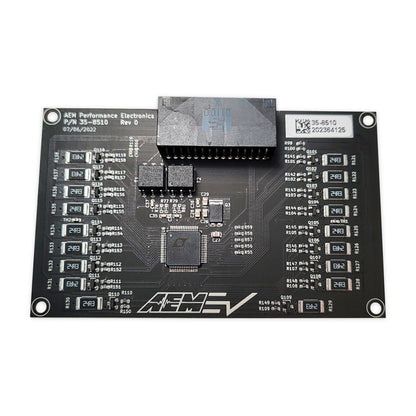

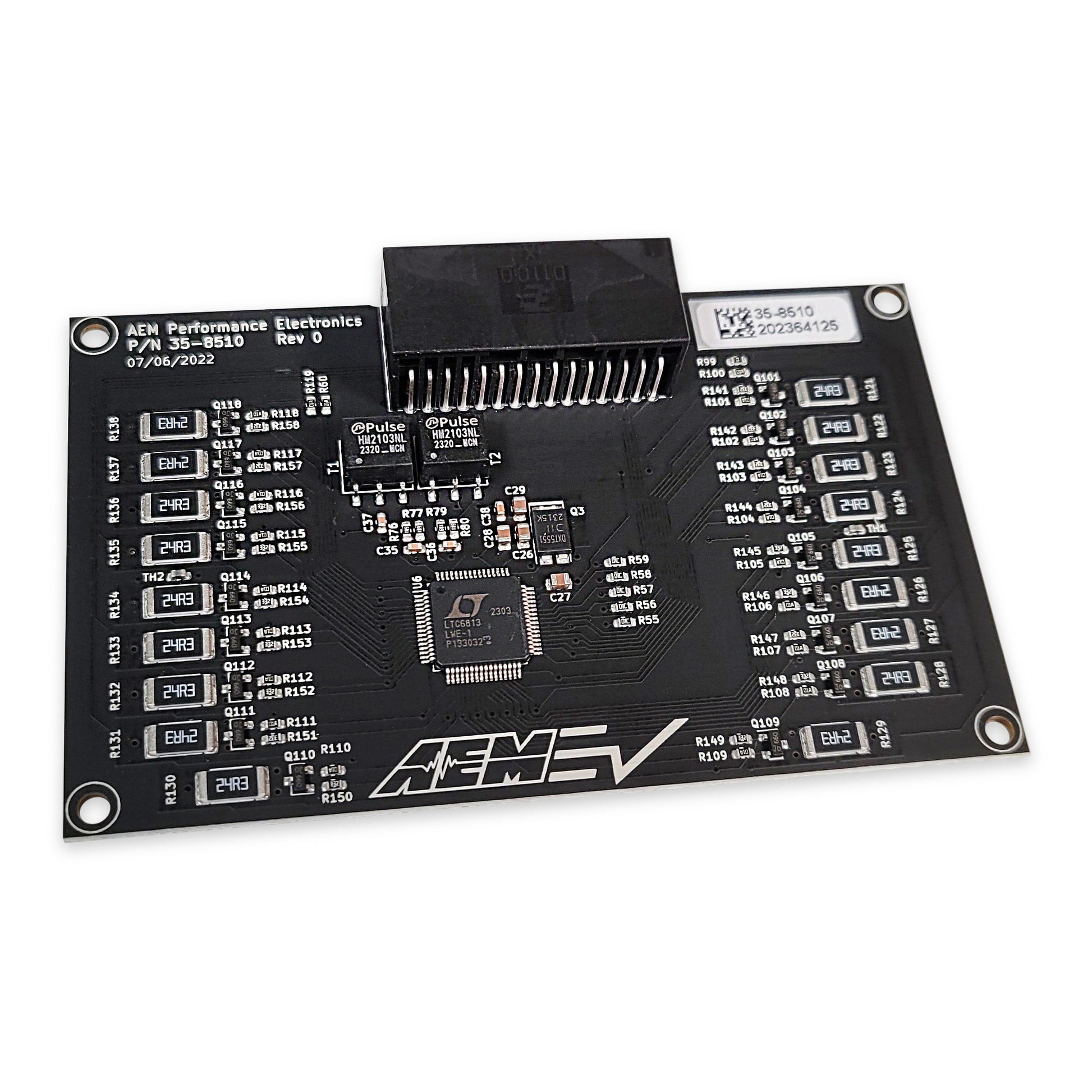

Unsealed Battery Management System Satellite

Unsealed BMS Satellite Module for VCU

The VCU communicates with the BMS via the Master Module and all battery packs need at least one Master unit. The Satellites expand the capability of the Master by an additional 18 cells and 3 thermistors per additional Satellite connected. The Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI) that allows additional units to be daisy chained together, adding as many Satellites as necessary for the battery pack configuration.

• Unsealed Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI)
• Unsealed Satellite Modules allow additional units to be daisy chained together to support numerous battery pack configurations
• Unsealed Satellite Modules allows for custom Battery Packs and integration into a sealed module
• Unsealed Satellite modules are Intended for installations into sealed custom battery packs

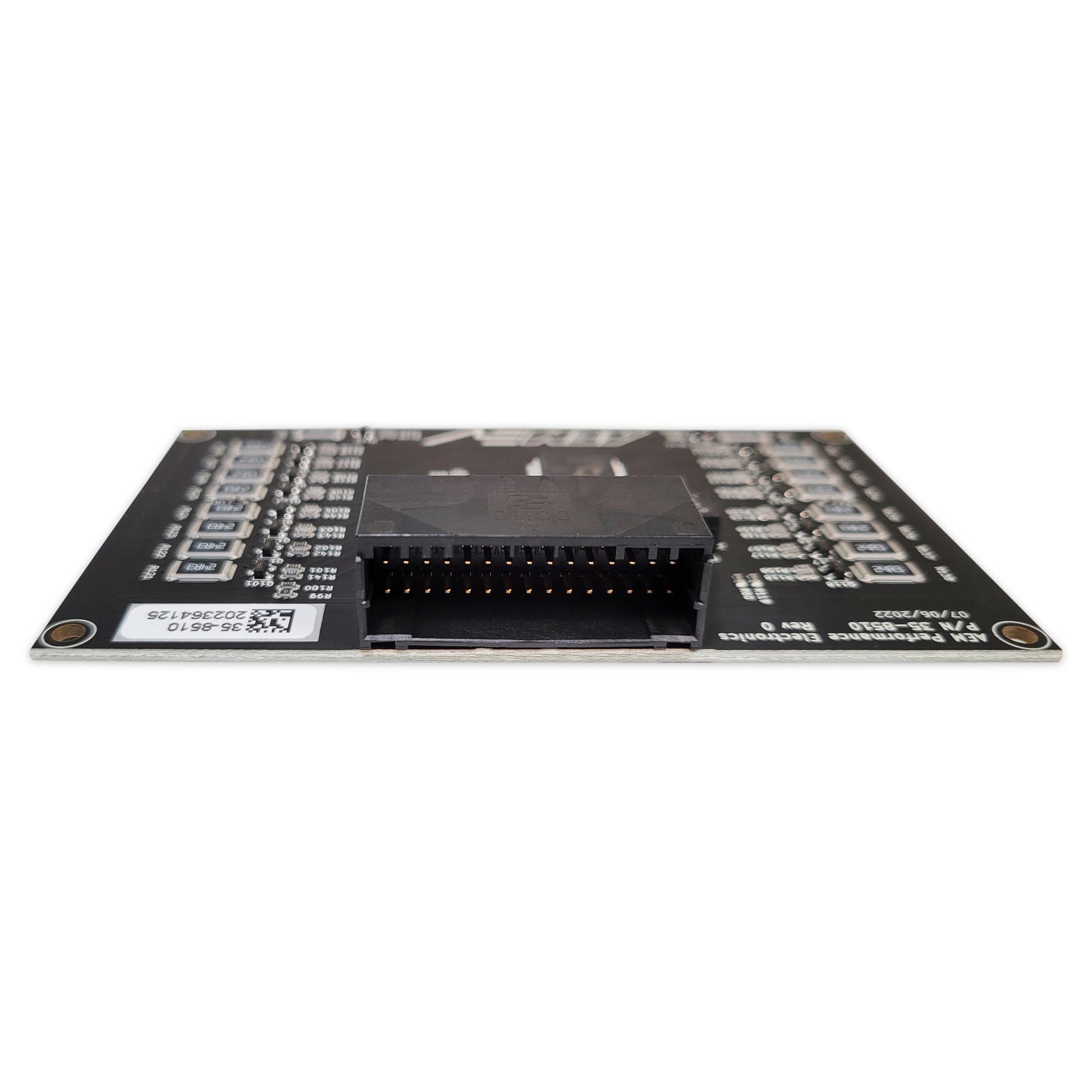

• Low Profile 90 degree connector allows for ease of packaging and service when installed into a sealed battery pack
