AEM - 30-8407

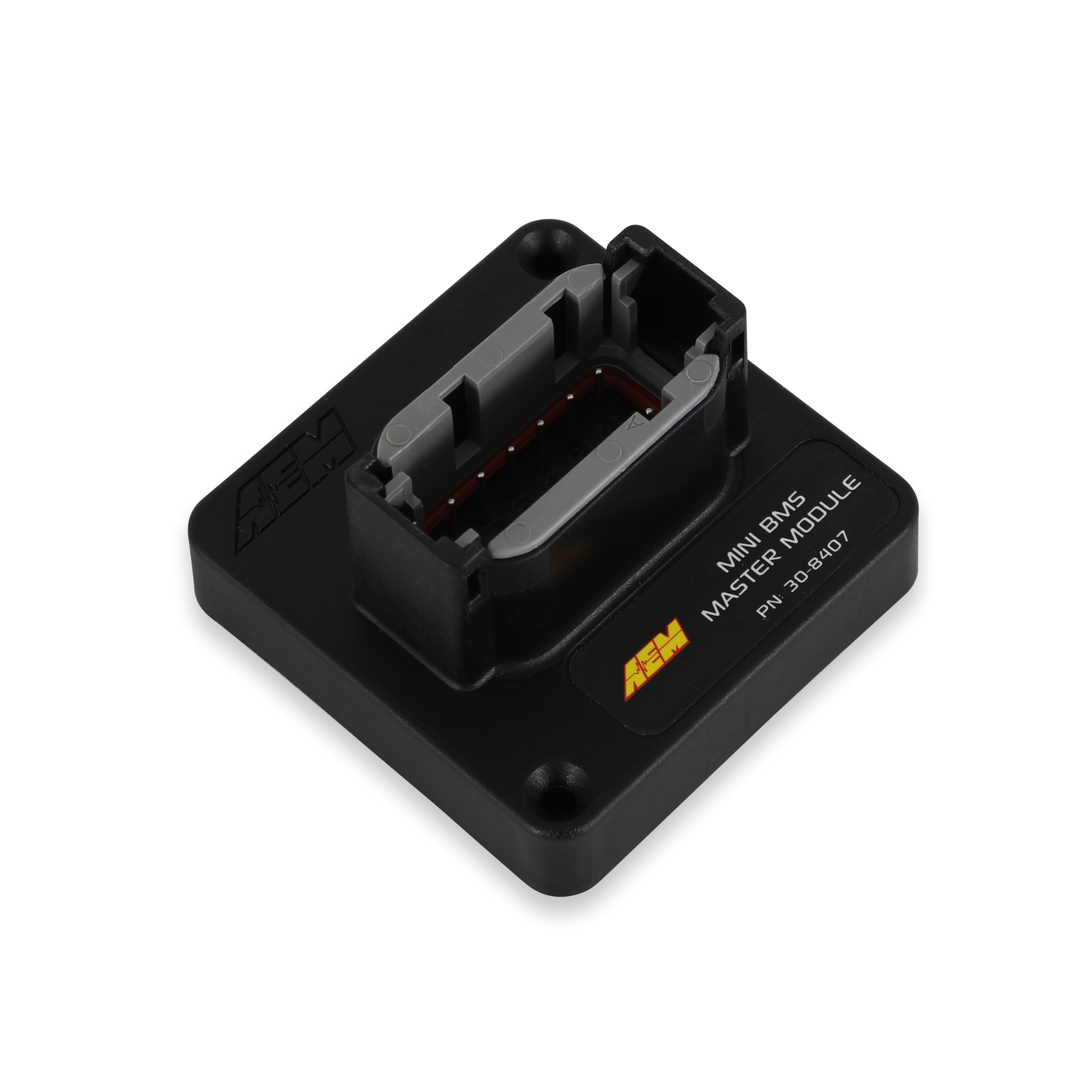

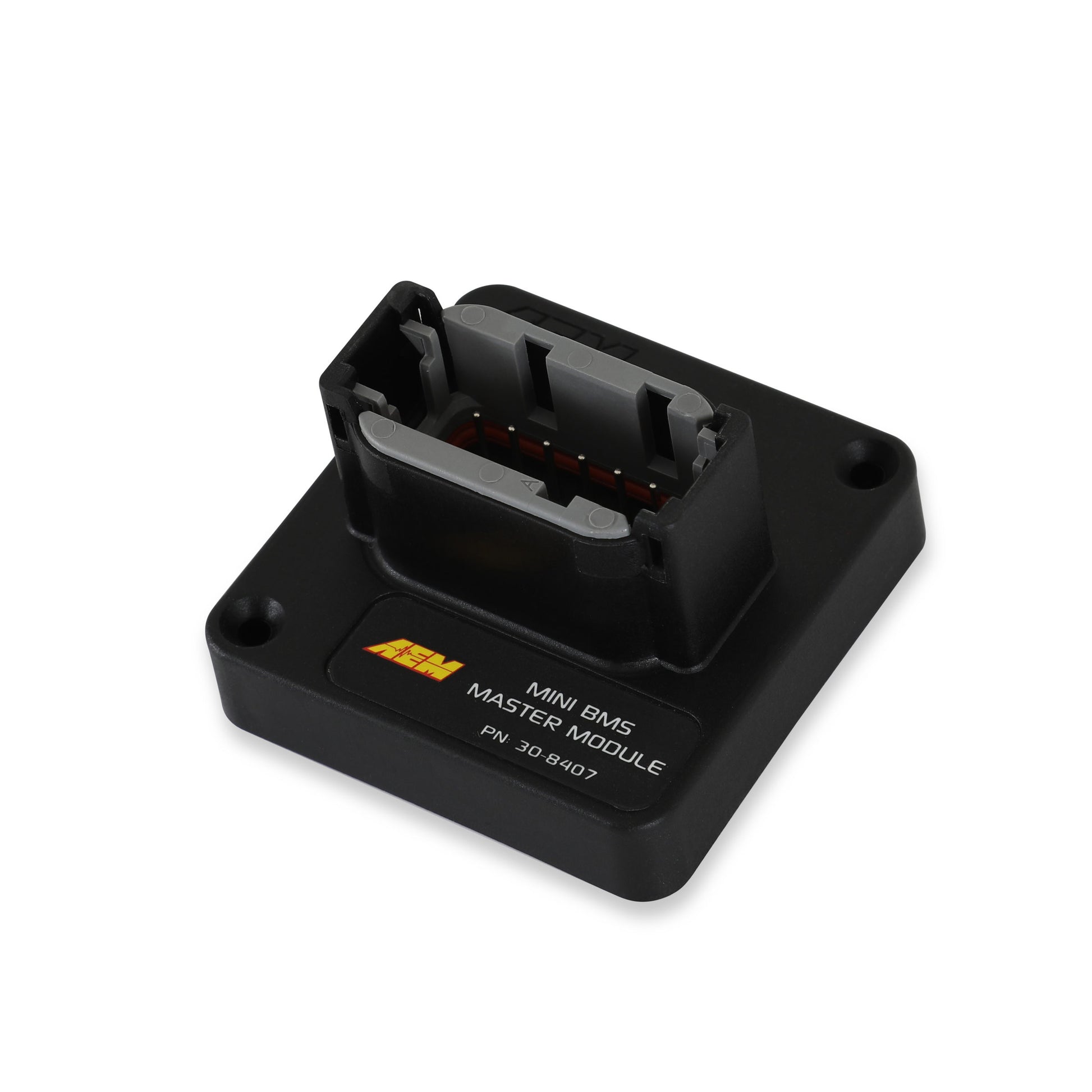

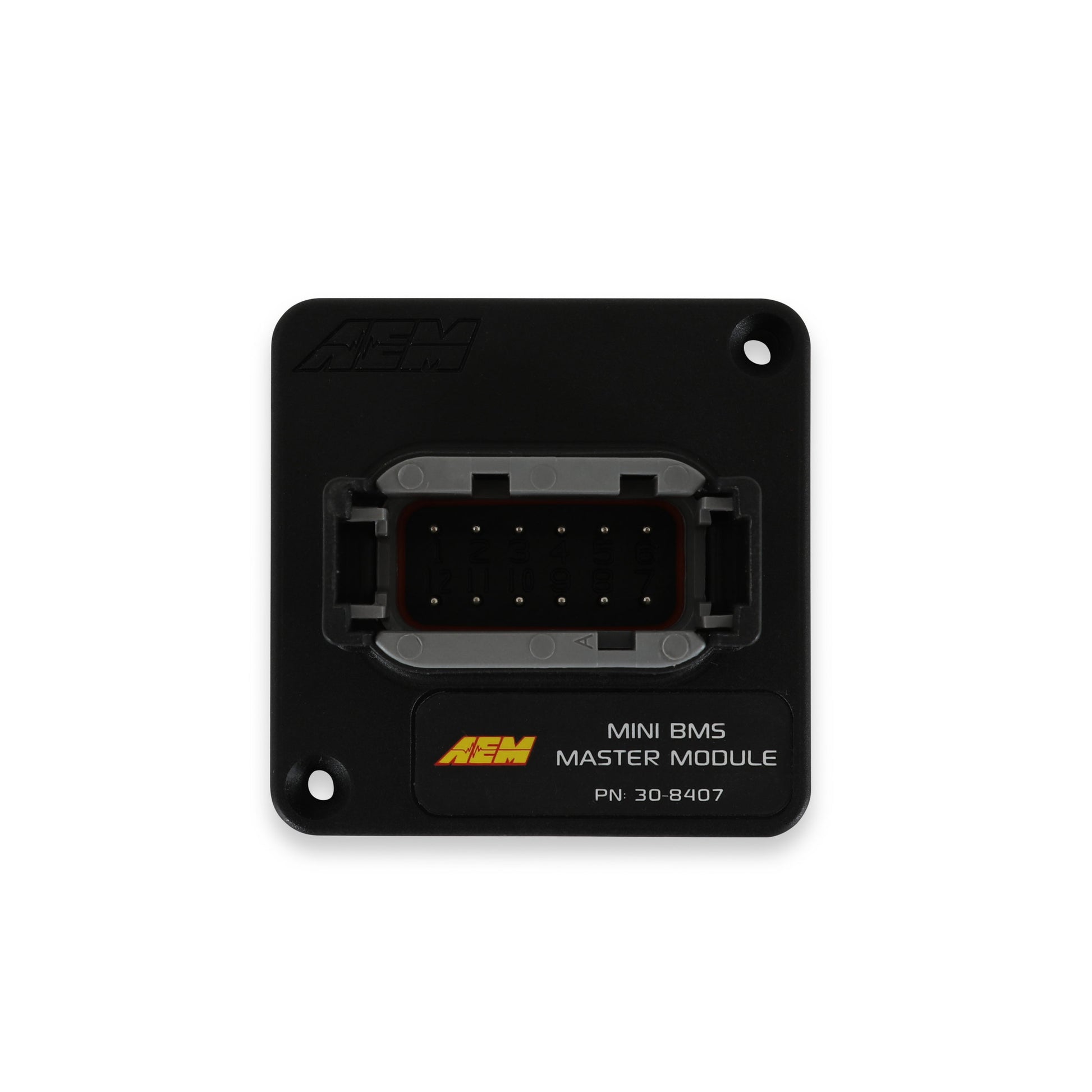

Battery Management System Mini Master
The VCU communicates with the BMS via the Mini Master Module and all battery packs need at least one Mini Master unit. The Satellites expand the capability of the Master by an additional 18 cells and 3 thermistors per additional Satellite connected. The Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI) that allows additional units to be daisy chained together, adding as many Satellites as necessary for the battery pack configuration.
- Add-on expansion for VCU products, enabling the VCU’s battery management features
- Distributed BMS architecture allows for easy support of distributed battery packs
- Interfaces with J1772 Charge Port to automatically power up vehicle when charge plug is connected
- Up to 16 BMS18 Satellites can be connected to a single BMS18 Mini Master to support up to 1200V systems
- Communicates with Satellites via a high-speed isolated serial interface (isoSPI)
Brand: AEM
Category: Electrical, Charging and Starting
Emission Code: 5
Product Type: BMS Satelite
Sub Category: Battery and Related Components
Warning: California Proposition 65
Warranty: Manufacturer's 1 Year Warranty
Wiring Pigtail Included: No
