AEM - 30-4110
Air-Fuel Ratio Gauge - UEGO - Wideband - 8.5:1-18:1 AFR - Electric - Digital - 2-1/16 in Diameter - Black / White Face - Each

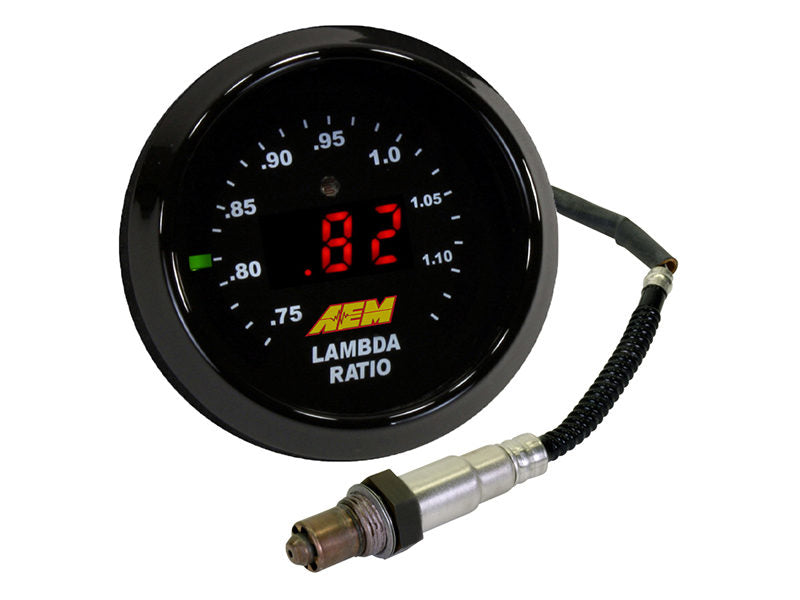

The Original Wideband Air/Fuel Ratio Gauge w/Bosch LSU 4.9 Sensor
The UEGO sensor gives the controller its speed and accuracy. The 4.9 LSU sensor used in the 30-4110 AEM Wideband UEGO AFR Controller Gauge has a faster light-off time and draws less current than the 4.2 LSU sensor used with AEM's 30-4100 Wideband UEGO Controller Gauge, which will be superseded to the 30-4110 gauge in August 2014. The 4.9 LSU sensor features the same fuel compatibility as the 4.2 LSU and NEVER requires free-air calibration when used with AEM's 30-4110 Wideband UEGO AFR Gauge. The 30-4110's 4.9 LSU sensor uses a different connector than the connector used with the 4.2 LSU sensors included with the original 30-4100 gauge controller. The sensors are not interchangeable between the two gauge controllers in any way, including changing connectors on the gauges.
- Interchangeable black and white faceplates included for customizing gauge appearance (digital gauges only)

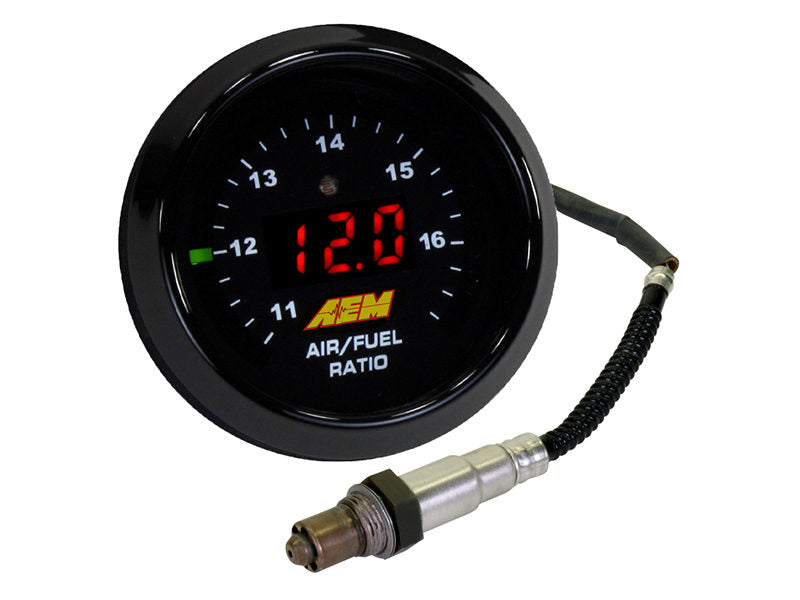

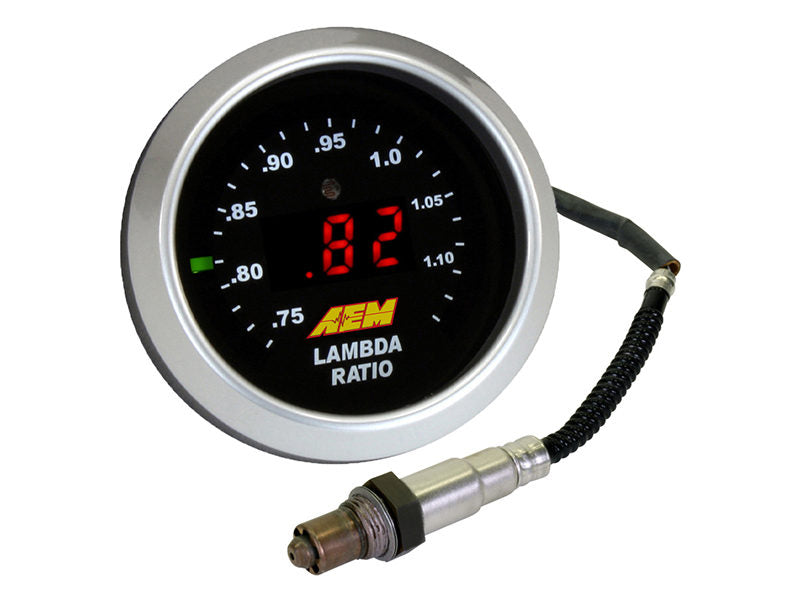

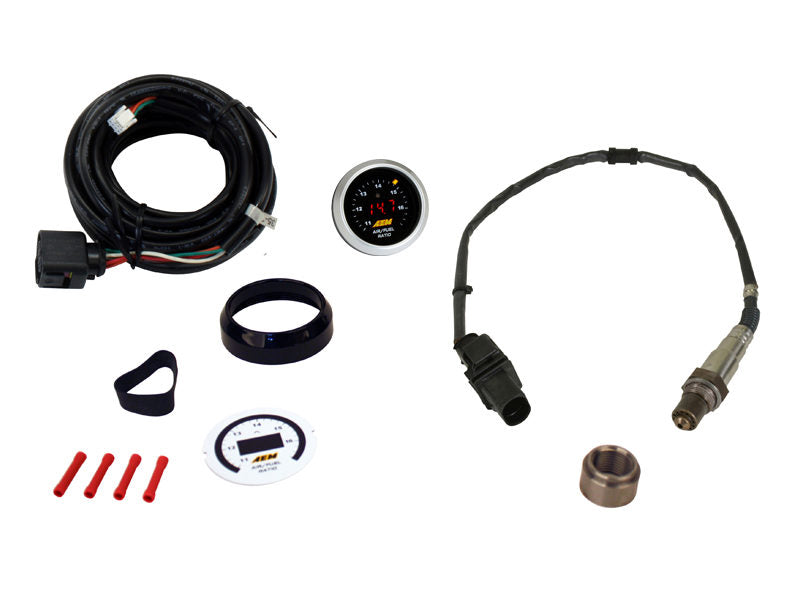

- 4.9 LSU wideband sensor and weld-in bung included (PN 30-4110)
- No free air sensor calibration required, ever

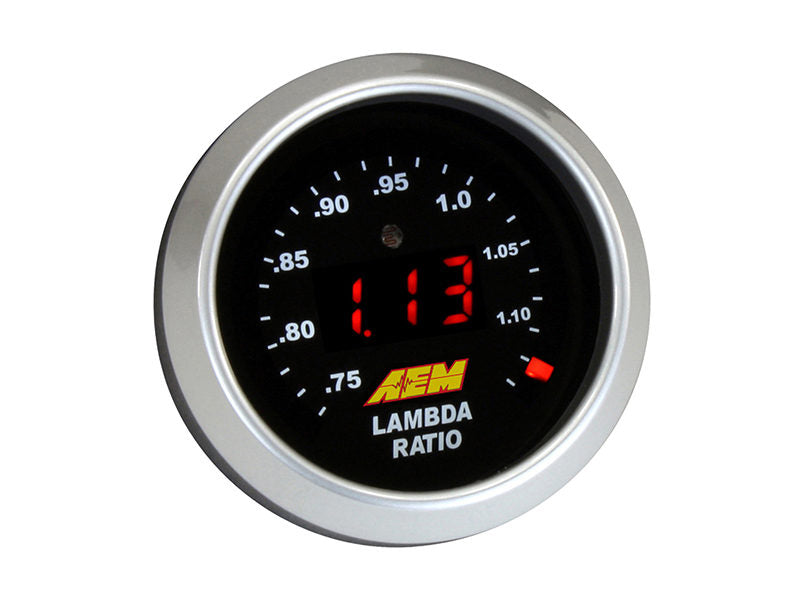

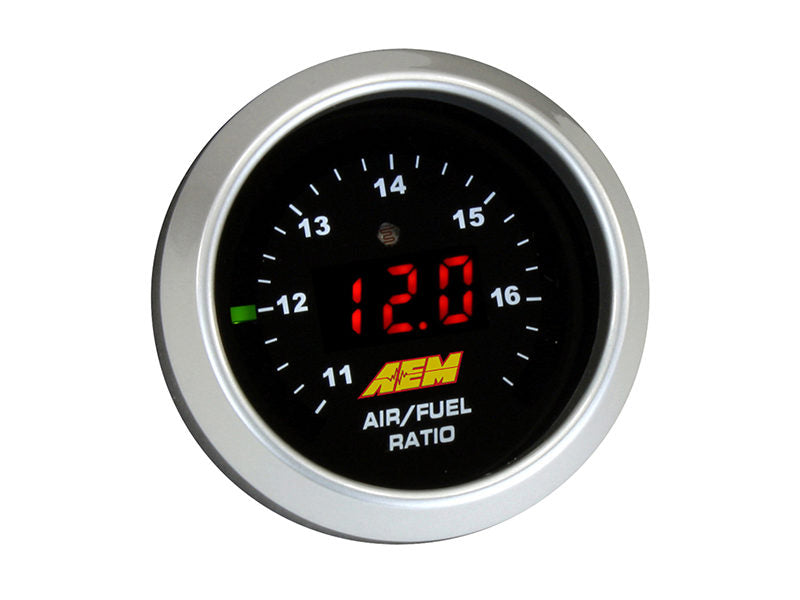

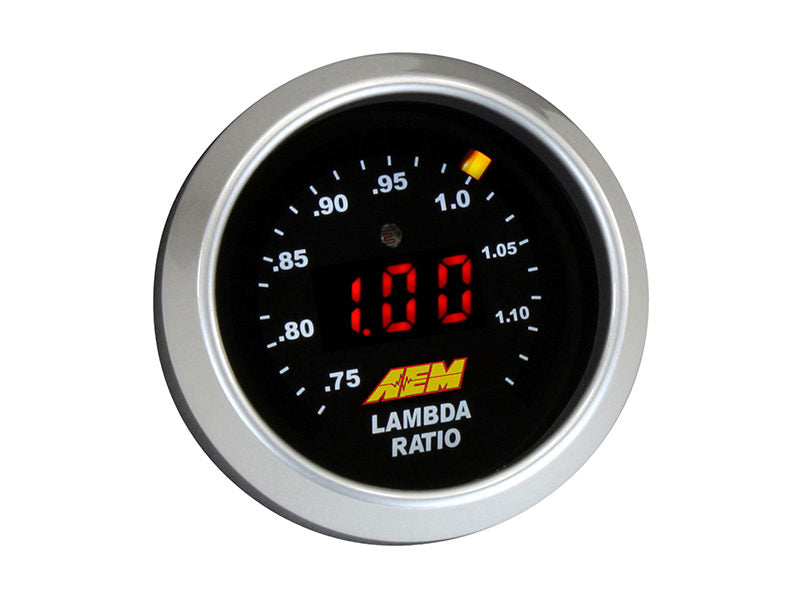

- Interchangeable black and silver bezels included

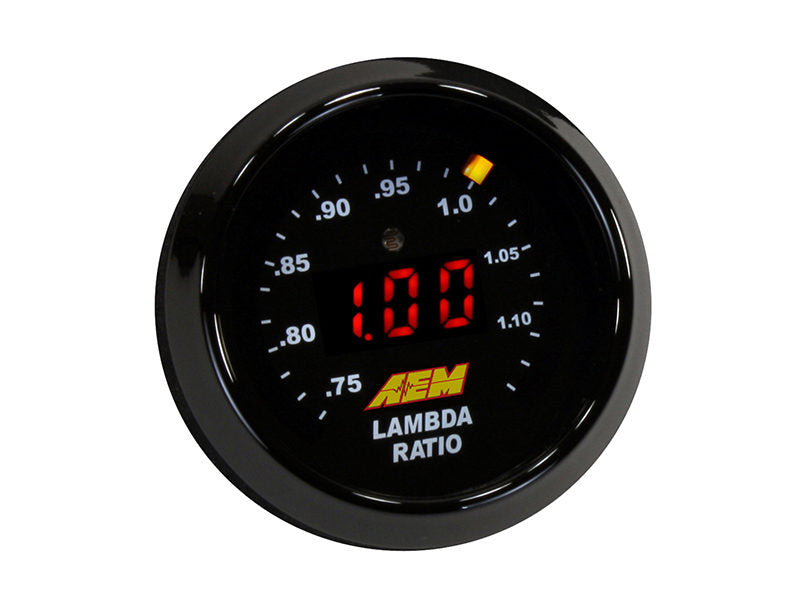

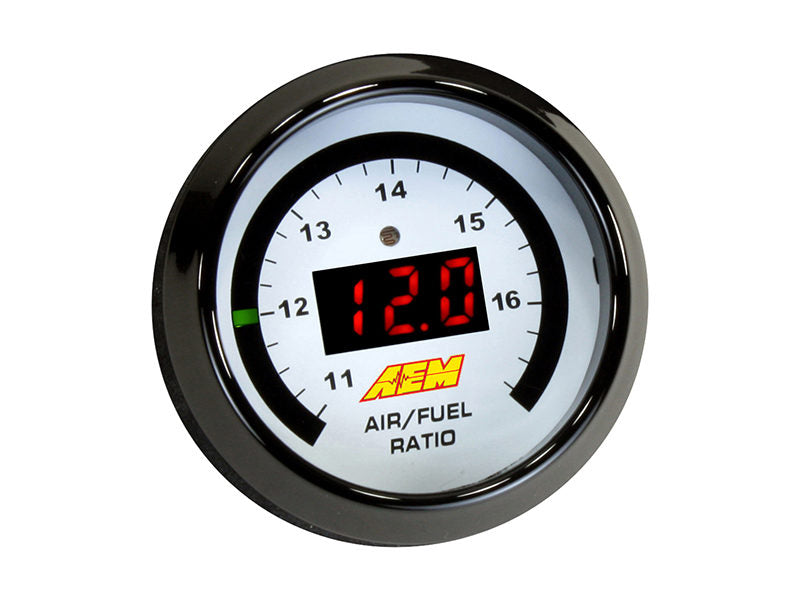

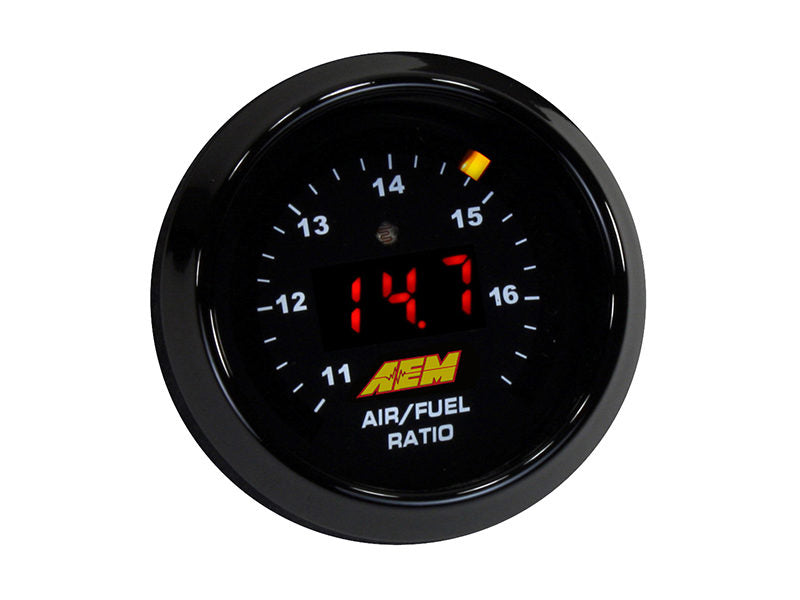

- Interchangeable black and white faceplates included
- 52mm (2-1/16") gauge housing
- 0-5v analog output (10-20 AFR range only)
