AEM - 30-2226
CAN Sensor Module - 6 Channel - Fuel / Pressure / Tachometer / Temperature - AEM CD Digital Dash - Kit

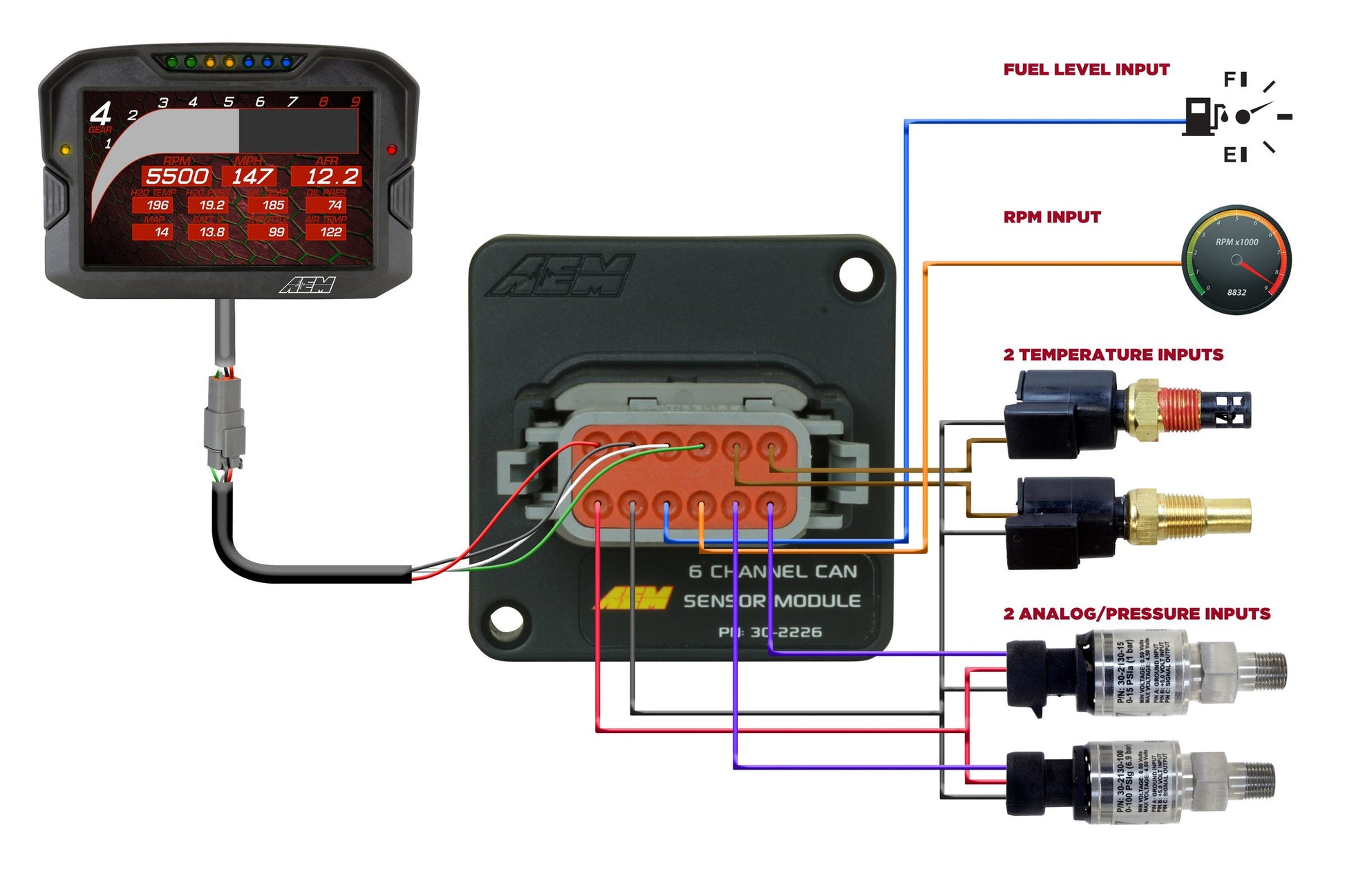

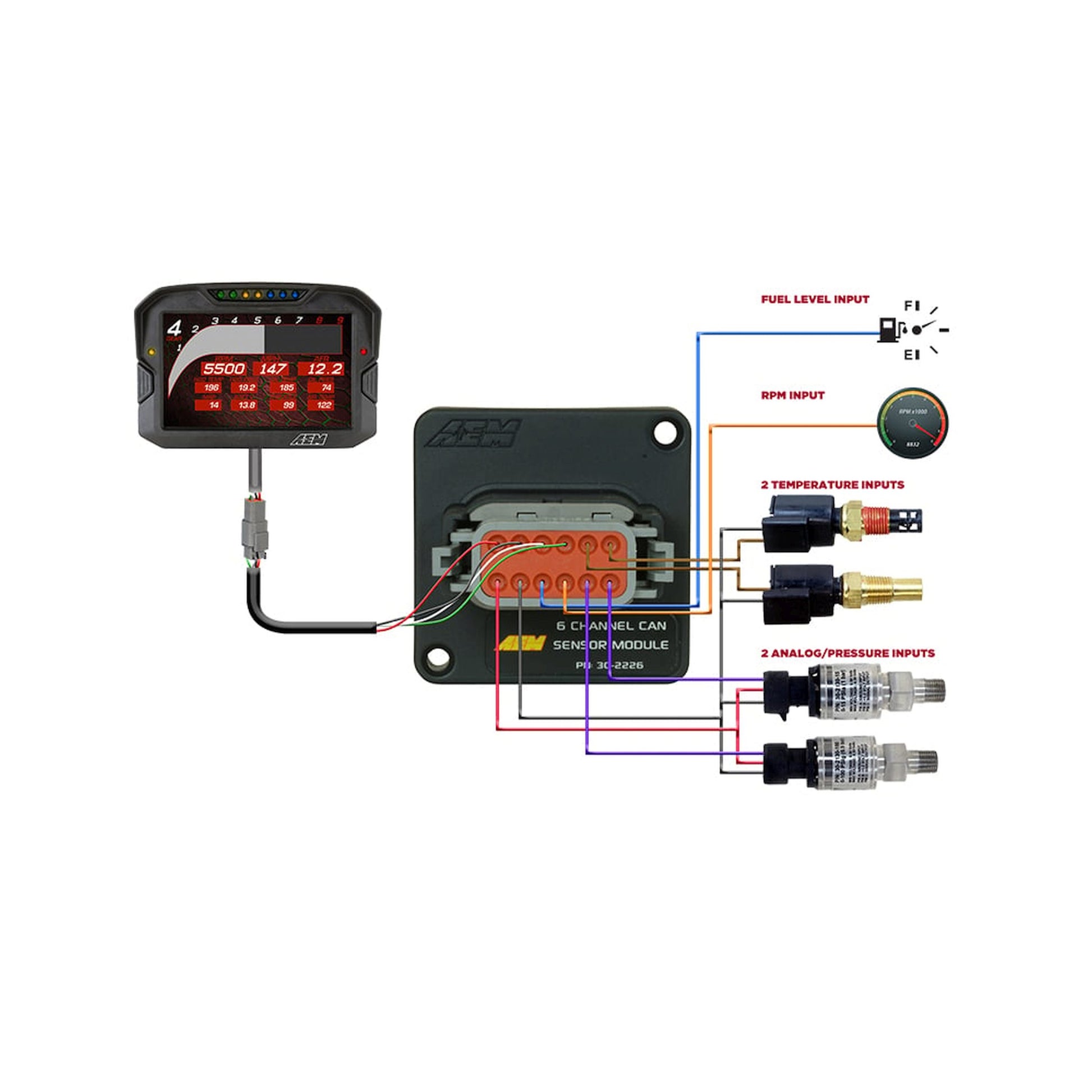

The 6 Channel CAN Sensor Module converts two analog temp channels, two analog pressure channels, a tach input and fuel level input to AEMnet CAN messages

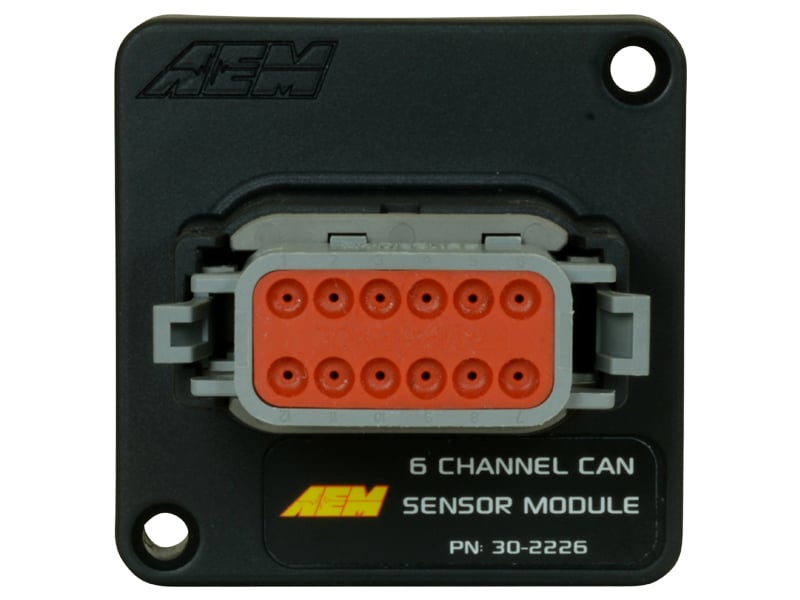

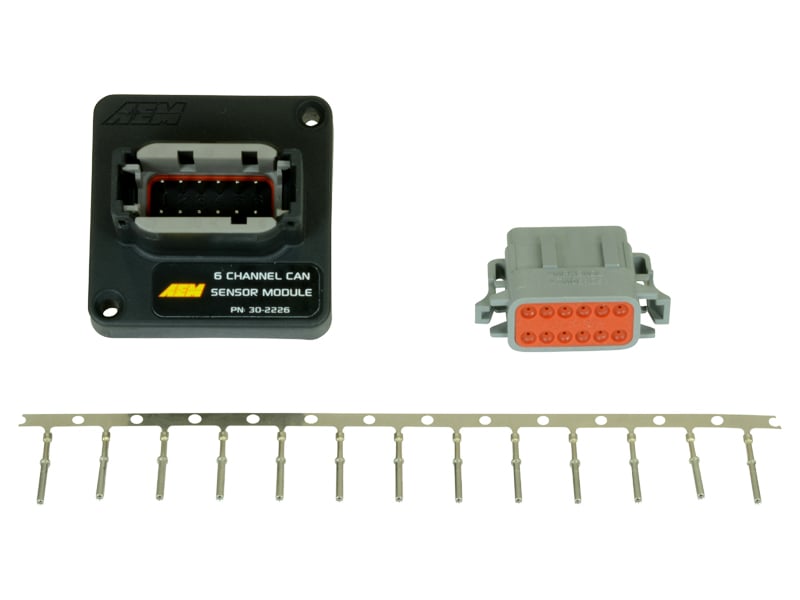

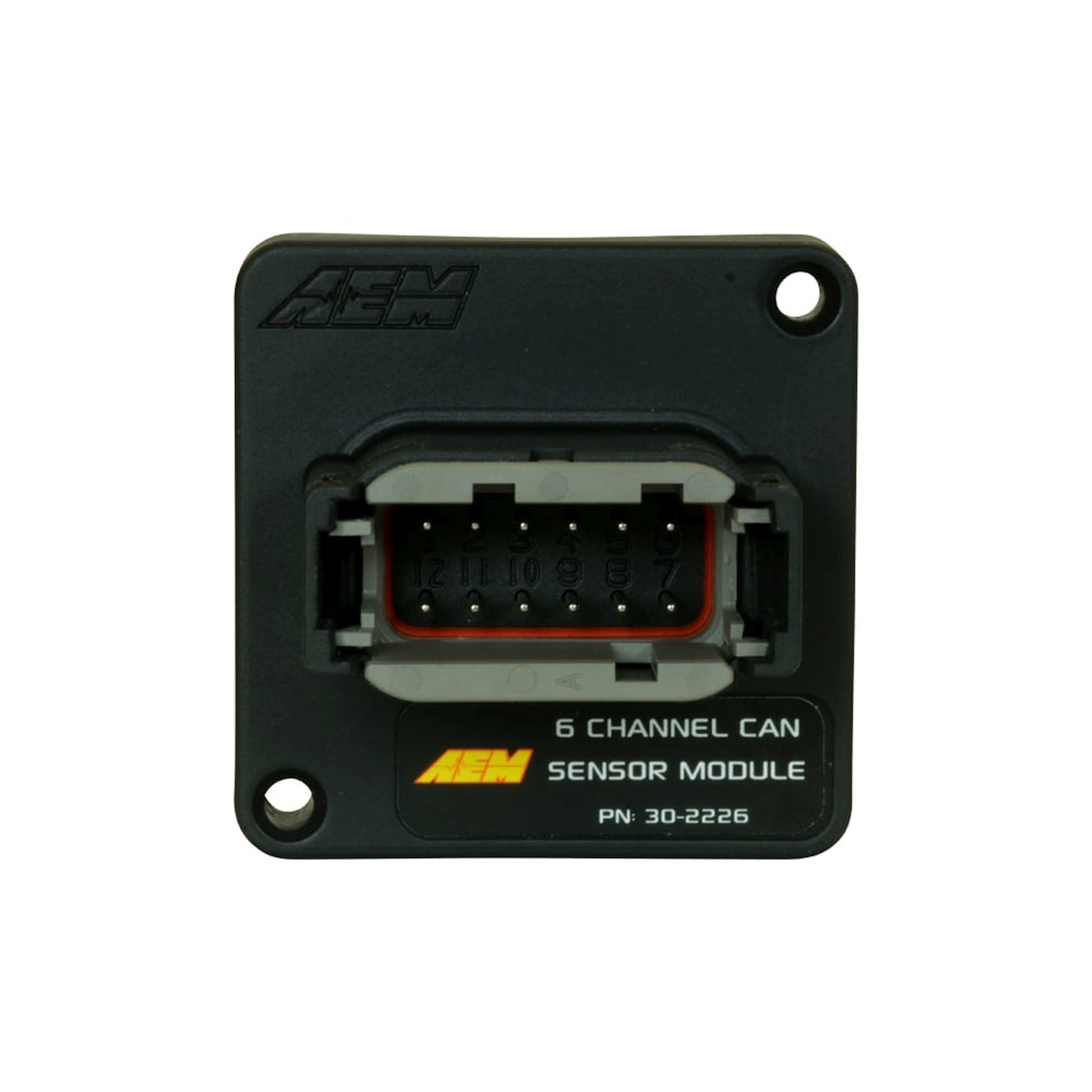

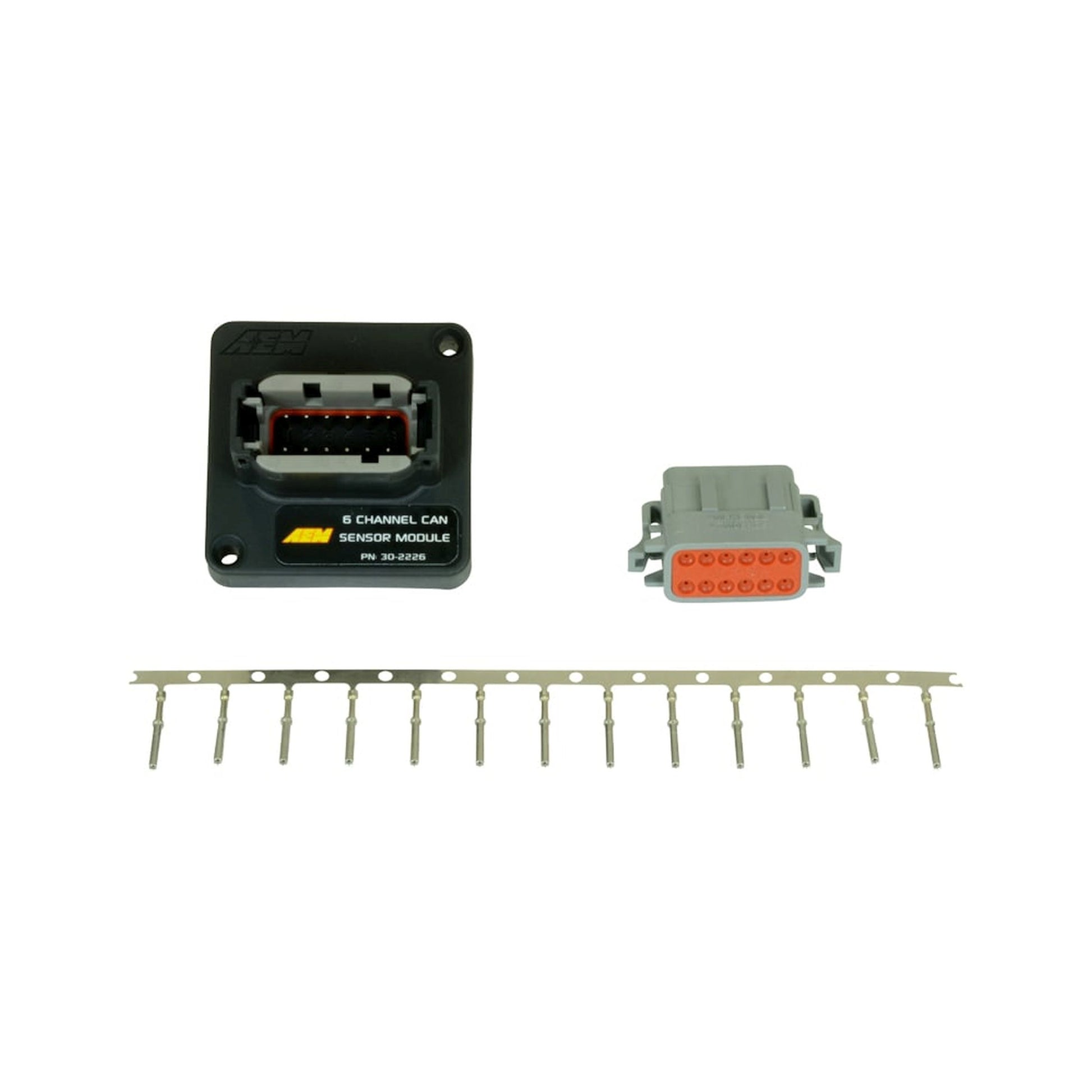

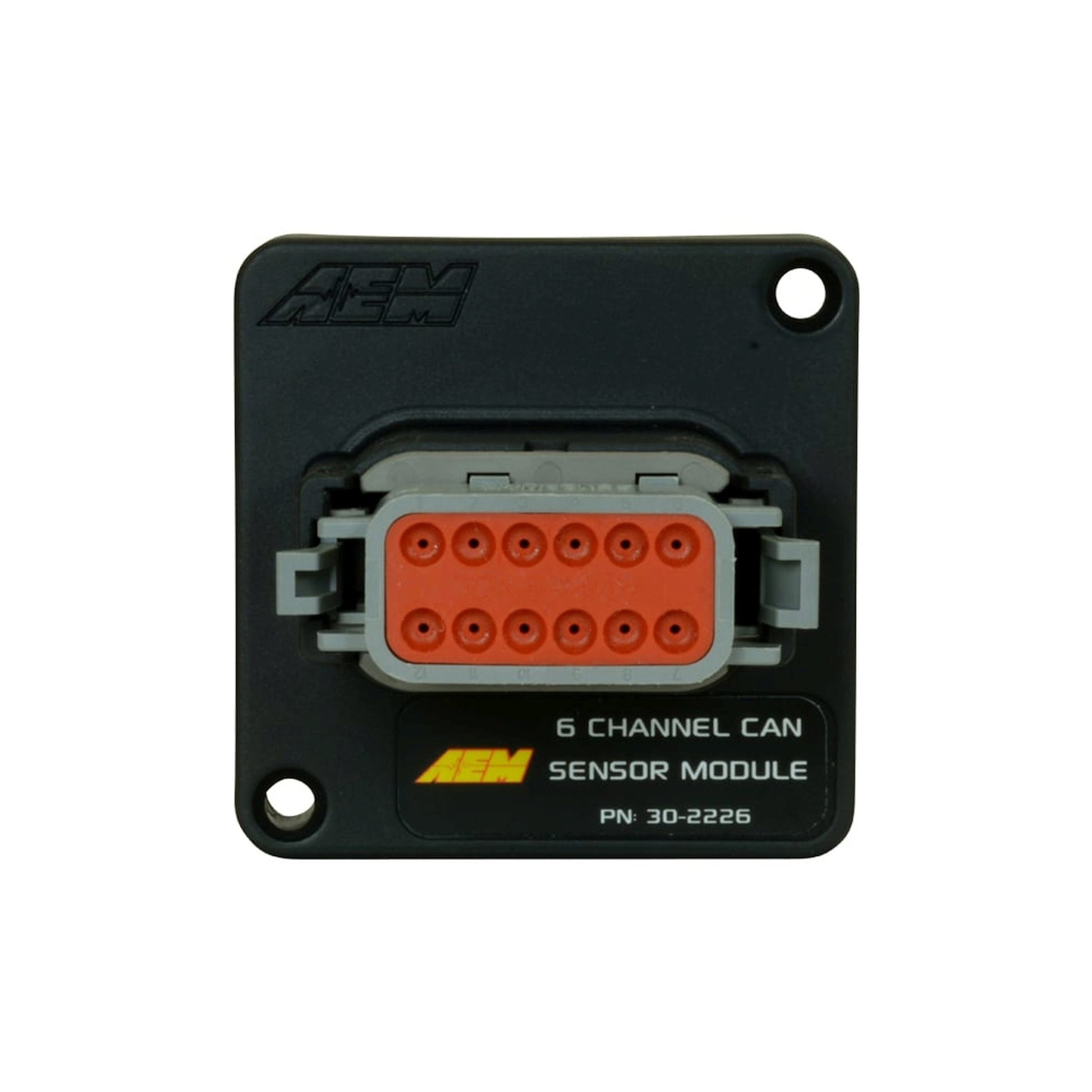

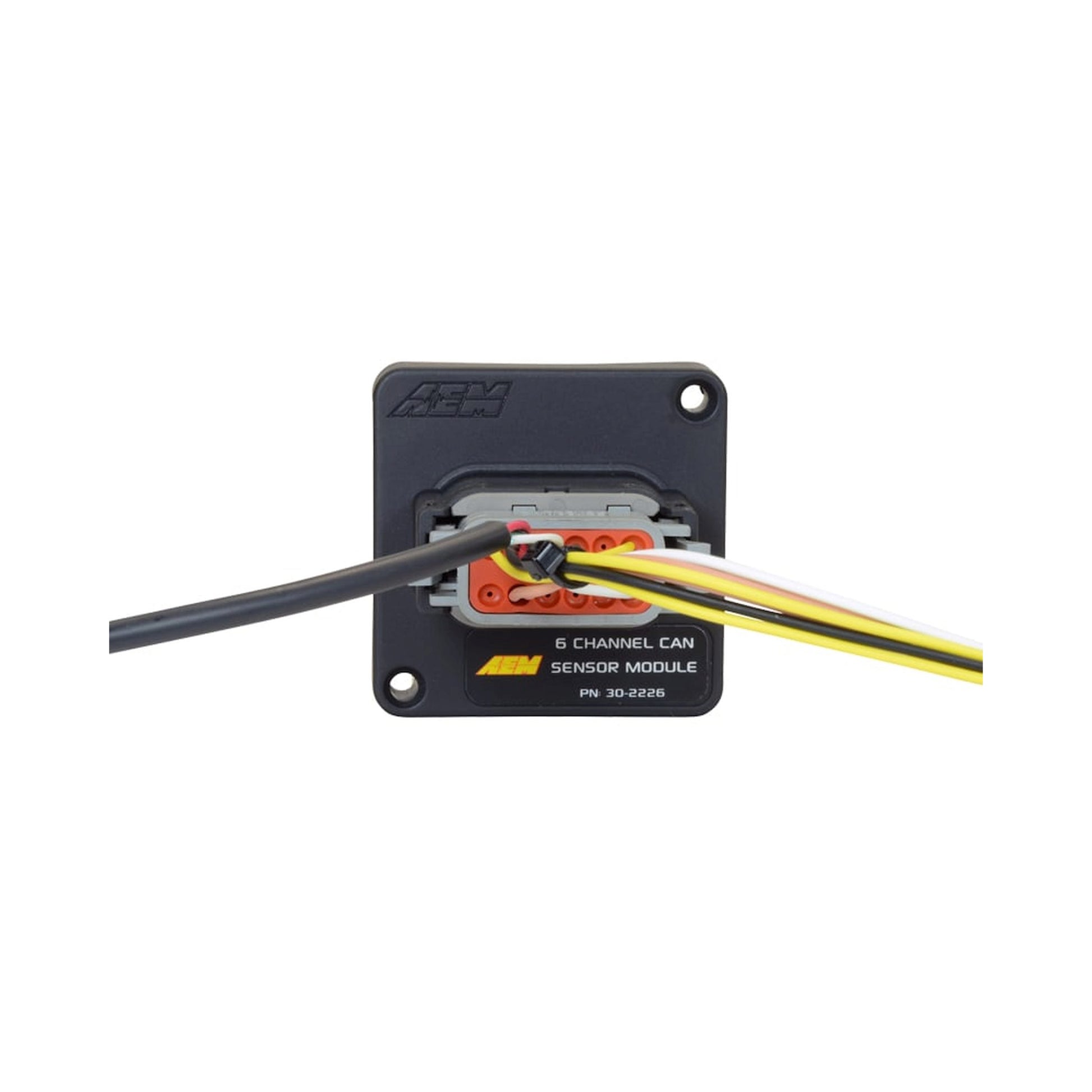

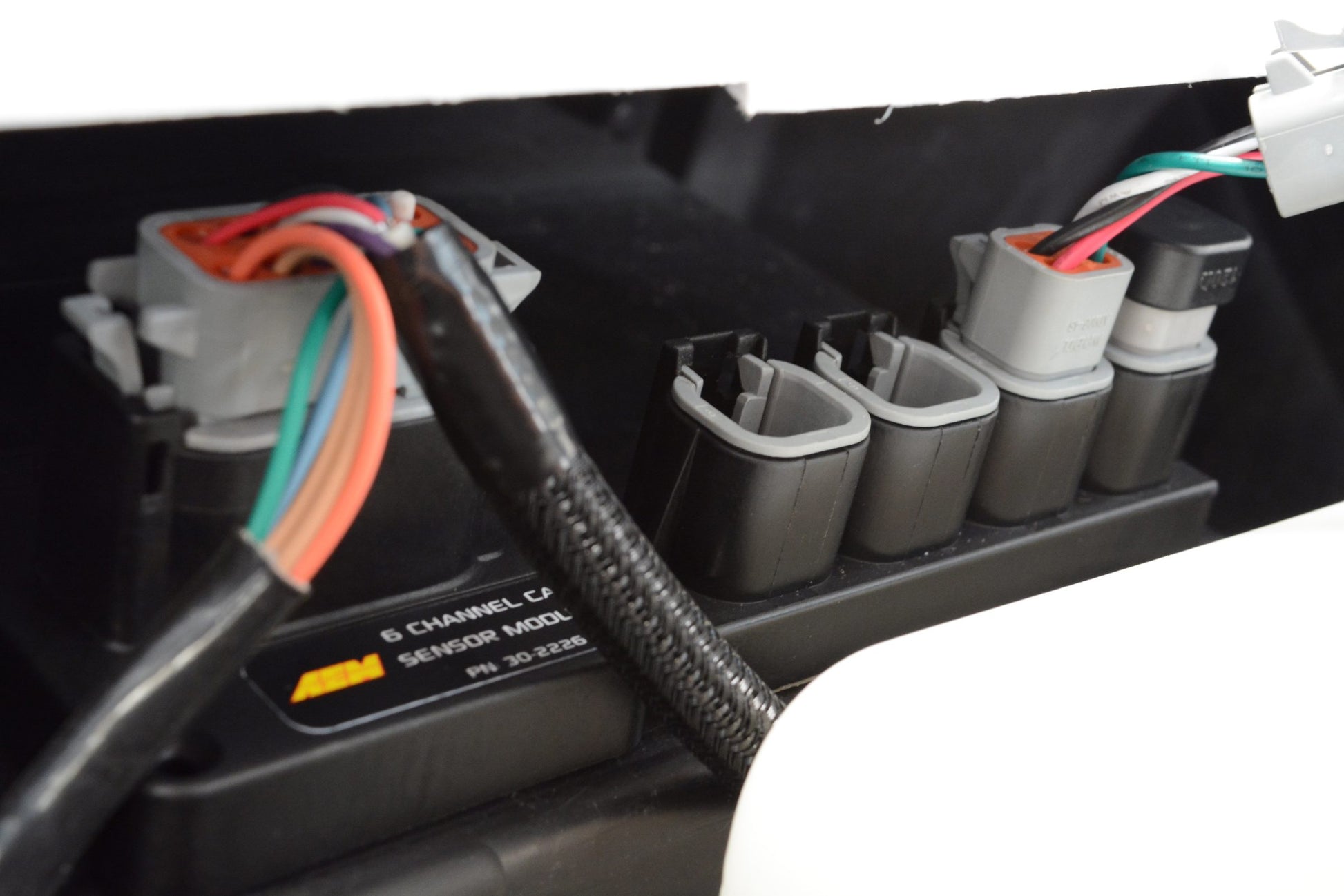

AEM's 6 Channel CAN Sensor Module (PN 30-2226) provides an affordable and easy way to add temperature, pressure, fuel level, and tachometer signals on to a CD Carbon Digital dash through AEMnet CAN bus! It supports the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, which also allows you to add additional channels to a non-AEM ECU, dash or logger.
- Two (2) temperature (thermistor) inputs
- Two (2) dedicated 0-5V analog inputs
- One (1) dedicated fuel level input (0 to 250 Ohm range)
- One (1) tachometer/coil input
- Fixed CAN bus speed, header length, and base address
- IP67 Potted Enclosure / Sealed Connector - "dust tight" and protected against water spray
- Protected inputs
Brand: AEM
Category: Body
Connector Gender: Male Female
Emission Code: 5
part type: Data Acquisition Module
Product Type: CAN Sensor
Sub Category: Control Modules
Terminal Gender: Male Female
Warning: California Proposition 65
Warranty: Manufacturer's 1 Year Warranty
