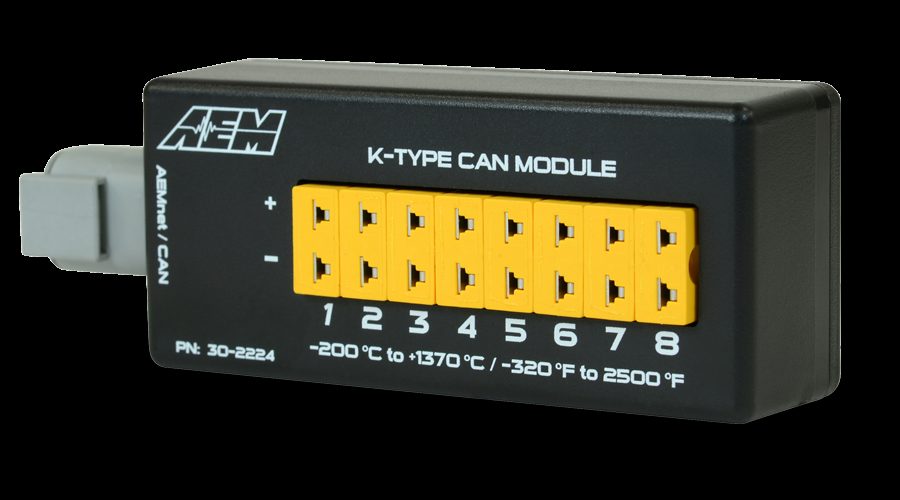

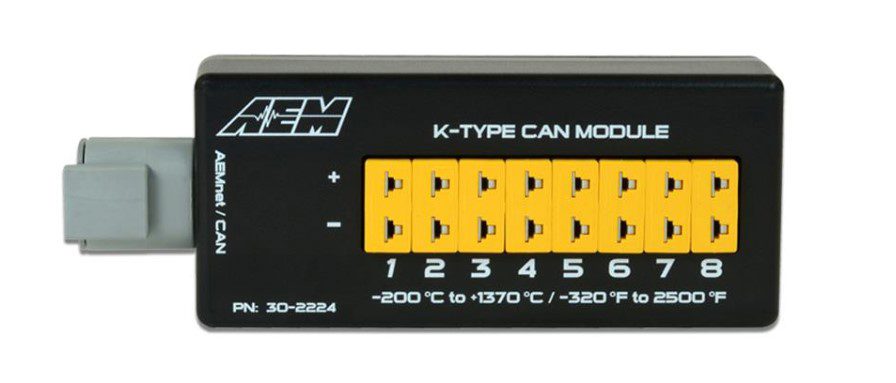

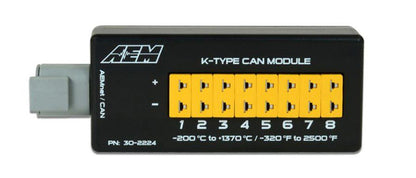

AEM 30-2224 - 8 Channel K-Type Thermocouple EGT CAN Module

MSRP: $547.95
$486.95
( saved $61.00 )
Write a Review
  • AEM 30-2224 - 8 Channel K-Type Thermocouple EGT CAN Module
  • AEM 30-2224 - 8 Channel K-Type Thermocouple EGT CAN Module
  • AEM 30-2224 - 8 Channel K-Type Thermocouple EGT CAN Module
  • AEM 30-2224 - 8 Channel K-Type Thermocouple EGT CAN Module
  • AEM 30-2224 - 8 Channel K-Type Thermocouple EGT CAN Module
  • AEM 30-2224 - 8 Channel K-Type Thermocouple EGT CAN Module
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
No Fitment Data
This product doesn't have fitment application data. Please verify fitment manually.
Adding to cart… The item has been added
SKU:
AEM-30-2224
UPC:
840879025977
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

AEM - 30-2224

8-Channel K-Type Thermocouple EGT/Temperature Sensor Module with CANbus connectivity, includes CAN Module, DTM connector plug, Velcro tab for mounting and instructions.

AEM Channel K-Type Thermocouple EGT/Temperature Sensor Module

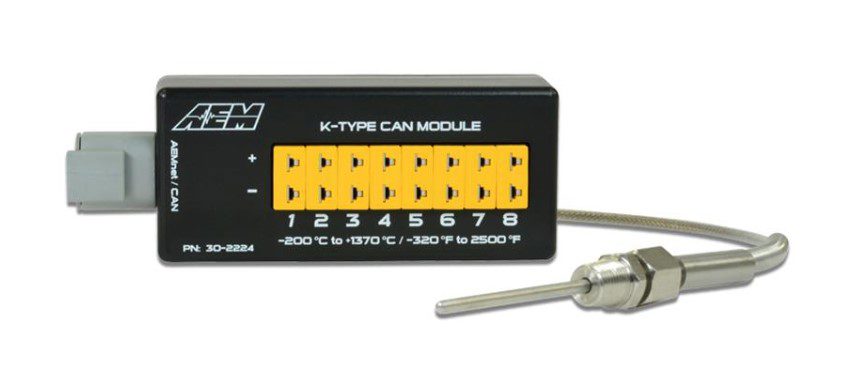

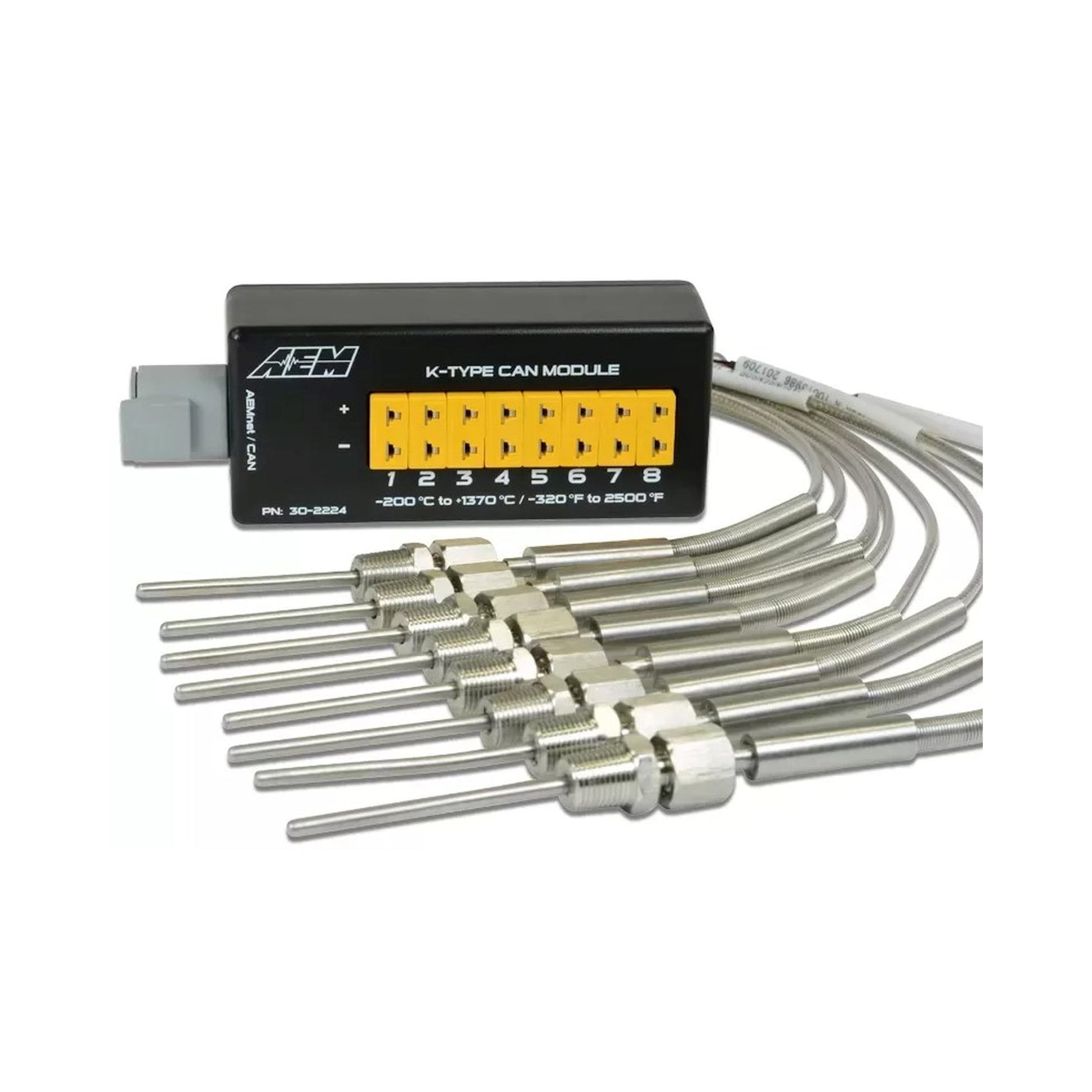

  • Includes 8 K-type thermocouple inputs to accept common K-type thermocouple sensors (sensors sold separately)
  • Uses common miniature thermocouple sockets
  • Daisy-chain two modules together for up to 16 temp inputs through a single plug!

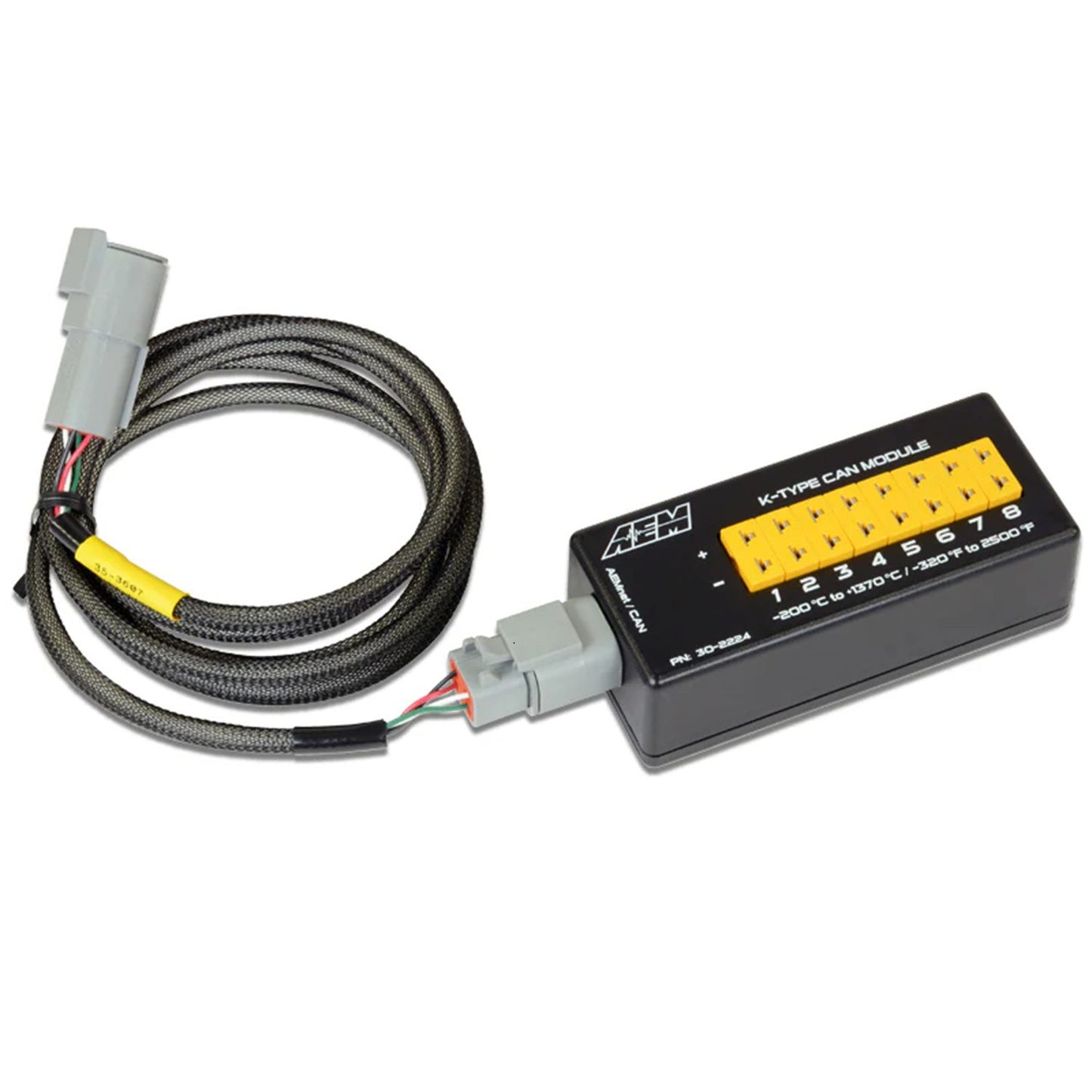

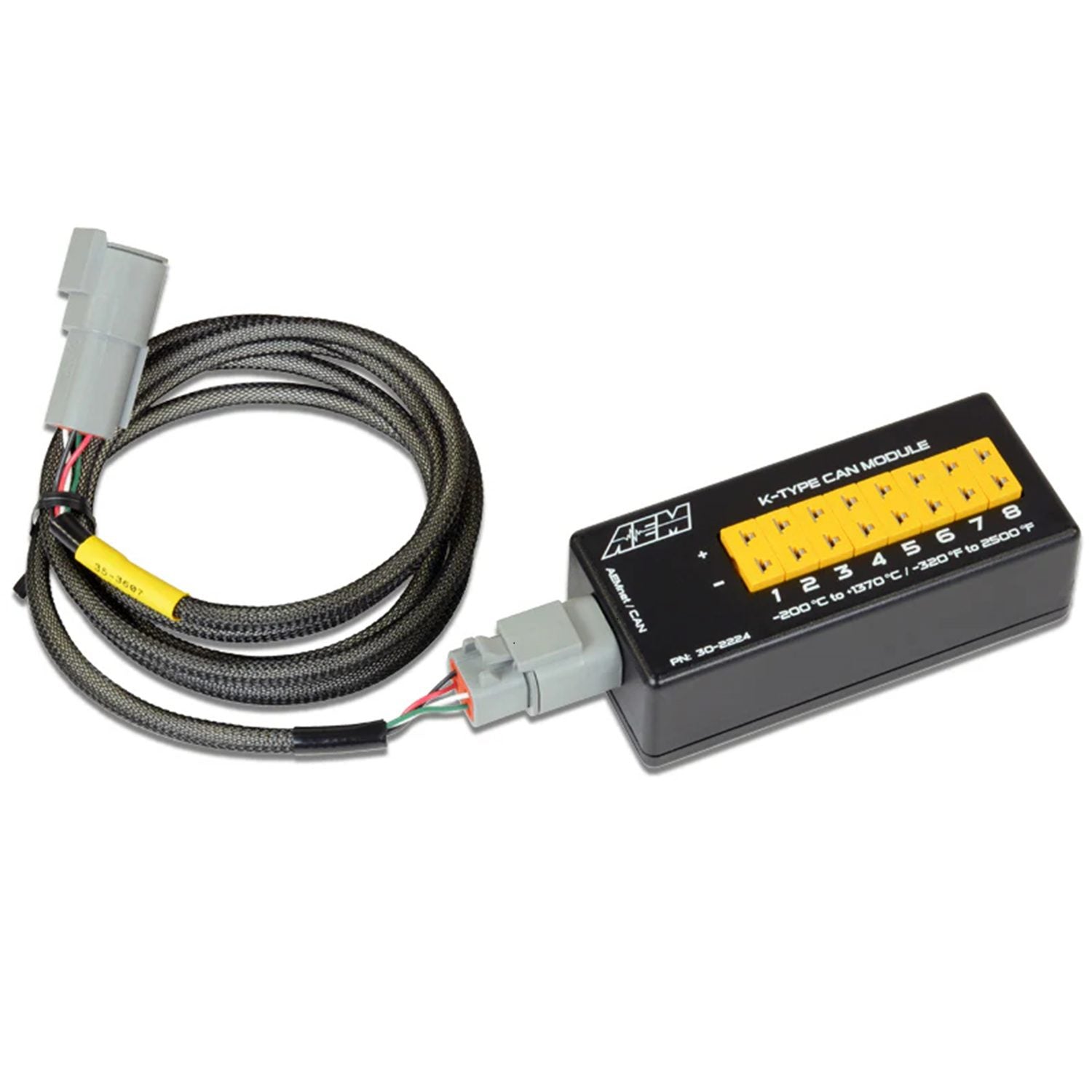

  • Outputs all channels via configurable CAN bus via one-plug connection (DTM-style Connection Cables sold separately in various lengths)
  • Pre-configured AEMnet CAN bus for plug & play connection to CD Digital Dashes, Infinity ECUs, and AQ-1 (not compatible with Series 2 ECU at this time)
  • Cold junction compensated for lab-grade accuracy (+/- 0.15% full scale)
  • Measures temperatures from -200 to 1372 degC (-328 to 2501 degF)
  • Temperature resolution 0.1 degC (0.18 degF)
  • Integrated open circuit/fault detection

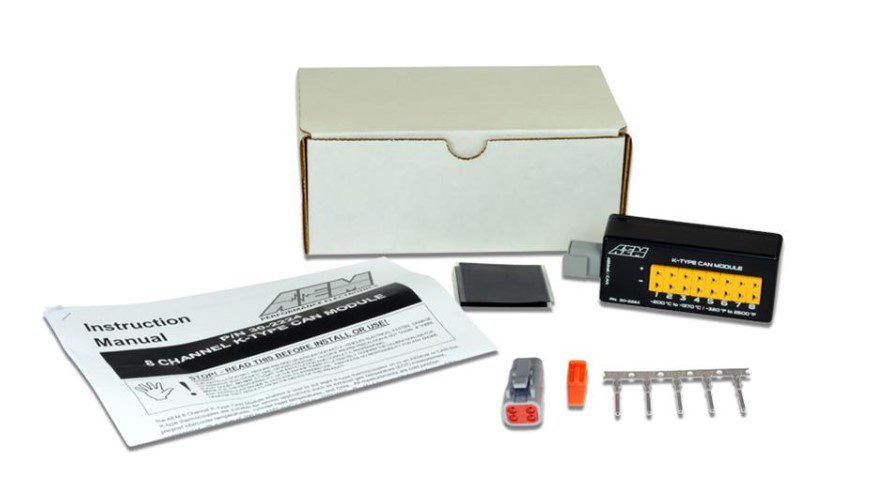

  • Includes 8-Channel K-Type EGT CAN Module, 4-Pin DTM-style Connector Plug, instructions and Velcro for in-vehicle mounting

Brand: AEM
Category: Exhaust
Connector Gender: Male Female
Connector Quantity: 1
Emission Code: 5
Grade Type: Professional
Product Type: Harness
Sub Category: Control Modules
Terminal Gender: Male Female
Terminal Type: Blade
Warning: California Proposition 65
Warranty: Manufacturer's 1 Year Warranty
