AEM 30-2056 - 12 Position Universal Trim Pot

AEM 30-2056 - 12 Position Universal Trim Pot

AEM 12 Position Trim Pot

Universal 12 Position Trim Pot, Includes Trim Pot and Decals.

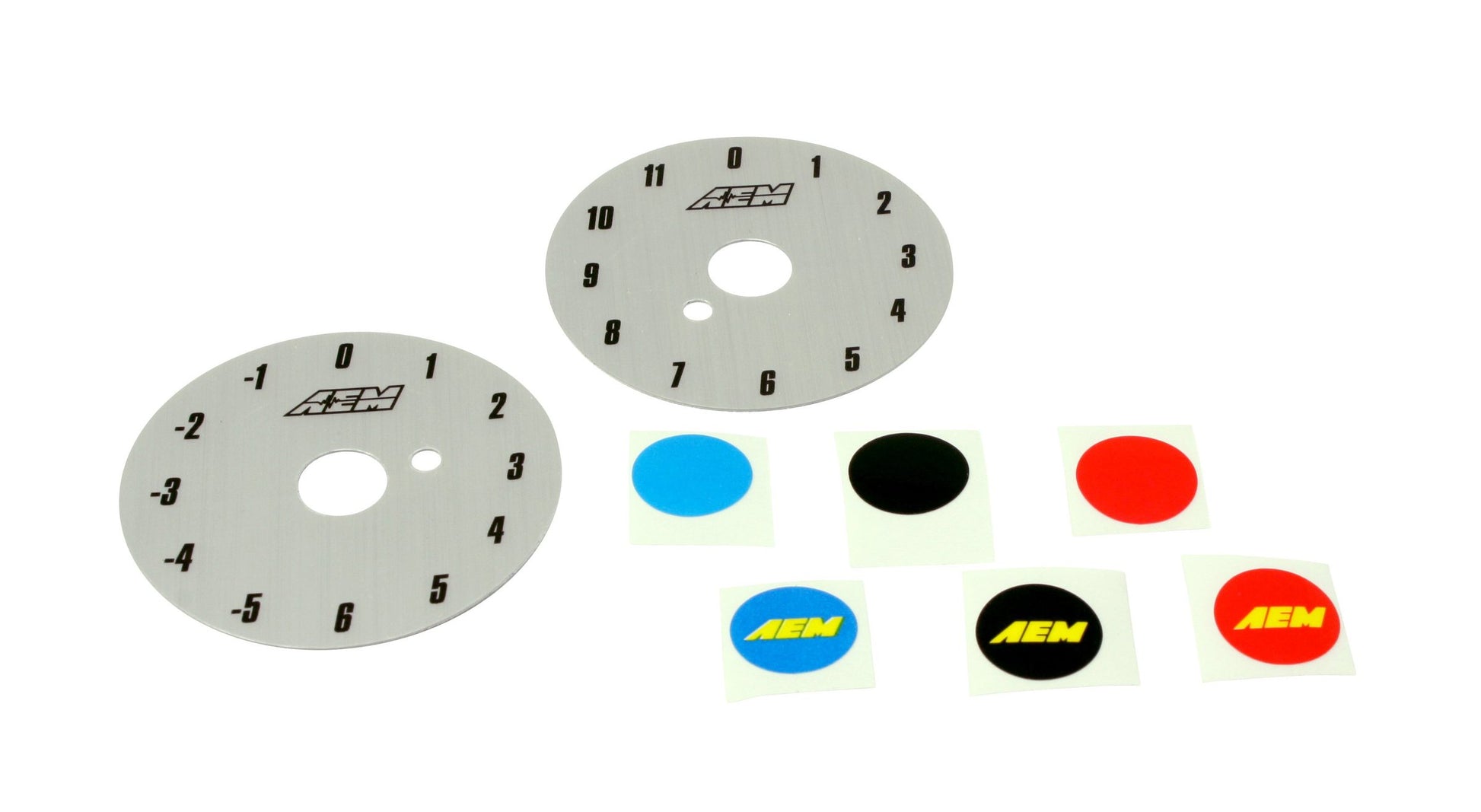

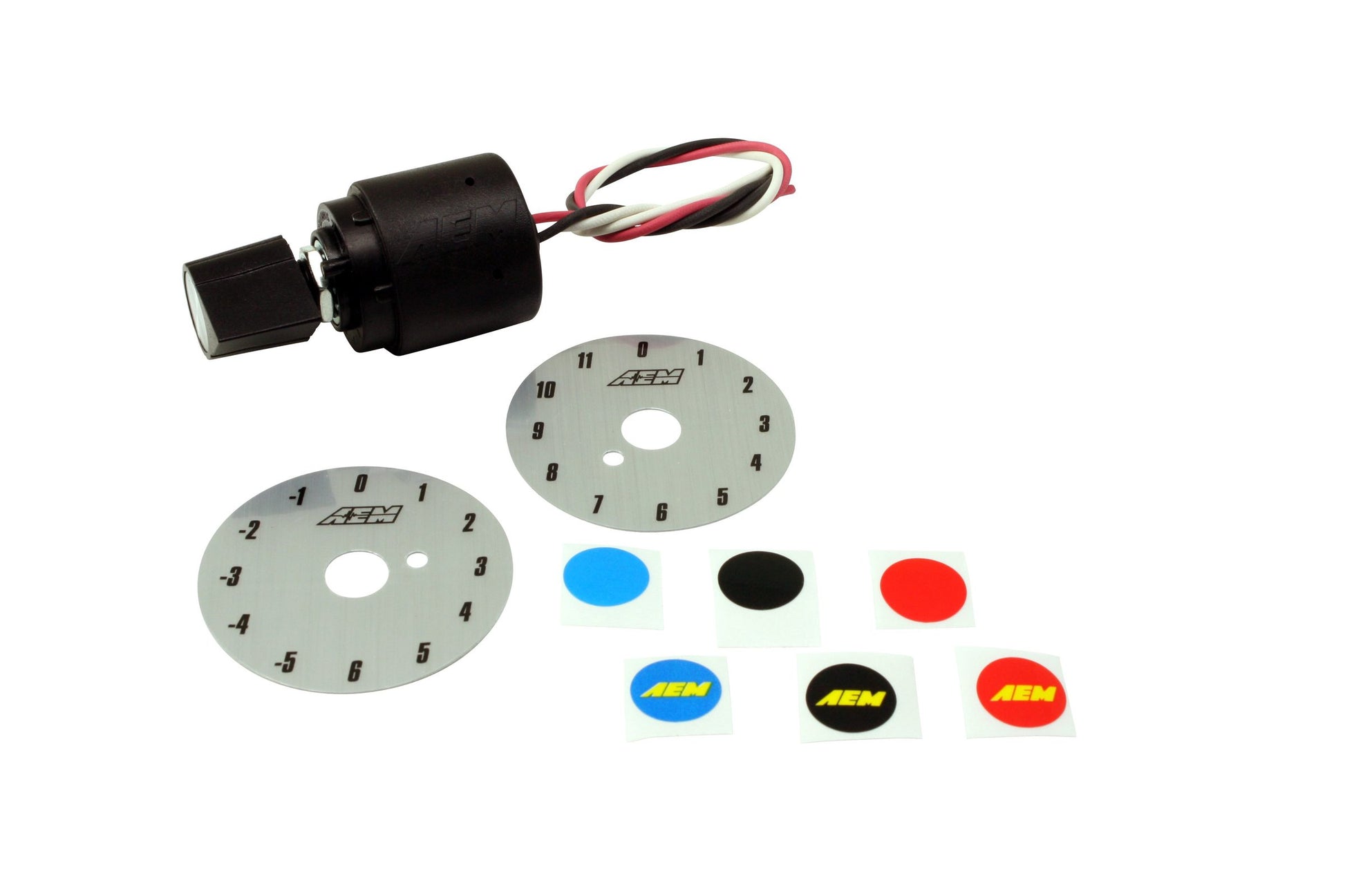

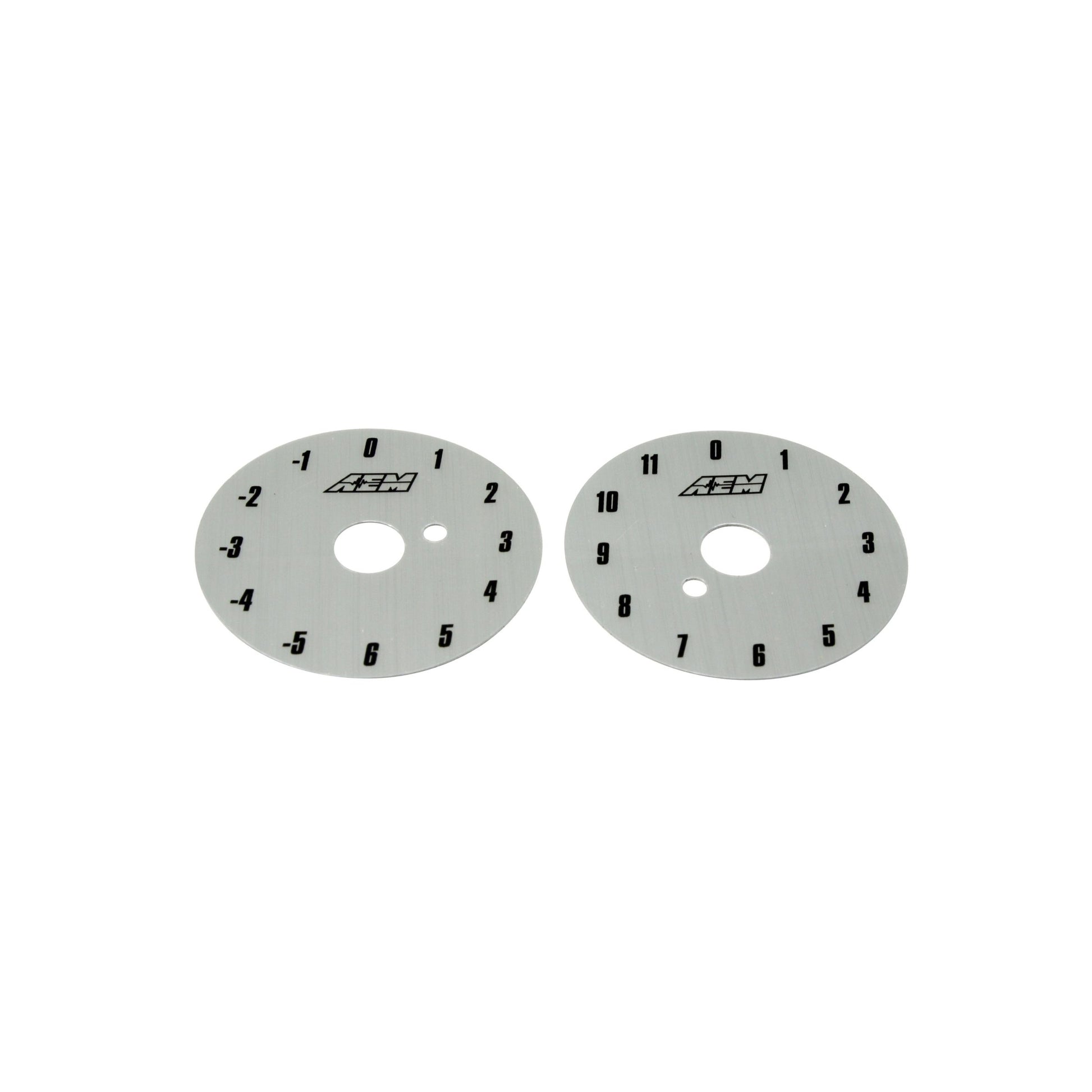

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors

• 12 Position Trim Pot Performance Specifications
• Total Resistance: 14.3KO
• Cycles Minimum: 10,000
• Positions: 12
• Degree Rotation: 330
• Mounting: 3/8" Hole
• Jam Nut: 1/2" Hex
• Knob Set Screw: 1/16" Allen
• Supply Current: 5 Vdc

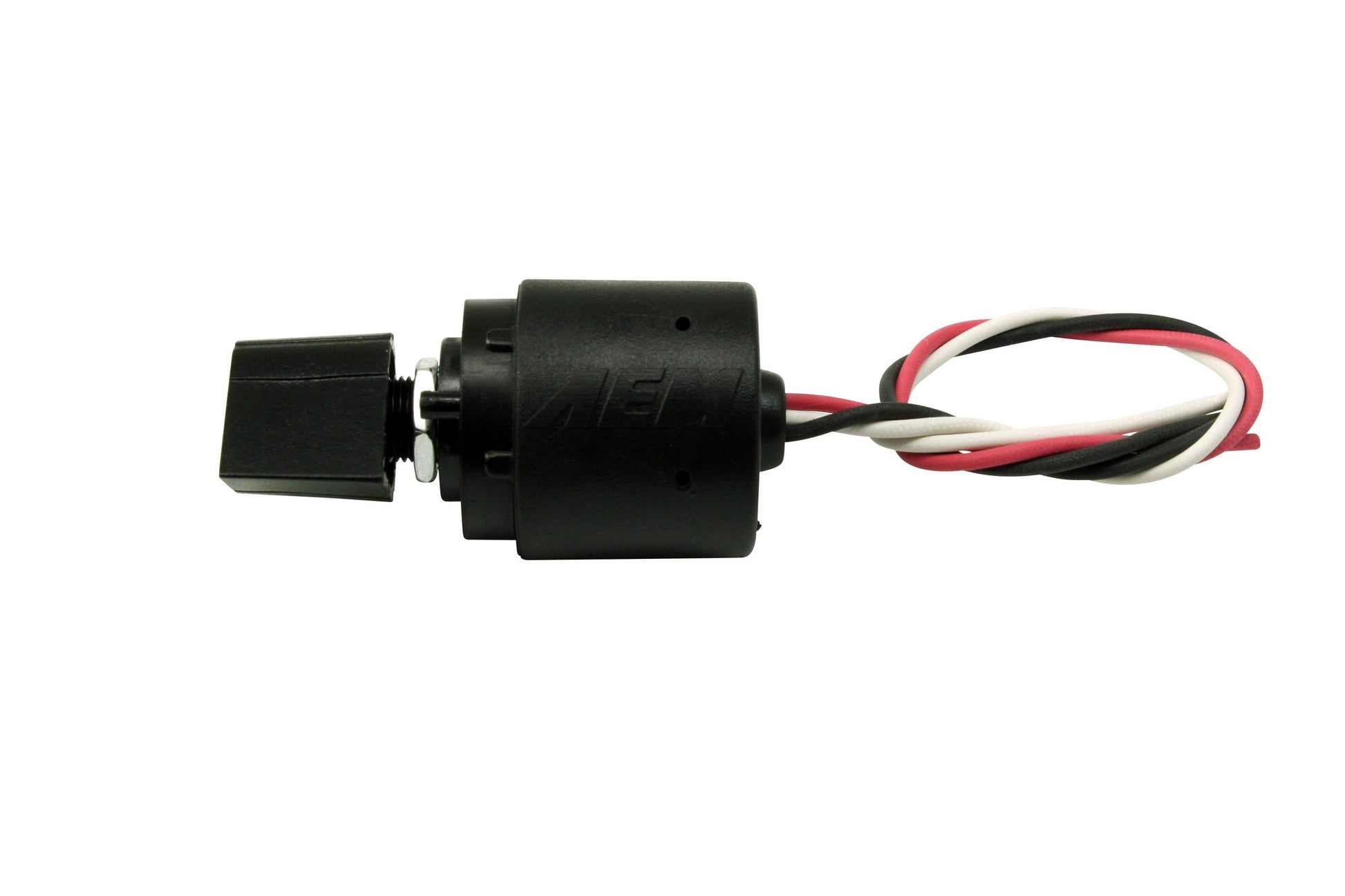

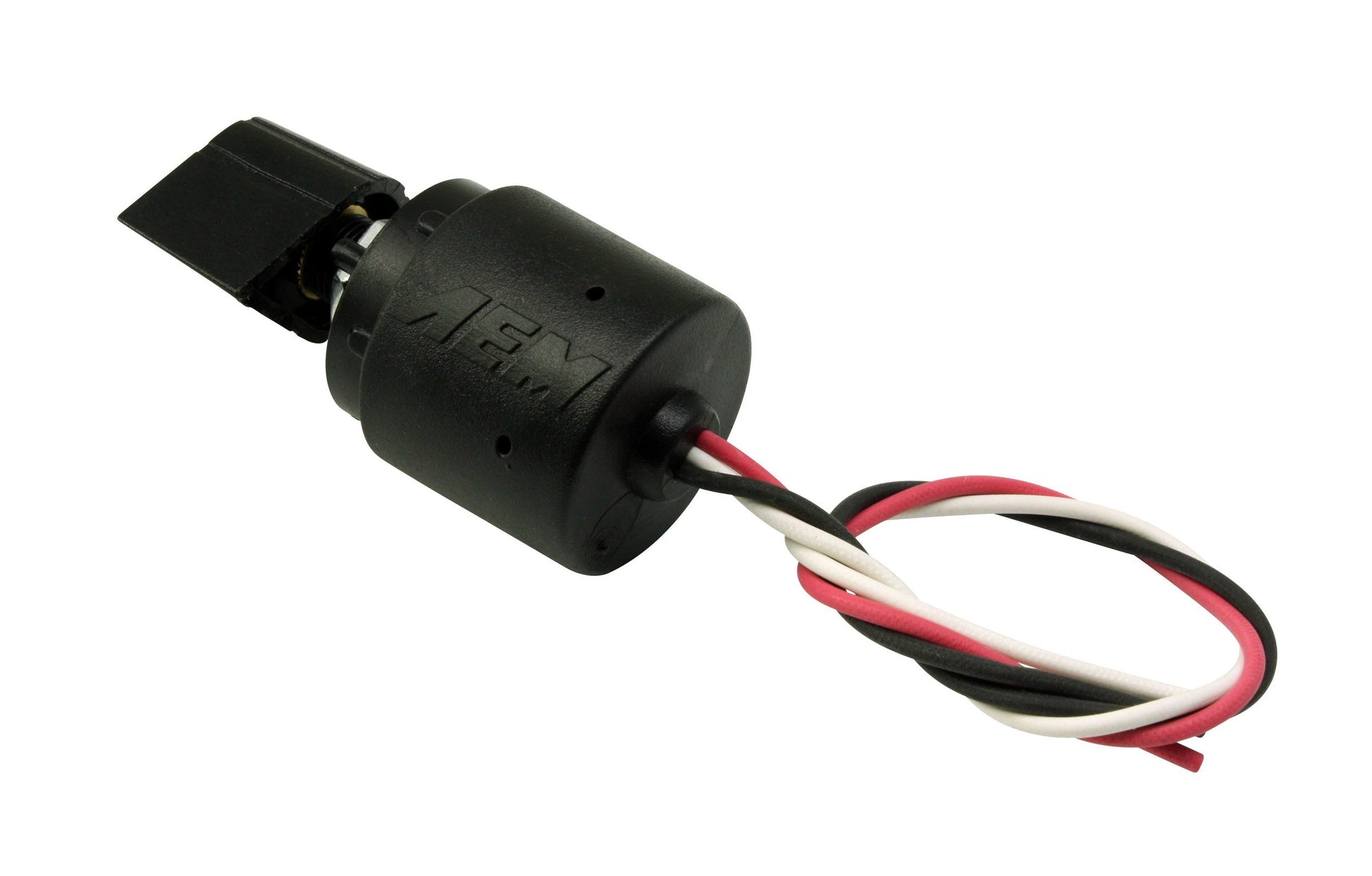

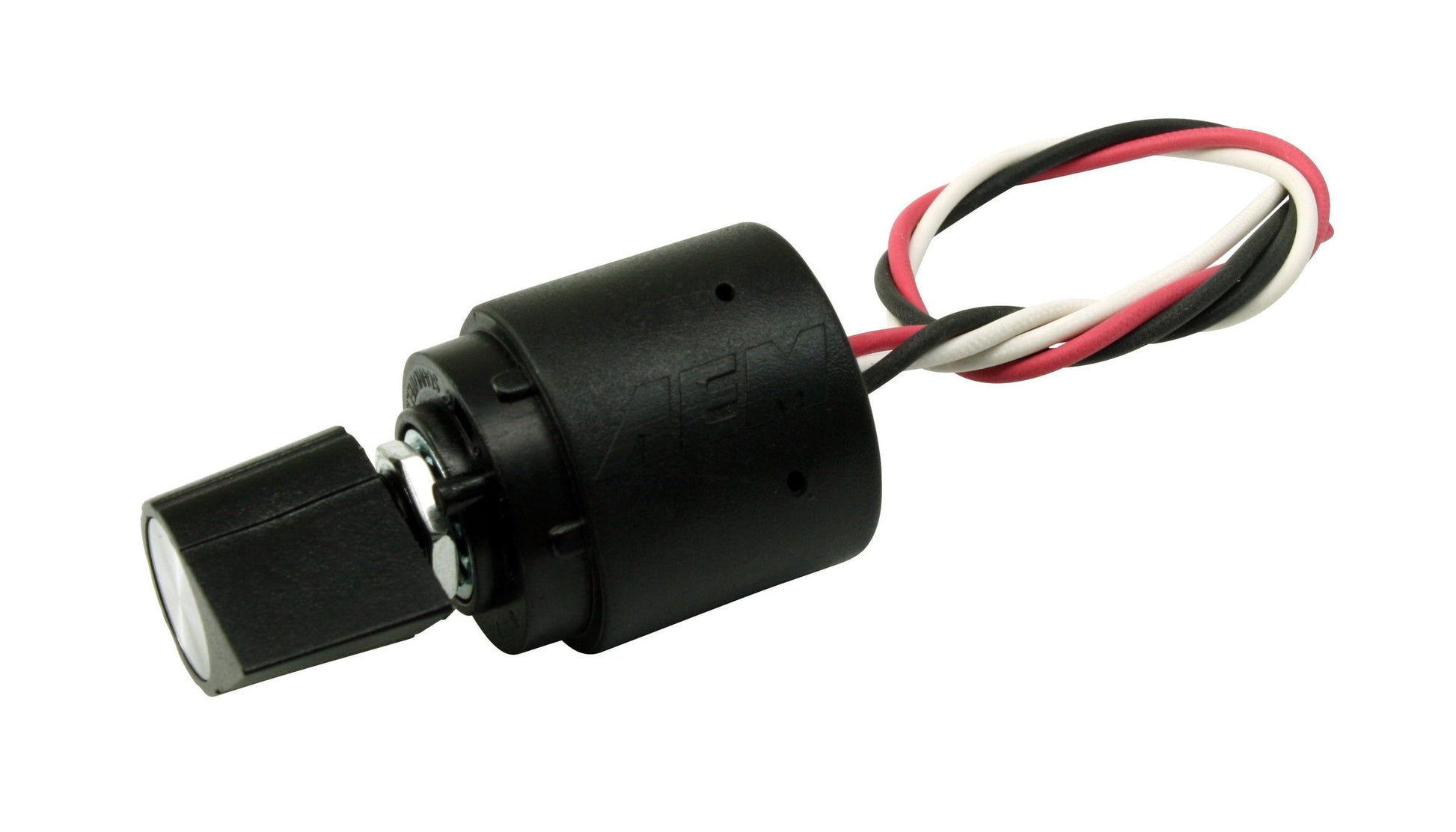

• Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
