AEM - 30-0303
Voltmeter - X-Series - 8-18V - Electric - Digital - 2-1/16 in Diameter - Black Face - Each

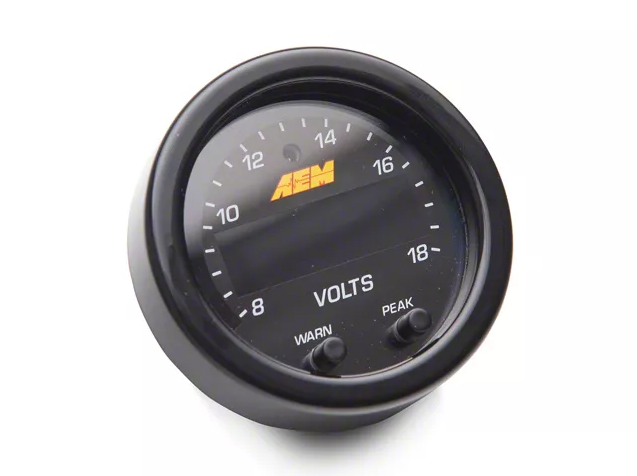

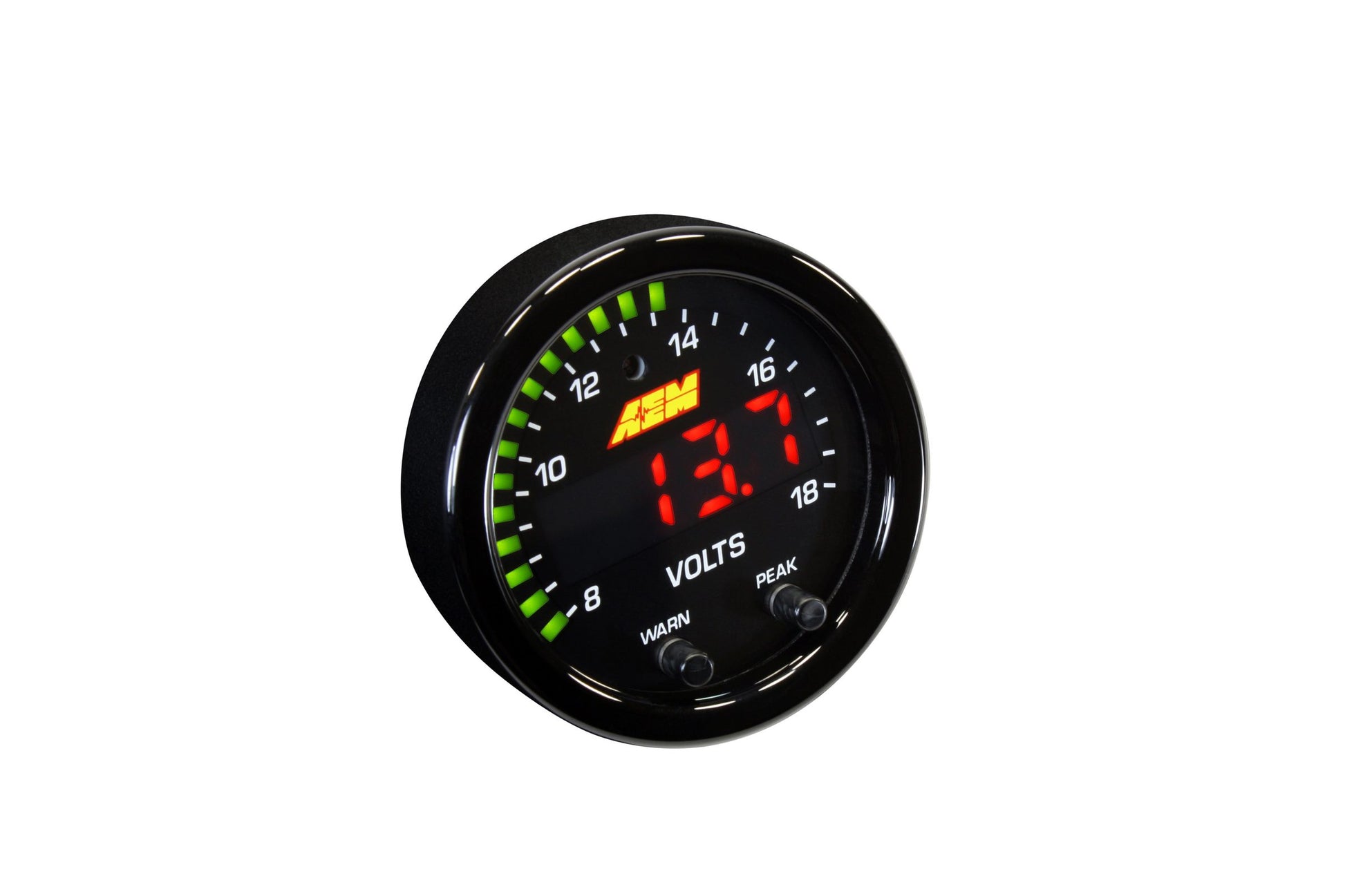

X-Series Volt Gauge 8-18V, Black Bezel and Black Faceplate
X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall on the Volts gauge. All X-Series gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
- 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
- Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
- Programmable LED is 87% larger than original AEM gauges
- 24 green outer LEDs for quick reference to system voltage
- Peak/Recall via gauge face buttons
- Optional silver bezel with white faceplate accessory kit available (sold separately)
- AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
- 0-5v analog outputs for transmitting data to EMS or Data Logger
- Auto dimming sensor delivers ideal display brightness
- Positive locking connectors provide secure connection
Bezel Color: Black
Bezel Material: Plastic
Brand: AEM
Category: Body
Color Change Button: No
Dimmable: No
Display Format: Digital
Emission Code: 5
Product Type: Volt Gauge
Sub Category: Instrument Panel
Warning: California Proposition 65
Warranty: Manufacturer's 1 Year Warranty
