AEM - 30-0300NS

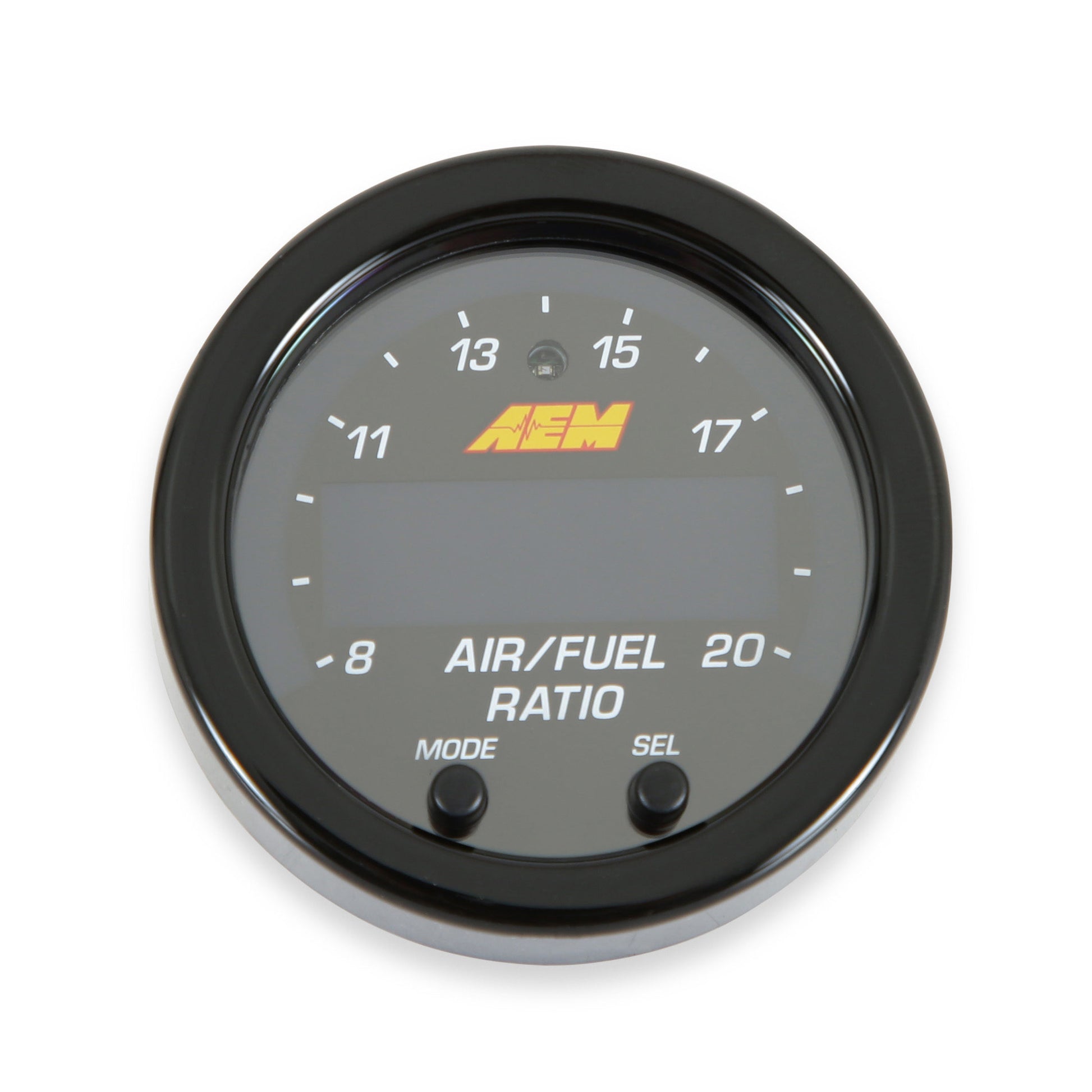

AEM X-Series Wideband UEGO AFR Gauge Only (no sensor)
X-Digital Technology - 8.50:1 to 18:1 AFR Scale
X-Series Wideband UEGO AFR Gauge Only
- X-Series Wideband UEGO AFR Controller Gauges were the fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitor wideband AFR controllers
- Patented X-Digital wideband technology (Patent 9,575,030)
- Auto-Sensor Detection between AEM FAE and Bosch LSU 4.9 wideband sensors
- Compatible with supply voltages up to 16V
- 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
- 52mm gauge diameter and slim 0.825" gauge depth(Gauge cup depth only .200" deep)
- Auto-dimming feature
- User-configurable display for changing between AFR, Lambda, and O2%, and 3- or 4-digit display
- Black bezel and black double-sided faceplate included (silver bezel/white faceplate option sold separately, PN 30-0300-ACC)
Brand: AEM
Category: Body
Emission Code: 5
Gauge Diameter: 2 1/16
Grade Type: Performance
Grade Type: Regular
Mounting Hardware Included: Yes
part type: Air / Fuel Ratio Gauge
Product Type: Wideband Controller
Sub Category: Instrument Panel
Universal Or Specific Fit: Universal
Warranty: Manufacturer's 1 Year Warranty
