AEM 25-201BK - Universal High Flow -10 AN Inline Black Fuel Filter

AEM 25-201BK - Universal High Flow -10 AN Inline Black Fuel Filter

Fuel Filter - In-Line - 7 Micron - Paper Element - 10 AN Female O-Ring Inlet - 10 AN Female O-Ring Outlet - Aluminum - Black Anodized - Each

Universal High Volume Fuel Filter, Inlet -10AN, Outlet -10AN, 2 inch diameter

AEM's Universal High Flow -10 AN Inline Filter is specifically engineered for maximizing flow without sacrificing filtration, and is designed for ease of installation. The end caps are machined with -10AN female fittings that allow the filter to flow up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI. Machined O-ring receiver grooves on the end caps ensure against leaks, and all sealing o-rings and gaskets are made of Viton for outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels. The commonly available replacement filter cartridges filter particles as small as 7 microns. The filter's standard 2" OD allows for easy mounting virtually anywhere in the vehicle for easy access.

• Flows up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI
• Filters particles as small as 7 microns
• Machined from 6061-T6 aluminum with a black hard anodized finish
• Viton o-rings and gaskets ensure outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels

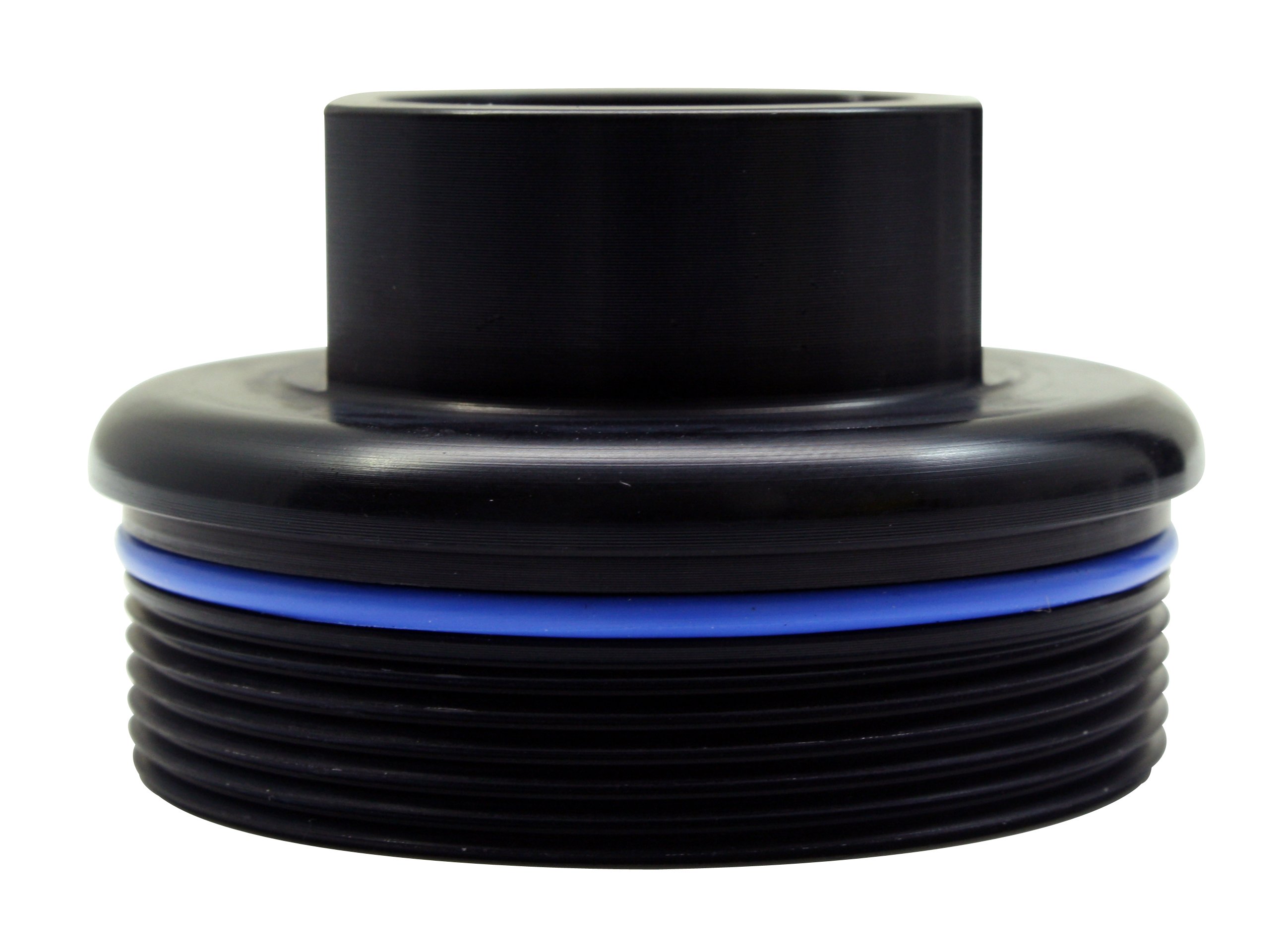

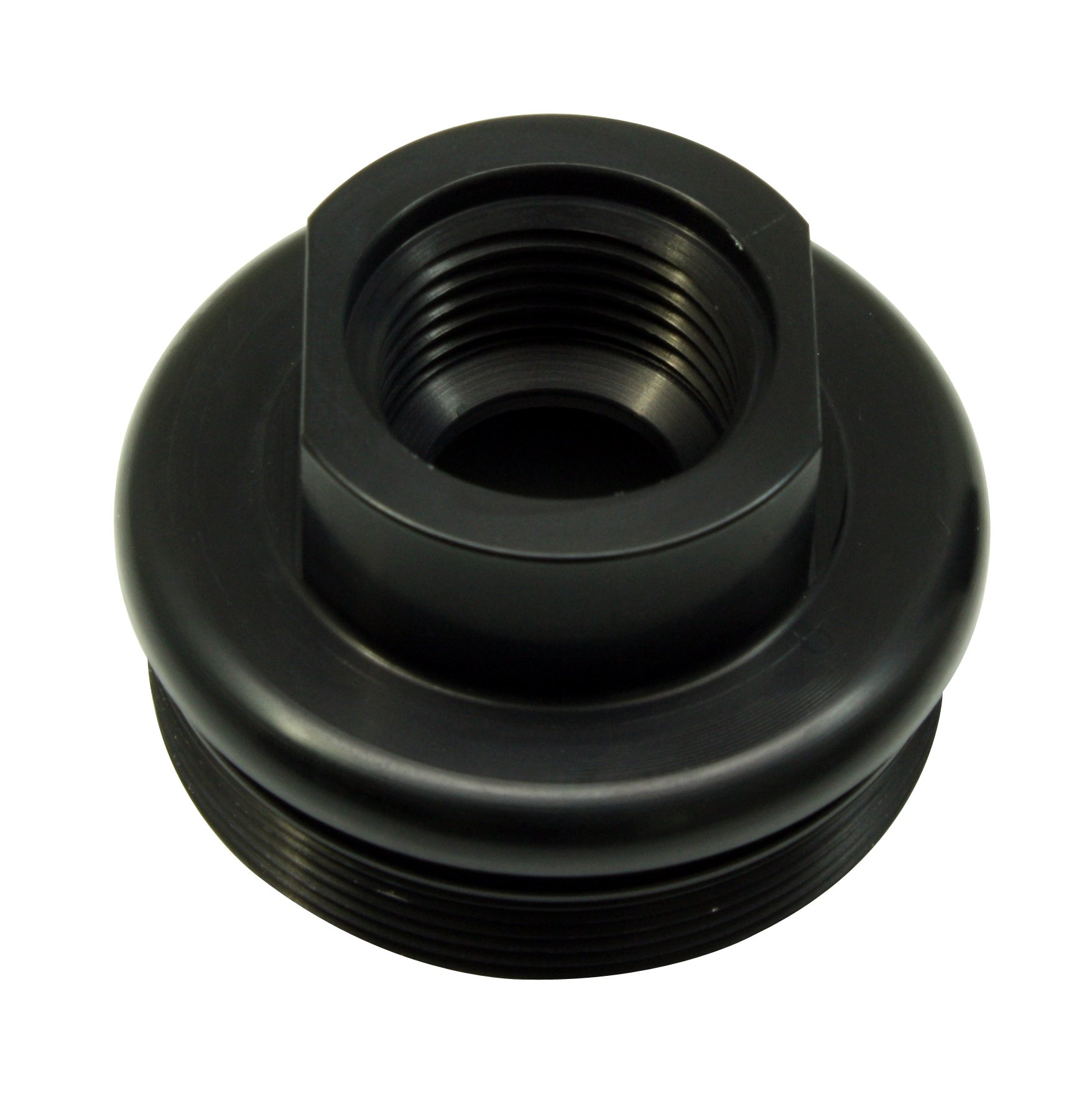

• End caps are machined with -10 AN female fittings with o-ring receiver groove
• End caps have pressure intensifiers for greater sealing of end gaskets
• 2" OD x 10" length for easy mounting

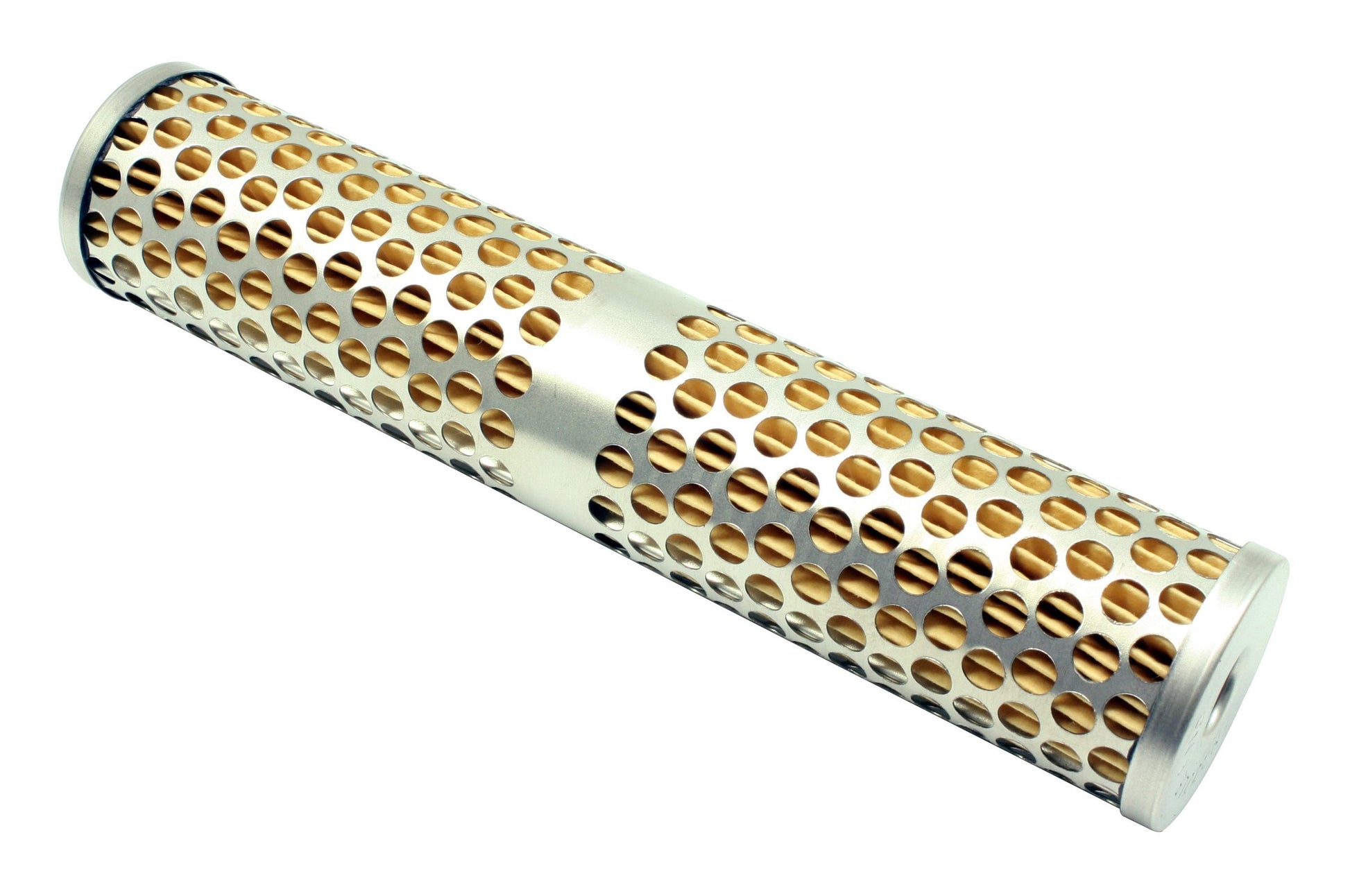

• Commonly available replacement filter cartridges

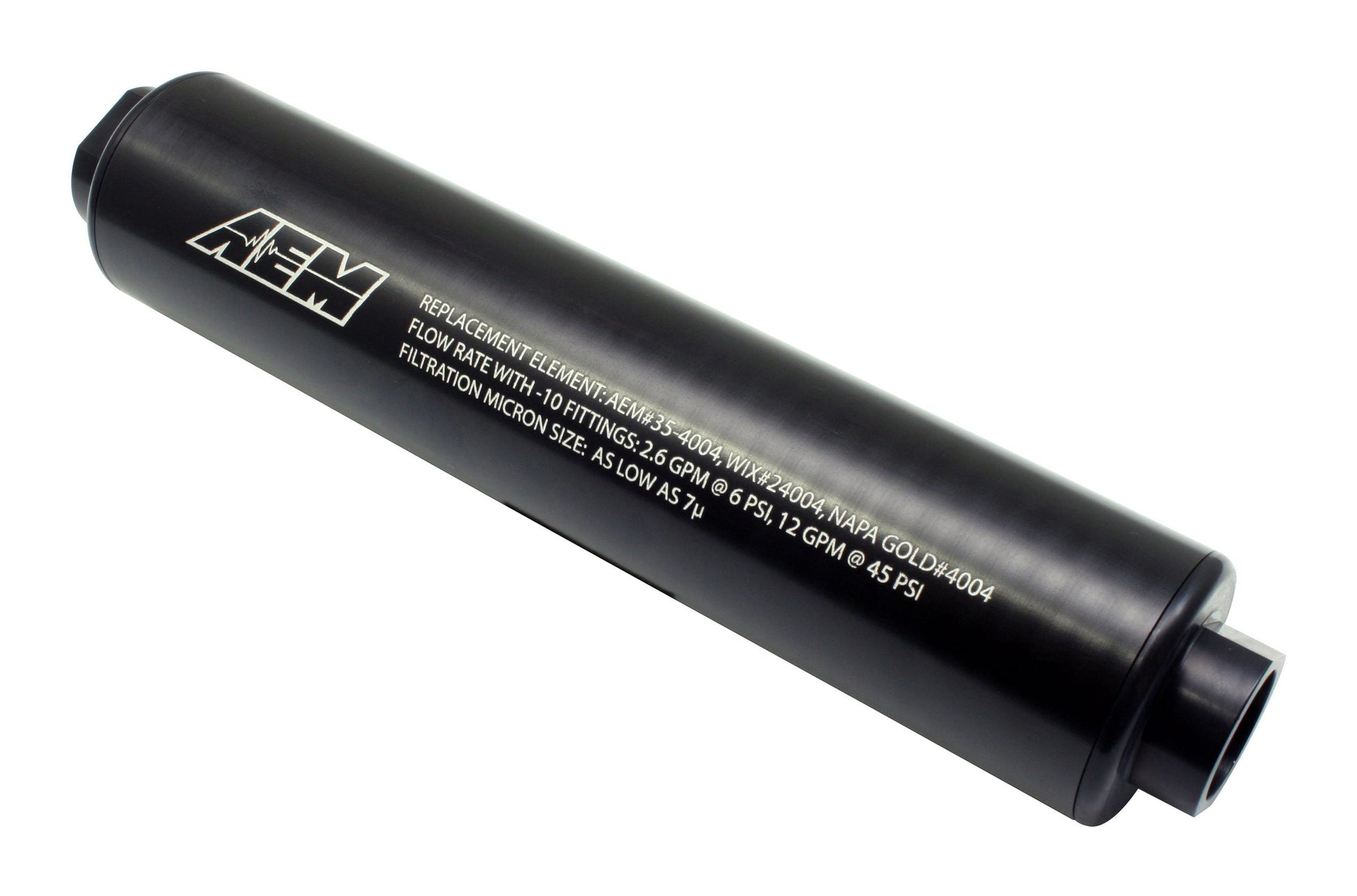

• Laser etched with AEM logo, flow and comes with filter replacement information
