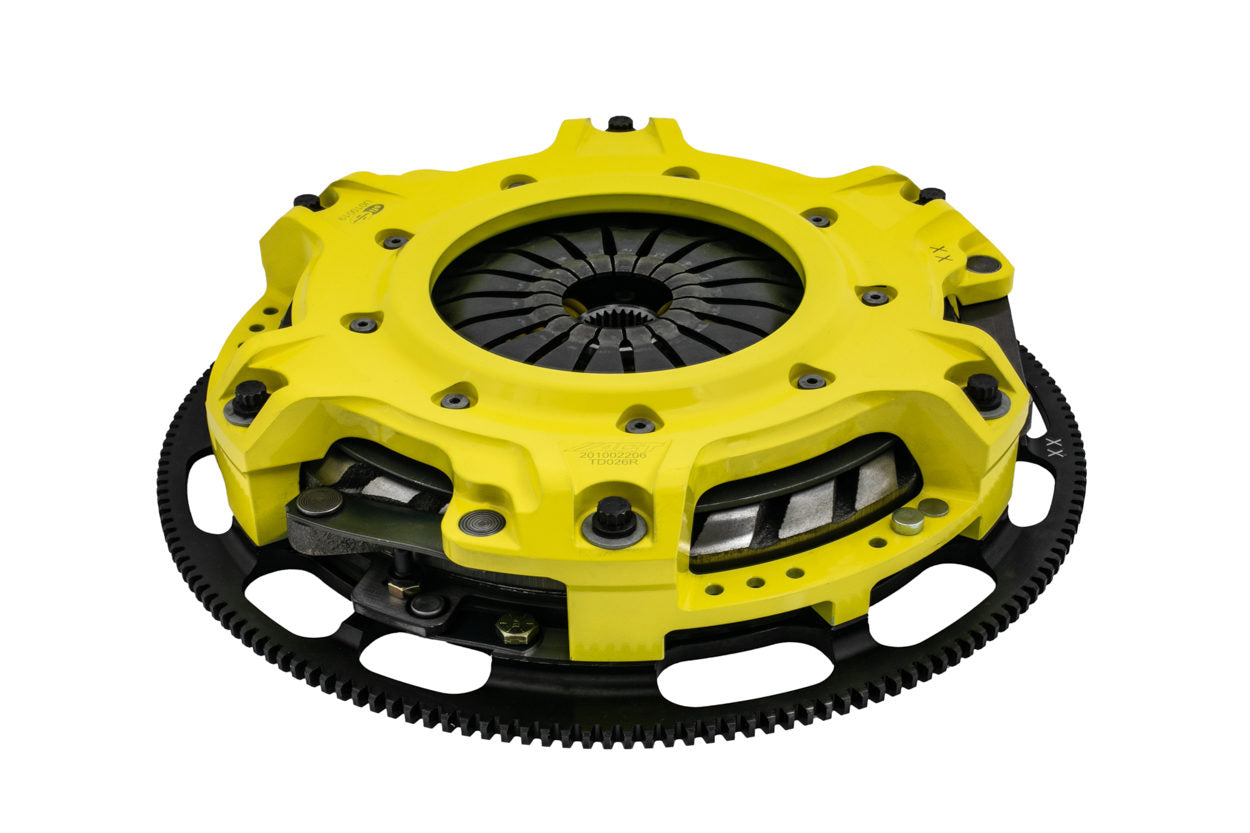

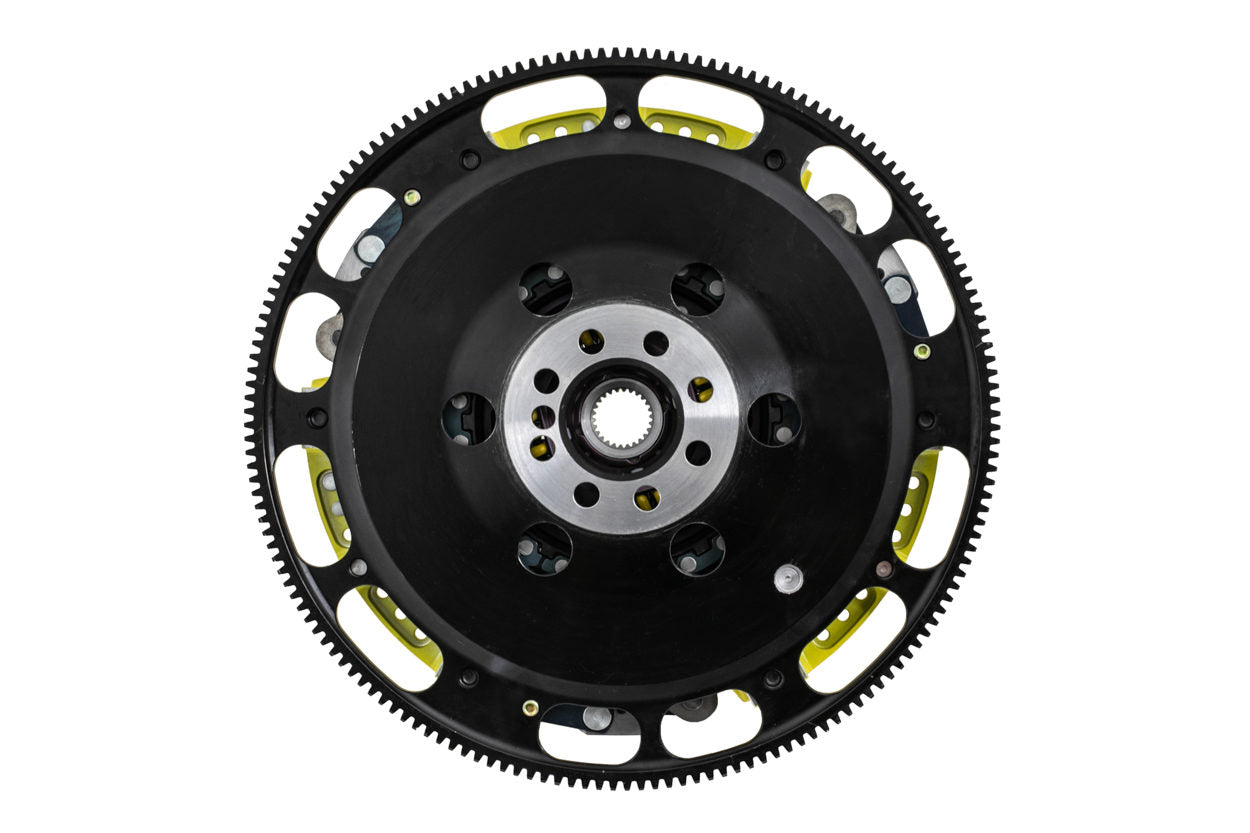

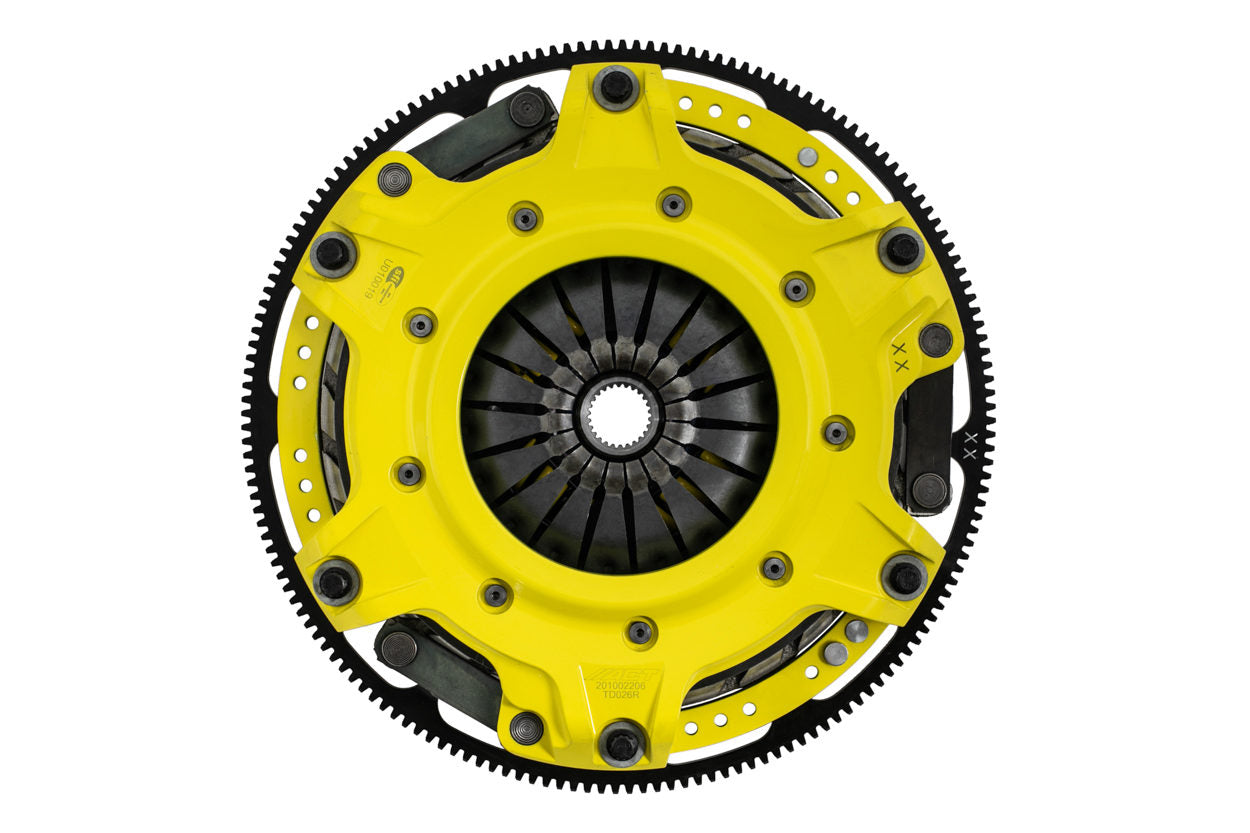

ACT T1S-G20 - 16-24 Chevy Camaro SS / 20-24 Camaro LT-1 Mod-Twin 10.5 HD Rigid Disc Street Clutch Kit

ACT T1S-G20 - 16-24 Chevy Camaro SS / 20-24 Camaro LT-1 Mod-Twin 10.5 HD Rigid Disc Street Clutch Kit

ACT | T1S-G20
SKU: ACT-T1S-G20
Regular price $1,852.20 USD
Regular price $2,037.42 USD Sale price $1,852.20 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

ACT T1S-G20 - 16-24 Chevy Camaro SS / 20-24 Camaro LT-1 Mod-Twin 10.5 HD Rigid Disc Street Clutch Kit

ACT Mod-Twin 10.5 Heavy Duty Rigid Street Clutch Kit

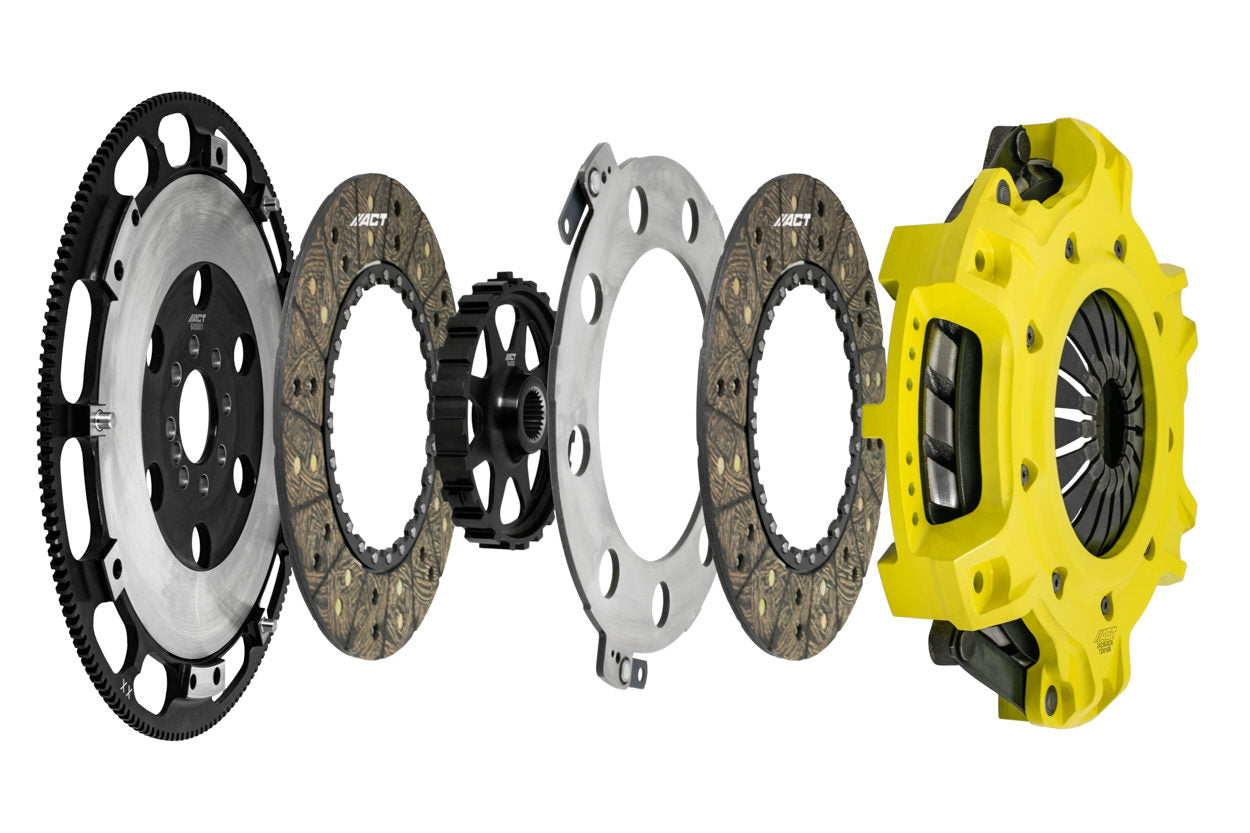

T1S-G20 Mod-Twin 10.5 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high-powered street machines by combining twice the organic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a light and consistent pedal feel. Steel-backed Friction Plates with high quality performance organic friction materials deliver stable friction coefficient, improved heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive Chromoly hub, which is heat treated for strength and durability, extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Product Weight (lbs.): 39.7
SFI: 1.2
Torque Capacity (ft/lbs.): 986
Torque Capacity Over OE: 26%
Flywheel Included: Yes
Pilot Bushing Included: No
Pressure Plate Type: Heavy Duty
Release Bearing Included: No
Clutch Disc Diameter: 10.5
Clutch Disc Diameter: 267
Disc Material: Organic
Input Spline Quantity: 26
Input Shaft Diameter: 1.125
Alignment Tool Included: Yes
Disc Type Sprung Solid: Solid
Pressure Plate Bolts Included: No
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: Yes
Pilot Bearing Included: Yes
Clutch Master Cylinder Included: No
