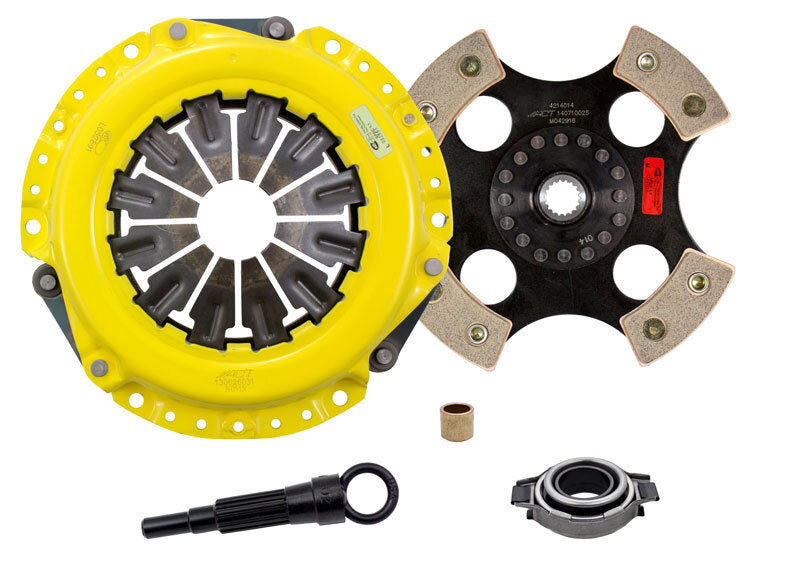

ACT NX9-XTR4 - 1996 Nissan 200SX XT/Race Rigid 4 Pad Clutch Kit

ACT NX9-XTR4 - 1996 Nissan 200SX XT/Race Rigid 4 Pad Clutch Kit

ACT | NX9-XTR4
SKU: ACT-NX9-XTR4
Regular price $509.00 USD
Regular price $628.00 USD Sale price $509.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

ACT NX9-XTR4 - 1996 Nissan 200SX XT/Race Rigid 4 Pad Clutch Kit

ACT Extreme Race Rigid 4 Pad Clutch Kit

XT/Race Rigid 4 Pad

NX9-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Product Weight (lbs.): 10.0
Torque Capacity (ft/lbs.): 410
Torque Capacity Over OE: 136%
Pilot Bushing Included: Yes
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 8.4
Clutch Disc Diameter: 214
Disc Material: Ceramic
Input Spline Quantity: 18
Input Shaft Diameter: 0.8125
Alignment Tool Included: Yes
Disc Type Sprung Solid: Solid
Pressure Plate Bolts Included: No
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Clutch Master Cylinder Included: No
