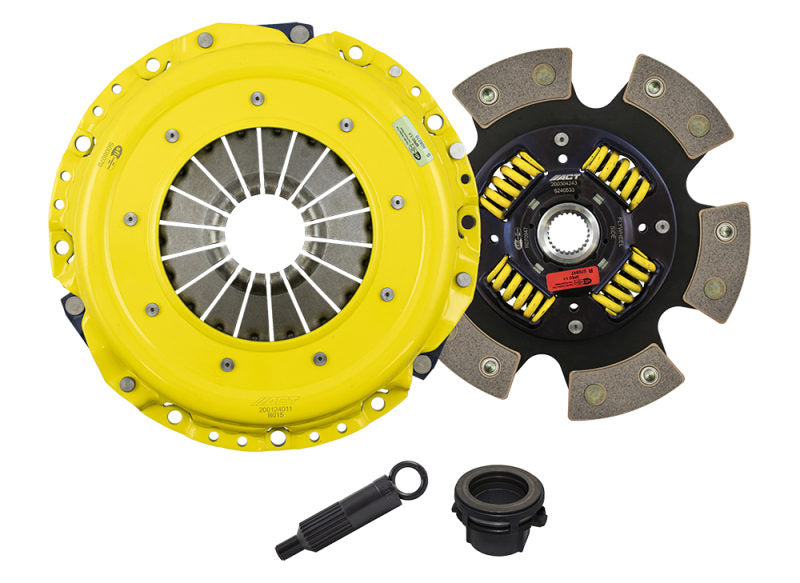

ACT BM16-HDG6 - 04-05 BMW 330i (E46) 3.0L HD/Race Sprung 6 Pad Clutch Kit (Must use w/ Flywheel)

ACT BM16-HDG6 - 04-05 BMW 330i (E46) 3.0L HD/Race Sprung 6 Pad Clutch Kit (Must use w/ Flywheel)

ACT | BM16-HDG6
SKU: ACT-BM16-HDG6
Regular price $819.90 USD
Regular price $901.89 USD Sale price $819.90 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

ACT BM16-HDG6 - 04-05 BMW 330i (E46) 3.0L HD/Race Sprung 6 Pad Clutch Kit (Must use w/ Flywheel)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit

HD/Race Sprung 6 Pad

BM16-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Part Fitment Requirement: Must be used with ACT flywheel (not included). Pressure plate bolts included (M8-1.25 x 20mm).
Product Weight (lbs.): 15.2
Torque Capacity (ft/lbs.): 596
Torque Capacity Over OE: 94%
Flywheel Included: No
Pilot Bushing Included: No
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 9.4
Clutch Disc Diameter: 240
Disc Material: Ceramic
Input Spline Quantity: 22
Input Shaft Diameter: 1.125
Alignment Tool Included: Yes
Disc Type Sprung Solid: Sprung
Pressure Plate Bolts Included: Yes
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Pilot Bearing Included: No
Clutch Master Cylinder Included: No
