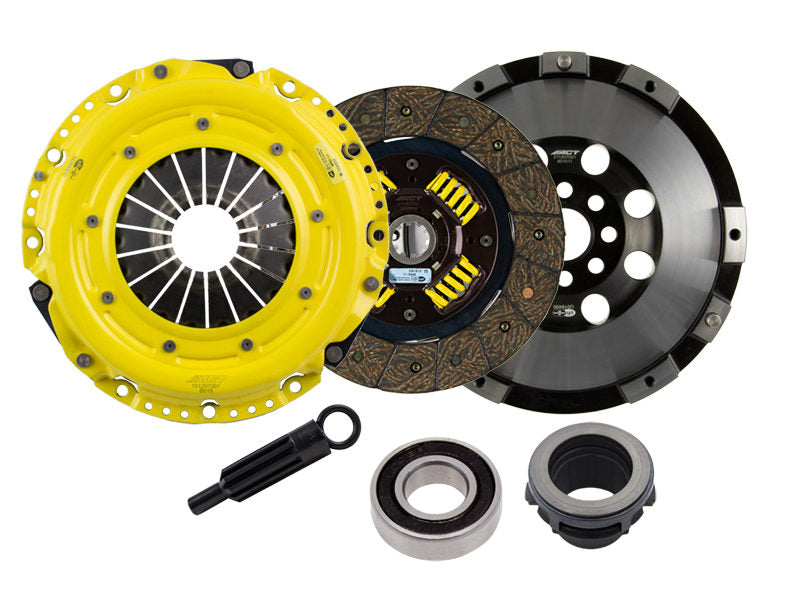

ACT BM12-XTSS - BMW 318/323/325/328/330/525/528/530/M3/Z3 XT/Perf Street Sprung Clutch Kit

ACT BM12-XTSS - BMW 318/323/325/328/330/525/528/530/M3/Z3 XT/Perf Street Sprung Clutch Kit

ACT | BM12-XTSS
SKU: ACT-BM12-XTSS
Regular price $1,440.00 USD
Regular price $1,584.00 USD Sale price $1,440.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

ACT BM12-XTSS - BMW 318/323/325/328/330/525/528/530/M3/Z3 XT/Perf Street Sprung Clutch Kit

ACT Extreme Performance Street Sprung Clutch Kit

XT/Perf Street Sprung

BM12-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Torque Capacity (ft/lbs.): 549
Torque Capacity Over OE: 79%
Flywheel Included: Yes
Pilot Bushing Included: No
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 9.4
Clutch Disc Diameter: 240
Disc Material: Organic
Input Spline Quantity: 10
Input Shaft Diameter: 1.125
Alignment Tool Included: Yes
Disc Type Sprung Solid: Sprung
Pressure Plate Bolts Included: Yes
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: Yes
Pilot Bearing Included: Yes
Clutch Master Cylinder Included: No
Flywheel Type: Streetlite
Part Fitment Requirement: Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M12-1.5 x 30mm). Pressure plate bolts included (M8-1.25 x 20mm).
Product Weight (lbs.): 30.2
